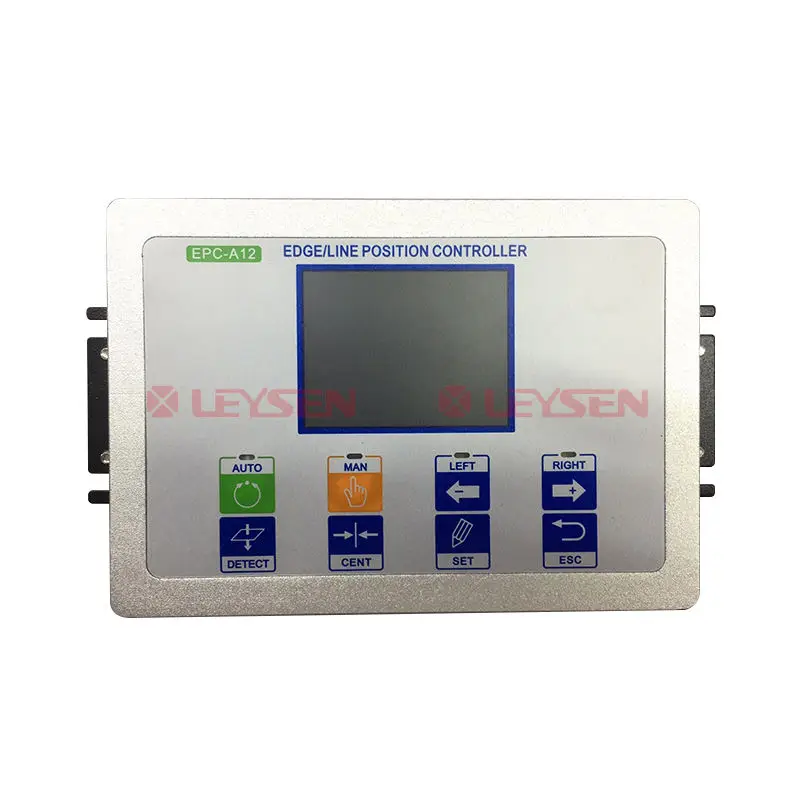

Фабрика рекомендует EPC-A12 цветной дисплей большой экран с низким уровнем шума высокоэффективная система управления веб-гидом
26 229,31 ₽ - 27 772,72 ₽
Автоматическая система контроля инспекции веб гида сервопривода
- Категория: >>>
- Поставщик: Wuxi Galy Co. Ltd.
Сохранить в закладки 1601235277757:
Описание и отзывы
Характеристики
Product Overview

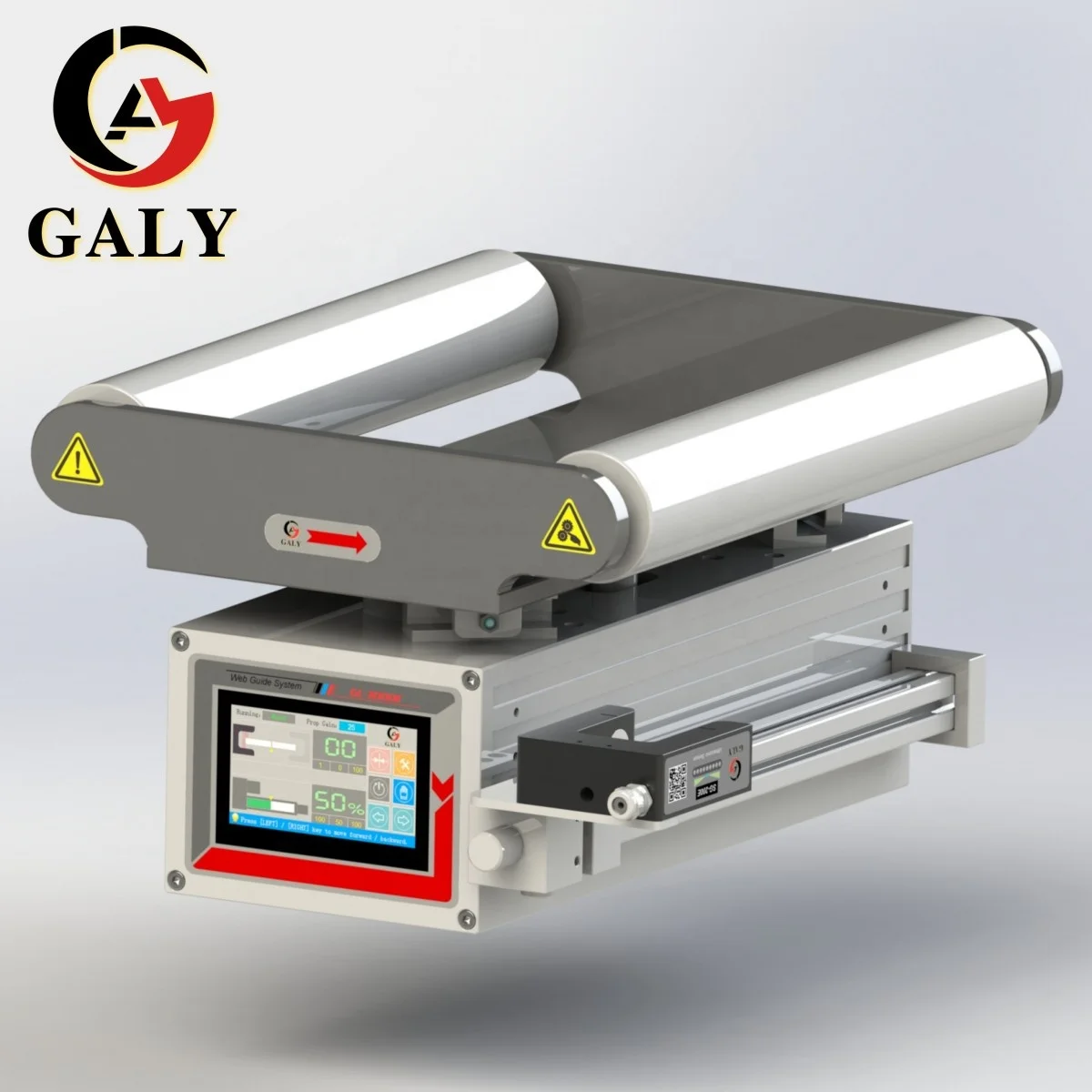

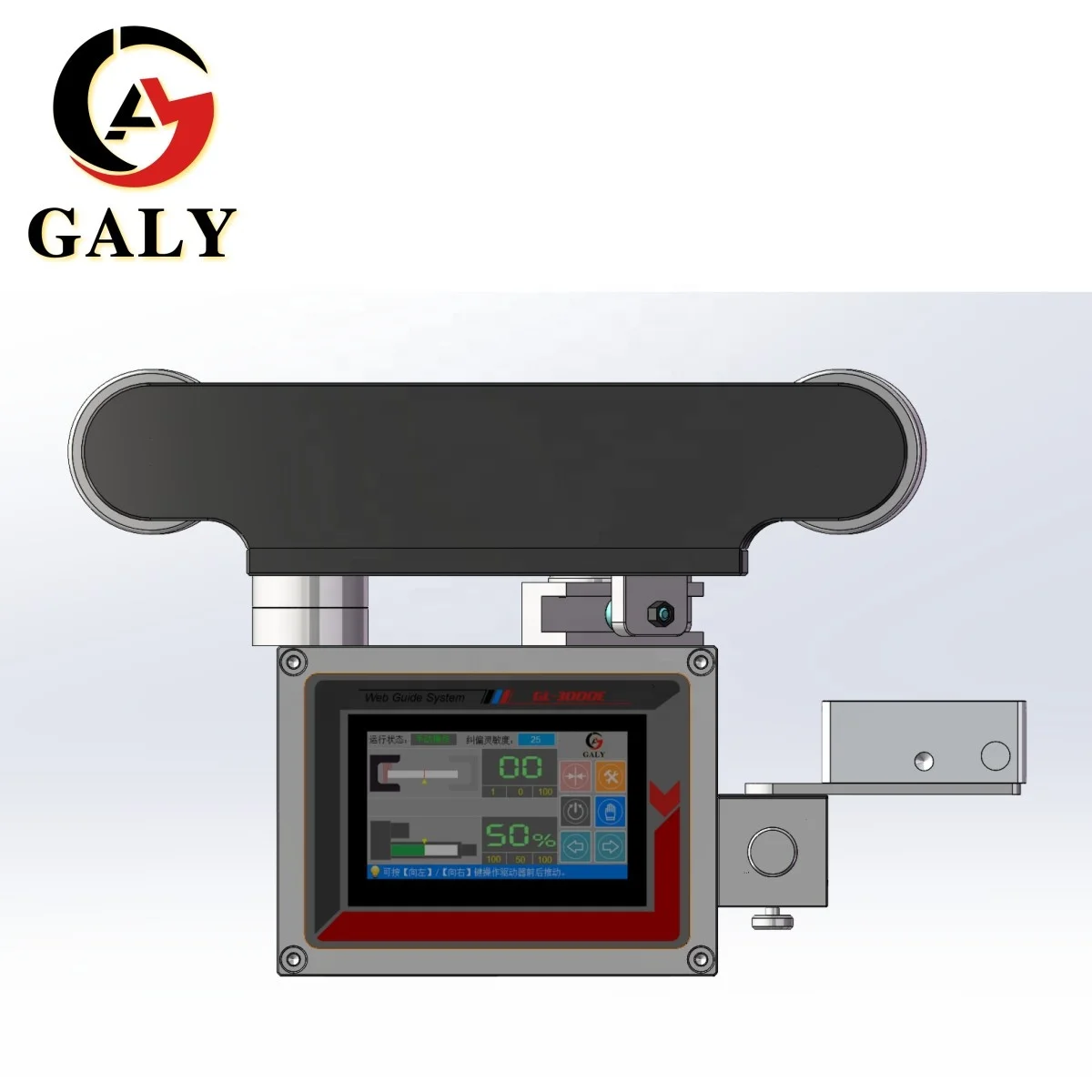

Servo Brushless Web guide system GL-3000E - All in one
GL-3000E All in one Web Guide system Features:
1 Real-time display of working state.
2 Intelligent judgment prompt of system failure.
3 Brushless servo drive, durable in use and free of maintenance.
4 High dynamic response with accurate location.
5 Limiting position point and centering point could be adjusted randomly.
6 Supporting standard Modbus（RS485）communication interface and remote IO controlling interface, facilitating
customer could carry out integration control in PLC system.
7 Connecting paper platform is applied pressing roll design, with larger operating space; Exclusive and overlength pressing paper air bag, with better customer experience.
8 Electric circuit with high integration level and lower failure rate.
1 Real-time display of working state.
2 Intelligent judgment prompt of system failure.
3 Brushless servo drive, durable in use and free of maintenance.
4 High dynamic response with accurate location.
5 Limiting position point and centering point could be adjusted randomly.
6 Supporting standard Modbus（RS485）communication interface and remote IO controlling interface, facilitating
customer could carry out integration control in PLC system.
7 Connecting paper platform is applied pressing roll design, with larger operating space; Exclusive and overlength pressing paper air bag, with better customer experience.
8 Electric circuit with high integration level and lower failure rate.
Installation Size and Installation Method
Technical Specifications
Positional accuracy | < ±0,1 mm (material-dependent) |
Error frequency | Max. 8 Hz |
Nominal actuating travel 180 mm/200 mm | Max. ± 19 mm/Max. ±21 mm |
Nominal actuating travel 250 mm/300 mm | Max. ± 14,5 mm/Max. ± 18 mm |
Nominal actuating speed at outfeed roller | 1 to 150 mm/s |
Web tension 160/200/250/300/350 mm | max. 300 N |
Web tension 400/450 mm | max. 200 N |

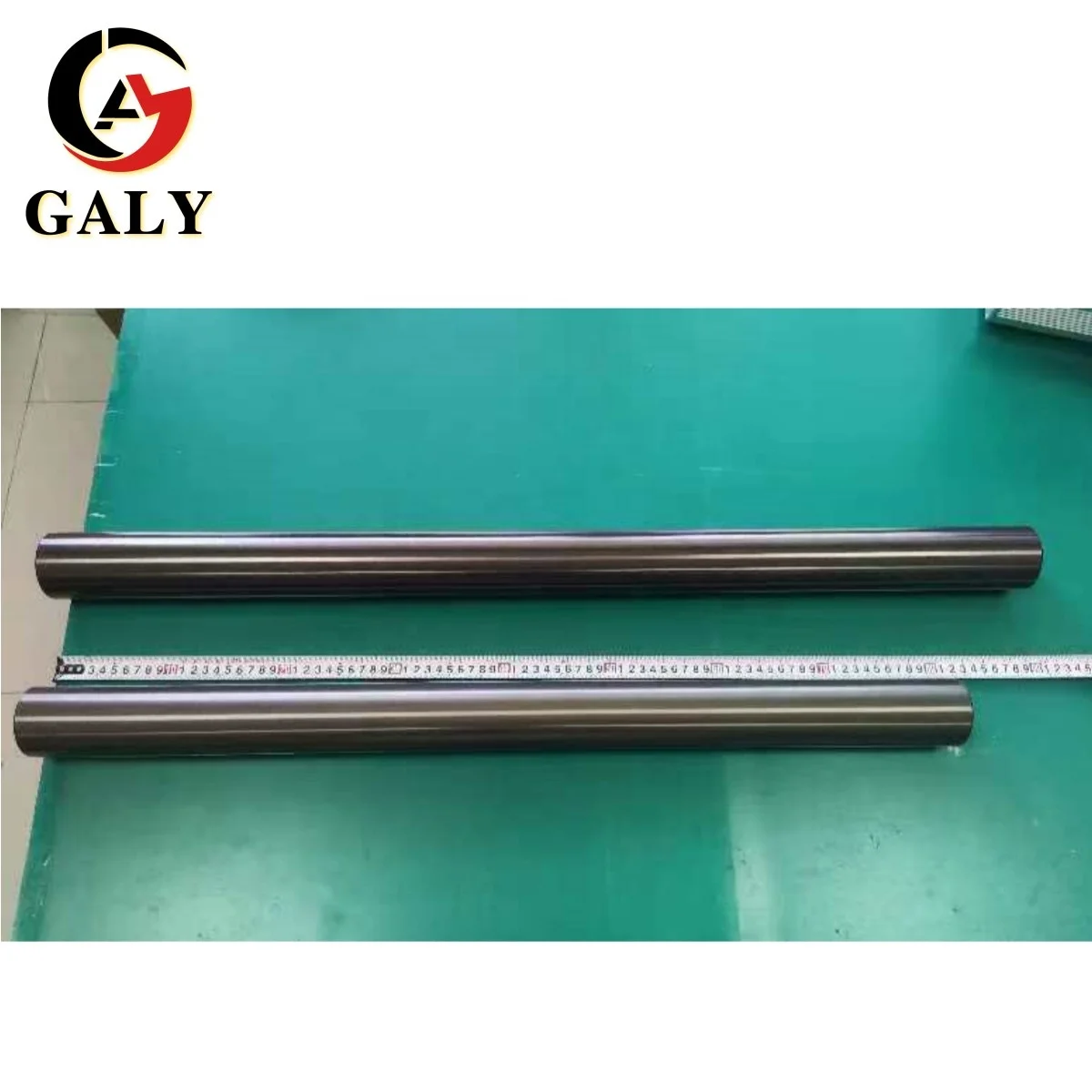

Roller diameter | 40/60/80 mm |
Ambient temperature | +10 °C to +50 °C |
Relative humidity | 15 to 95 % (non-condensing) |
Operating voltage, nominal value | 24 V DC |
Nominal range | 20 to 30 V DC (ripple included) |
Nominal range with power supply | 100 to 240 V, 50/60 Hz |
Current consumption | max. 4.5 A DC |
Illustration :
A = Web tension distribution at infeed |
B = Web tension distribution at outfeed |
K = Web correction | a = Correction angle max. ± 5° |σ 1 = Web basic tension |σ2 = Tension distribution due to pivoting action of roller frame at the infeed |σ3 = Tension distribution due to pivoting action of roller frame at the outfeed |1 = Pivot point | 2 = Infeed roller | 3 = Roller frame | 4 = Sensor | 5 = Locking roller | L = Transfer length | L1 = Infeed path
| L2 = Outfeed path |AB = Operating width |
B = Web tension distribution at outfeed |
K = Web correction | a = Correction angle max. ± 5° |σ 1 = Web basic tension |σ2 = Tension distribution due to pivoting action of roller frame at the infeed |σ3 = Tension distribution due to pivoting action of roller frame at the outfeed |1 = Pivot point | 2 = Infeed roller | 3 = Roller frame | 4 = Sensor | 5 = Locking roller | L = Transfer length | L1 = Infeed path
| L2 = Outfeed path |AB = Operating width |
Web Guide Controller
Features :
◎Reaction time 2ms, high precision;
◎System control accuracy 0.1mm;
◎ Can drive various EURDOW drives;
◎It can be connected to various EURDOW rectification sensors, which can realize rectification functions such as
edge tracking, dual sensor centering, and line tracking;
◎Using OLED high-resolution display screen to fully control the real-time status of the system;
◎Real-time display of material deviation, driver position current, temperature;
◎Screen sleep energy saving and screen lock protection;
◎Automatic running state can quickly modify system parameters online;
◎Abundant rectification functions: serpentine oscillation rectification, multi-layer rectification, material fault tolerance, etc.
◎System control accuracy 0.1mm;
◎ Can drive various EURDOW drives;
◎It can be connected to various EURDOW rectification sensors, which can realize rectification functions such as
edge tracking, dual sensor centering, and line tracking;
◎Using OLED high-resolution display screen to fully control the real-time status of the system;
◎Real-time display of material deviation, driver position current, temperature;
◎Screen sleep energy saving and screen lock protection;
◎Automatic running state can quickly modify system parameters online;
◎Abundant rectification functions: serpentine oscillation rectification, multi-layer rectification, material fault tolerance, etc.
Parameters :
1. Processor (CPU): 32-bit high-performance microprocessor, the highest frequency is 48MHz;
2. Sensor interface: dual analog input;
3. Driver interface: support DC brushless motor driver, the maximum driving power is 240W;
4.1/0 interface: six-channel programmable remote control digital I/O;
5. Communication interface: RS485 (support Modbus-RTU protocol), which can be used for remote control;
6. Working environment: working temperature 0~-50*C; maximum humidity 5~9096, no condensation;
7. Power supply: 24V DC;
8. Protection circuit: support overcurrent, overvoltage, overload. Short circuit and power reverse connection protection:
9. Support limit alarm, fault alarm. Fault self-diagnosis.
2. Sensor interface: dual analog input;
3. Driver interface: support DC brushless motor driver, the maximum driving power is 240W;
4.1/0 interface: six-channel programmable remote control digital I/O;
5. Communication interface: RS485 (support Modbus-RTU protocol), which can be used for remote control;
6. Working environment: working temperature 0~-50*C; maximum humidity 5~9096, no condensation;
7. Power supply: 24V DC;
8. Protection circuit: support overcurrent, overvoltage, overload. Short circuit and power reverse connection protection:
9. Support limit alarm, fault alarm. Fault self-diagnosis.
Web Guide Sensor
Web Guide Sensor SG-300E / SG-200E / SG-100E
Optional Sensors
CCD image sensor SG-300E
Ultrasonic sensor SG-200E
Infrared sensor SG-100E
Features :
This image sensor scans the material surface light contrast in real time through linear array CCD image sensing, which can realize
non-contact scanning of materials .
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
2. Use full-color light-emitting diodes as background lighting sources. Different colors of lighting sources can be selected according to the reflective properties of the material surface to achieve the optimal lighting effect;
3. Adopt fully laminated glass capacitive touch panel, IPS high-bright color screen, menu-based operation interface, simple and intuitive;
4. Laser line-assisted positioning;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
Technical Parameters:
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
4. Ambient temperature: 0~50°C
5. Measuring range: ±10mm
6. Resolution: 0.05mm
7. Focus distance/format spacing: 25~30mm
8. Scan rate: 500~2000Hz
9. Protection level: IP54
10. Dimensions (length x width x height):100x68x49mm
non-contact scanning of materials .
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
2. Use full-color light-emitting diodes as background lighting sources. Different colors of lighting sources can be selected according to the reflective properties of the material surface to achieve the optimal lighting effect;
3. Adopt fully laminated glass capacitive touch panel, IPS high-bright color screen, menu-based operation interface, simple and intuitive;
4. Laser line-assisted positioning;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
Technical Parameters:
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
4. Ambient temperature: 0~50°C
5. Measuring range: ±10mm
6. Resolution: 0.05mm
7. Focus distance/format spacing: 25~30mm
8. Scan rate: 500~2000Hz
9. Protection level: IP54
10. Dimensions (length x width x height):100x68x49mm
Features
⊙ It can track the edges of various materials;
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
Parameters
⊙ Detection accuracy 0.01mm
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
Main Hot Products
Applications
Company Profile
FAQ
Automatic Servo Web Guide Inspection Control System
1. What parts are included of one whole set?
Web guide controller, web guide sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
Web guide controller, web guide sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
Похожие товары
Новый оригинальный EPC-A12 низкий уровень шума веб-Руководство системы управления с цветным дисплеем большой экран
26 229,31 ₽ - 27 772,72 ₽
GALY топ продаж Новое поступление GL3000E веб-контроллер положения # контроллер

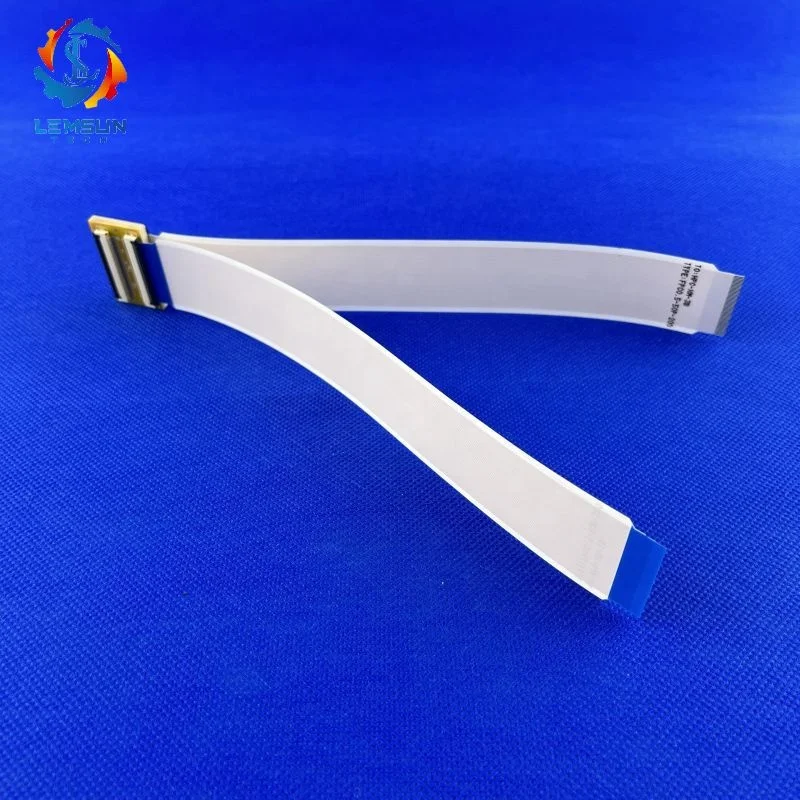

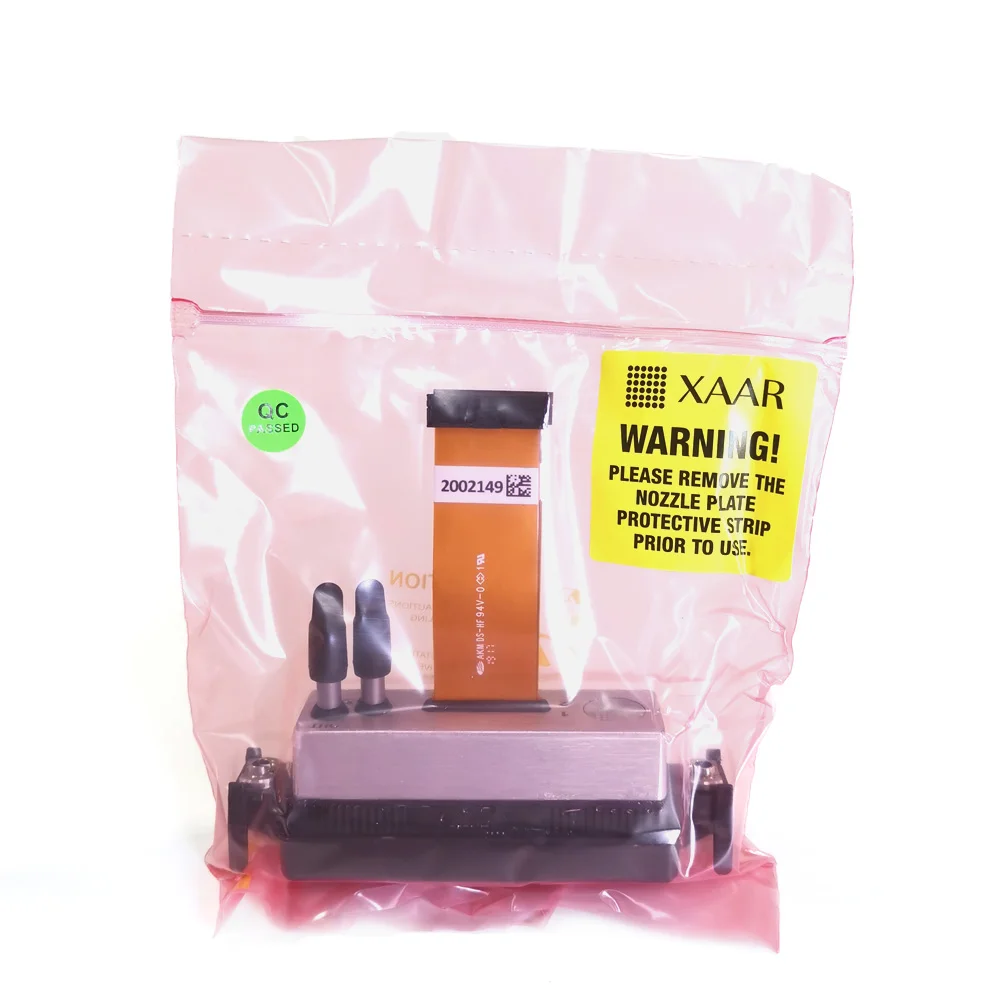

Распродажа печатающая головка кабель xaar 1001 печатающая головка к 1001 плате белый Соединительный кабель 20 см
