Product Overview

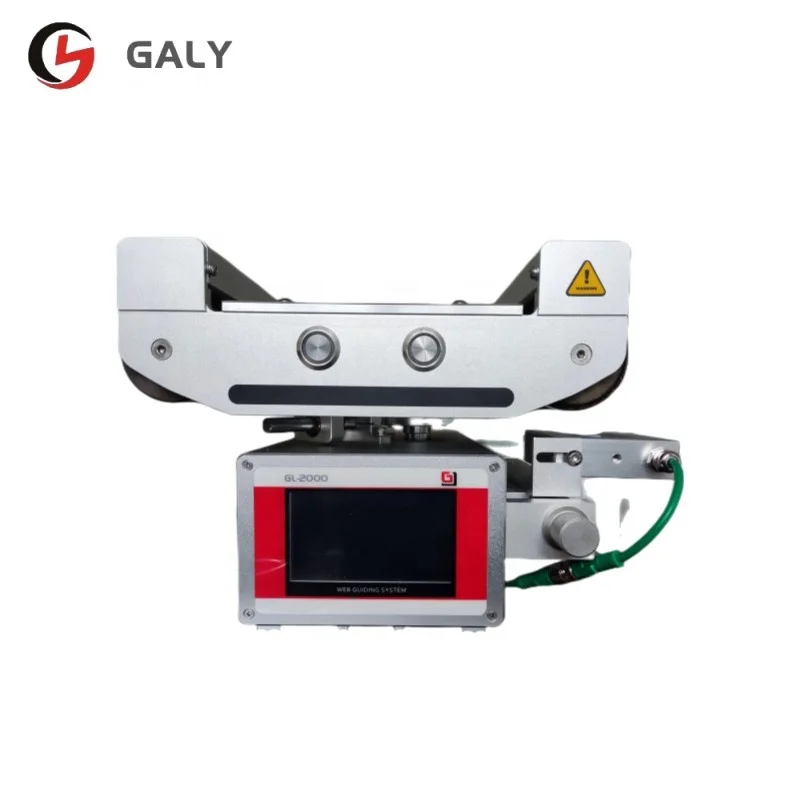

Servo All in one Web guide system GL-2000
Customize various sizes All In One Web Guide System With Clamps And Splice Plate
1. Track the edge of the substrate, correct the unevenness of the substrate when winding.
2. Track the edge of the substrate to keep the coating material equidistant from the edge.
3. According to roll speeds of different materials, the correction speed can be adjusted to keep balance with it.
2. Track the edge of the substrate to keep the coating material equidistant from the edge.
3. According to roll speeds of different materials, the correction speed can be adjusted to keep balance with it.
Servo all in one web guide

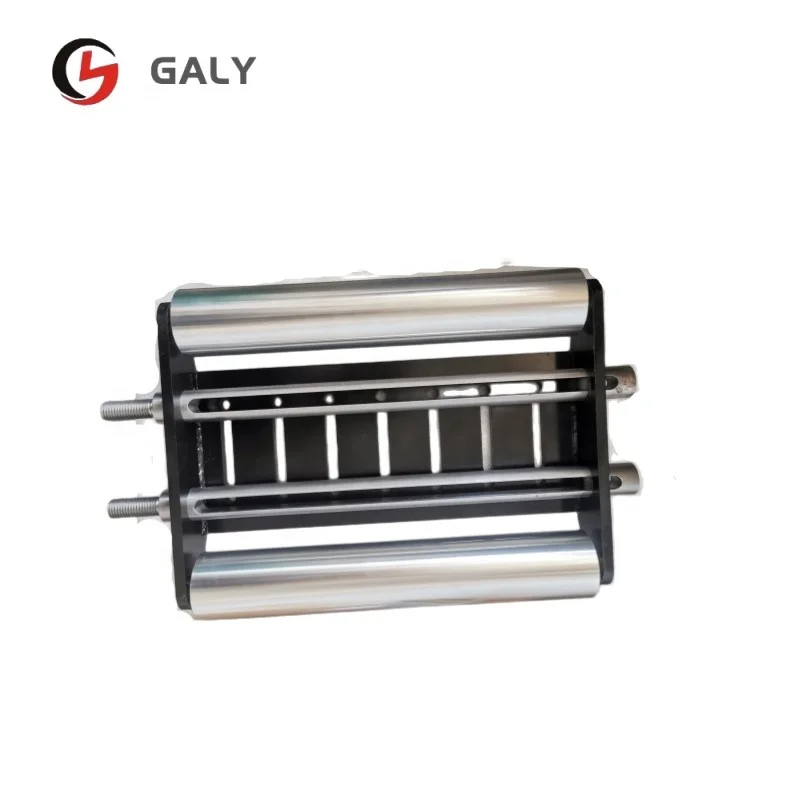

With Clamps And Splice Plate
Base
Servo All in one Web guide system GL-2000 Features :
1. Support three working methods of line tracking, edge tracking, centering tracking, etc
2. Support photoelectric sensor, ultrasonic sensor, CCD sensor
3. Automatic detection of sensor parameters, no need to calibrate the sensor in most environments
4. Automatic stroke measurement without mechanical limit switch
5. Ultra-high-speed response with 500 microseconds (0.5 milliseconds)
6. The DC servo motor drives the ball screw
7. Support Simplified Chinese/Traditional Chinese/English/German/Korean/French/Japanese/Italian Eight Languages
8. The humanized operation, quick and easy
9. Contains German Festo pneumatic control components, automatic Splice
2. Support photoelectric sensor, ultrasonic sensor, CCD sensor
3. Automatic detection of sensor parameters, no need to calibrate the sensor in most environments
4. Automatic stroke measurement without mechanical limit switch
5. Ultra-high-speed response with 500 microseconds (0.5 milliseconds)
6. The DC servo motor drives the ball screw
7. Support Simplified Chinese/Traditional Chinese/English/German/Korean/French/Japanese/Italian Eight Languages
8. The humanized operation, quick and easy
9. Contains German Festo pneumatic control components, automatic Splice
Installation Size (160mm-650mm)
160mm
200mm
Technical Specifications
Positional accuracy | < ±0,1 mm (material-dependent) |
Error frequency | Max. 8 Hz |
Nominal actuating travel 180 mm/200 mm | Max. ± 19 mm/Max. ±21 mm |
Nominal actuating travel 250 mm/300 mm | Max. ± 14,5 mm/Max. ± 18 mm |
Nominal actuating speed at outfeed roller | 1 to 150 mm/s |
Web tension 160/200/250/300/350 mm | max. 300 N |
Web tension 400/450 mm | max. 200 N |
Roller diameter | 40/60/80 mm |
Ambient temperature | +10 °C to +50 °C |
Relative humidity | 15 to 95 % (non-condensing) |
Operating voltage, nominal value | 24 V DC |
Nominal range | 20 to 30 V DC (ripple included) |
Nominal range with power supply | 100 to 240 V, 50/60 Hz |
Current consumption | max. 4.5 A DC |
Illustration :
A = Web tension distribution at infeed |
B = Web tension distribution at outfeed |
K = Web correction | a = Correction angle max. ± 5° |σ 1 = Web basic tension |σ2 = Tension distribution due to pivoting action of roller frame at the infeed |σ3 = Tension distribution due to pivoting action of roller frame at the outfeed |1 = Pivot point | 2 = Infeed roller | 3 = Roller frame | 4 = Sensor | 5 = Locking roller | L = Transfer length | L1 = Infeed path | L2 = Outfeed path |AB = Operating width |
B = Web tension distribution at outfeed |
K = Web correction | a = Correction angle max. ± 5° |σ 1 = Web basic tension |σ2 = Tension distribution due to pivoting action of roller frame at the infeed |σ3 = Tension distribution due to pivoting action of roller frame at the outfeed |1 = Pivot point | 2 = Infeed roller | 3 = Roller frame | 4 = Sensor | 5 = Locking roller | L = Transfer length | L1 = Infeed path | L2 = Outfeed path |AB = Operating width |
Web Guide Sensor
Web Guide Sensor SGA-200 / SGA-100
Optional Sensors and Installation Dimensions
Ultrasonic sensor SGA-200
Installation Dimensions
Infrared sensor SGA-100
Installation Dimensions
Parameters
Model | SGA-200 ultrasonic sensor | SGA-100 Infrared sensor | SG-30B Diffuse sensor | SG-50B Thru-beam sensor |
Detection mode | For edges | Opposite side | Reflective | Thru-beam |
Detection distance (mm) | 51mm | 30mm | 300mm | 10m |
Detection range (mm) | 0.01 | 0.01 | 0.5 | 0.5 |
Detecting element | ultrasonic | Imported silicon photocell | LED red light | LED red light |
Working voltage | DC10-30V | DC10-30V | DC12-24V | DC12-24V |
Use and characteristics | Ultra-transparent film,narrow film | Ordinary transparent, mesh semi-transparent film, | Black non-reflective and reflective material | Opaque material |
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
Main Hot Products
Applications
Company Profile
FAQ

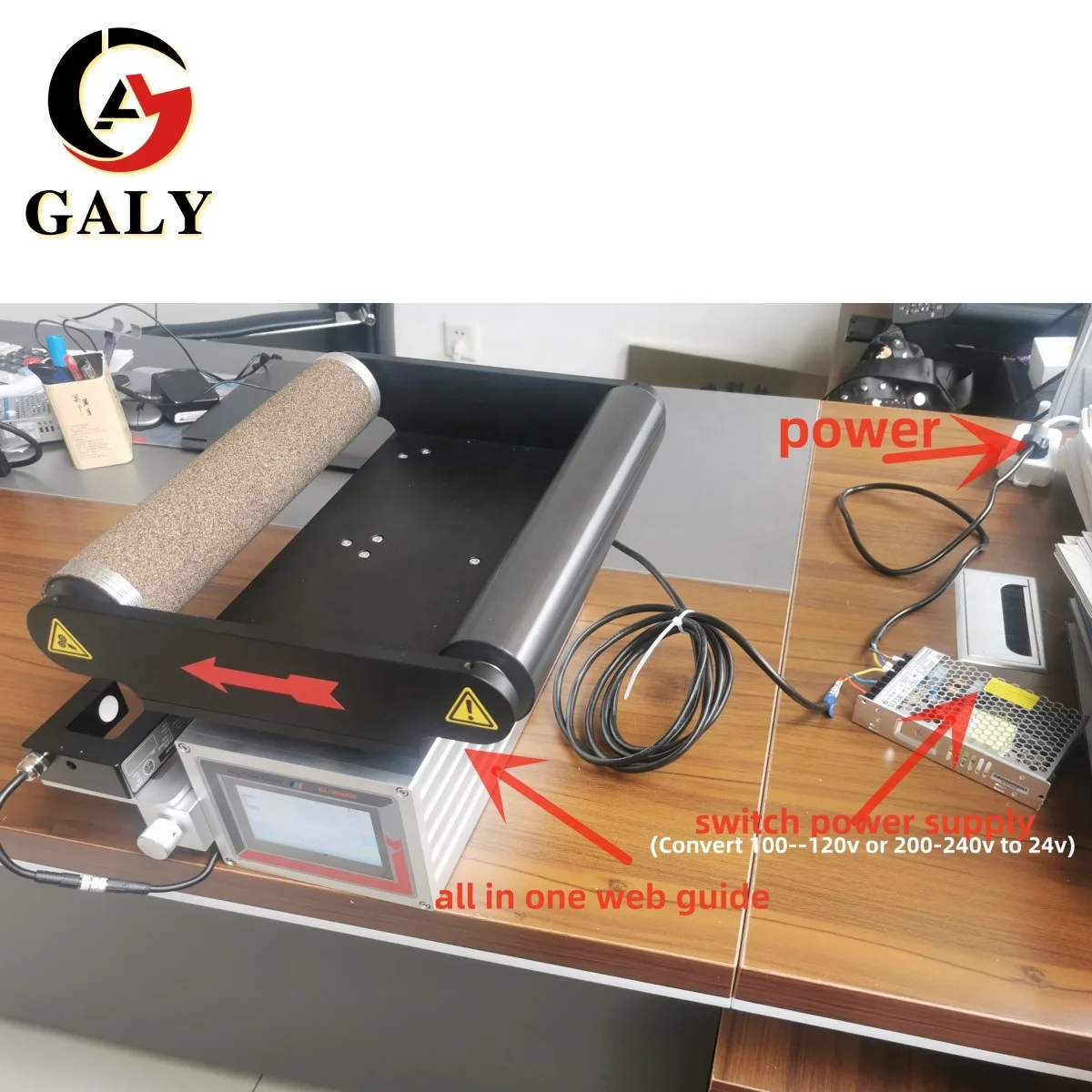

WUXI GALY Hot Sales All-In-One Web Guiding Systems With Clamps And Splice Plate
Web guide controller, web guide sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
