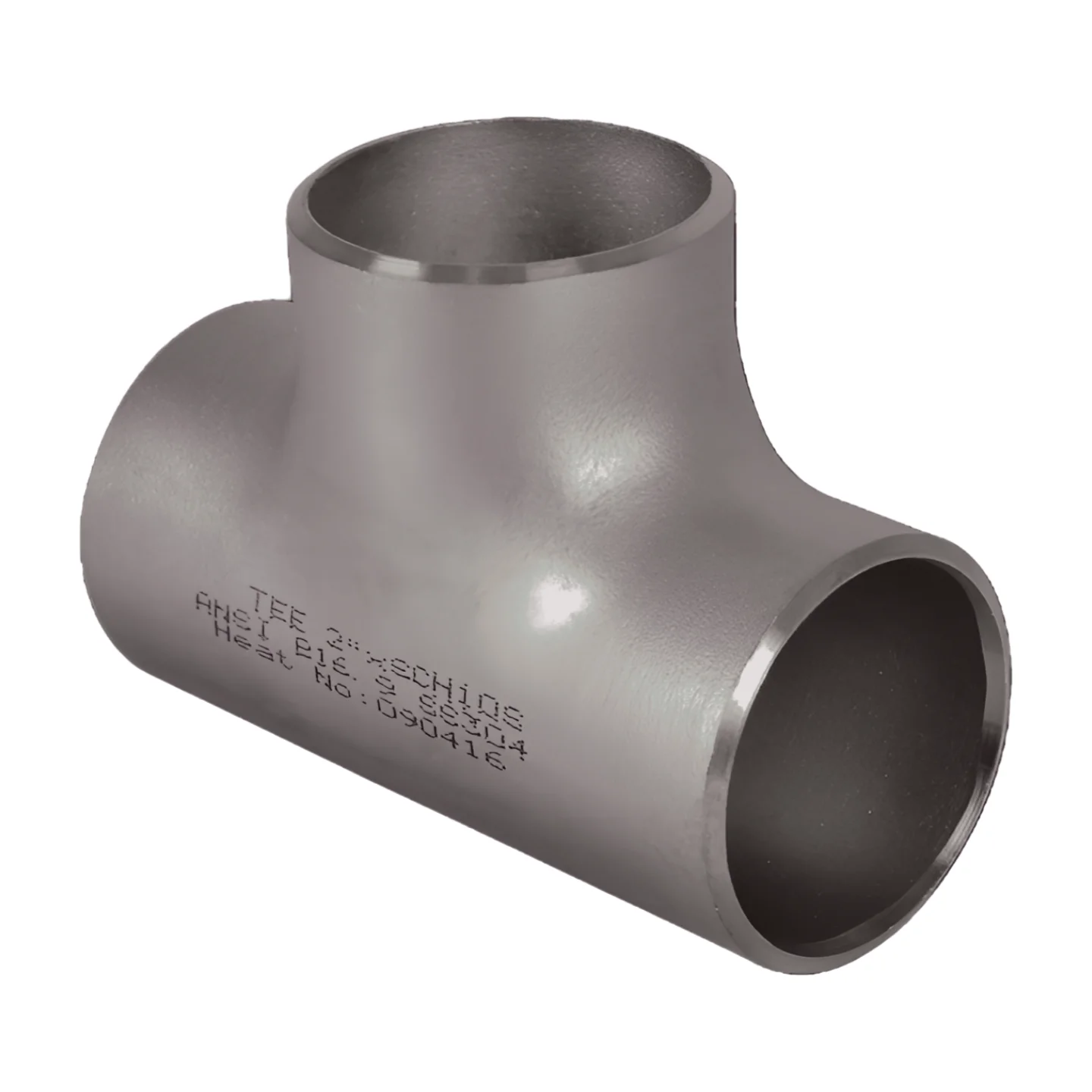

Фитинги для труб из нержавеющей стали ASTM A403

Фитинги для труб из нержавеющей стали ASTM A403

Категория: >>>
Поставщик: Yancheng Jicheng Machinery Co. Ltd.Yancheng Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Name	Butt Weld Reducing Tee
Size	1/2"-24" seamless, 24"-96" welded
Standard	ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75,
Wall thickness	SCH10,SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS
Material	Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.
	Pipeline steel: ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
	Alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc.
Application	Chemical , power, construction, potroleum, gas, water, steam,
Customized Size	Available
Special Design	Available
Delievery Time	7-45 days upon order quantity
Advantages	1. Customerized dimensions to meet different requirement
	2. quality control from raw materials to the final products
	3. Abundant stock
	4.Rich export experience
	5. Reliable shipping forwarder

Carbon Steel Pipe Fitting - Straight TEE

Nominal	Outside	Inside	Wall	Center	Center	Pipe	Weight
Pipe Size	Diameter	Diameter	Thickness T	To End C	To End M	Schedule	Pounds
1/2''	0.84	0.622	0.109	1	1	40	0.35
3/4''	1.05	0.824	0.113	1.12	1.12	40	0.5
1''	1.32	1.049	0.133	1.5	1.5	40	0.75
1 1/4''	1.66	1.38	0.14	1.88	1.88	40	1.3
1 1/2''	1.9	1.61	0.145	2.25	2.25	40	1.9
2''	2.38	2.067	0.154	2.5	2.5	40	3.2
2 1/2''	2.88	2.469	0.203	3	3	40	5.8
3''	3.5	3.068	0.216	3.38	3.38	40	7.2
3 1/2''	4	3.548	0.226	3.75	3.75	40	9.5
4''	4.5	4.026	0.237	4.12	4.12	40	12.7
5''	5.56	5.047	0.258	4.88	4.88	40	20.8
6''	6.62	6.065	0.28	5.62	5.62	40	33.1
8''	8.62	7.981	0.322	7	7	40	56.5
10''	10.75	10.02	0.365	8.5	8.5	40	90.9
12''	12.75	12	0.375	10	10	*	136
14''	14	13.25	0.375	11	11	30	162
16''	16	15.25	0.375	12	12	30	206
18''	18	17.25	0.375	13.5	13.5	*	272
20''	20	19.25	0.375	15	15	20	350
24''	24	23.25	0.375	17	17	20	508
30''	30	29.24	0.38	22	22	*	835
36''	36	35.24	0.38	26.5	26.5	*	1,294
42''	42	41.24	0.38	30	28	*	1,495
48''	48	47.24	0.38	35	33	*

Company Profile

_01

Yancheng Jicheng Machinery Co.,Ltd.is a leading manufacturer of high-pressure forged pipe fittings, established in 2007. We specialize in producing elbows, tees, crosses, reducers, couplings, and nipples that meet ASME/ANSI, DIN, and JIS standards.

With advanced production, testing, and laboratory equipment, we ensure top-quality products and have a monthly output of 10 containers. Our fittings are exported globally, serving markets in Europe, the Americas, the Middle East, and the Belt and Road regions.

We offer comprehensive services, including pre-sales consultations, after-sales support, and efficient shipping solutions. Our dedication to quality and customer satisfaction has earned us numerous certifications and a strong reputation in the industry
