Тип B твердосплавные насадки с твердосплавными вставками для токарной обработки
- Категория: >>>
- Поставщик: Zhuzhou Chuangde Cemented Carbide Co. Ltd.
Сохранить в закладки 1601235506247:
Описание и отзывы
Характеристики
Products Description
Product Name | Type b carbide brazed tips |
Sintering | HIP-Sintered |
Material | 100% raw carbide material |
Standard | OEM |
Grade | YG6/YG8/YG15/K10/K20/K30/K40 etc as per request |
Specification | customized |
Applications | for stone cutting machines |
Feature | Hard hardness,wear resistance,corrosion resistance,toughness,shock resistance |
Type A Brazed Carbide Tips Details:

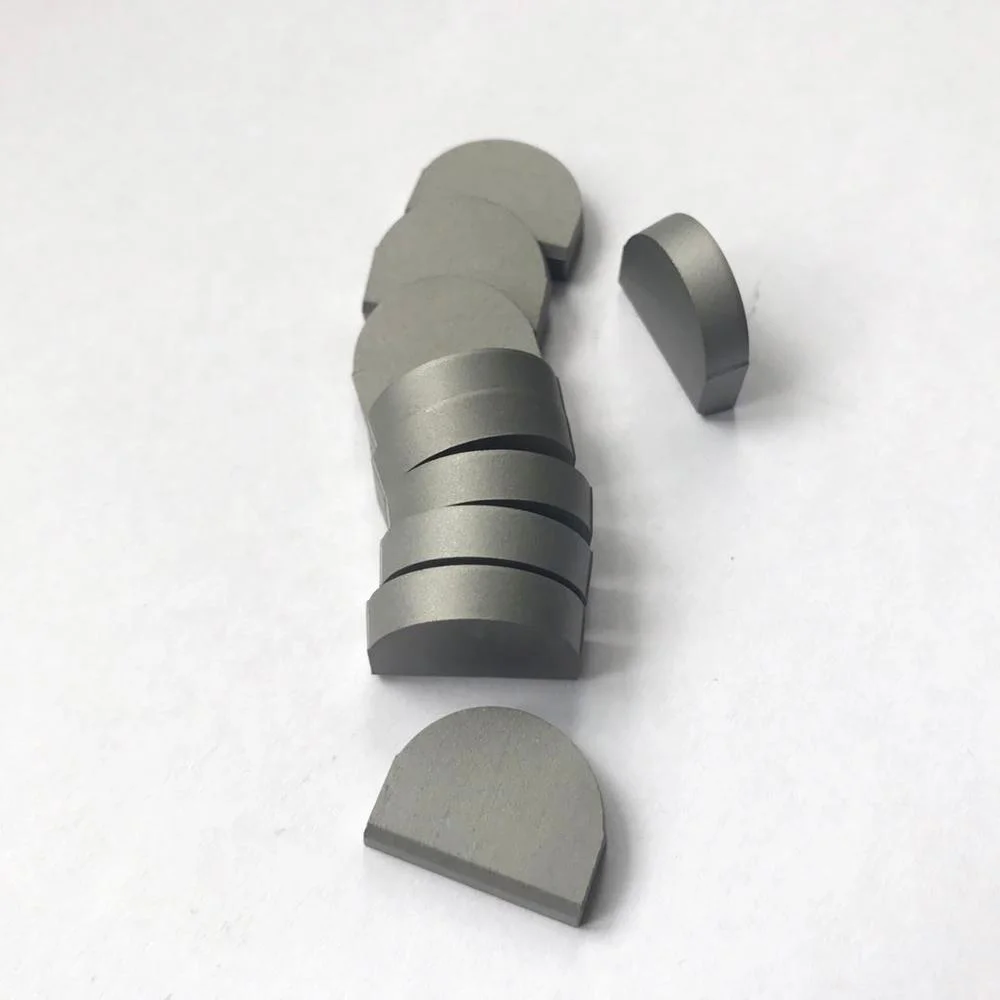

Product name: Tungsten carbide tips Type B
Material: 100% virgin powder
Grain size: ultra fine, fine, medium, coarse
Hardness: HRA89.5-HRA92
Main usage: cutting tools
Application:
Tungsten carbide tips are widely used for brazed turning tools, threading tools, turning tools...etc. All types like A, B, C, D,E, F, S are available. Various grades for different application such as for finishing, semi-finishing and roughing of cast iron,nonferrous metal, steel, stainless steel...etc......
We have substantial custom manufacturing capacity as well. Please contact us if you need a size not shown.
We have substantial custom manufacturing capacity as well. Please contact us if you need a size not shown.
Product Show
Our service
1. Trial order is acceptable
2. Good price as we are factory
3. Expert advice like Grade recommendation according to application
4. Fast delivery
5. OEM
1. Trial order is acceptable
2. Good price as we are factory
3. Expert advice like Grade recommendation according to application
4. Fast delivery
5. OEM

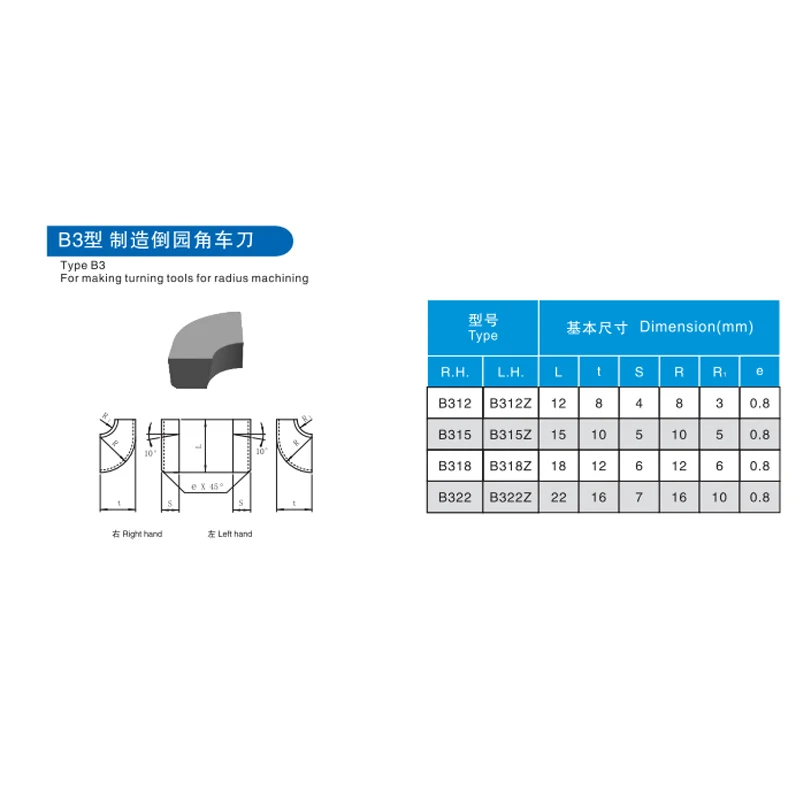

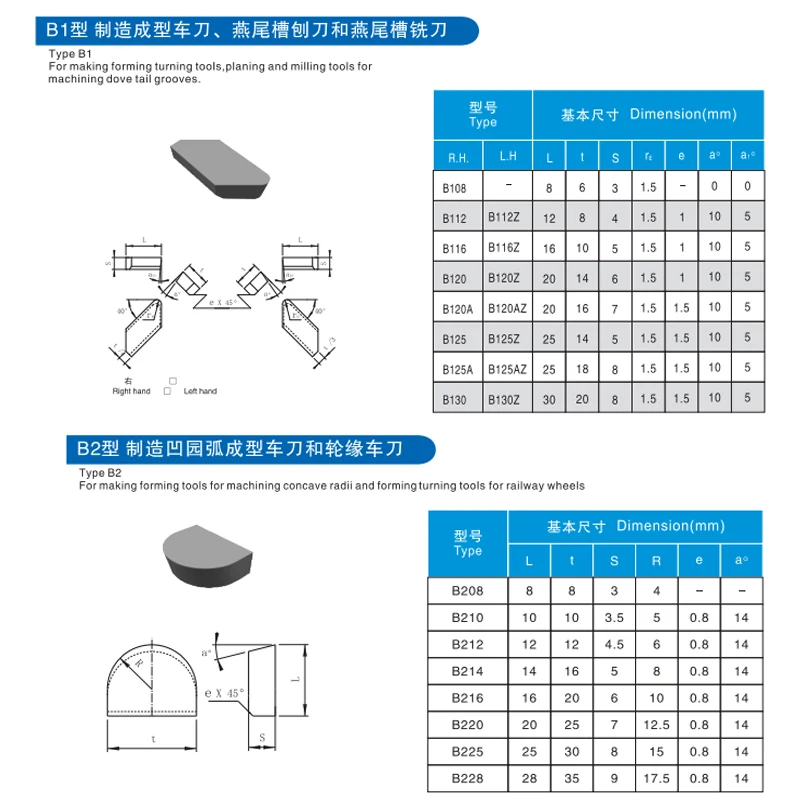

Type&Size
Main Types:
A&B5 / A&B6 / A&B8 / A&B10 / A&B12 / A&B16 / A&B50 / etc.
C5 / C6 / C8 / C10 / C12 / C16 / C20 / C25 / C32 / C40 / C50.
D3 / D4 / D5 / D6 / D8 / D10 / D12.
E4 / E5 / E6 / E8 / E10 /E12 / E16 / E20 / E25 / E32 / etc.
F10 / F13 / F 16 / F20 / F25 / F60 / etc.
G8 / G10 / G12 / G16 / G20 / G25 / G30.
K110 / K112 / K114 / K116 / K118 / K120 / K122 / K124 / K126.
K030B/D, K032B/D, K034B/D, K036B/D, K038B/D, K040B/D, K044B, K046B, etc.
C5 / C6 / C8 / C10 / C12 / C16 / C20 / C25 / C32 / C40 / C50.
D3 / D4 / D5 / D6 / D8 / D10 / D12.
E4 / E5 / E6 / E8 / E10 /E12 / E16 / E20 / E25 / E32 / etc.
F10 / F13 / F 16 / F20 / F25 / F60 / etc.
G8 / G10 / G12 / G16 / G20 / G25 / G30.
K110 / K112 / K114 / K116 / K118 / K120 / K122 / K124 / K126.
K030B/D, K032B/D, K034B/D, K036B/D, K038B/D, K040B/D, K044B, K046B, etc.
Product grades and applications
Grade | ISO Code | Density g/cm3 | Hardness HRA | T.R.S MPa | Applications recommended |
YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
YG6X | K10 | 14.95 | 91.5 | 1800 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
YG6 | K15 | 14.95 | 90.5 | 1900 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG8 | K20 | 14.80 | 89.5 | 2200 | |
YW1 | M10 | 13.10 | 91.6 | 1600 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
YW2 | M20 | 13.00 | 90.6 | 1800 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
YT15 | P10 | 11.4 | 91.5 | 1600 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
YT14 | P20 | 11.6 | 90.8 | 1700 | Suitable for the finishing and semi-finishing of steel and cast steel. |
YT5 | P30 | 12.9 | 90.5 | 2200 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
Why Choose Us
1.Zhuzhou CD CARBIDE has the richest molds stock .
2.Over 12 years of stable relationship with our customers.
3.The most advanced tooling system .
4.The largest production capacity and fastest delivery.
5.The most reliable testing machines for all specifications.
6.The best and reliable after service.
7.We have rich resources .
8.Over 10 engineers can offer you technical advice when you need us .
2.Over 12 years of stable relationship with our customers.
3.The most advanced tooling system .
4.The largest production capacity and fastest delivery.
5.The most reliable testing machines for all specifications.
6.The best and reliable after service.
7.We have rich resources .
8.Over 10 engineers can offer you technical advice when you need us .
Cemented carbide welding blade for turning tool brazing
Customized Service
We not only produce the standard types, but also the carbide parts based on your designs. We have rich experience on this and a big part of our product is from our clients' designs. We can provide the technical support, like how to select the right grade of carbide to match your using purpose, we will make it very easy and simple to do business with us.If you need a customized service,please contact us
Company Profile
Zhuzhou Chuangde Cemented Carbide Co.,Ltd located in Zhuzhou,Hunan, China .lt mainly produces Tungsten heavy alloy,Tungsten & Molybdenum alloy,and Silicon Carbide products etc. We have highly qualified motivated and experienced employees who are providing synergies in our company which are necessary to create and guarantee high-quality and long-lasting solutions for our customers.We provide a worldwide distribution network. Asa medium-sized company we react fast and we are flexible to our customer requirements. Based on partnership, we supply suitable solutions for there spective needs.
Our company was certified after ISO in 9001:2015.A comprehensive quality assurance system guarantees high-class standards of our products.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Our company was certified after ISO in 9001:2015.A comprehensive quality assurance system guarantees high-class standards of our products.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Packaging & Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons, we also can pack the goods based on your requirements,like your own labels.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can send you the sample free of charge if it is standard type. For non-standard type, we may need to charge for the mould fee.
Q7. Do you test all your goods before delivery?
A: All the goods will be tested by three times (inspection for material, semi-product and final product) before we send them to you, all data will be recorded.
Q8: How do you make our business long-term and good relationship?
1. Good and stable quality based on our strict quality control system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and energy.
A: Generally, we pack our goods in neutral white boxes and brown cartons, we also can pack the goods based on your requirements,like your own labels.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can send you the sample free of charge if it is standard type. For non-standard type, we may need to charge for the mould fee.
Q7. Do you test all your goods before delivery?
A: All the goods will be tested by three times (inspection for material, semi-product and final product) before we send them to you, all data will be recorded.
Q8: How do you make our business long-term and good relationship?
1. Good and stable quality based on our strict quality control system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and energy.
