Красный сварочный аппарат MIG-270
45,00-47,00 $
Высококачественный автоматический сварочный аппарат для робота 6 кг 1292 мм
- Категория: >>>
- Поставщик: Wuhan Baike Times Laser Technology Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601235603136:
Описание и отзывы
Характеристики

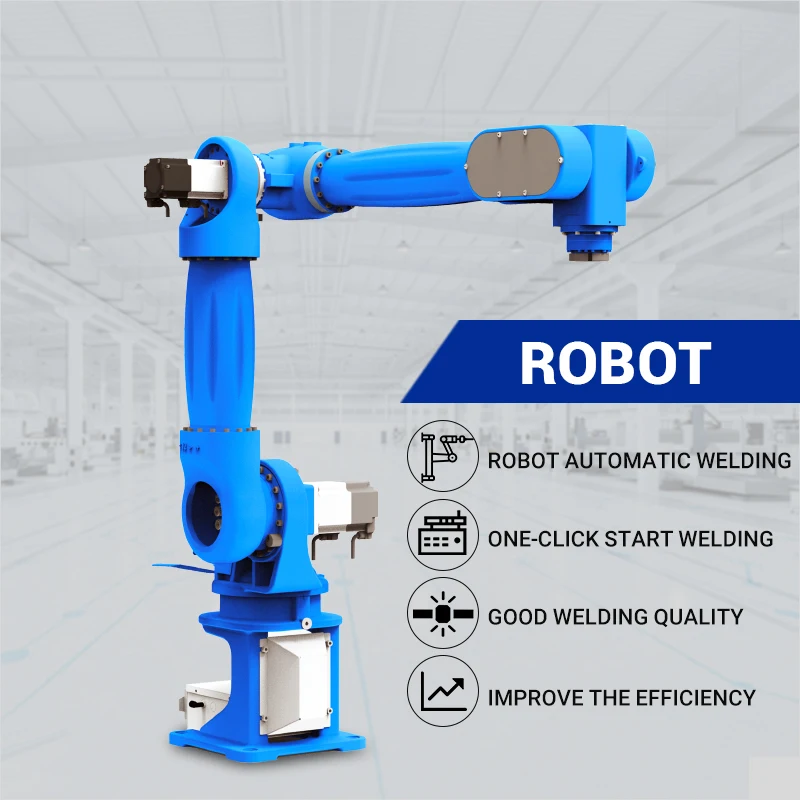

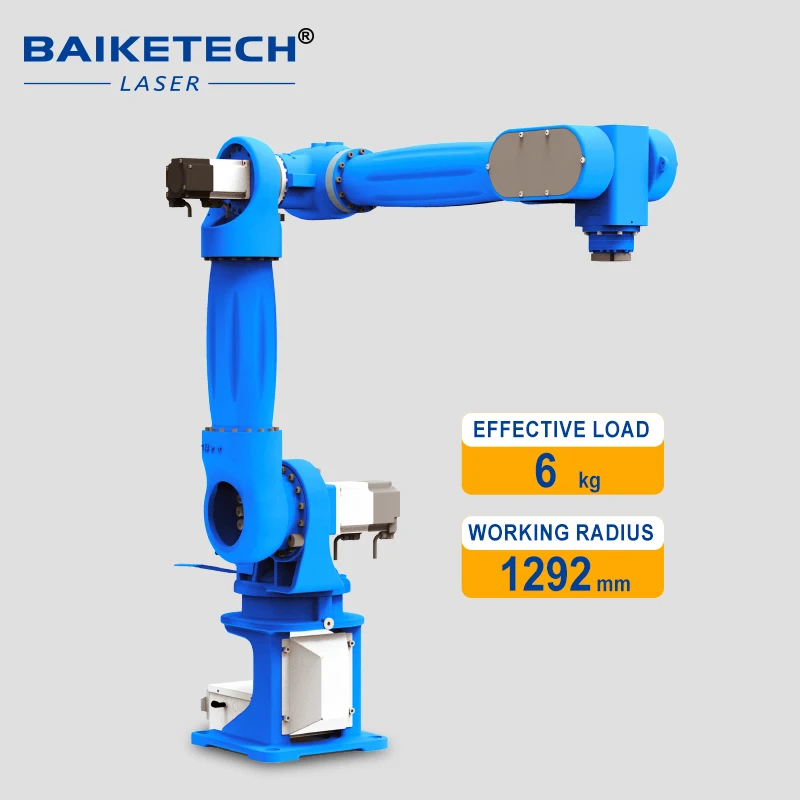

Baiketech Industrial 3D 6KG 1292mm MIG Welding Robotic Arm Machine - Versatile Solution for Precision Metalwork!
Key Features：
1. Non-contact Welding, the workplace deformation is small without mechanical stress
2. High degree of flexibility, any process path for any workplace is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality, the welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing, almost no consumables, high yield and no pollutants
7. Good welding flexibility, spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,high economic benefit
2. High degree of flexibility, any process path for any workplace is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality, the welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing, almost no consumables, high yield and no pollutants
7. Good welding flexibility, spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,high economic benefit

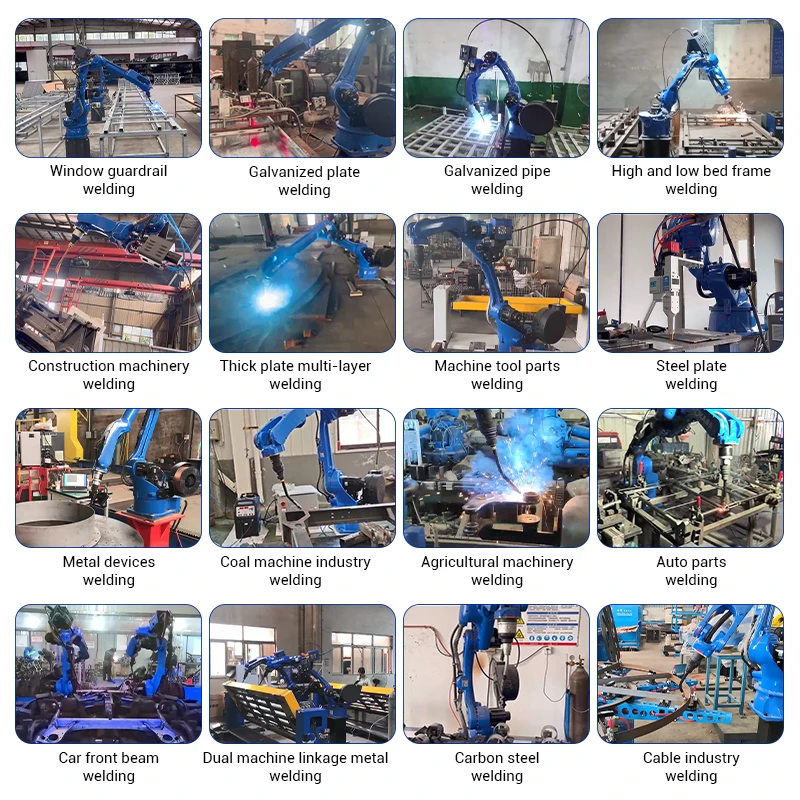

Applications
It has a wide range of applications: Frame manufacturing, Helmet manufacturing ,Fitness equipment manufacturing, mold Manufacturing, Crafts production, Automobile manufacturing, electric tool, Elevator manufacturing, Kitchen Hardware manufacturing, electric tool manufacturing, etc.
It has an advanced and cost-effective welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc welding of metal frame and special-shaped pipe.
It has an advanced and cost-effective welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc welding of metal frame and special-shaped pipe.
Product Parameters
Model | TH6-1300 | ||
Stucture | Articulated construction | ||
Number of axis | 6 | ||
Drive system | AC servo system | ||
Max. working range | J1 | ±170° | |
J2 | +75 to -135° | ||
J3 | +175 to -80° | ||
J4 | ±180° | ||
J5 | +30 to -200° | ||
J6 | ±360° | ||
Axis max. speed | J1 | 370°/s, 6.46rad/s | |
J2 | 248°/s, 4.33rad/s | ||
J3 | 375°/s, 6.54rad/s | ||
J4 | 375°/s, 6.54rad/s | ||
J5 | 375°/s, 6.54rad/s | ||
J6 | 450°/s, 7.85rad/s | ||
Payload | Wrist | 6kg | |
Allowable static load torque for wrist | J4 | 20.4N·m | |
J5 | 16.5N·m | ||
J6 | 12.7N·m | ||
Maximum allowable moment of inertia of the wrist | J4 | 0.42kg·m3 | |
J5 | 0.23kg·m3 | ||
J6 | 0.15kg·m3 | ||
Max. reach | 1292mm | ||
Position repeatability | ±0.05mm | ||
Air piping (Option) | φ8*1 | ||
Noise | 70dB(A) | ||
Rate power | 2.5KW | ||
Rate voltage | 220V/110V | ||
Length of cable between body and cabinet | 3m | ||
Installation | Floor mounted, Ceiling mounted | ||
Environmental performance | IP65 | ||
Weight | 65kg | ||
MIG WELDER | ||
Model | ET-350R | |
Power Voltage | 3 Phrase AC380V±10% | |
Supply frequency | 50Hz | |
Rated maximum input current | 21.5 A | |
Floating voltage | 62 V | |
current output | 40-300 A | |
Output voltage regulation | 16-29 V | |
Duty cycle | 35% | |
Wire diameter | 0.8/1.0/1.2 mm | |
insulation grade | F | |
Enclosure protection class | IP21S | |
Main engine weight | 33.5 Kg | |
Main engine dimensions | 550*310*600 mm | |
Product Description
ET-350R Full Digital Gas shielded welding machine
Welder functions:
1.DC Gas welding protection function
2. Achieve Ultra-low splash function
1.DC Gas welding protection function
2. Achieve Ultra-low splash function
3.Quick Spot welding function
4. With communication interface
5. Equipped with robots, Easy to automate welding
Product packaging
Company Profile
Baike intelligent Technology Co., Ltd was established in 2014 and it headquartered in Wuhan, China. Over the past 10 years, we have the best R&D, production and marketing teams in the laser industry, and have successfully developed more than 500 laser products, which are exported to more than 180 countries. Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world！
Welcome to visit our factory at any time in Wuhan City, China!
Welcome to visit our factory at any time in Wuhan City, China!
FAQ
1. Who are we?
We are based in Hubei, China, start from 2014,sell to Domestic Market(34.00%),Western Europe(21.00%),North
America(18.00%),Southeast Asia(6.00%),Mid East(5.00%),Oceania(4.00%),Southern Europe(4.00%),South America(2.00%),South
Asia(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Laser Cutting Machine,Laser Cleaning Machine,Laser Welding Machine,Laser Marking Machine,Laser Engraving Machine
4. Why should you buy from us not from other suppliers?
Wuhan Baike is a high-tech enterprise integrating R&D, production and sales of laser application equipment. Products mainly
include flatbed fiber laser cutting machine, tube and sheet fiber laser cutting machine, 3D fiber laser cutting machine and so on.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2014,sell to Domestic Market(34.00%),Western Europe(21.00%),North
America(18.00%),Southeast Asia(6.00%),Mid East(5.00%),Oceania(4.00%),Southern Europe(4.00%),South America(2.00%),South
Asia(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Laser Cutting Machine,Laser Cleaning Machine,Laser Welding Machine,Laser Marking Machine,Laser Engraving Machine
4. Why should you buy from us not from other suppliers?
Wuhan Baike is a high-tech enterprise integrating R&D, production and sales of laser application equipment. Products mainly
include flatbed fiber laser cutting machine, tube and sheet fiber laser cutting machine, 3D fiber laser cutting machine and so on.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
