Емкость 100 кг ручная термопластичная дорожная маркировочная машина для дорожной разметки
1 340,00-1 380,00 $
Оптовая продажа термопластичная дорожная разметочная машина для строительства дорожного покрытия двойная электрическая Разметки Дорог горячего расплава
- Категория: >>>
- Поставщик: Guangzhou Luhu Traffic Facilities Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601236050073:
Описание и отзывы
Характеристики
Products Description

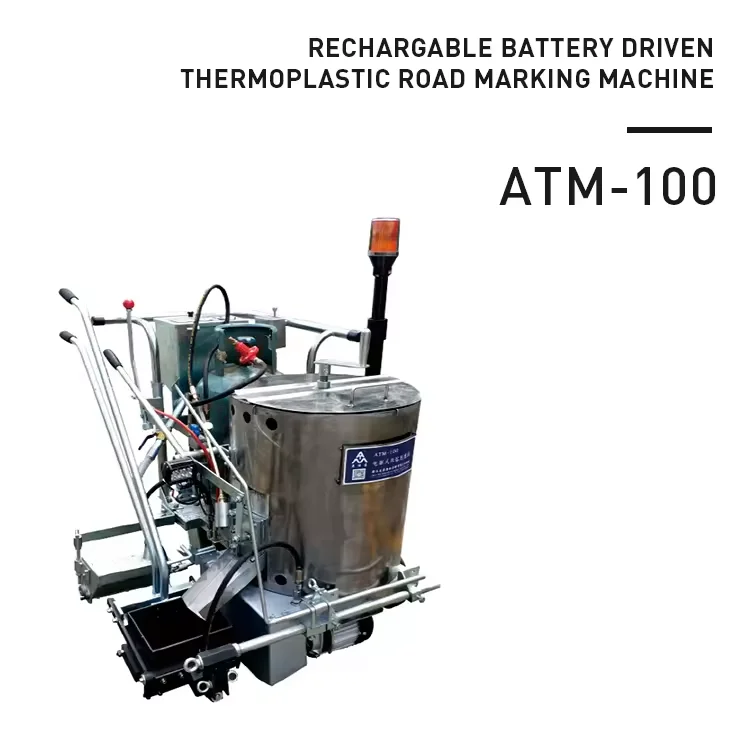

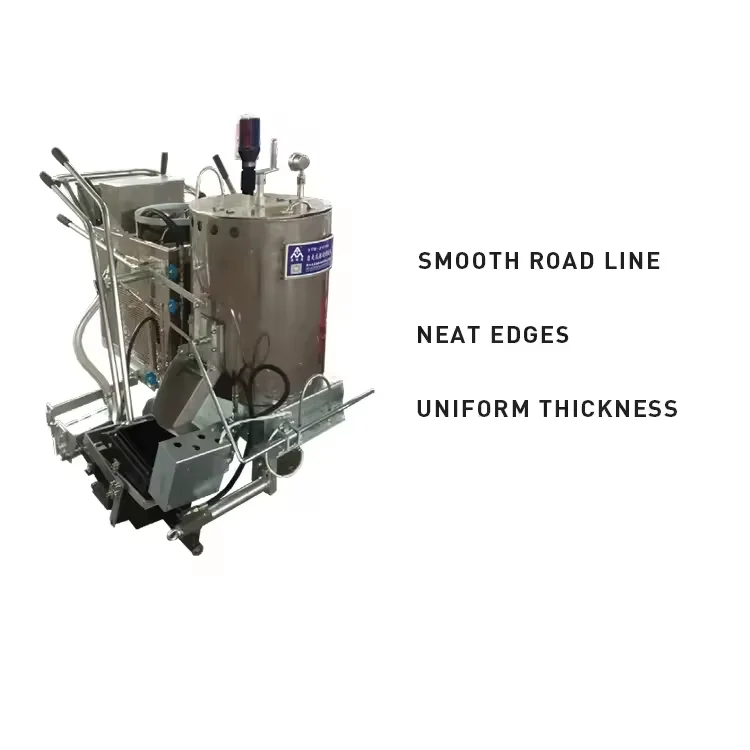

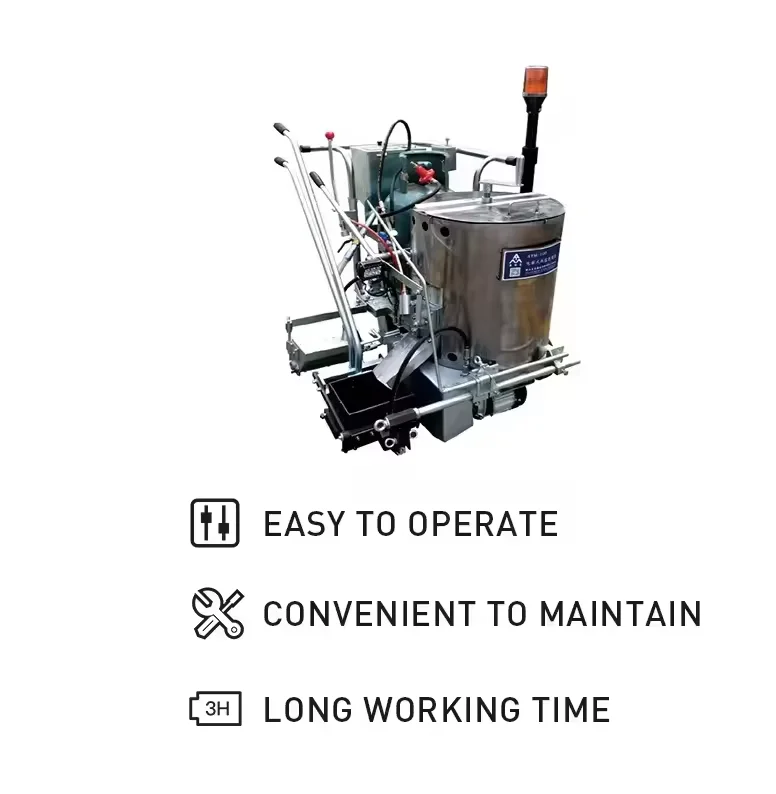

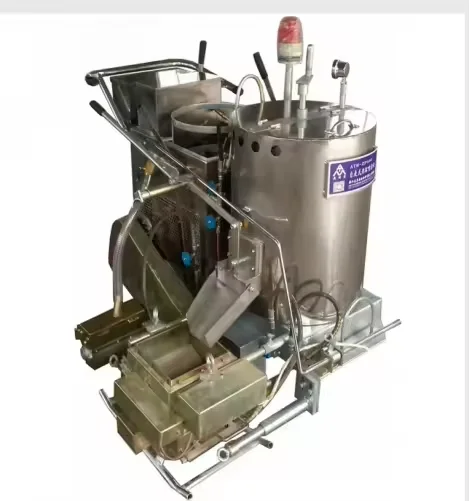

Hand-push hot melt scribing machine
The advanced hand-push hot melt scoring machine adopts a single handle scoring bucket, which is simple, fast and not easy to leak. Sideways are equipped with side handrails, which are light, convenient and stable. Glass beads are spread with automatic gear-adjusting spreader, equipped with speed-adjusting buffer configuration, which can spread glass beads with different widths according to the project. Suitable for marking projects in expressway, municipal county and township roads, residential roads, parking lots, gas stations, docks and factories.
Product Paramenters
Application: | Marking Thermoplastic Paint Line |
Type: | Hand Push |
Dimension(L*W*H): | 1100*850*950mm |
Heat Method:Liquefied Gas | Paint/Glass Bead Tank Capacity:95kg/10kg |
Marking Hopper Length: | 15cm/20cm |
Marking Hopper Handle: | Two |
Glass Bead Dispenser: | Controlled Manually |
Warranty: | 12 months |
Paint tank material | Double layer Stainless Steel |
Heating Mode | Liquefied petroleum gas heating, 15kg LPG tank |
Heat Temperature | 180-220℃ |
Marking thickness | 1~3mm (adjustable) |
Glass Beads Dispenser | Standard configuration 15cm road marking shoe 5/10/12/15/20/30/40/45/50cm(optional)50cm(30/40/45/50cm adjustable) |
Distributing quantity | 200-250g/m2 |
Warranty Time | Within 3-5 days after receipt of payment |
Certification | CE Certificate |
Optional Configuration | Double glass beads dispenser, Simple convex shoe |
Weight: | 95kg |
1. Road Marking Width
1) Optional Screed Marking Hopper/Dies Size:Machine comes with 15 cm road marking shoe and 20cm adjustable glass beads dispenser.
5/10/12/15/20/30/40/45/50 cm or (2/4/6/8/10/12/16/18/20 inch)
optional. Other special sizes can also be customized.
2) Adjustable Glass Beads Dispenser Size:
20cm (10/15/20 cm adjustable)
50cm (30/40/45/50 cm adjustable)
2. Screed Road Marking Shoe
1) High-precision Marking Hopper: made of ductile iron material, more heat-resistant and wear-resistant compared to gray cast iron
(used by other suppliers). Less likely to deform or leak paint after long-term use.
2) Floor edge Knife: made of imported alloy material, more wear-resistant and durable.
3) Rear Knife/Blade Plate: made of 40-chromium, more heat-resistant, not easy to deform and no leakage of paint.
4) More reasonable structure design
Flexible Edge knife: adjustable according to the angle of road undulating, to ensure pretty lines, neat edge, uniform thickness.
Front and rear heating system: adjustable firepower according to the temperature of air and coating, to ensure the best state of
coating for construction.
5) 24-hour oil precision testing before delivery to ensure no leakage of paint.
3. Glass Beads Dispensers
1) Optional dispenser types (Hand-operated or Self-dropping Dispenser) to easily control the distributing quantity.
2) Glass beads dispensers work only when the hopper drops to the ground and meanwhile move forward. No glass beads are wasted.
3) One dispenser size for three different widths. Money saving.
4. Other Details
1) The unerring locator ensures the equipment walk straight.
2) Natural rubber wheels are wear and heat resistant
1) Optional Screed Marking Hopper/Dies Size:Machine comes with 15 cm road marking shoe and 20cm adjustable glass beads dispenser.
5/10/12/15/20/30/40/45/50 cm or (2/4/6/8/10/12/16/18/20 inch)
optional. Other special sizes can also be customized.
2) Adjustable Glass Beads Dispenser Size:
20cm (10/15/20 cm adjustable)
50cm (30/40/45/50 cm adjustable)
2. Screed Road Marking Shoe
1) High-precision Marking Hopper: made of ductile iron material, more heat-resistant and wear-resistant compared to gray cast iron
(used by other suppliers). Less likely to deform or leak paint after long-term use.
2) Floor edge Knife: made of imported alloy material, more wear-resistant and durable.
3) Rear Knife/Blade Plate: made of 40-chromium, more heat-resistant, not easy to deform and no leakage of paint.
4) More reasonable structure design
Flexible Edge knife: adjustable according to the angle of road undulating, to ensure pretty lines, neat edge, uniform thickness.
Front and rear heating system: adjustable firepower according to the temperature of air and coating, to ensure the best state of
coating for construction.
5) 24-hour oil precision testing before delivery to ensure no leakage of paint.
3. Glass Beads Dispensers
1) Optional dispenser types (Hand-operated or Self-dropping Dispenser) to easily control the distributing quantity.
2) Glass beads dispensers work only when the hopper drops to the ground and meanwhile move forward. No glass beads are wasted.
3) One dispenser size for three different widths. Money saving.
4. Other Details
1) The unerring locator ensures the equipment walk straight.
2) Natural rubber wheels are wear and heat resistant
Our Advantages
Effect Display
Company Profile
GUANGZHOU LUHU TRAFFIC FACILITIES CO.,LTD.is located in Nansha District, Guangzhou City. It is a large-scale professional transportation facility manufacturer integrating design, development, production, sales and engineering installation. The company's main business scope: marking paint,marking equipment. road studs, municipal guardrails, road safety guardrails, small signs for parking lots, wide-angle mirrors, locators, corner guards, speed bumps, road cones,water horses, traffic For many years,we have always adhered to the principle of reputation as the foundation, technology as the responsibility, quality as the life,service as the basis,high-tech, continuous innovation, and provide customers with first-class products.Our aim is to take technology as our responsibility, reputation as our foundation, quality as our life, and service as our foundation to provide customers with the most reasonable engineering design solutions, the best construction and first-class products, and create long-term value for customers. and potential growth.
Our service
Dear customers, as an enterprise that has been producing marking paints in South China for ten years, our company adheres to the principle of serving customers, providing products for customers from the perspective of customers, and providing professional construction guidance and after-sales service.
Our company has a number of road construction teams, and undertakes a number of high-speed and urban road marking construction projects in China. During the construction process, our company continuously improves the whiteness, brightness and retroreflection coefficient of the marking paint, which enjoys a high reputation in the industry.
Our company has a number of road construction teams, and undertakes a number of high-speed and urban road marking construction projects in China. During the construction process, our company continuously improves the whiteness, brightness and retroreflection coefficient of the marking paint, which enjoys a high reputation in the industry.
Choose us, let us be your reliable cooperative supplier, and build a beautiful world together.
User feedback
Packing & Delivery
Specification
FAQ
Q:Can I get a sample?
A:Yes,we can provide 5-10kg thermoplastic paint for free. However, shipping cost should be payment by customers.
Q:What are MOQ?
A:For our thermoplastic powder we don't have MOQ requirement. One bags are available and can be sold.
Q:What are payment term?
A:We accept Alibaba online payment .cash ,TT and so on .
Q:How long will you prepare goods?
A:We have enough stock for most products and can arrange shipment within 3 -5days upon receiving your payment.as we are usually exported to all over the world , we could give you some area to reference ,south east Asia countries are7 -10days ,Mid East countries are 15-25 days,Africa countries are 25-35 days , south America countries are 30-35 days .north America countries are 22-30 .European countries are 30-40 days.
Q:What kind of shipping method are provided?
A:We can provide EXW,FOB,CIF service,etc.If part of your order from other suppliers, you can let suppliers delivery goods to ourfactory and we can load goods to the container in our factory, free of charge.
Q: can we make our logo package ?
A: it is according we cooperation, we are could make your brand bags, it is need 20days to printer the new design bags .but needyou pay to the design cost.
A:Yes,we can provide 5-10kg thermoplastic paint for free. However, shipping cost should be payment by customers.
Q:What are MOQ?
A:For our thermoplastic powder we don't have MOQ requirement. One bags are available and can be sold.
Q:What are payment term?
A:We accept Alibaba online payment .cash ,TT and so on .
Q:How long will you prepare goods?
A:We have enough stock for most products and can arrange shipment within 3 -5days upon receiving your payment.as we are usually exported to all over the world , we could give you some area to reference ,south east Asia countries are7 -10days ,Mid East countries are 15-25 days,Africa countries are 25-35 days , south America countries are 30-35 days .north America countries are 22-30 .European countries are 30-40 days.
Q:What kind of shipping method are provided?
A:We can provide EXW,FOB,CIF service,etc.If part of your order from other suppliers, you can let suppliers delivery goods to ourfactory and we can load goods to the container in our factory, free of charge.
Q: can we make our logo package ?
A: it is according we cooperation, we are could make your brand bags, it is need 20days to printer the new design bags .but needyou pay to the design cost.
