Фильтрация пищевого масла из нержавеющей стали скребок автоматический самоочищающийся
- Категория: >>>
- Поставщик: Qingdao Lehler Filtering Technology Co. Ltd.
Сохранить в закладки 1601236136991:
Описание и отзывы
Характеристики
Product Description

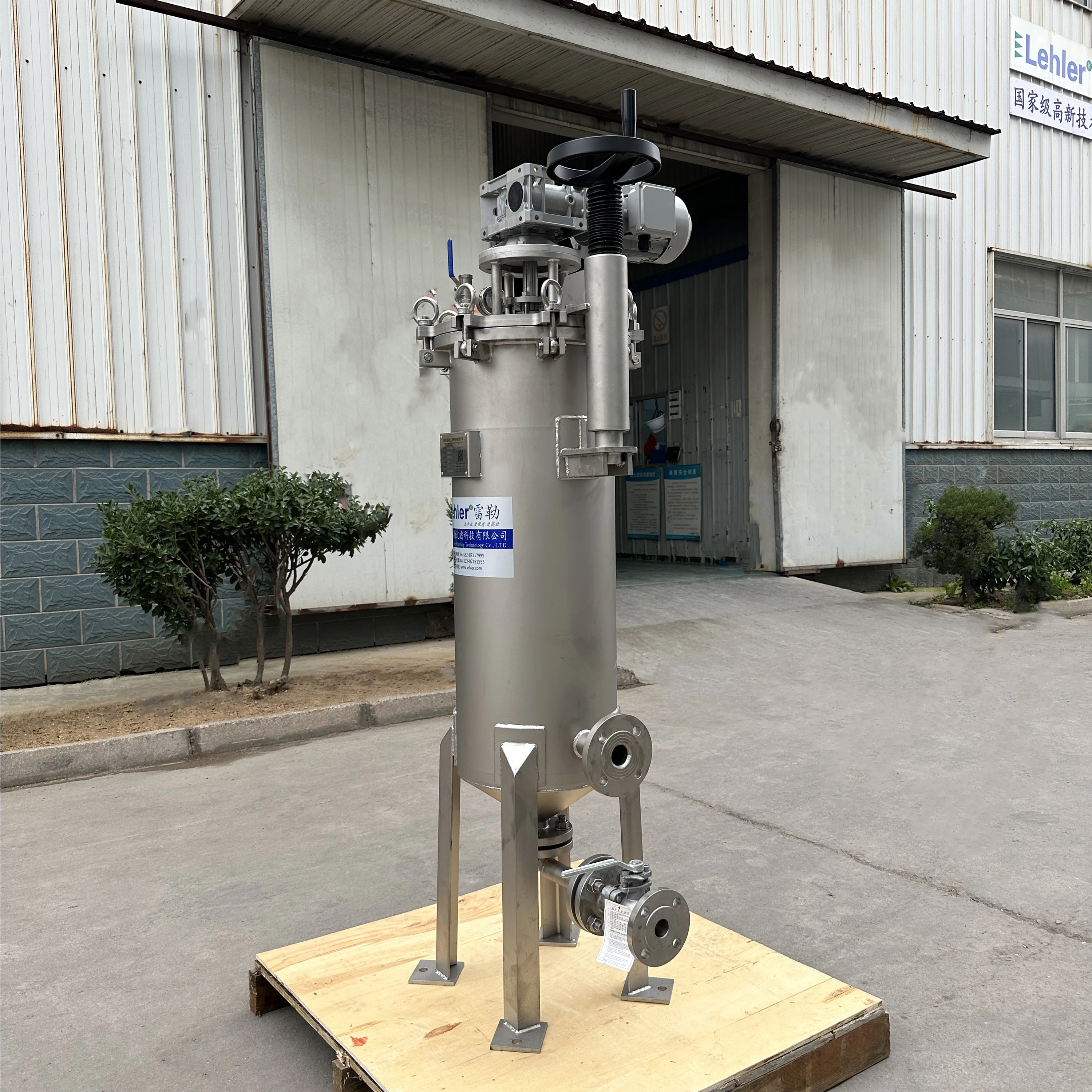

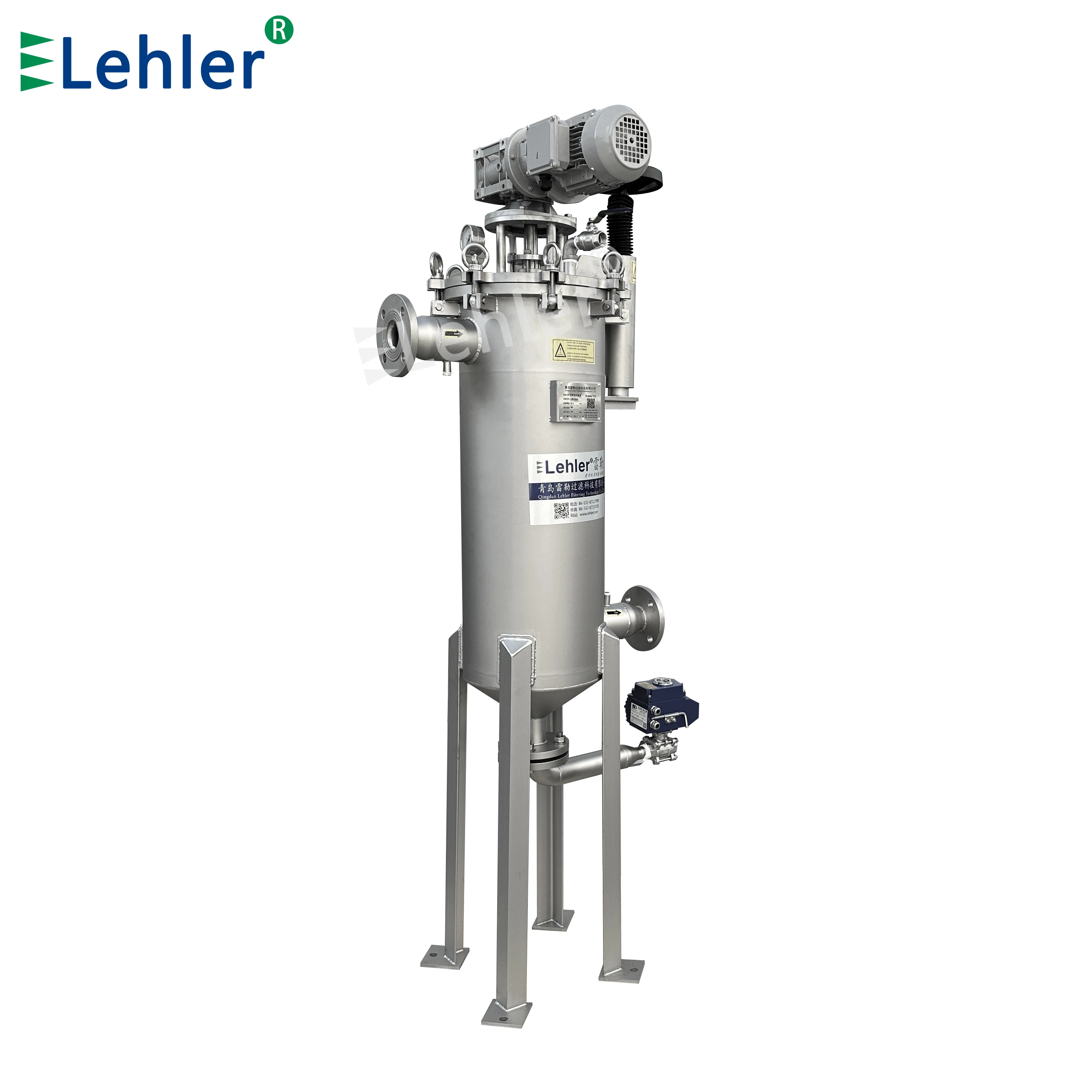

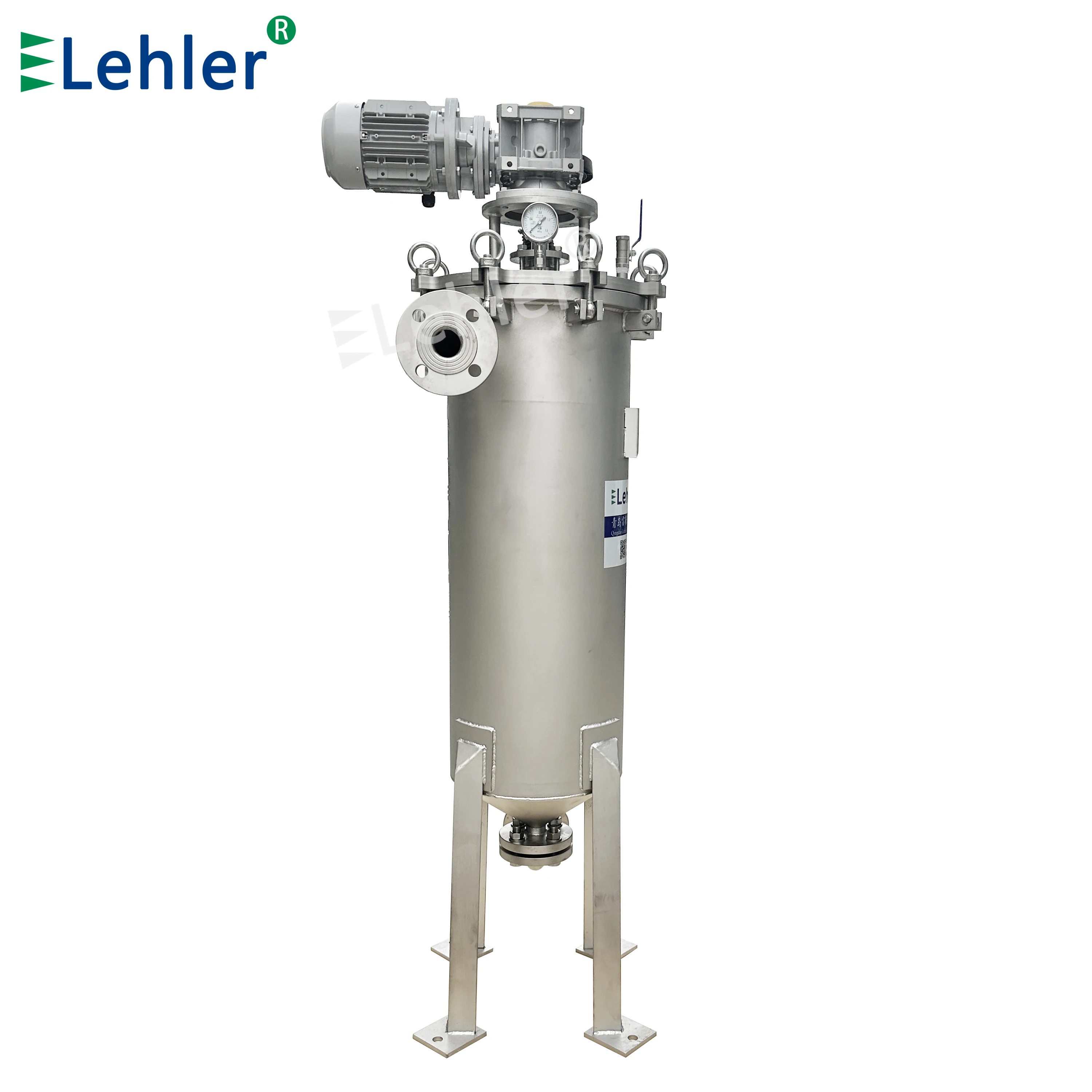

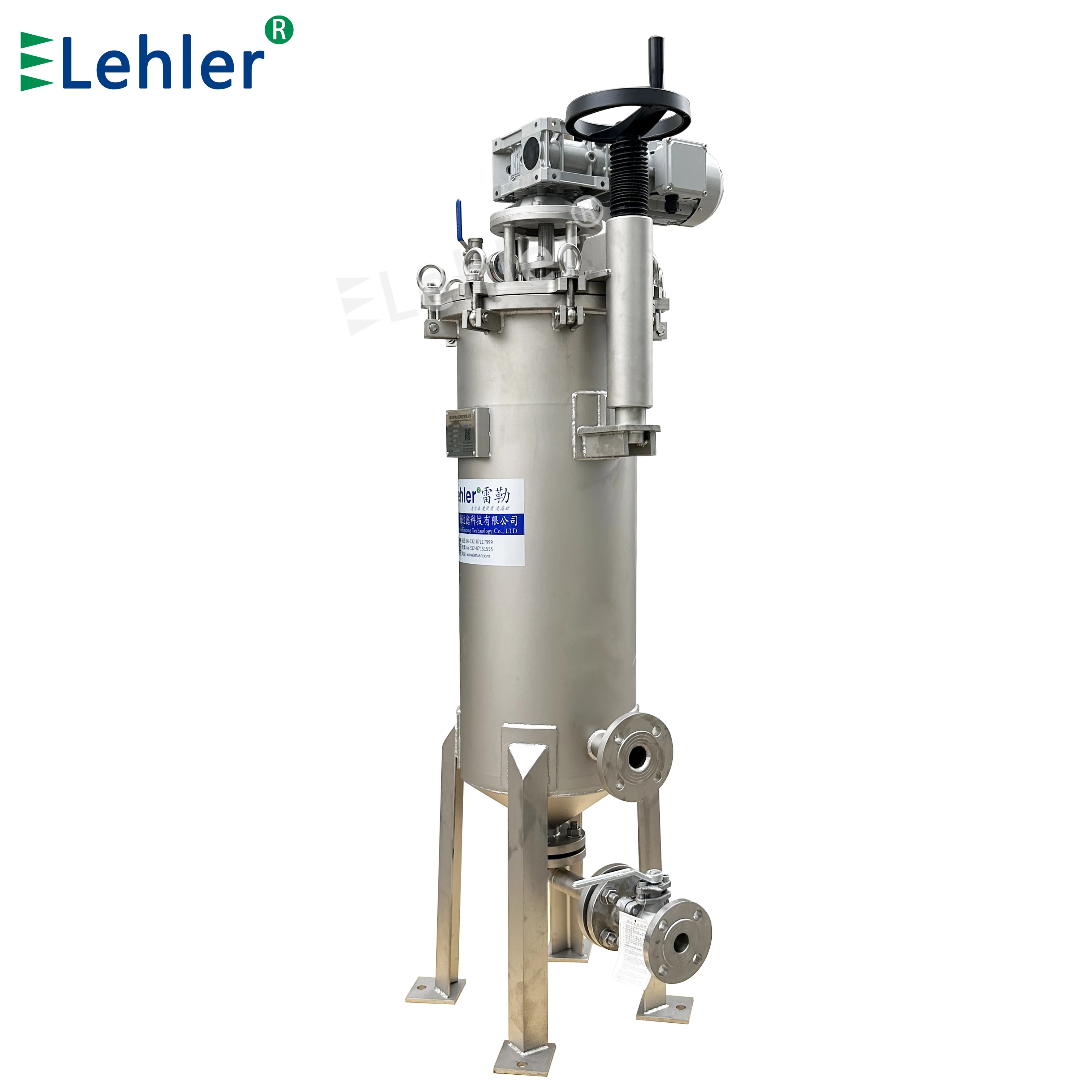

Internal Scraping Self-cleaning Filter
Lehler internal scraping self-cleaning filter (LFN series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for automated or manual operation.
Working principle
Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.
Technical Features &Advantages
No disposable consumables：Save filter media cost and environment cost
Stainless steel structure:Variously materials, corrosion and rust prevention
High-precision slot opening: Min. Slot 20 microns
High automation degree:Which can work on-line continuously,no manual cleaning frequently
Productive Process
Specification | ||||||||||
Product Model | Equipment Diameter | Equipment Height | Thickness | Filter Area | Slot | |||||
LFN-D159 | 200mm | 500mm | 3mm | 0.1 | Min. 0.02mm(20um) | |||||
LFN-D219 | 250mm | 1000mm | 3mm | 0.2 | ||||||
LFN-D273 | 300mm | 1450mm | 4mm | 0.5 | ||||||
LFN-D325 | 350mm | 1600mm | 4mm | 0.6 | ||||||
LFN-D400 | 450mm | 1700mm | 6mm | 0.7 | ||||||
LFN-D450 | 500mm | 1750mm | 6mm | 0.9 | ||||||
LFN-D550 | 600mm | 1850mm | 6mm | 2.0 | ||||||
LFN-D800 | 850mm | 2000mm | 6mm | 2.5 | ||||||
Application
Quality Control & Delivery
Plywood Case for Exporting Package
Exhibition
Certifications
Company Profile
Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise.
Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
FAQ
1.Q: How can I choose the most suitable filter equipment?
2.Q::Can you offer video demonstrations illustrating the product's operation?
A: Absolutly, we can provide the working principle video, as well as the real photos.
3.Q:Do you facilitate live video consultations to inspect the factory in real-time?
A: Please tell me the working condition include: filtration liquid, general viscosity, flow rate per hour, filtration rate in micron,operation pressure and operation temprature…
We will provide you most suitable model and dimension drawing.
2.Q::Can you offer video demonstrations illustrating the product's operation?
A: Absolutly, we can provide the working principle video, as well as the real photos.
3.Q:Do you facilitate live video consultations to inspect the factory in real-time?
A:Surely. We can show our warehouse, machining workshop, assembly workshop, inspection and packing workshop via video call. And we welcome you to visit our factory at site at any time.
4. Q:What are our advantages compared to others?
A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
4. Q:What are our advantages compared to others?
A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
Ⅱ. The source of raw materials is well-known manufacturers,ensuring the quality of steel.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,duplex stainless steel 2205, SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304.
Ⅳ.Complete machining equipment and strong processing capabilities, ensuring machining accuracy.
5.Q:What is the warranty period?
A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,duplex stainless steel 2205, SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304.
Ⅳ.Complete machining equipment and strong processing capabilities, ensuring machining accuracy.
5.Q:What is the warranty period?
A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
