Профессиональный производитель полностью гидравлическая портативная алмазная буровая установка для горного бурения

Профессиональный производитель полностью гидравлическая портативная алмазная буровая установка для горного бурения

Категория: >>>
Поставщик: Henan Yugong Machinery Equipment Co. Ltd.Henan Ltd.

Цена:867 565,44-988 060,64 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Factory Vertical Backpack Core Drilg Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig

Product Description

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 0

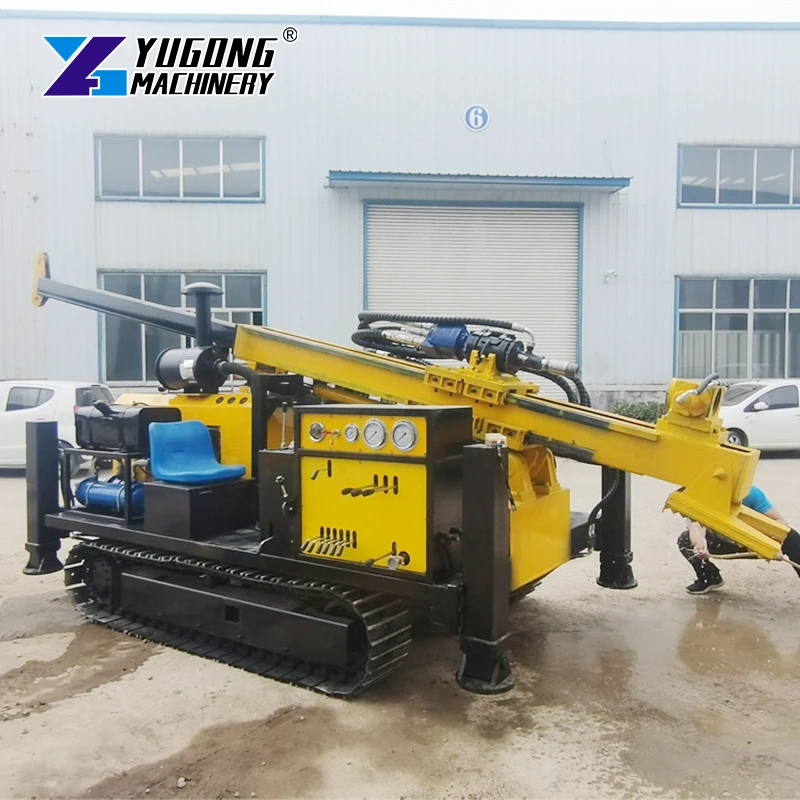

Product show

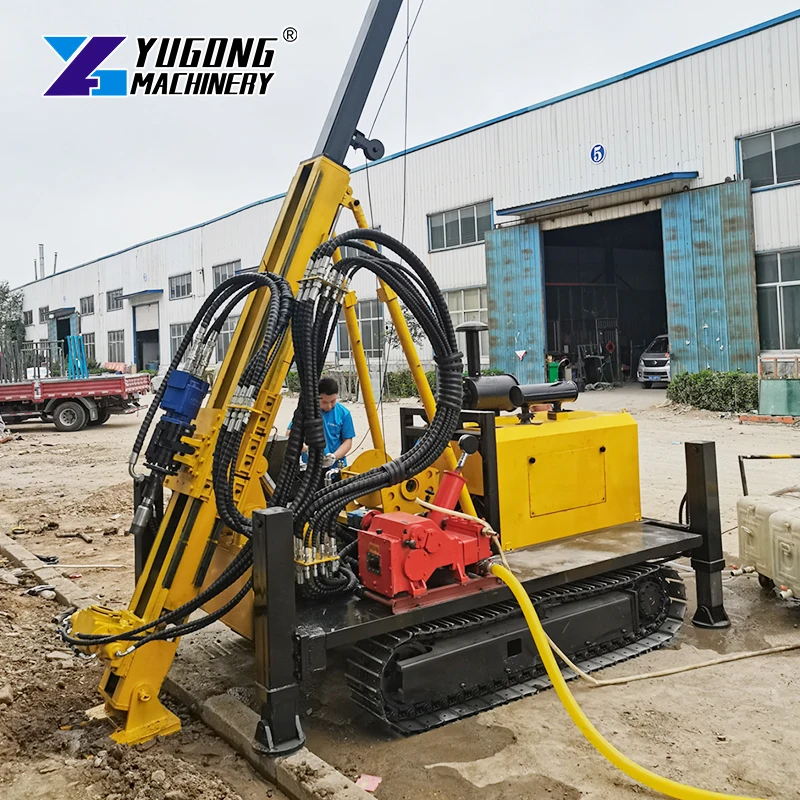

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 1

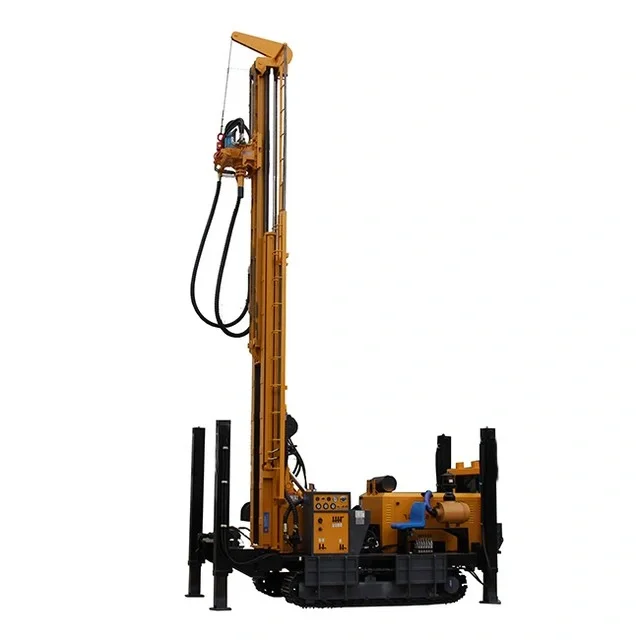

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 2

2. High stability and safety.
3. User-friendly. The machine is designed with the operator’s comfort in mind. It comes with a user-friendly control system that enables easy operation.
4. Low maintenance cost. The rig is very reliable and easy to maintain, reducing operational downtime and lowering the cost of maintenance.
It is a steel crawler-mounted type, it can move in any place and is very easy to transport. Mainly used for geological prospecting, mining exploration, etc projects.

Technical Parameters

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 3

Model	YGX-400	YGX-600	YGX-800	YGX-1000
	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/ 2400r/min
	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
	30-90(L/min)	30-90(L/min)	90-180(L/min)	90-180(L/min)
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension(mm)	400019001800	400020001800	550021002000	600022002400
Weight	4.3T	4.5/5.5T	6.5T	7.5T

Detailed Images

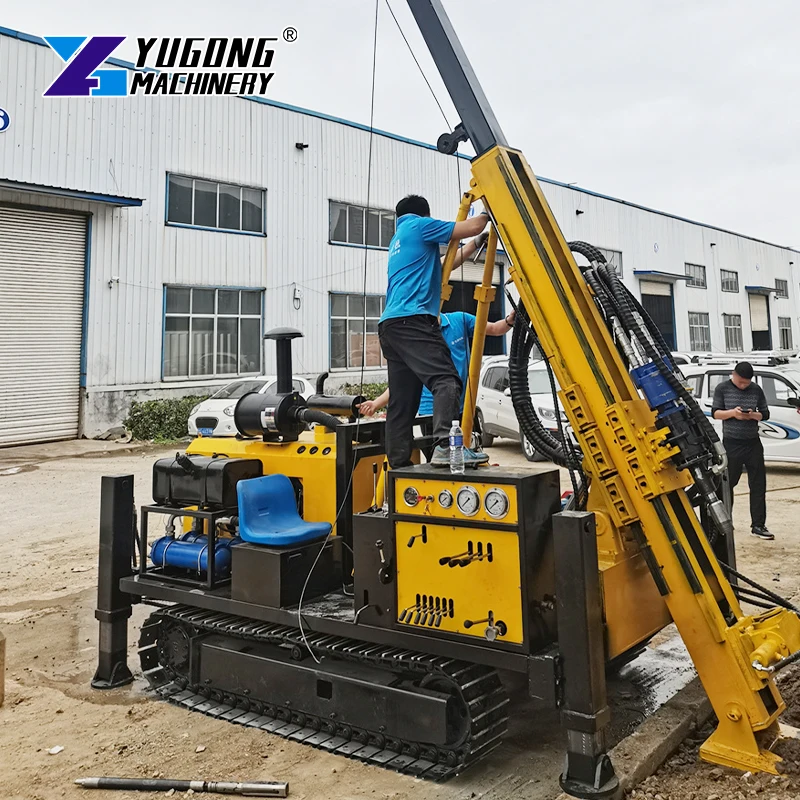

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 4

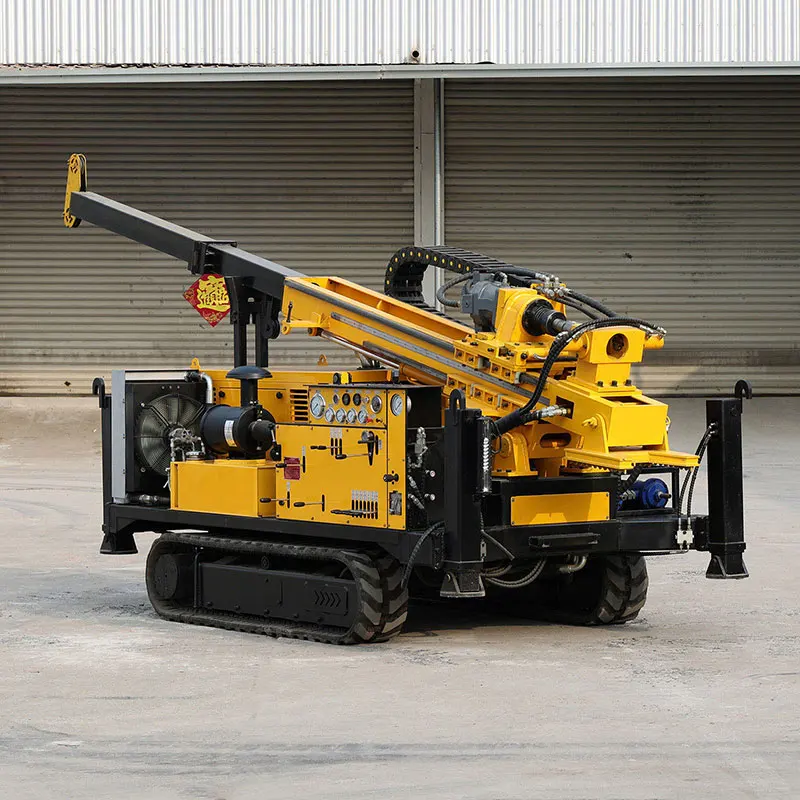

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 5

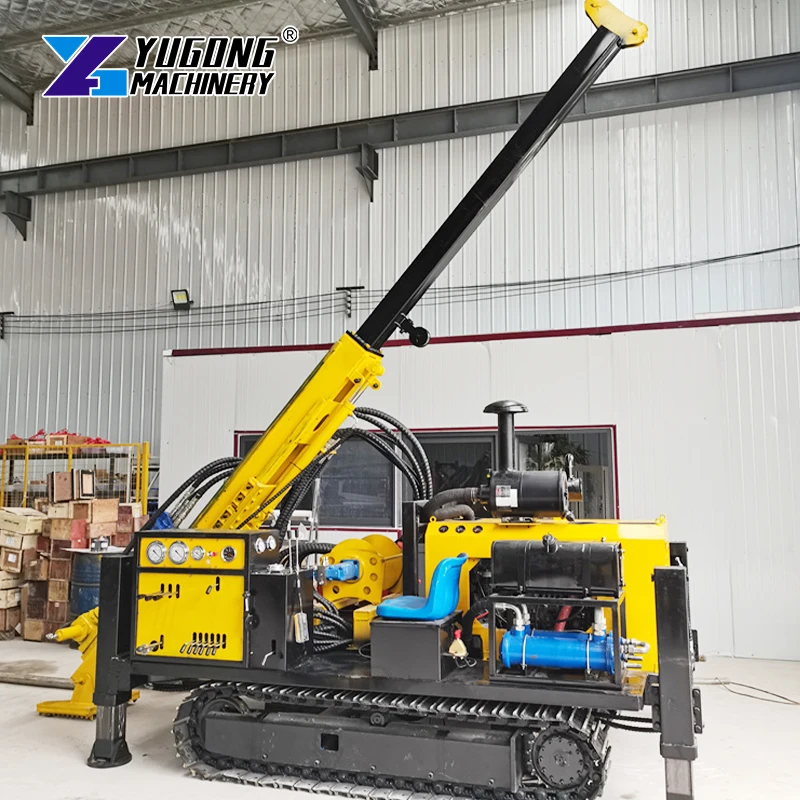

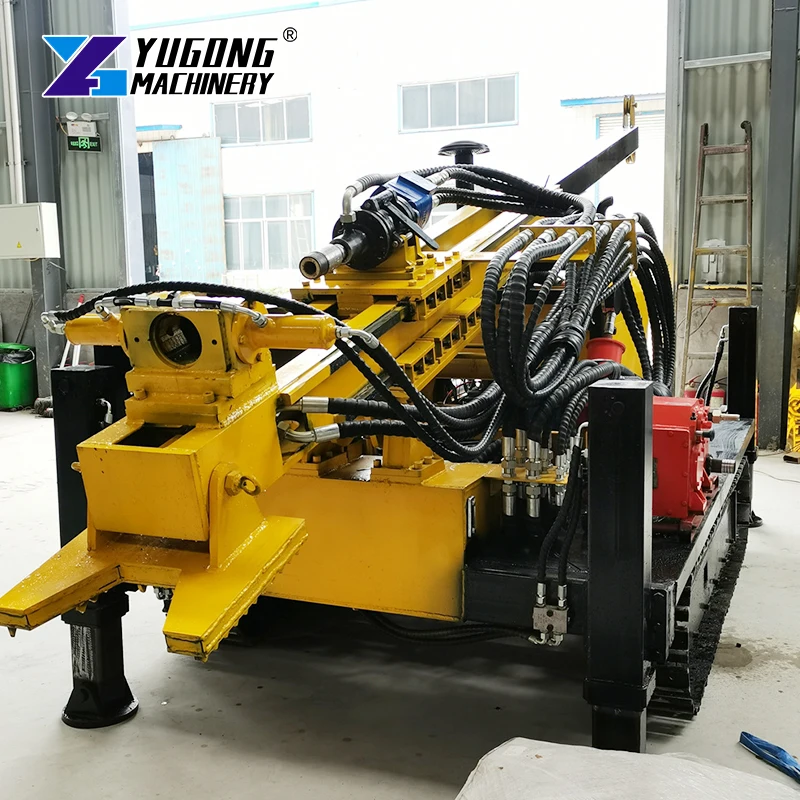

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 6

Packing & Delivery

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 7

About Us

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 8

, established in 2005, is a large-scale comprehensive enterprise integrating R&D, production, and engineering equipment sales. It is located in Zhengzhou, the central city of the country.

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 9

Factory Vertical Backpack Rig Truck For Water Core Drilg Soil-Sampg-Core-Drill-Rig 10

FAQ

Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.

Q2: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.

Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.

Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
