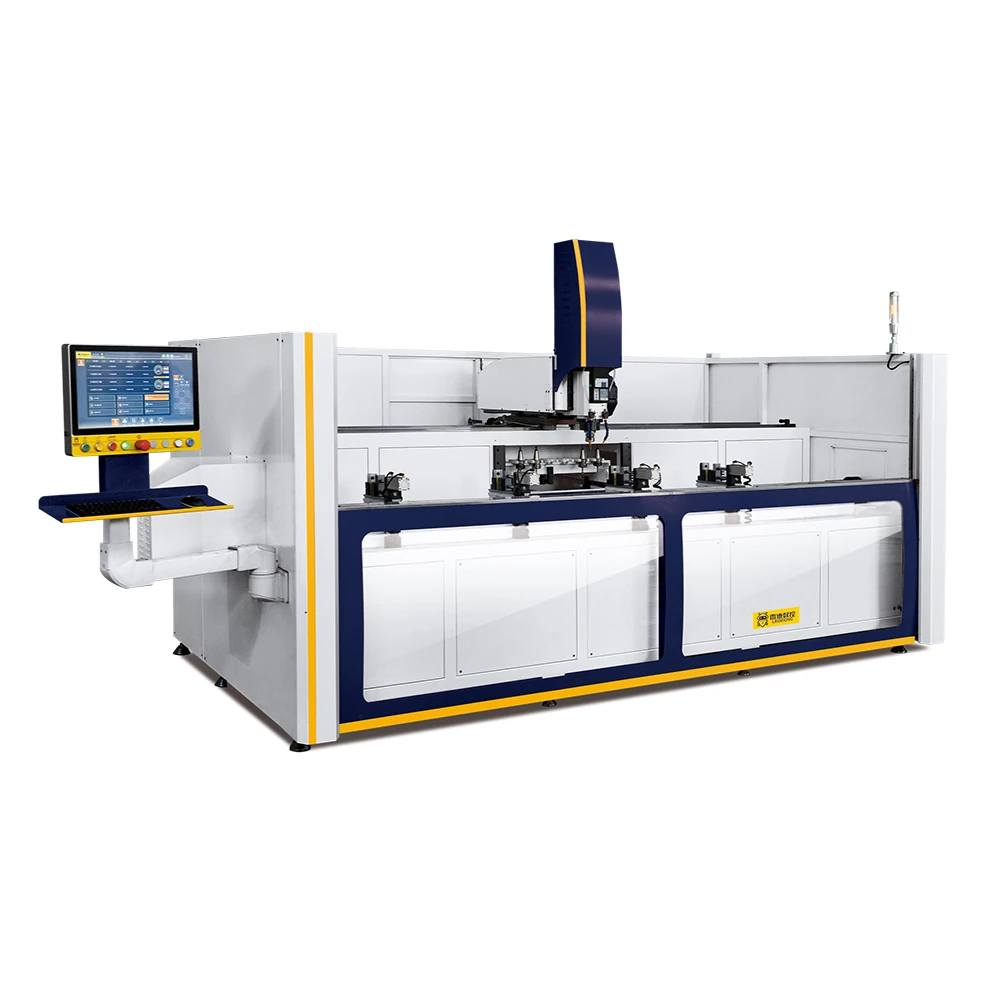

Алюминиевый сверлильный станок с ЧПУ ATC
2 014 732,98 ₽
LEDE CNC Автоматические Алюминиевые митровые пилы cnc с алюминиевым сверлильно фрезерным станком Торцевой фрезерный станок SG300 2
- Категория: >>>
- Поставщик: Shandong LEAD CNC Machinery Co. LtdShandong Ltd
Сохранить в закладки 1601236562946:
Описание и отзывы
Характеристики
Features
● Professionally used for cutting aluminum profiles.
● High efficiency: 45° saw blade servo feed, high efficiency.
● Large range: 300-7000mm, profile width 150mm, height 150mm.
● High power: Equipped with a 3KW direct-coupled motor, the efficiency of cutting profiles with insulation materials is 30% higher than that of 2.2KW.
● High precision: integral cast cutting mechanism, 3 fixed angles: 2 45° + 1 90°, cutting length error 0.1mm, cutting surface flatness ≤ 0.10mm, cutting angle error 5′.
● Foolish operation:
no need for skilled workers, no need to adjust the manipulator (it can automatically rotate and clamp special-shaped materials), no need to consider the profile section (Z-shaped fans and conversion frames are no problem, as shown below:), no need to customize the prototype, no need to consider the profile high.
● High degree of automation: A general worker can operate it, place 7 profiles at a time, and automatically complete feeding, cutting, and discharging.
● Intelligence: 6 servos, full servo control of the feeding system, intelligent identification of profile data (height, wall thickness), intelligent adjustment of processing parameters (feed speed, feed position)
● 0 mistakes: the equipment comes with an anti-error mechanism.
● Data import method:
1. Software docking: connected to ERP software, such as: Klaes, Jopps, Mendaoyun, Zaoyi, Xinger, etc.;
2. Network/USB import: according to the factory's existing material order format;
3. Manual input.
● Equipped with automatic chip conveyor (material head) and automatic dust collection device (aluminum chips), reduce the cleaning frequency and improve work efficiency.
● Double-layer protection of the cutting chamber, low noise, safety and environmental protection.
● Safety: gas and electric protection device, mechanical protection device to ensure safe production.
● Standard tool life management system, automatic reminder when the saw blade needs to be sharpened and replaced.
● Standard automatic maintenance reminder function to eliminate equipment hidden dangers in advance and improve equipment utilization rate.
● Standard production capacity statistics, equipment status time statistics, real-time monitoring, controllable delivery time, reduce inventory, and improve capital flow utilization rate.
● It has remote service functions (maintenance, care, training), which saves service time, reduces downtime, and reduces the factory’s dependence on skilled workers.
● High efficiency: 45° saw blade servo feed, high efficiency.
● Large range: 300-7000mm, profile width 150mm, height 150mm.
● High power: Equipped with a 3KW direct-coupled motor, the efficiency of cutting profiles with insulation materials is 30% higher than that of 2.2KW.
● High precision: integral cast cutting mechanism, 3 fixed angles: 2 45° + 1 90°, cutting length error 0.1mm, cutting surface flatness ≤ 0.10mm, cutting angle error 5′.
● Foolish operation:
no need for skilled workers, no need to adjust the manipulator (it can automatically rotate and clamp special-shaped materials), no need to consider the profile section (Z-shaped fans and conversion frames are no problem, as shown below:), no need to customize the prototype, no need to consider the profile high.
● High degree of automation: A general worker can operate it, place 7 profiles at a time, and automatically complete feeding, cutting, and discharging.
● Intelligence: 6 servos, full servo control of the feeding system, intelligent identification of profile data (height, wall thickness), intelligent adjustment of processing parameters (feed speed, feed position)
● 0 mistakes: the equipment comes with an anti-error mechanism.
● Data import method:
1. Software docking: connected to ERP software, such as: Klaes, Jopps, Mendaoyun, Zaoyi, Xinger, etc.;
2. Network/USB import: according to the factory's existing material order format;
3. Manual input.
● Equipped with automatic chip conveyor (material head) and automatic dust collection device (aluminum chips), reduce the cleaning frequency and improve work efficiency.
● Double-layer protection of the cutting chamber, low noise, safety and environmental protection.
● Safety: gas and electric protection device, mechanical protection device to ensure safe production.
● Standard tool life management system, automatic reminder when the saw blade needs to be sharpened and replaced.
● Standard automatic maintenance reminder function to eliminate equipment hidden dangers in advance and improve equipment utilization rate.
● Standard production capacity statistics, equipment status time statistics, real-time monitoring, controllable delivery time, reduce inventory, and improve capital flow utilization rate.
● It has remote service functions (maintenance, care, training), which saves service time, reduces downtime, and reduces the factory’s dependence on skilled workers.
Specification
Power | 380V/50Hz |
Consume | 13.5kw |
Air pressure | 0.5~0.8Mpa |
Air consumption | 100L/min |
Motor consume | 3.0KW |
Motor speed | 2800r/min |
Saw blade specifications | φ550×φ30×4.4, Z=120 |
Sawing length | 300~7000mm |
Sawing width | 150mm |
Sawing height | 150mm |
Sawing angle | 45°, 90° |
Maximum speed of manipulator | 100m/min |
Cutting accuracy | ±0.1mm |
Cutting surface flatness | ≤0.10mm |
Machine size(including two sides of the workbench) | 15000×5000×2500mm |
Weight | 16500kg |
Configuration of main components
Servo motor | Mitsubishi | JAPAN | ||
Servo motor driver | Mitsubishi | JAPAN | ||
Electric spindle | OLISPEED | Italy | ||
Electric spindle | GMT | CHINA | ||
Pneumatic components | AIRTAK | TAIWAN | ||
Guide rail | HIWIN | TAIWAN | ||
Screw | PMI | TAIWAN | ||
Tool rotary axis reducer | SPINA | Czech | ||
Linear axis reducer | APEX | TAIWAN | ||
Rack | APEX | TAIWAN | ||
Note: In case of insufficient supply, other brands of products will be used as substitutes, but there will be no difference in quality and grade | ||||
