Мощный деревообрабатывающий промышленный пылеуловитель
4 700,00-6 600,00 $
6000m3/h экстрактор дыма паяного сварочного
- Категория: >>>
- Поставщик: Wuxi York Intelligent Technology Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1601236573140:
Описание и отзывы
Характеристики
Product Overview
6000m3/h Smoke Extractor Solder Fume Extractor Welding Fume Extractor
The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment, which is suitable for purifying fine and dry non fiber dust.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air will come out from the upper part of cleaner.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air will come out from the upper part of cleaner.
Product Paramenters
YORK Carbon Steel Cartridge Filter Dust Collector | ||||||||||||||
Model | Air volume m³/h | Power kw | Filter Qty. pc | Air Inlet mm | Air Outlet mm | Pressure pa | Dimension mm | |||||||
YKM-800 | 800 | 0.75 | 1 | Φ100 | 100*300 | 1210 | 500*500*1450 | |||||||
YKM-1600 | 1600 | 1.5 | 1 | Φ150 | 150*350 | 1360 | 550*550*1450 | |||||||
YKM-2200 | 2200 | 2.2 | 2 | Φ200 | 200*400 | 1470 | 650*650*1700 | |||||||
YKM-2700 | 2700 | 3.0 | 4 | Φ250 | 300*300 | 1578 | 800*800*2000 | |||||||
YKM-4000 | 4000 | 4.0 | 4 | Φ250 | 300*300 | 1650 | 800*800*2000 | |||||||
YKM-6000 | 6000 | 5.5 | 4 | Φ300 | 350*350 | 2014 | 950*950*2100 | |||||||
YKM-8000 | 8000 | 7.5 | 6 | Φ400 | 400*400 | 2554 | 1000*1200*2100 | |||||||
YKM-10000 | 10000 | 11.0 | 9 | Φ500 | 400*400 | 3100 | 1200*1200*2300 | |||||||
YKM-15000 | 15000 | 15.0 | 9 | Φ500 | 400*400 | 3200 | 1200*1200*2300 | |||||||
Dust collection method:Dust arms or pipe connection | ||||||||||||||
Fixing method:With fixed feet/movable universal wheels (optional) | ||||||||||||||
Details Images
Plastic sprayed surface
Smooth wear-resistant dust-free
Filter with fiber fabric
High efficiency filtration
Low noise High efficiency Strong dust removal
Simple operation
Reliable quality Overheating protection
Fixed with bracket
Avoid pipe damage caused by high backblowing force
Dusty gas passes through the air inlet
Suction into the equipment for filtration
Feedback
Similar Products
Company Profile
Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City,Jiangsu province. Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,market developing and service. YORK Environmental Protection Machinery, specialize in design, R&D and manufacture all kinds of duct cleaning machine, dust collector and fume extractor etc.
At present, our company products have been all over the country's major provinces and cities, we have exported to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.
Strength: YORK accepts OEM and ODM, satisfy customer’s personalized requirements.
One-stop: YORK provides a wide range of products to satisfy customers with one-stop purchase.
Service: YORK offers lifelong after-sales service for every product.
Quality: Every product gets passed strict quality inspection, the final passed yield is over 99.9%.
At present, our company products have been all over the country's major provinces and cities, we have exported to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.
Strength: YORK accepts OEM and ODM, satisfy customer’s personalized requirements.
One-stop: YORK provides a wide range of products to satisfy customers with one-stop purchase.
Service: YORK offers lifelong after-sales service for every product.
Quality: Every product gets passed strict quality inspection, the final passed yield is over 99.9%.
Certifications
FAQ
Q1：Which shipping methods do you use?
A1:We offer sea, air, and land freight as well as express delivery. The specific options depend on the quantity of the order.
A2：We accept T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
Q3：What about the Minimum Order Quantity?
A3：The MOQ is 1 pcs.
Похожие товары

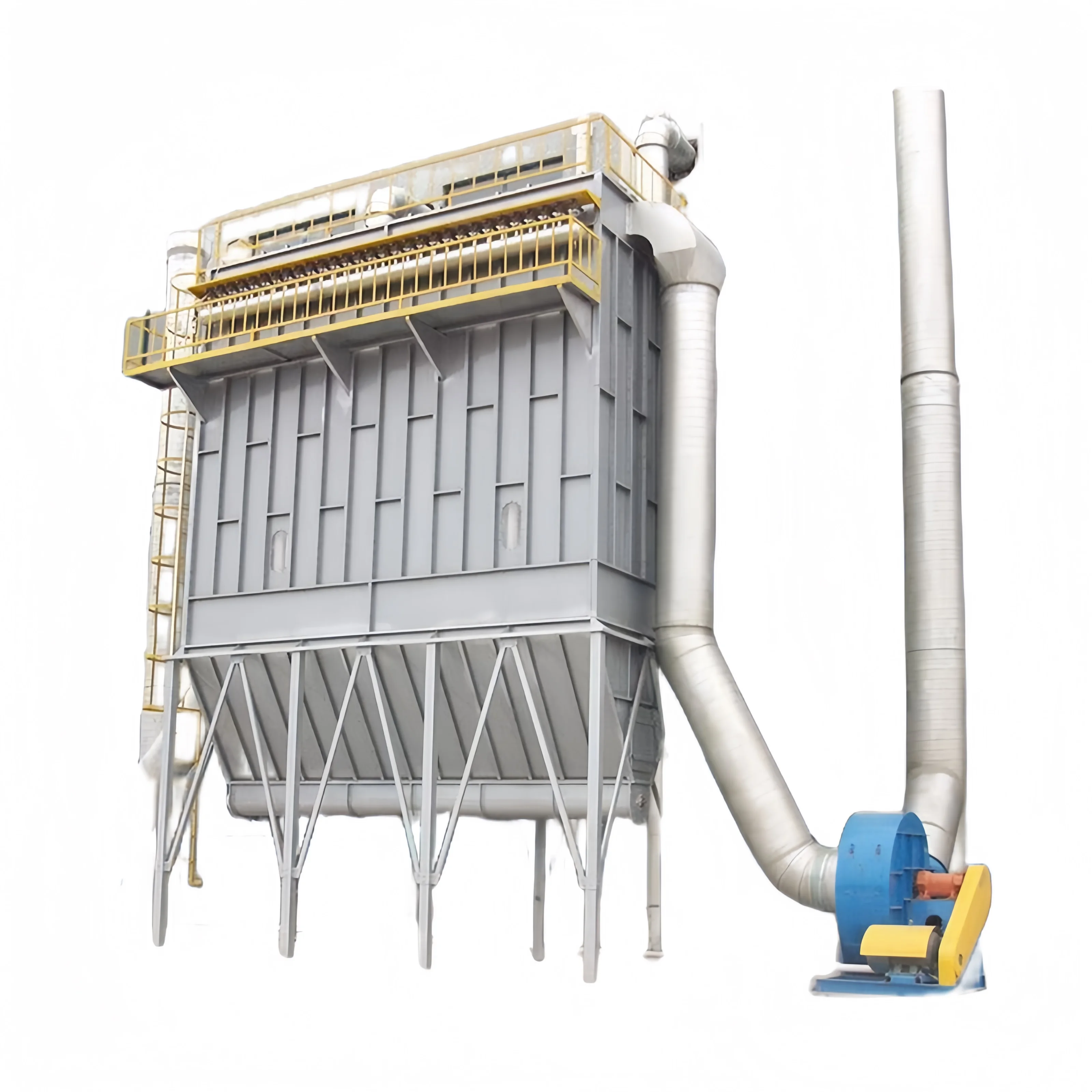

Лидер продаж промышленный пылеуловитель с картриджным фильтром для плазменной лазерной резки пылеуловителя
8 500,00-9 000,00 $
DK_HOPPER для силосного круглого пылеуловителя
255,00-262,00 $
Электрическая швабра система сбора пыли
420,00-600,00 $

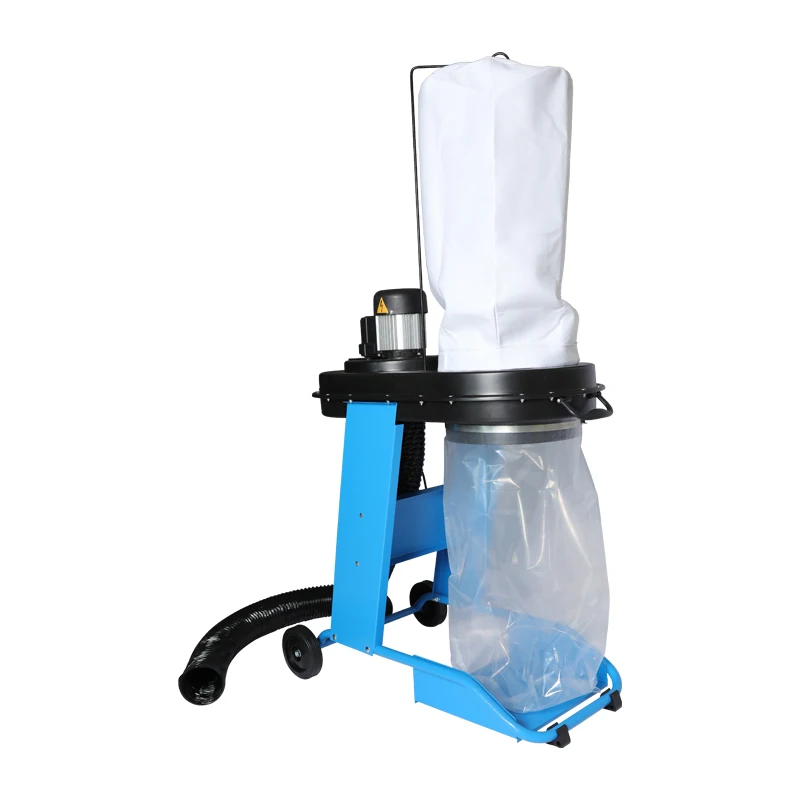

Myaitool системой пылеудаления с деревообрабатывающий центральной циклонный пылесборник 5 микрон мешка для пыли
76,72-78,72 $
Заводская цена промышленный пылеуловитель ESP большой мешочный фильтр с компонентами сердечника двигателя
1 900,00-2 500,00 $

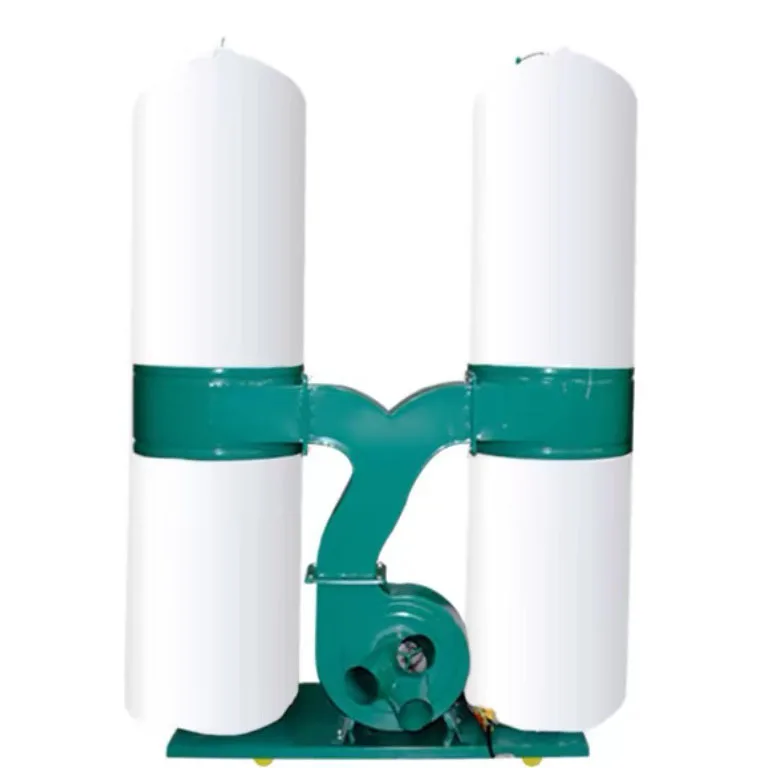

Пылесборник для древесной пилы циклонный пылесборник
