High-Purity Low-Loss Hydrogen Membrane Recovery &Purification Equipment
Superior Quality High Concentration Membrane Hydrogen Recovery from Refinery Gas
Product Description
Hydrogen Recovery from Refinery Gas
As environmental regulations on fuel impurities become increasingly stringent, hydrotreating is a primary method used to remove sulfur, oxygen, nitrogen, metals, and other contaminants from fuel. During the refining process, to maintain sufficient hydrogen partial pressure in the reactor, low-carbon hydrocarbons are continuously vented. The vent gas contains hydrogen concentrations as high as 50-80%. Venting this gas results in a significant loss of hydrogen.
Using membrane separation equipment to recover hydrogen from the vent gas can allow it to be reused for hydrotreating, reducing hydrogen consumption per ton of oil by 20-30%, thereby enhancing the hydrotreating capacity.
Using membrane separation equipment to recover hydrogen from the vent gas can allow it to be reused for hydrotreating, reducing hydrogen consumption per ton of oil by 20-30%, thereby enhancing the hydrotreating capacity.
Feature | Data |
H.P. Vent Gas | H2 Purity: 70-90%, Pressure: 8.0-10.0 MPaG. |
L.P. Vent Gas | H2 Purity: 50-70%, Pressure: 2.0 MPaG. |
FCC Offgas | H2 Purity: 30%, Pressure: 0.5 MPaG. |
H2 Recovery Efficiency | 70-95%. |
H2 Purity | 95-99.5 mol%. |
Max. Operating Temperature | Up to 90℃. |
Max. Operating Pressure Difference | Up to 90 barg. |

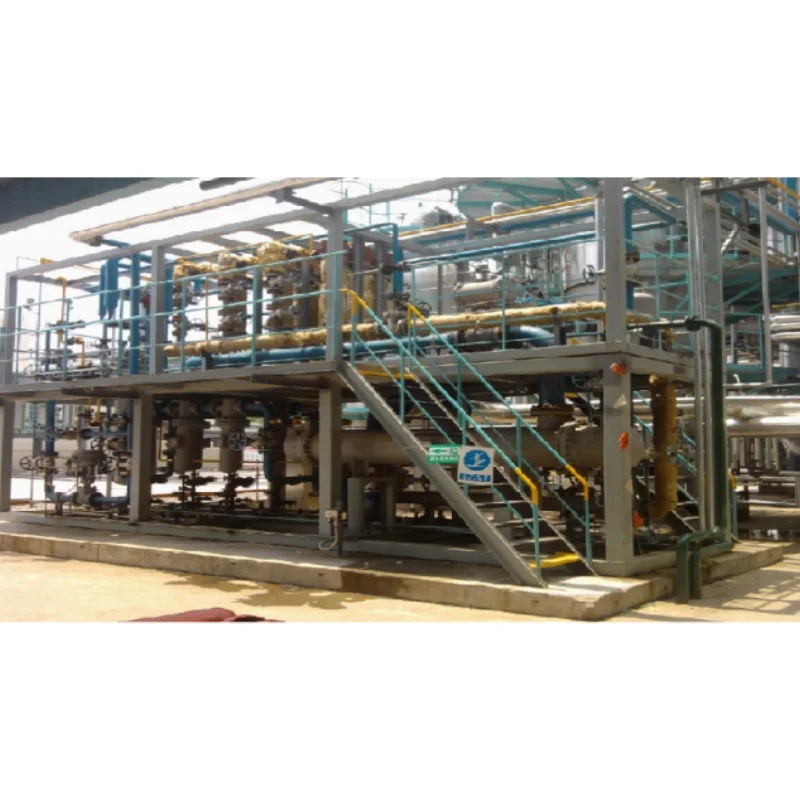

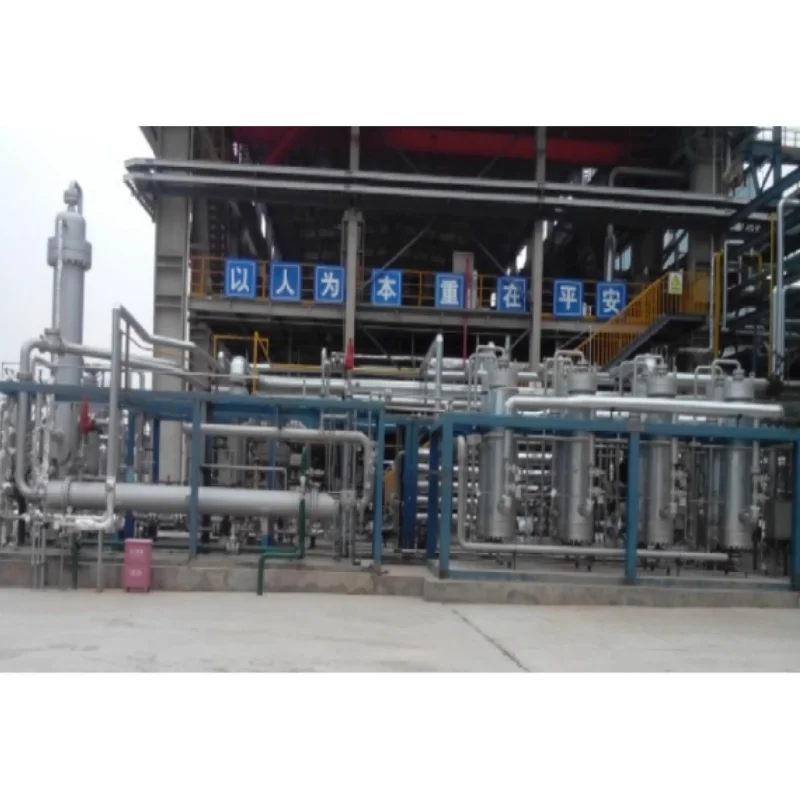

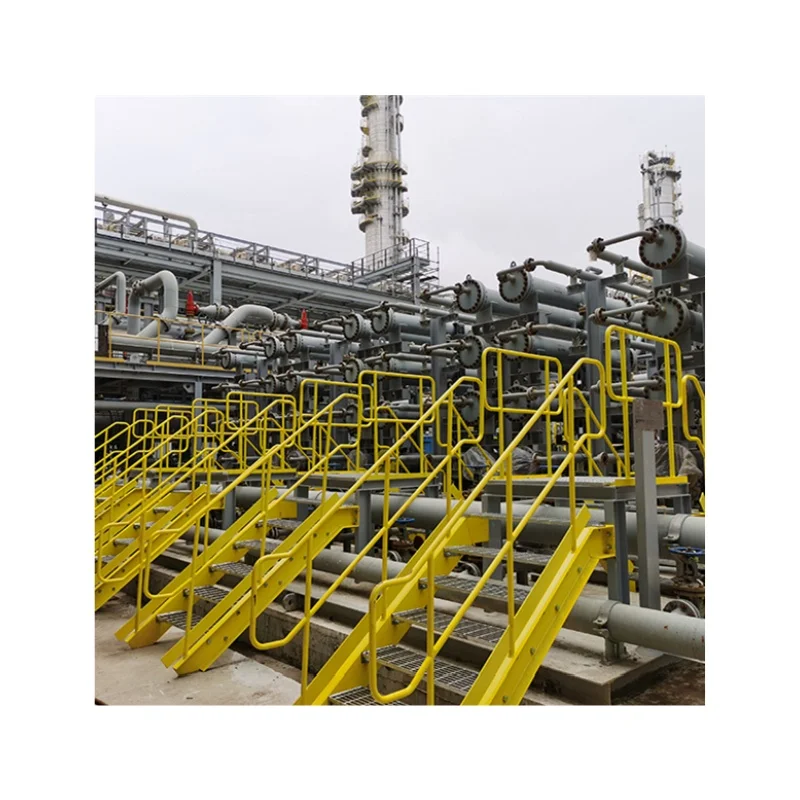

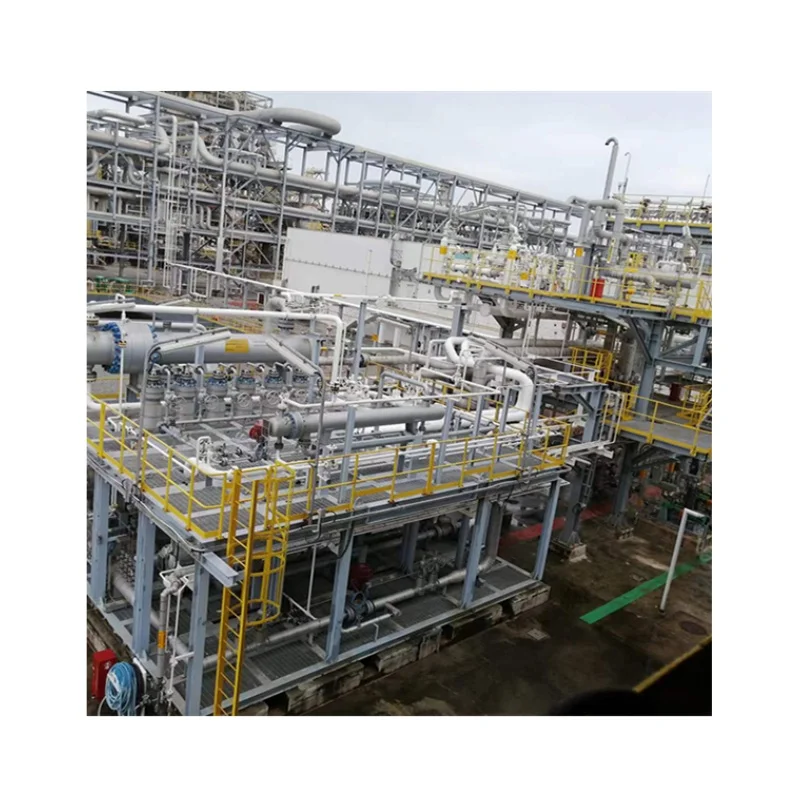

Project Case
Application: 450 kta/year Ammonia
Capacity: 46000 Nm3/h
Feed pressure: 14.4 MPaG
Design pressure: 17 MPaG
He recovery: >90%
H2 purities: >93 mol%
Application: 2050 MTPD Ammonia
Capacity: 32000 Nm3/h
Feed pressure:12.0 MPaG
Design pressure:14 MPaG
He recovery: >87.4%
H2 purities: >95 mol%
Feed pressure:12.0 MPaG
Design pressure:14 MPaG
He recovery: >87.4%
H2 purities: >95 mol%
Application: 8.8 MMTA Residue Hydrocracking Unit
Capacity: 110000 Nm3/h
Feed pressure: 15.0 MPaG
Design pressure: 18.0 MPaG
He recovery: >95%
H2 purities: >97 mol%
Design pressure: 18.0 MPaG
He recovery: >95%
H2 purities: >97 mol%
Application: 2.6 MMTA Ebullated-Bed Residue Hydrocracking Unit
Capacity: 180000 Nm3/h
Feed pressure: 17.0 MPaG
Design pressure: 20.0 MPaG
He recovery: >80%
H2 purities: >97 mol%
Feed pressure: 17.0 MPaG
Design pressure: 20.0 MPaG
He recovery: >80%
H2 purities: >97 mol%
Application
Suitable for the oil refining industry, chemical production, electronics, hydrogenation, hydrogen production, and hydrogen recovery. Also used in the methanol production process, adjusting the H2:CO ratio in synthesis gas, purifying hydrogenation cracking gas, recovering hydrogen from variable-pressure adsorption hydrogen production analysis gas, recovering hydrogen in the ammonia production process, downstream of the cold box, hydrogen recovery in ammonia production tail gas, hydrogen recovery in the natural gas cracking and reforming process, hydrogen recovery in the bio-methane cracking and reforming process, food engineering, FCC unit gas treatment, desulfurization process emission gas, hydrogen recovery in carbon monoxide processes, hydrogen recovery in liquefied natural gas processes, hydrogen recovery in hydrogen peroxide production processes, emission gases from amine products, and heat treatment processes.
