Промышленная Коммерческая солнечная энергетическая система 50 кВт 100 кВт моно солнечная панель PV комплект с литиевой батареей и инвертором солнечных батарей
21,88 ₽ - 32,82 ₽
Солнечная генераторная система Sunpal 10000 ватт 8000 Pv хранения энергии высокого качества
- Категория: >>>
- Поставщик: Sunpal Solar Co. Ltd.
Сохранить в закладки 1601236732558:
Описание и отзывы
Характеристики
Product Description
Complete solar system ready to installation
Want to know how many KW is suitable for your system? Please contact and advice us：
1, Do you need batteries for nighttime and rainy day use?
2, How many KWH of power do you need this system to generate per day?
3, For which country use？
1, Do you need batteries for nighttime and rainy day use?
2, How many KWH of power do you need this system to generate per day?
3, For which country use？

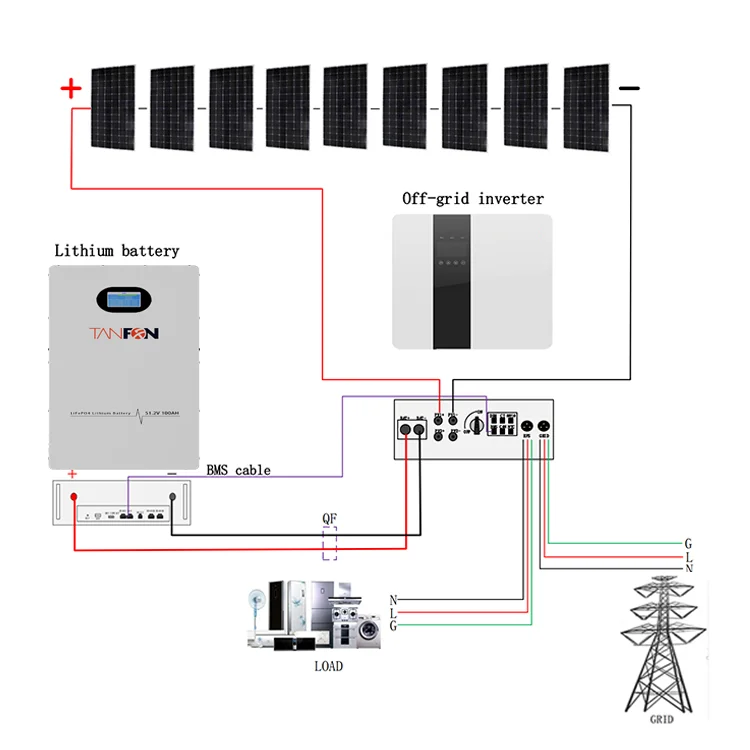

System Connection Diagram
A complete system consists of the following components:
1. PV modules: converts light energy into DC energy, which can be used to charge the battery via an inverter or directly inverted into AC power to supply the load.
2. Utility grid or generator: connected to the AC input, it can supply the load and charge the battery at the same time. The system can also operate generally without the mains or generator when the battery and the PV module power the load.
3. Battery: The role of the battery is to ensure the regular power supply of the system load when the solar energy
is insufficient and there is no mains power.
is insufficient and there is no mains power.
4. Home load: Various household and office loads can be connected, including refrigerators, lamps, televisions, fans, air conditioners, and other AC loads.
5. Inverter: The energy conversion device of the whole system. The actual application scenario determines the specific system wiring method
Specification
System MODEL | SP5KW-HY | SP8KW-HY | SP10KW-HY | SP12KW-HY | ||||
PV System Size Nominal (kWp) | 5.5 | 8.8 | 11 | 13.2 | ||||
PV MODULE SPECIFICATIONS (*half cell mono) | ||||||||
Power (W) | 550 | |||||||
Vmp (V) | 41.96 | |||||||
Dimensions (L x W x H) (mm) | 2279*1134x35 | |||||||
Certififications | CE / TUV (IEC 61215 & IEC 61730) | |||||||
INVERTER SPECIFICATIONS | ||||||||
Inverter Size (kW) | 5 | 8 | 10 | 12 | ||||
Max DC Power (W) | 6500 | 10400 | 13000 | 15600 | ||||
Max DC Voltage (V) | 500 | 1000 | ||||||
MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 | ||||
Output Voltage | 220,230Vac | 220/380,230/400Vac | ||||||
UPS (Off Grid Model with Battery) | ||||||||
Rated Power (VA) | 5000 | 8000 | 10000 | 12000 | ||||
Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 | ||||
Max Power(W)for 10 Seconds | 7500 | 12000 | 15000 | 18000 | ||||
BATTERY BANK SPECIFICATIONS | ||||||||
Battery Type | Li-Ion(LifePO4) | |||||||
Total Batteries | 1 | 2 | 3 | 4 | ||||
Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 | ||||
Battery Voltage (V) | 48 | |||||||
Battery Current(Ah) | 100 | |||||||
Number of PV Modules | 10 | 16 | 20 | 24 | ||||
What Included

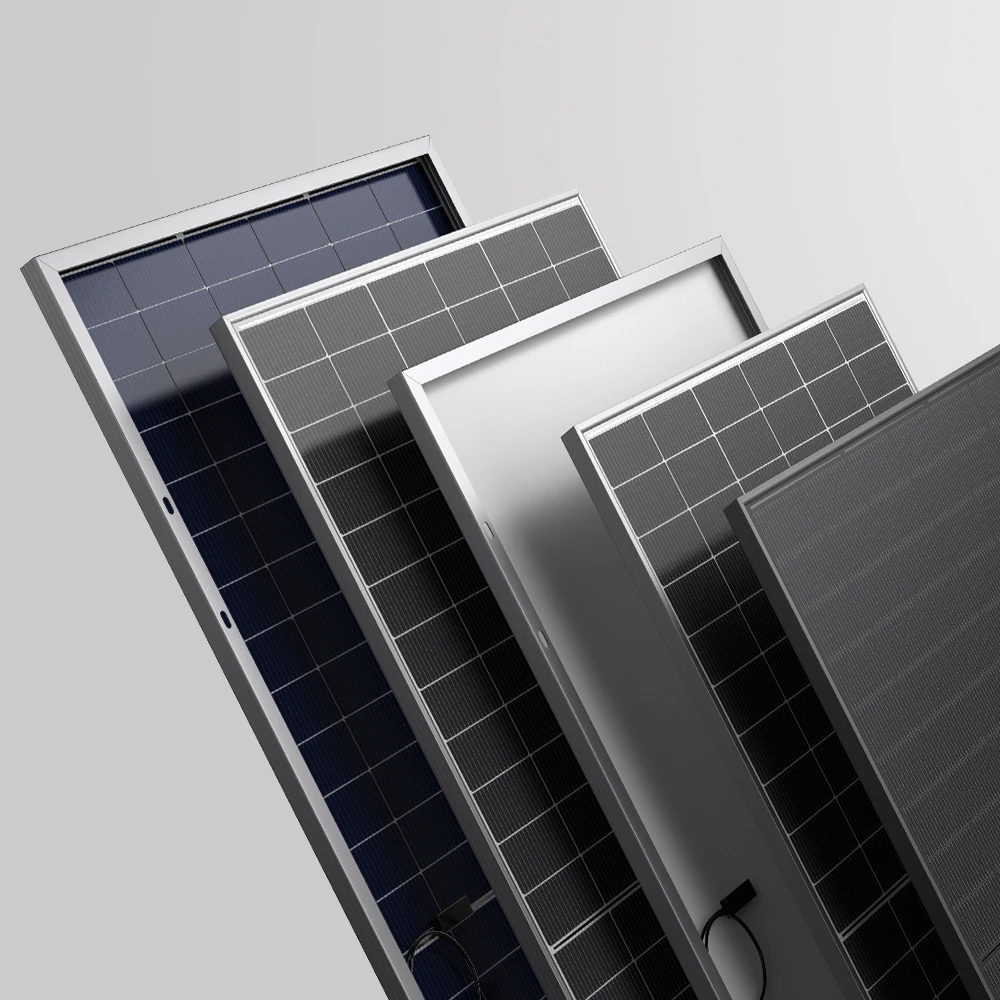

Diverse Options: PERC, TOPCon, HJT technology, Bifacial, Monofacial Solar Panel from 400W-720W
Reliable Warranty:25 YEAR Materials Warranty 30 YEAR Power Warranty
Reliable Warranty:25 YEAR Materials Warranty 30 YEAR Power Warranty
Battery Voltage: 40-60V.
Can Be Paralleled: 1-6pcs.
Availability: 3/5/6/8/10KW.
Industrial design with a modern aesthetic look.
Easy to install and simple to use.
Exclusive Li-ion battery BMS dual activation.
Time-slot function to save cost with peak-valley.
Can Be Paralleled: 1-6pcs.
Availability: 3/5/6/8/10KW.
Industrial design with a modern aesthetic look.
Easy to install and simple to use.
Exclusive Li-ion battery BMS dual activation.
Time-slot function to save cost with peak-valley.

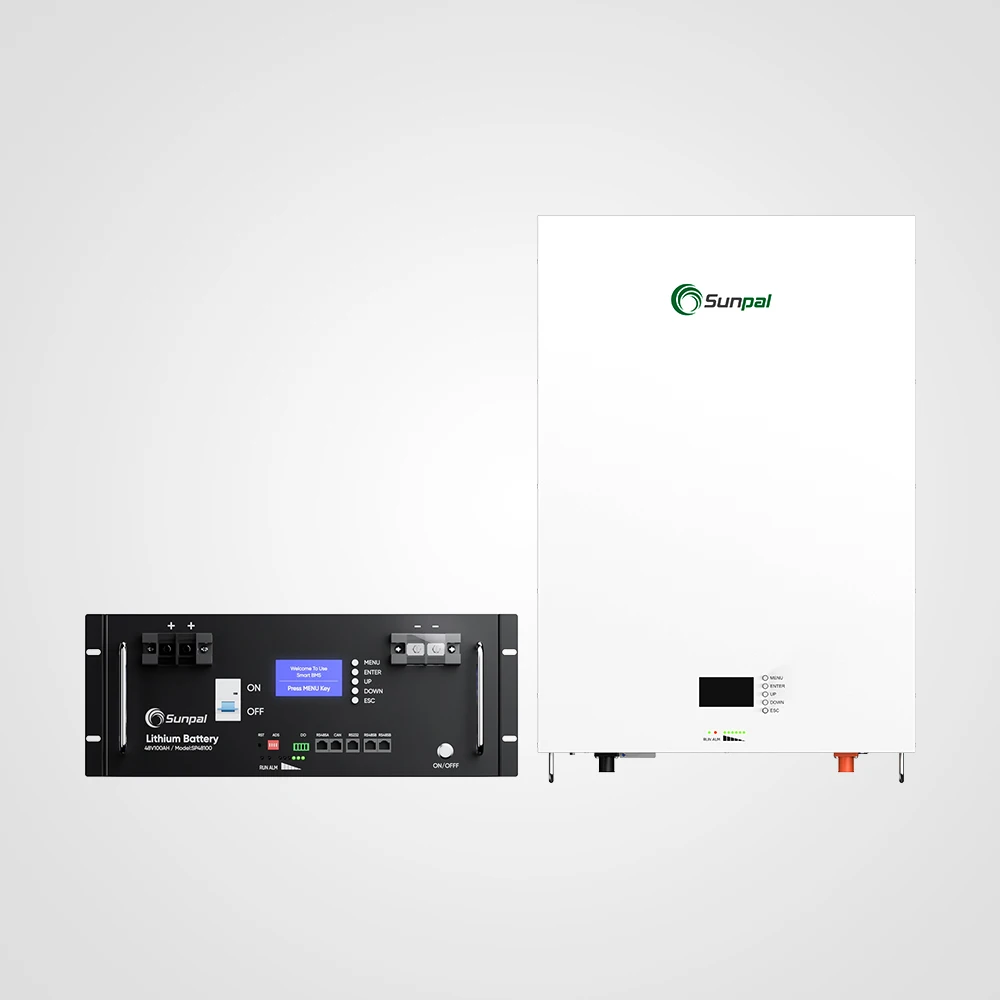

Lithium Battery
Long Life And Safety 6000 cycles with 80% DOD, high-qualityprismatic battery cell Intelligent.
With independent smart BMS system,manages power output effectively.
Compatibility Compatible with most of the available Hybrid inverters Backup Protection.
Stores energy, detects outages and automatically becomes energy source.
Plug In And Play Plug in batteries then working, easy toinstall and set up Safety Cert UL1642,IEC62619,CE,UN38.3,MSDS.
With independent smart BMS system,manages power output effectively.
Compatibility Compatible with most of the available Hybrid inverters Backup Protection.
Stores energy, detects outages and automatically becomes energy source.
Plug In And Play Plug in batteries then working, easy toinstall and set up Safety Cert UL1642,IEC62619,CE,UN38.3,MSDS.
Our Projects

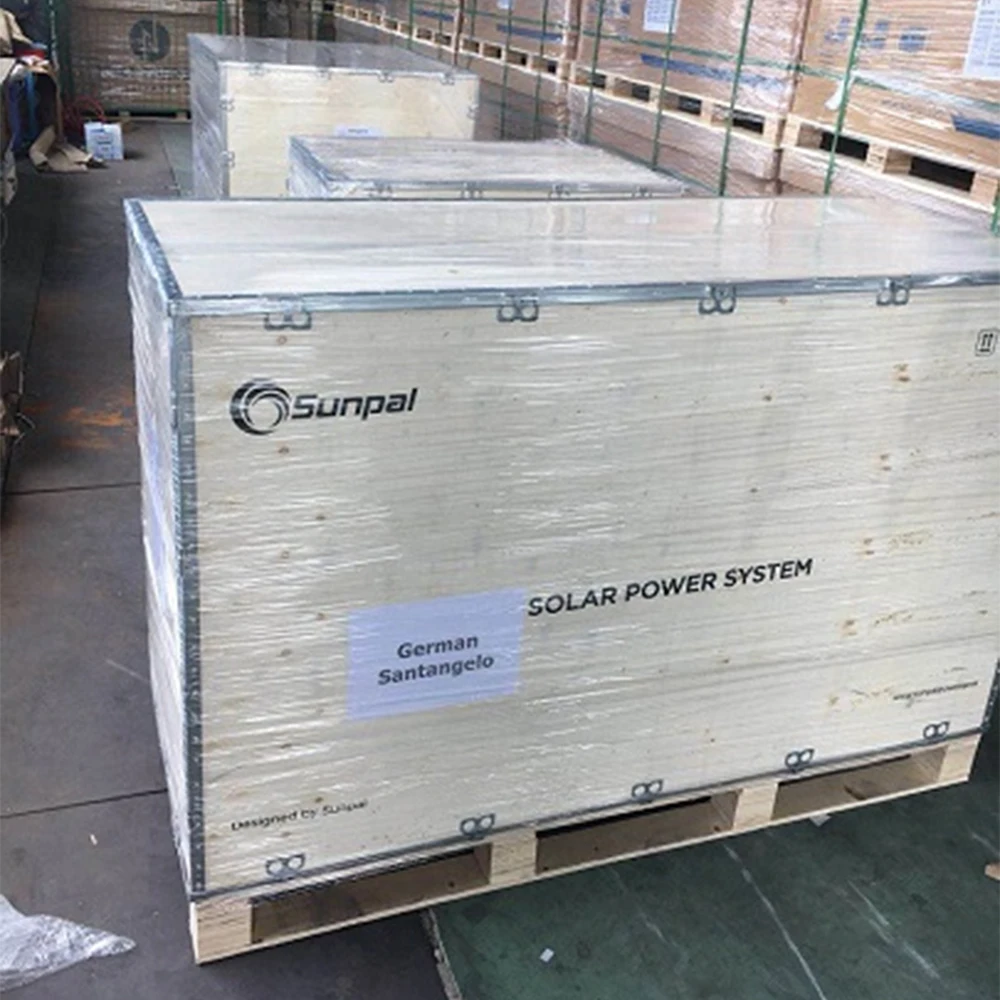

Packing & Delivery
For solar system, we packed all products in wooden box for better protection during long distance shipping
Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
We supply solar panel, inverter, battery, mounting system, complete solar power system, solar air conditioner. Please feel free to contact us if you have any interests.
We supply solar panel, inverter, battery, mounting system, complete solar power system, solar air conditioner. Please feel free to contact us if you have any interests.
FAQ
Who is Sunpal? Is Sunpal a trading company or factory?
Sunpal is a old brand for power and solar products since 1998. Sunpal 100% is factory, which mainly produce solar panel and lithium battery, and we have several brother factories for different products.Our main products covers: off grid/hybrid solar inverter, Pv module, Lithium battery and storage system. We can offer one stop shopping for solar system and related products.
Why should l buy from Sunpal?
For off grid solar inverters, the industry standard warranty period is 3 years. Sunpal can also offer extendedwarranty service up to 2-3 years with extra charge once requested by some special projects
Sunpal is a old brand for power and solar products since 1998. Sunpal 100% is factory, which mainly produce solar panel and lithium battery, and we have several brother factories for different products.Our main products covers: off grid/hybrid solar inverter, Pv module, Lithium battery and storage system. We can offer one stop shopping for solar system and related products.
Why should l buy from Sunpal?
For off grid solar inverters, the industry standard warranty period is 3 years. Sunpal can also offer extendedwarranty service up to 2-3 years with extra charge once requested by some special projects
