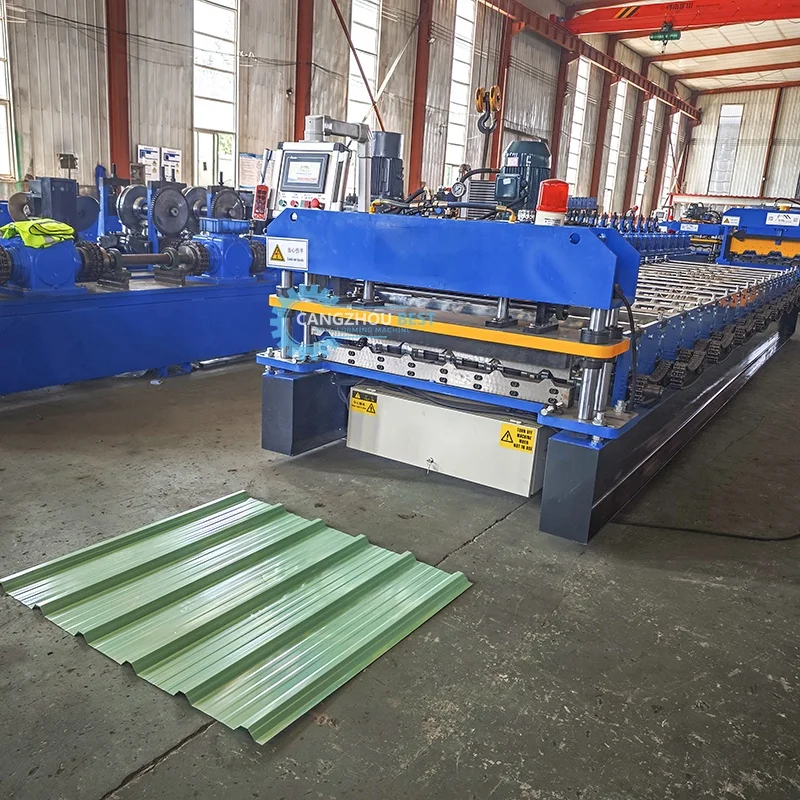

ПЛК управления IBR панели крыши машина Южная Африка черепица профилегибочная
2 149 386,40-2 262 512,00 ₽
Оптовая Продажа с фабрики 1000 IBR трапециевидный тип ребра стальной металлический кровельный лист для рулона
- Категория: >>>
- Поставщик: Cangzhou Best Machinery Manufacturing Co. Ltd.Cangzhou Ltd.
Сохранить в закладки 1601236787396:
Описание и отзывы
Характеристики
Factory Wholesale 1000 IBR Trapezoidal Rib type Steel Metal Roofing Sheet Roll Forming Machine For Iraq
Product Description
Trapezoidal Profile Roofing Sheet Making Machine

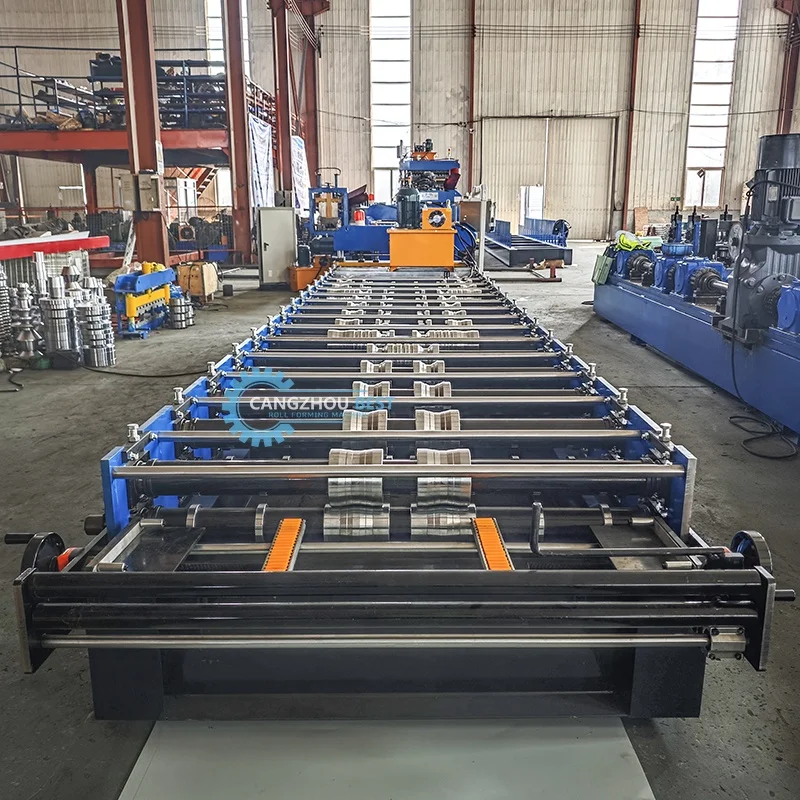

A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.
This IBR metal sheet roll forming machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils,aluzinc sheets, Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use 840 IBR material to make full hard metal roofing sheets.
A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.
This IBR metal sheet roll forming machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils,aluzinc sheets, Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use 840 IBR material to make full hard metal roofing sheets.
Specification
Name | Factory Wholesale 1000 IBR Trapezoidal Rib type Steel Metal Roofing Sheet Roll Forming Machine For Iraq |
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
Thickness Range | 0.3-0.8 mm |
Coil Width RangeCoil | 914, 1000, 1220 or 1250 mm. According to your actual drawing. |
Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
Dimension | About 6.8*1.6*1.45m (L*W*H), as per the drawing |
Cutting | Automatically stop and cutting when it comes to the set length. |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Work Flow
Main Workflow Of 1000 IBR Roof Sheet Roll Forming Machine
ibr roof sheet roll forming machine
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism →Products Receiving Tables
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism →Products Receiving Tables
Details Show
uncoiler | ||
Loading capacity | 5T | |
Inner diameter | 470-530mm | |
Steel coil width | 914, 1000, 1220, 1250 mm. According to your actual drawing. | |
Working speed | 0-15m/min adjustable | |

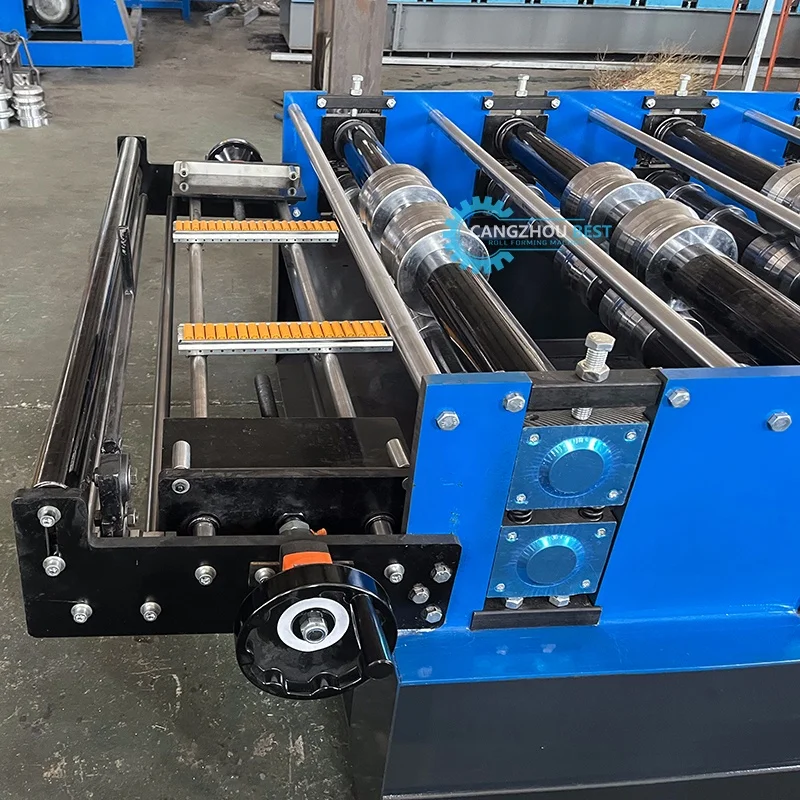

Feeding Table | ||
It is used to control the width and position of the steel sheet. | ||
The sheet is guided into the machine with the correct position to make sure the panel is neat and parallel. | ||
Mainframe | ||
Material | 350 H steel | |
Feature | more table, no shaking | |

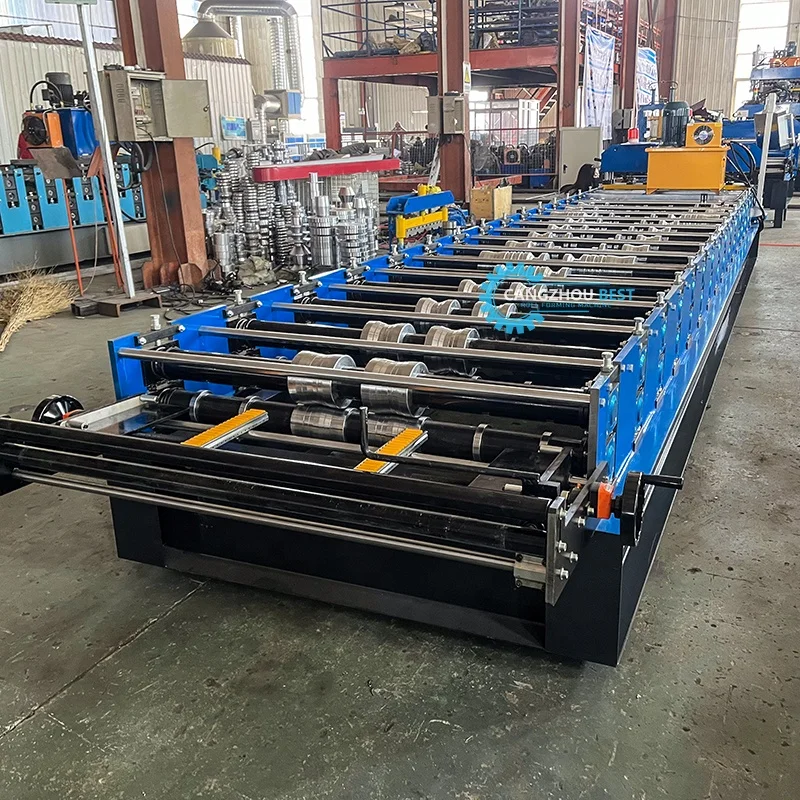

Forming Rollers | ||
Material | High grade 45# steel. | |
Roller stations | 11-16 stations. According to your actual drawing | |

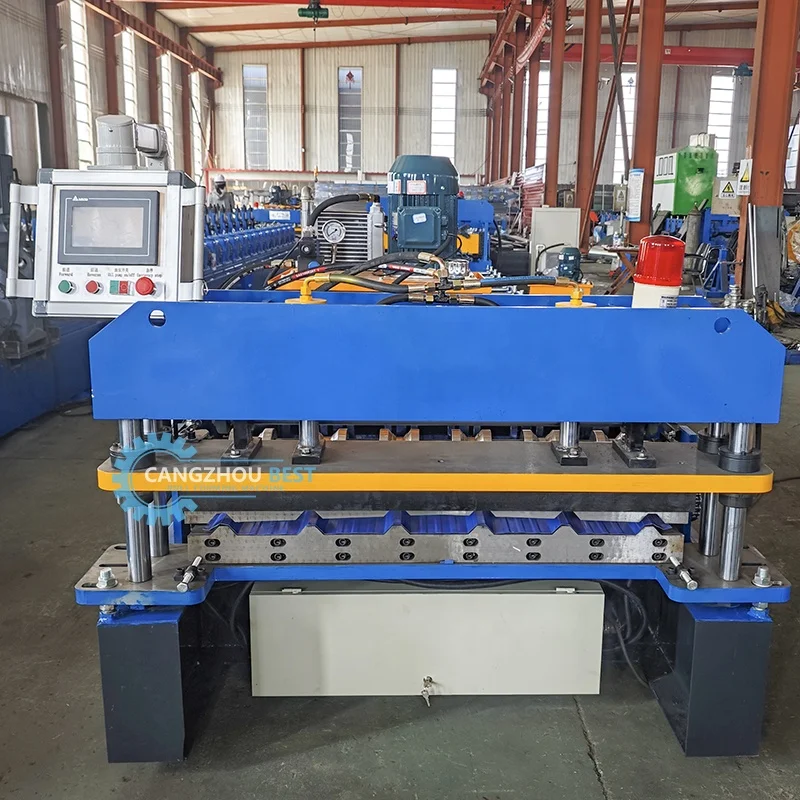

cutting system | ||
Material of blade | Cr12MOV much better than normal Cr12 material | |
Hydraulic power | 3 KW | |
control cabinet | ||
Suitable power | 380V, 50Hz, 3phase or according to your need. | |
Feature | The whole process is automatically controlled by the computer. In this way, you can ensure accuracy and easy work. | |
Related Plate Type
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
