280 метров стальной гусеничный станок для буровой установки для водяных скважин заводская цена
1 290 387,21 ₽
Сверлильные станки для бурения скважин на воду глубина 280 м
- Категория: >>>
- Поставщик: Shandong Xiangtuo Intelligent Machinery Co. Ltd.
Сохранить в закладки 1601236916119:
Описание и отзывы
Характеристики
Products Description
The mechanical top drive series drilling rig is a water well drilling equipment that integrates water drilling and gas drilling functions. It adopts a vehicle 525 gearbox, which has twice the transmission efficiency of hydraulic transmission and reduces power consumption by 35%, making it more efficient and energy-saving. Solved the difficulties of drilling with air down the hole hammer in soil layers and the low construction efficiency of rotary drilling machines in hard rock layers, gravel, and pebble layers.
Drilling capacity | Drilling depth for water well | 280m（152mm~203mm） | |
Wireline coring N size | 420m | ||
Borehole (Drill bit) dia. | Ø75～Ø350mm | ||
Drilling angle | 90° | ||
Drive head | Lifting capacity | 100kN | |
Thrusting capacity | 50kN | ||
Rotary speed RPM | Corotation：33、63、113、163、192、237、303 、537、906、1120r/min | ||
Reversal：37、180 r/min | |||
Max. Torque | 9800N.m | ||
Power Unit | Engine Model | Yunnei YN27 | |
Rated power/speed | 42kW/ 2400r/min | ||
Mechanical winch capacity | 4.5Ton | ||
Drill pipe | Drill pipe dia. | Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ | |
Drill pipe length | 2000mm | ||
Mud pump | BW160/ BW200/ BW250 | ||
Air compressor | Air consumption | 16～35m3/min | |
Air pressure | 10.5～24.6bar | ||
Crawler chassis | Walking speed | 0～2 km/h | |
Climbing angle | Max. 25°~30° | ||
Dimension | Transport | 4600*1900*2540mm | |
Working | 3800*2200*5700mm | ||
Weight with steel crawler | 4000kg | ||

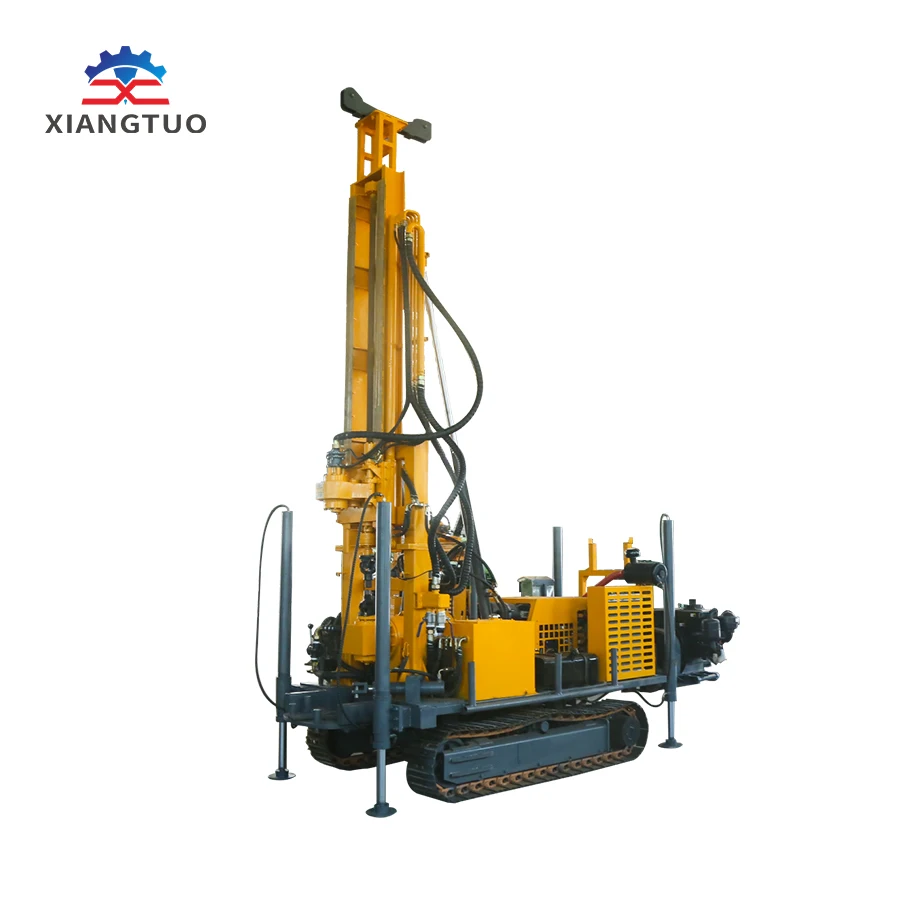

Product Display
The drilling rig can reach a speed range of 33-1120r/min, and the maximum output torque is 9800N. m.
Considering the return on investment, we recommend this cost-effective equipment to you, which can greatly save you on purchase costs, operating costs, and maintenance costs.
The tracked design provides good ground adaptability and stability during operation, while automation and advanced drilling technology improve operational efficiency.
The drilling rig adopts a long stroke double speed mechanism and a mechanical power head,with a power head stroke of 2300mm, to improve drilling efficiency and reduce the occurrence of drilling blockage and burning accidents.
Durability upgrade, improve job continuity, reduce maintenance costs, and make maintenance more convenient
The drilling rig adopts dual oil pumps for oil supply, with a single pump used for drilling and dual pumps combined for lifting and lowering; Low power loss and short auxiliary time.

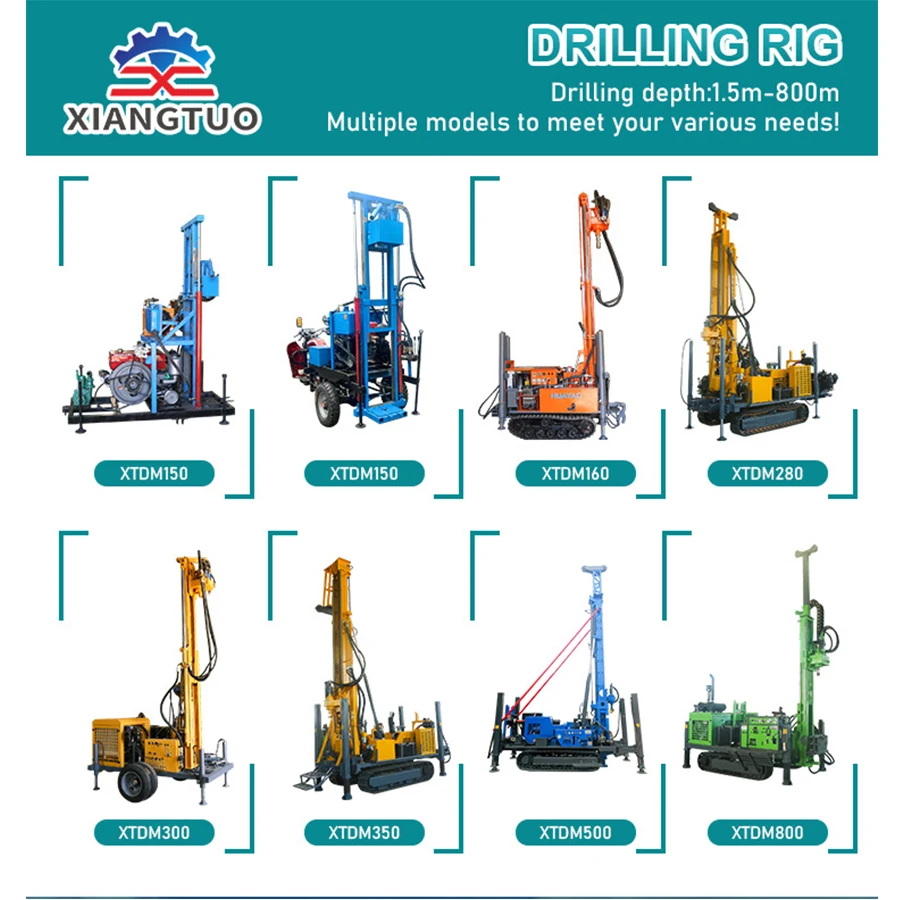

More drilling platforms
Based on different homework requirements, we can provide customized solutions to improve homework efficiency and reduce costs.

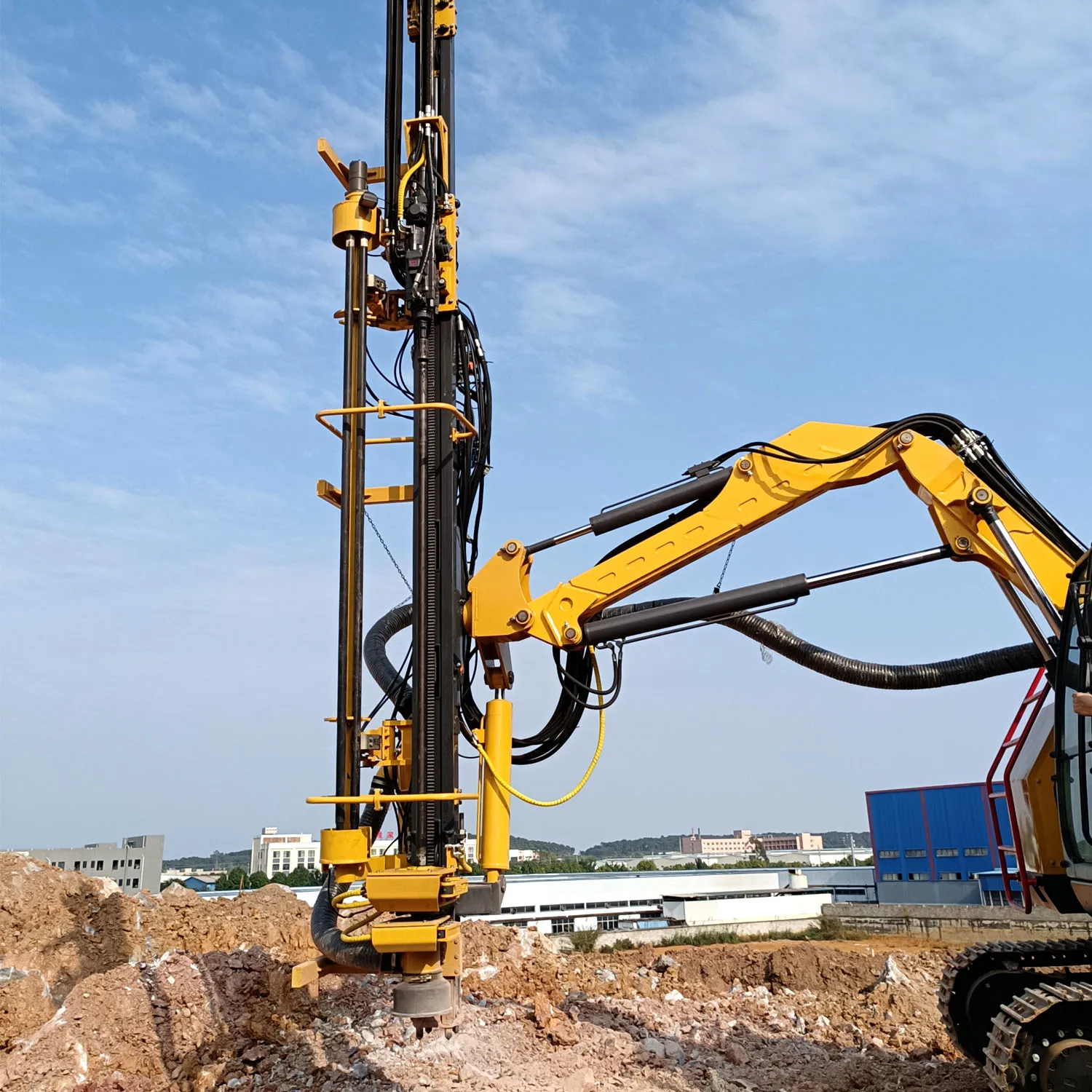

Application
Packaging and transportation
Testimonials
Company Profile
Shandong Xiangtuo Intelligent Machinery Co., Ltd. has nearly 20 years of industry experience, specializing in the research, development, production, and sales of intelligent machinery such as mining drilling rigs, excavators, loaders, and rollers. The company has advanced production equipment and skilled frontline employees. Our company adheres to the principle of "customer first, quality first", solving problems for customers and meeting their needs is our eternal pursuit. We sincerely welcome friends from all over the world to visit and inspect our company, and to cooperate with us on the basis of long-term mutual benefit.
FAQ
Q1:How can we ensure quality?
A:Before mass production, it is always a pre production sample; Always conduct final inspection before shipment; Our main unit comes with a one-year warranty, during which all damaged parts can be replaced with new ones. We provide machine installation and operation videos.
Q2:Can you do OEM for me?
A:We accept all OEM orders, just contact us and provide us with your design. We will offer you a reasonable price and make samples for you as soon as possible.
Q3: Are you a manufacturer or a trading company?
A:We are a professional manufacturer with a large modern factory in Shandong, China.
Your machine
Q4:Do you have any certificates?
A:All of our products come with CE, ISO9001, and EPA certificates.
Q5:What services can we provide?
A:Acceptable delivery terms: FOB, CFR, CIF;
Acceptable payment currencies: US dollar, Euro, Canadian dollar, Australian dollar, British pound, Chinese yuan;
Acceptable payment method: T/T, L/C，D/P D/A，PayPal，Cas。
Spoken English: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
