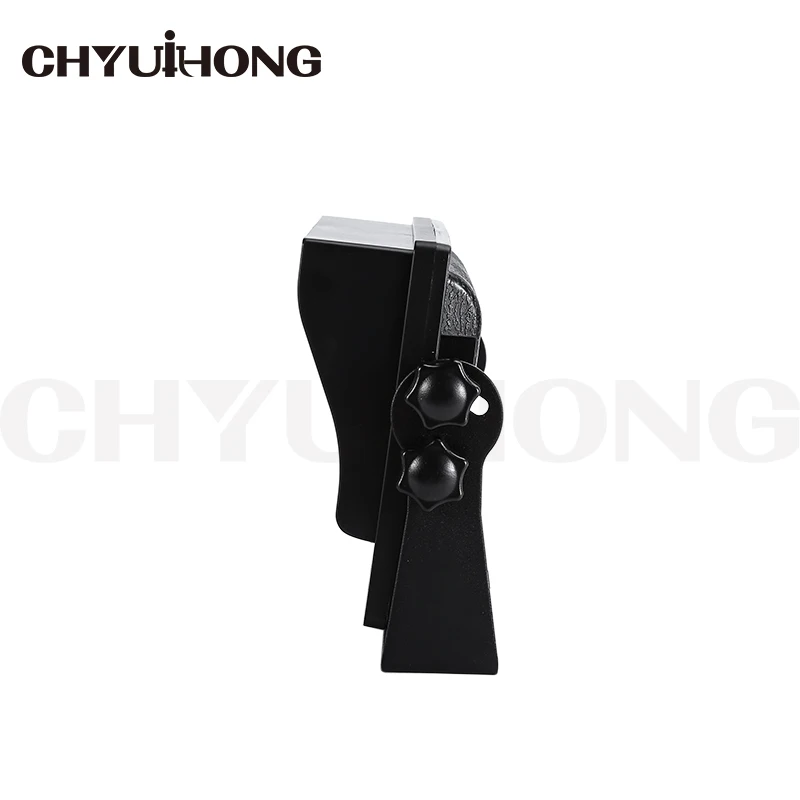

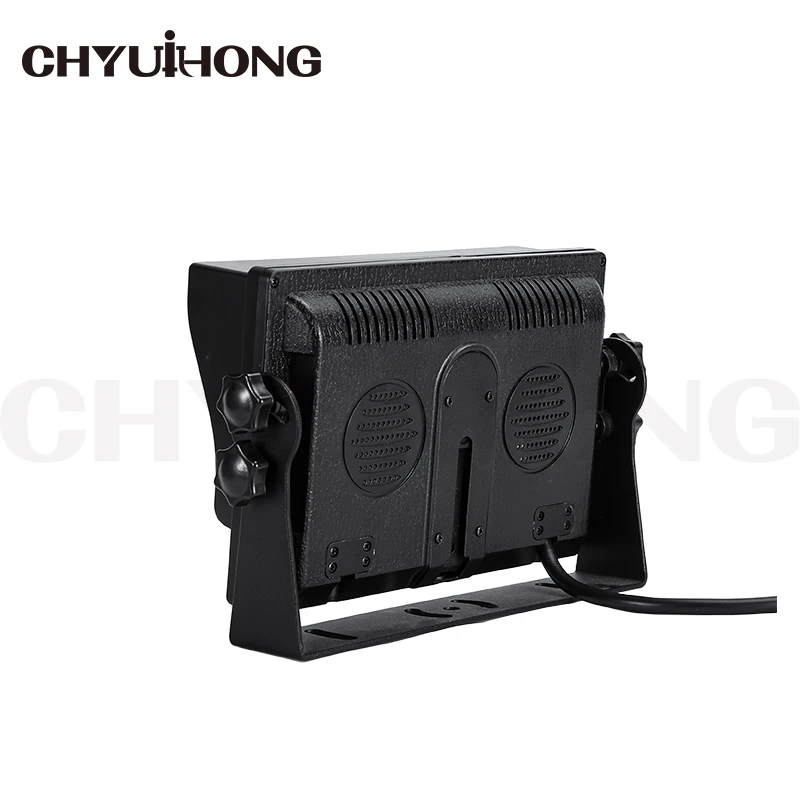

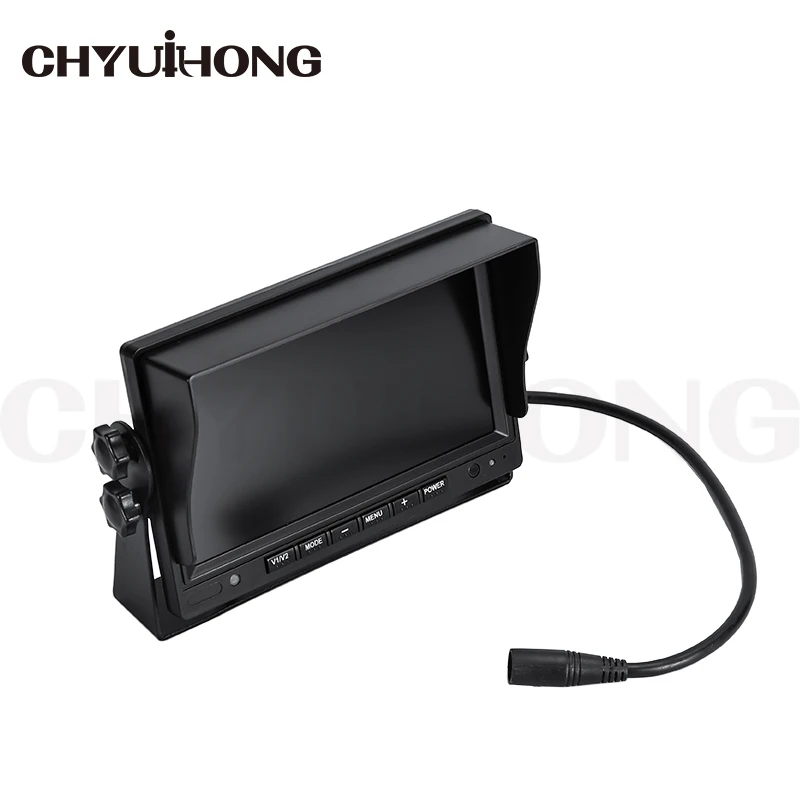

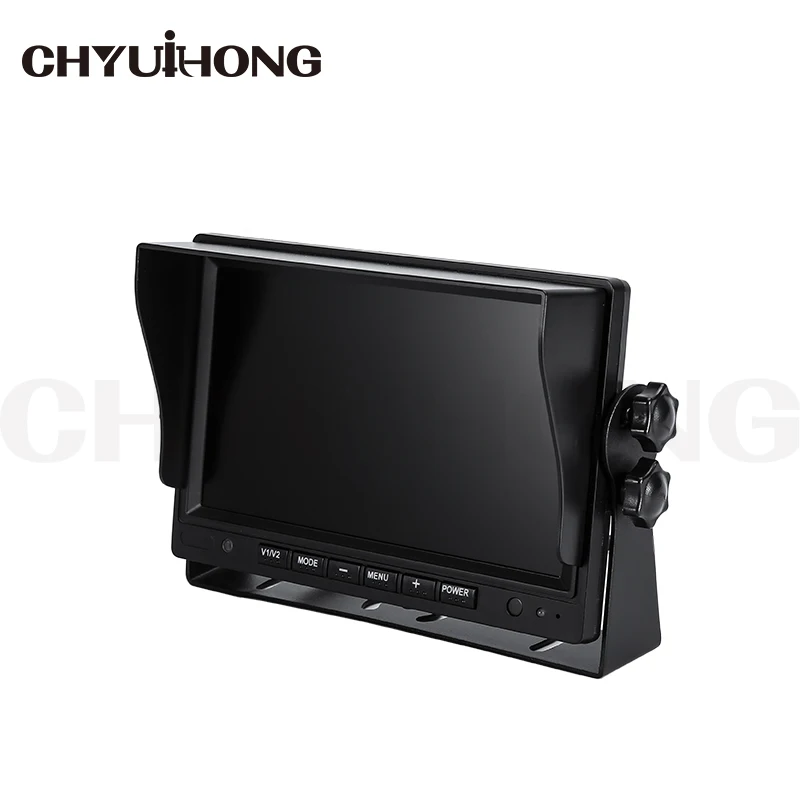

CVBS AHD 720P 960P Разделенный экран автомобильный монитор DVR 7 дюймов Автомобильный ЖК монитор для грузовика вилочный автобус фургон

CVBS AHD 720P 960P Разделенный экран автомобильный монитор DVR 7 дюймов Автомобильный ЖК монитор для грузовика вилочный автобус фургон

Категория: >>>
Поставщик: Guangzhou Yuhong Electronic Technology Co. Ltd.

Цена:3 133,80 ₽ - 4 001,29 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Technology Features:

* DC 12-36V wide voltage range
* Full compatibility with AHD 720P/1080P & CVBS(NTSC/PAL)
* Support mixing connection of cameras of different formats
* High brightness and high resolution IPS display

* Auto dim for night mode(optional)

* Mirror, reverse delay, Guide line, energy-saving power supply(OSD menu on/off,etc)
* Fast boot up and fast switching by button or trigger(<2 seconds)
* industrial level PCB design with protection against over-voltage,under-voltage,reverse polarity,static and surge,etc.

* Radium dimming button,integrated sunshade
* 4-pin aviation connector with waterproof cover
* Various bracket optional
* Up 2 to 3 x video/audio/trigger inputs customizable

Specifications	HY-728
Type	CAR monitor
Screen size	7" high digital IPS panel
Image	16:9
TV system	PAL/NTSC
Resolution	1024*600
Brightness	600 cd/M²
Contrast	500 : 1
View angle	L/R:85,U/D:85
OSD MENU	Brigh,Contrast,Color,TINT,Mode,Multiple languages,
Other functions	Mirror, Back delay,Guide line,
video Inputs	2 or 3 way video input (CVBS/720P/960P/1080P adaptive)
Signal identification	CVBS/720P/960P/1080P adaptive display
Audiointegrated sunshade	Optional
Power protection	Built-in external power supply polarity reverse connection protection
Video Output	1.0Vp-p, 75Ohm
Installation mode	U-bracket/table bracket/hanging bracket (Optional)
Power	DC12V-32V (Output 12V power camera) /5W
Operation Temp.	-20℃~+70℃

Product Description

FAQ

Q1: Are you a factory or a trading company?

A1: We are a factory with R&D

Q2: Can you make OEM & ODM?

A2: Sure. We have more than 10 years of experience. We could offer you professional suggestion according to your needs.

Q3: What's your moq for OEM?

A3: MOQ is 100pcs to make the program to your own needs

Q4: What's your warranty and after sale service?

A4: 12 months warranty. We will get back to all your afte-sale problem within 24 hours.

Q5: Can you offer certification of the products in our country?

Please inform us the certification you request first.We will send it to you if we have now. If not, we will offer sample for your test.

Q6. What is your terms of delivery?

A6: EXW, FOB, CIF.

Q7. How about your delivery time?

A7: Generally, it will take 8 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q8. Can you produce according to the samples?

A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q9. Do you test all your goods before delivery?

A9: Yes, we have 100% test before delivery.
