Грузовик с воздушной платформой DONGFENG
7 675 388,00 ₽

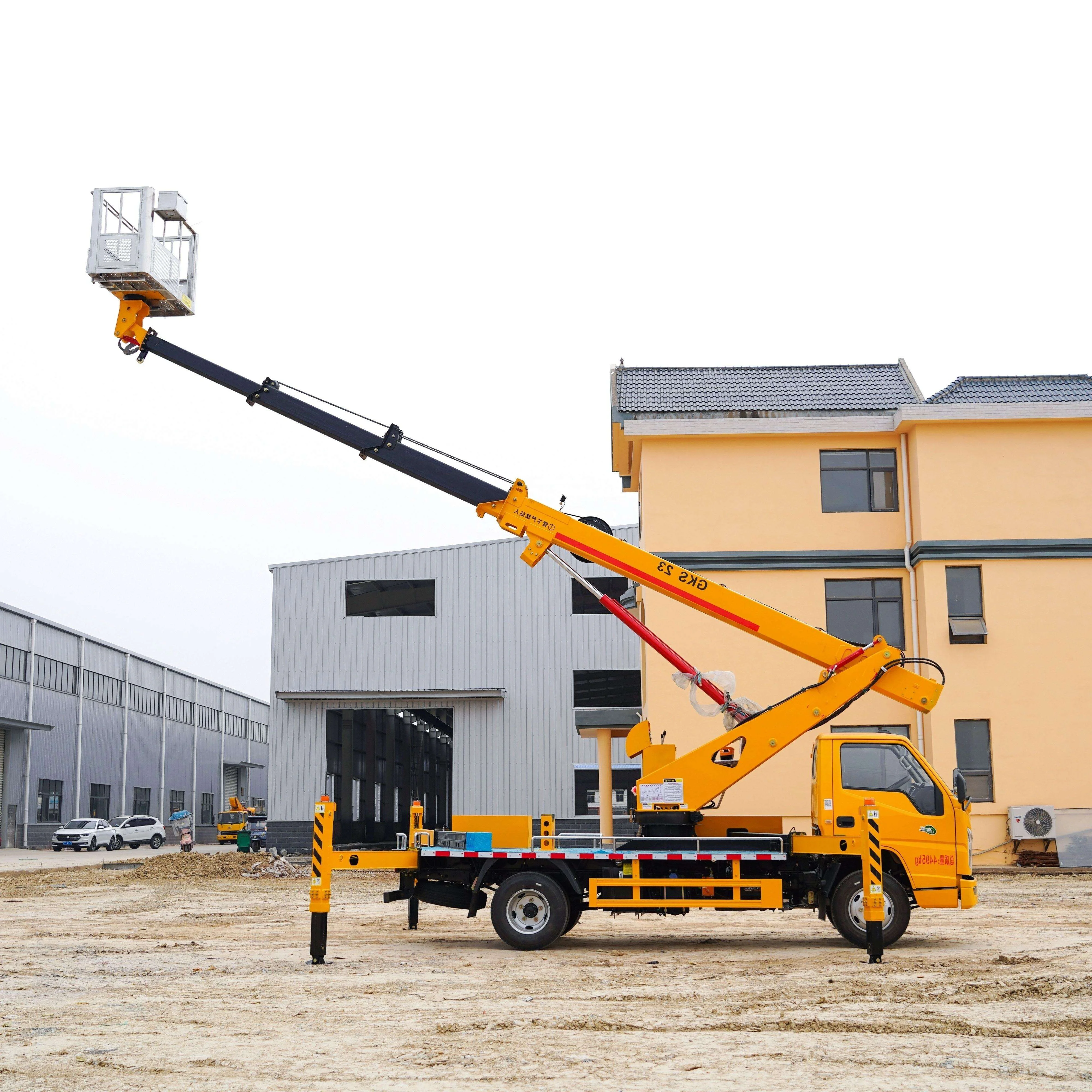

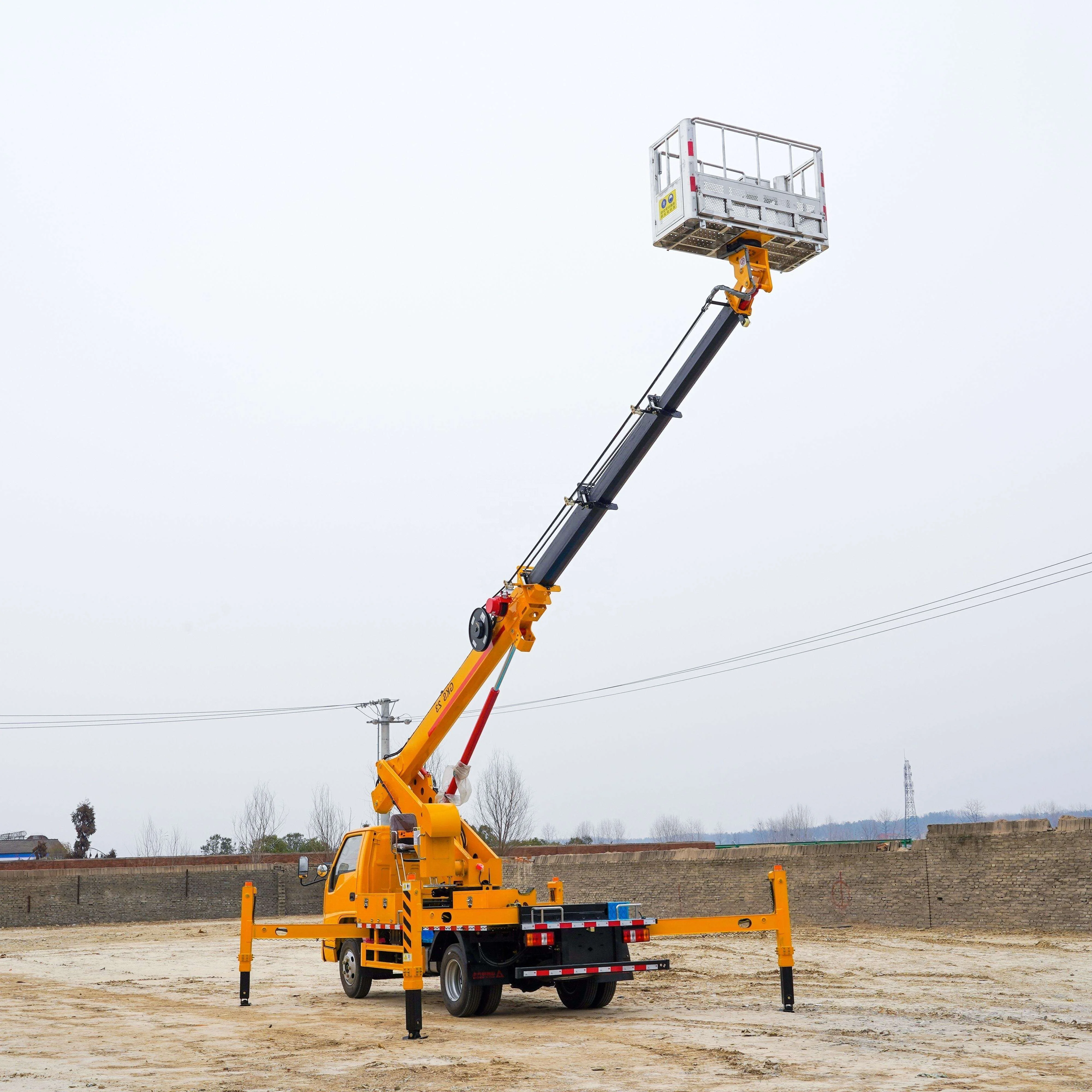

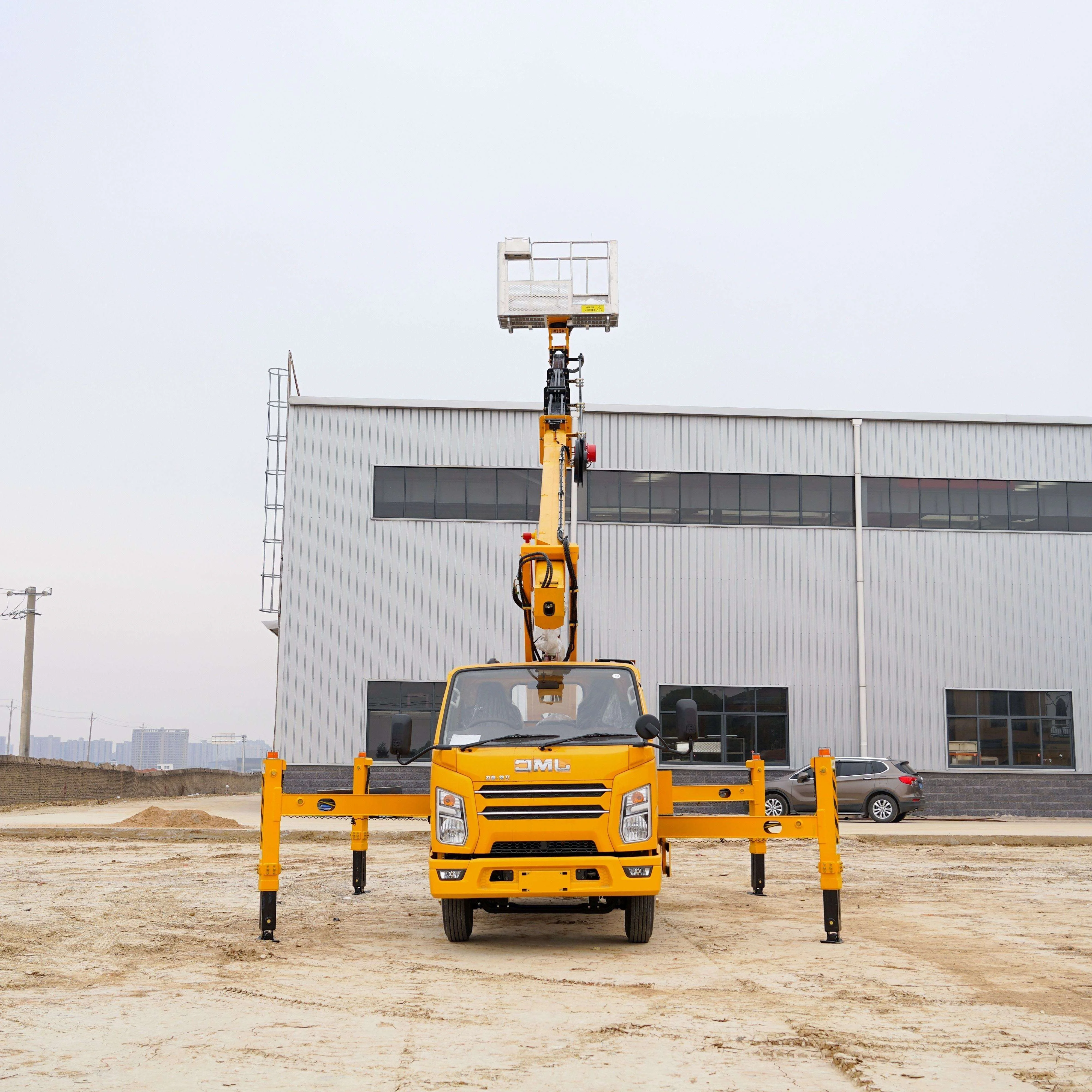

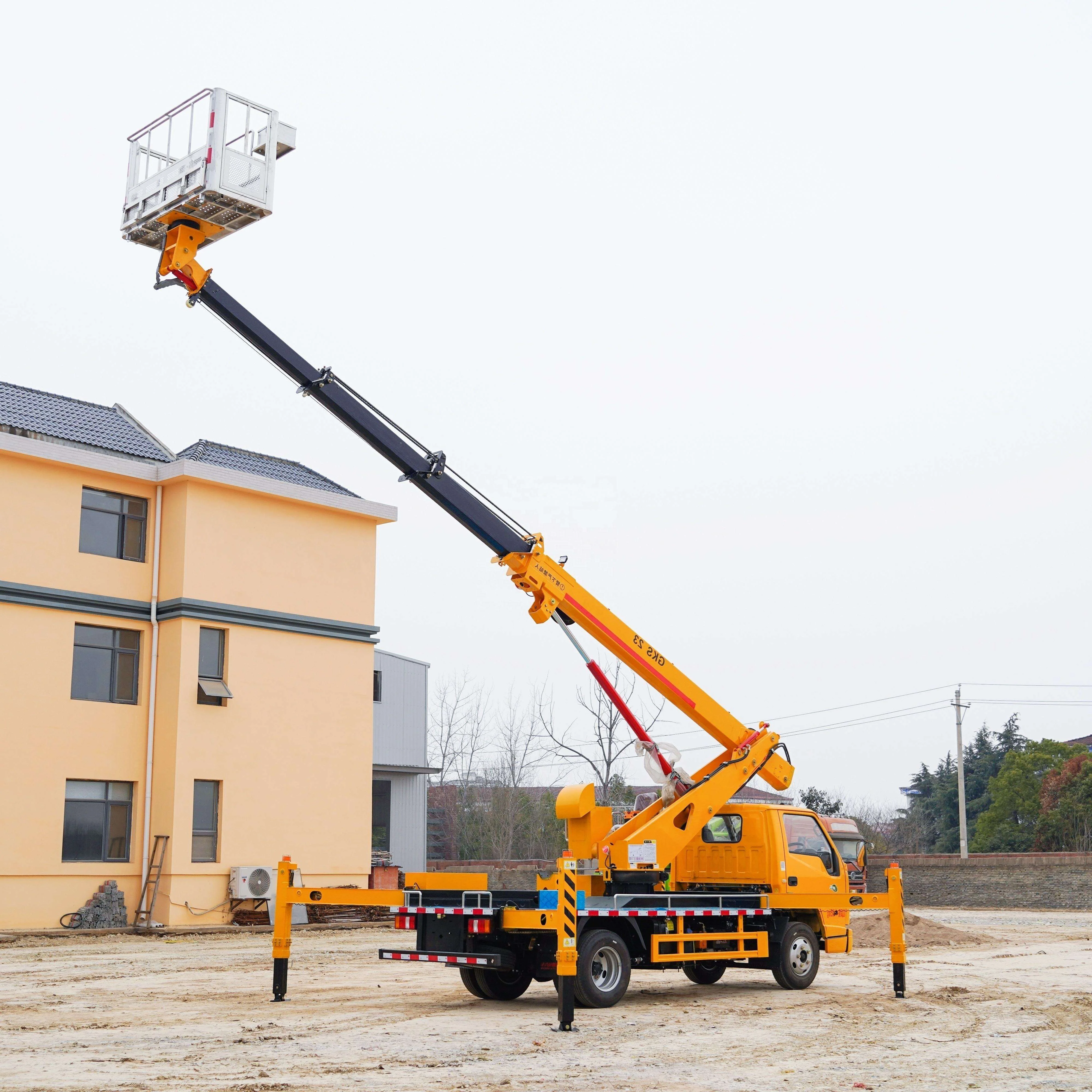

Грузовик Рабочая платформа Ariel 21 м Китай
- Категория: >>>
- Поставщик: Hubei Jiangnan Special Automobile Co. Ltd.
Сохранить в закладки 1601237486215:
Описание и отзывы
Характеристики
Product Description
Specification
Items | Descriptions | Specifications and Types | |
Vehicle parameters | Vehicle brand/Model | Ruiyate | |
Chassis brand/Model | HOWO,DONGFENG,ISUZU,JMC,FAW,SINOTRUK,JAC,FOTON...etc | ||
Cabin | VH-flat head,single row | ||
Persons in cab | 2 | ||
Drive Type | 4×2 | ||
Overall Dimensions (L*W*H) | 5995*2040*3040(mm) | ||
Gross weight | 4495(Kg) | ||
wheelbase | 3360(mm) | ||
Front/Rare suspension | 1075/1560 (mm) | ||
Approaching/Departure Angle | 20/12(°) | ||
Max speed | 100 (km/h) | ||
Engine | Brand/Model | Isuzu Engine/JX4D30B6H | |
Power | 85(Kw) | ||
Horsepower | 115(HP) | ||
Displacement | 2.89(L) | ||
Fuel type | Diesel | ||
Emission standard | Euro 5 | ||
Axles | Front axle loading | 2T | |
Rear axle loading | 3.5T | ||
Tire type/number | 7.00R /6+1 PCS | ||
Brake | Oil brake | ||
Color | Customer’s request | ||
Upper body configuration | Platform Working Height | 23 meters | |
Boom type | Four-section hexagonal working arm, synchronous telescopic | ||
Outrigger | 4 pcs, front V + rear H type hydraulic outriggers Span:4300mm horizontal, 4600mm vertical | ||
Bucket | 1500×700×1100mm(LWH), 200kg load | ||
Slewing device | Two-way 360° continuous slewing, 360°slewing basket | ||
Operating system | Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system | ||
Emergency device | Yes | ||
Company Profile
Why Choose Us
1. ISO9001, CCC, OEM certificate.
2. chassis can be choose: ISUZU, HOWO, FAW, DONGFENG, JMC, JAC, etc.
2. chassis can be choose: ISUZU, HOWO, FAW, DONGFENG, JMC, JAC, etc.
3. Function, quantity, color, volume, style, chassis, etc. can be customized according to user requirements.
4. Product Price should be configured with different vehicles and different coat materials, we recommend that you contact us.
4. Product Price should be configured with different vehicles and different coat materials, we recommend that you contact us.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you original manufacturer?
A: Yes, we are professional manufacturer of special trucks, built up in 2007, located in Suizhou City, Hubei
Province, the biggest production base of special purpose vehicles in China.
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show youthe
photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly
orapply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in
container.Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
Q8: How about the quality and warranty of your product?
A: Quality and integrity are the foundation of our enterprises to survive and success. We promise that all products we providewill
be brand new and high quality products. We give one year free warranty for all our normal products, and three years warranty for
some special products.
Q9: Why should we choose you?
A: We provide one-stop service to all of our customers, provide high quality products at low price, provide 24hours high
efficiency before&after service, provide free training. We treat our customers honestly and friendly, produce our products
strictly, operate trading processor flexibly, transport goods safely and efficiently, to ensure our customers enjoy a satisfied
business cooperation ship with us. We treat all our customers as friends and family members, and we always do our best to help
ourcustomers explore their market and grow up to stronger distributor.
Q10: What is the fastest access to start business cooperation with your factory?
A: Contact Mr Patton Gan +8617688927168 (Cell / WhatsApp / Wechat).
I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
A: Yes, we are professional manufacturer of special trucks, built up in 2007, located in Suizhou City, Hubei
Province, the biggest production base of special purpose vehicles in China.
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show youthe
photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly
orapply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in
container.Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
Q8: How about the quality and warranty of your product?
A: Quality and integrity are the foundation of our enterprises to survive and success. We promise that all products we providewill
be brand new and high quality products. We give one year free warranty for all our normal products, and three years warranty for
some special products.
Q9: Why should we choose you?
A: We provide one-stop service to all of our customers, provide high quality products at low price, provide 24hours high
efficiency before&after service, provide free training. We treat our customers honestly and friendly, produce our products
strictly, operate trading processor flexibly, transport goods safely and efficiently, to ensure our customers enjoy a satisfied
business cooperation ship with us. We treat all our customers as friends and family members, and we always do our best to help
ourcustomers explore their market and grow up to stronger distributor.
Q10: What is the fastest access to start business cooperation with your factory?
A: Contact Mr Patton Gan +8617688927168 (Cell / WhatsApp / Wechat).
I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
