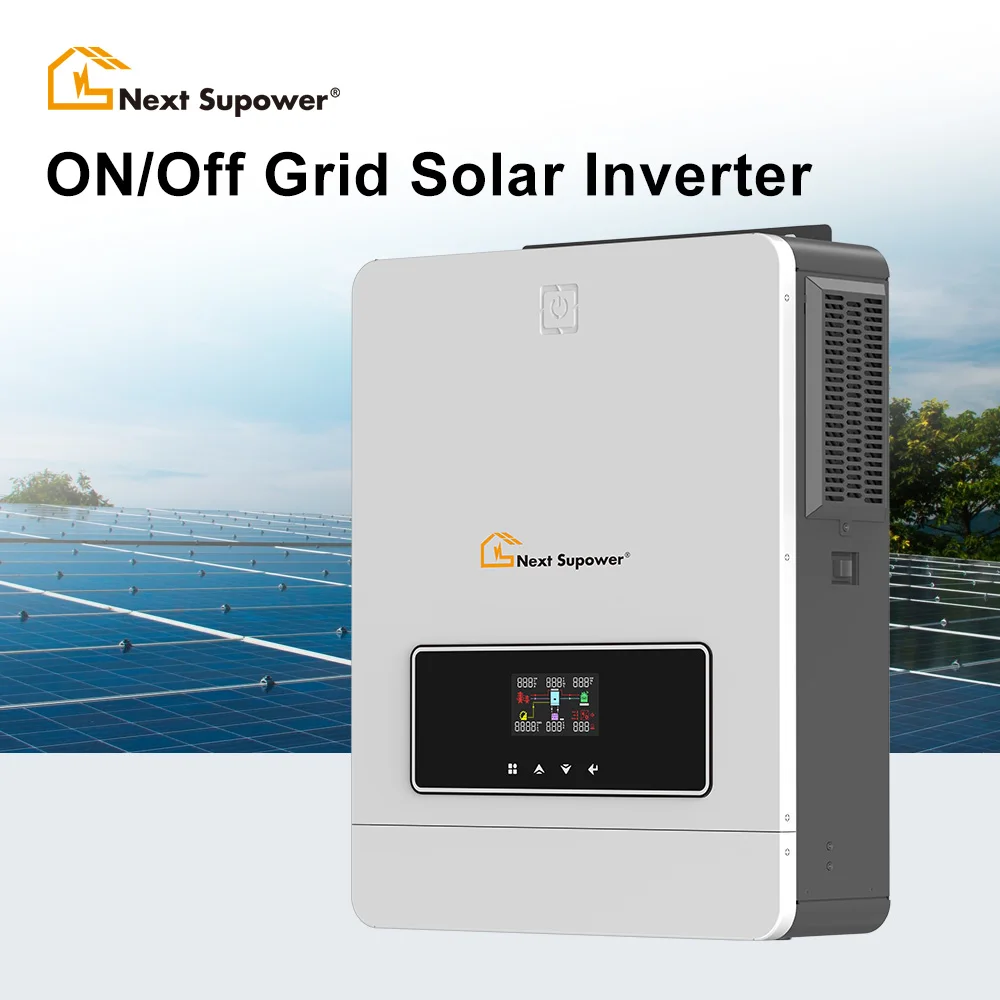

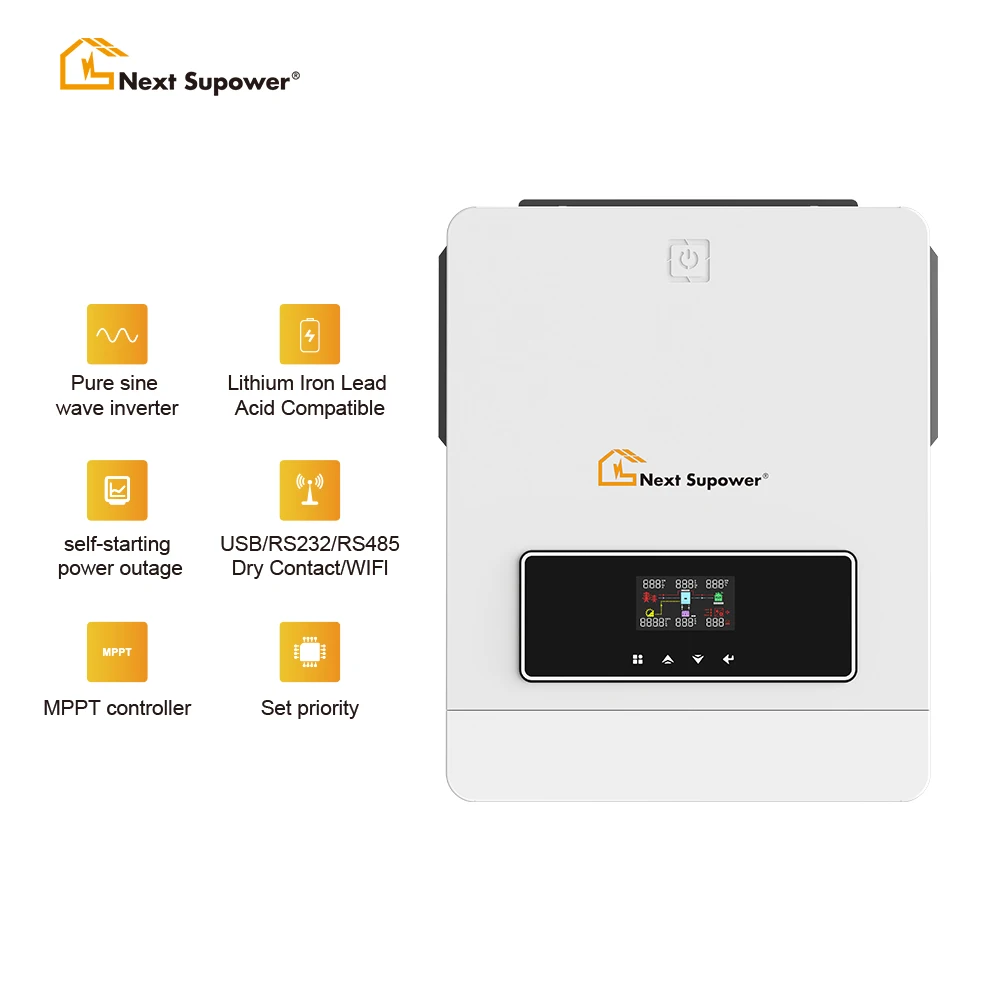

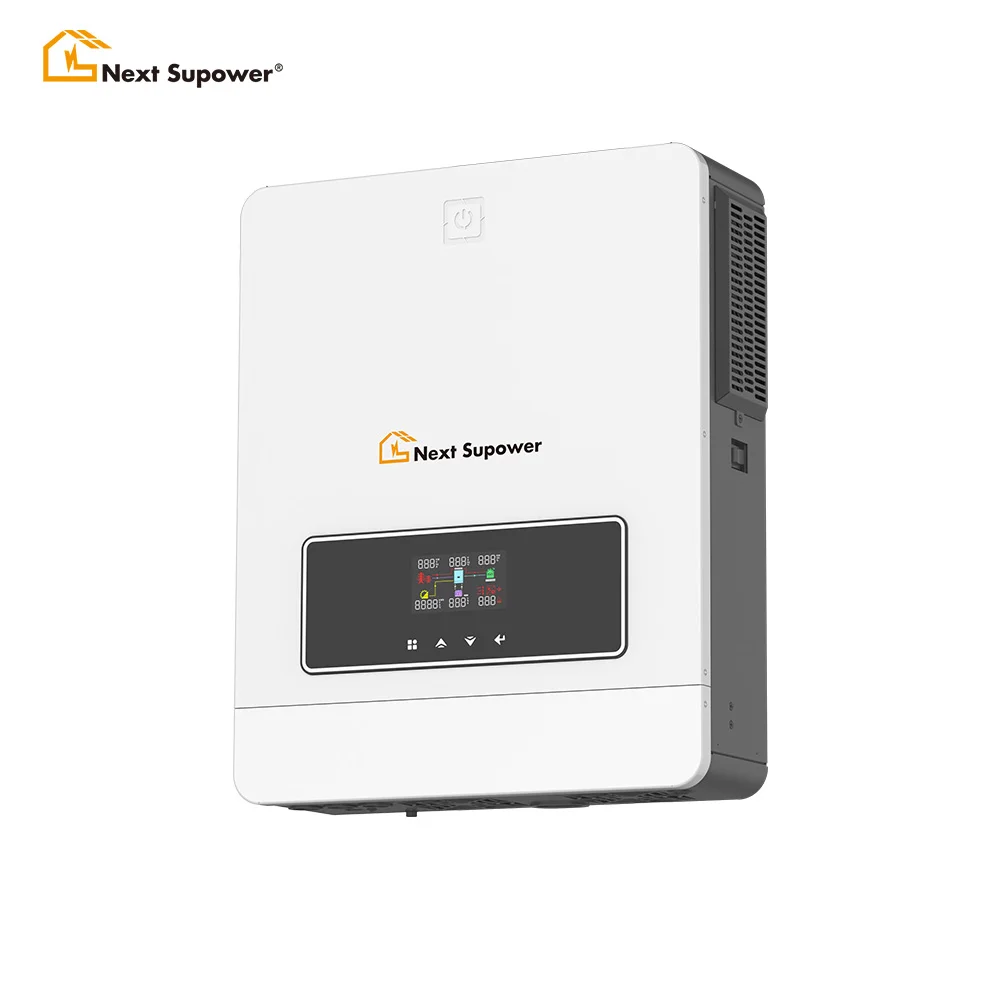

6 кВт 6000 Вт 8 10 инверторы без электросети чистая Синусоидальная волна с MPPT параллельный Гибридный инвертор для солнечной батареи
- Категория: >>>
- Поставщик: Shenzhen Itsuwa Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601237717695:
Описание и отзывы
Характеристики
Product Description
MODEL | T-PFG-4KW | T-PFG-6KW | T-PFG-7KW | T-PFG-8KW | T-PFG-10KW | |||||
Phase | 1 Phase | |||||||||
Maximum PV input power | 6200W | 6500W | 7000W | 8000W | 10000W | |||||
Rated output power | 3600W | 6200W | 7000W/7000VA | 8000W/8000VA | 10000W/10000VA | |||||
Maximum solar charging current | 120A | 140A | 160A | 160A | ||||||
PV Input(DC) | ||||||||||
Nominal DC voltage/Maximum DC voltage | 360VDC/500VDC | |||||||||
Start-up voltage/lnitial feeding voltage | 60VDC/ 90VDC | 90VDC/ 120VDC | ||||||||
MPPT voltage range | 60-450VDC | 90-450VDC | ||||||||
Number of MPPT trackers/Maximum input current | 1/23A | 1/27A | ||||||||
Grid Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output voltage range | 195.5-253VAC | |||||||||
Nominal output current | 15.7A | 27.0A | 31.3A | 35.6A | 44.3A | |||||
Power factor | >0.99 | |||||||||
Feed-in grid frequency range | 49-51±1Hz | |||||||||
Efficiency | ||||||||||
Maximum conversion efficiency(sloar to AC) | 98% | |||||||||
wo Load Output Power | ||||||||||
Full load | 3600W | 5000W | 7000W | 8000W | 10000W | |||||
Maximum main load | 3600W | 5000W-10000W | 7000W | 8000W | 10000W | |||||
Maximum second load(battery mode) | 1200W | 1666W-3333W | 2400W | 2733W | 3400W | |||||
Main load cut off voltage | 22VDC | 44VDC | ||||||||
Main load return voltage | 26VDC | 52VDC | ||||||||
AC Input | ||||||||||
AC start-up voltage/Auto restart voltage | 120-140VAC/180VAC | |||||||||
Acceptable input voltage range | 90-280VAC or 170-280VAC | |||||||||
Maximum AC input current | 40A | 50A | 40A | 40A | 50A | |||||
Nominal operating frequency | 50/60Hz | |||||||||
Surge power | 7200W | 1000W | 14400W | 16400W | 20400W | |||||
Battery Mode Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output waveform | Pure sine wave | |||||||||
Efficiency(DC to AC) | 94% | |||||||||
Battery & Charger | ||||||||||
Nominal DC voltage | 24VDC | 48VDC | ||||||||
Maximum charging current (solar to AC) | 120A | 140A | 160A | 160A | ||||||
Maximum AC charging current | 100A | 120A | 140A | 140A | ||||||
Physical | ||||||||||
Dimension D*W*H(mm) | 420*350*110 | 500*390*110 | ||||||||
Cartoon dimension D*W*H(mm) | 500*415*180 | 588*463*205 | ||||||||
Net weight(kg) | 8.5 | 9 | 13.6 | 14.5 | 14.8 | |||||
Gross weight(kg) | 9.5 | 10 | 14.9 | 16 | 16.2 | |||||
Interface | ||||||||||
Communication port | RS232WIFI/GPRS/LITHIUM BATTERY | |||||||||
Recommend Products
Company Profile
Shenzhen Itsuwa Technology Co., Ltd.
Established in 2014, engaged in the research, development, production and sale of all in one Portable Power Stations, Residential and Commercial Energy Storage . We provide one-stop service from design, research, molding, production, assemble,testing and products solution from battery cell to finished products whole complete OEM and ODM. All products have passed CE, FCC,RoHS certification to satisfy customer's requirements. Our main products are various of Home Energy Storage,Commercial Energy Storage, Portable Power Stations, Solar Inverters, Lithium lon Batteries,Solar Panel. We warmly welcome OEM and ODM orders.
We believe that our reliable quality products and good service for customers are the keys to our success. We will continue to develop products with innovative ideas and breakthrough technologies, aiming to work together to turn the planet a better place for life with solar energy. To make it possible “Power Anything, Anywhere, Anytime.”
Certifications
Marketing Campaign
Customers Feedback
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: When can I find tracking information on internet?
A: Usually, you can find the information on internet in 3 days after deliver goods.
Q: Is transportation safe enough?
A: We pack the goods very well, you will get goods on hand with good condition.
Q: What kind of certificates your products have?
A: CE,FCC,RoHS,PSE,UN38.3,MSDS,etc,which is able to satisfy most country's importing requirements.
Q: Can we have our brand logo?
A: Yes , please send us the artwork of your design, we have a professional team which is having rich experience on OEM & ODM, but there is a minimum order quantity required.
Q: What's your usual payment terms for orders?
A:We accept terms of T/T, West union, L/C, PayPal, ICBC and Alibaba Trade assurance(VSA, Master card, T/T, PayPal, Apple Pay, G-Pay, and Online Transfer),etc.
Q: Why should you buy from us not from other suppliers?
A:We are Professional in solar Battery and inverter more than 10 years, provide drop shipping and one-stop service.
Q: What's the warranty?
A: All of our products passed professional QC test, we offer 12 months warranty for non-artificial damage.
Q: How do you provide after-sales service?
A: If the product has any quality problems, you need to send us the production code of products with quality problems through video, we will replace it with a new one for free or a full refund.
A: Usually, you can find the information on internet in 3 days after deliver goods.
Q: Is transportation safe enough?
A: We pack the goods very well, you will get goods on hand with good condition.
Q: What kind of certificates your products have?
A: CE,FCC,RoHS,PSE,UN38.3,MSDS,etc,which is able to satisfy most country's importing requirements.
Q: Can we have our brand logo?
A: Yes , please send us the artwork of your design, we have a professional team which is having rich experience on OEM & ODM, but there is a minimum order quantity required.
Q: What's your usual payment terms for orders?
A:We accept terms of T/T, West union, L/C, PayPal, ICBC and Alibaba Trade assurance(VSA, Master card, T/T, PayPal, Apple Pay, G-Pay, and Online Transfer),etc.
Q: Why should you buy from us not from other suppliers?
A:We are Professional in solar Battery and inverter more than 10 years, provide drop shipping and one-stop service.
Q: What's the warranty?
A: All of our products passed professional QC test, we offer 12 months warranty for non-artificial damage.
Q: How do you provide after-sales service?
A: If the product has any quality problems, you need to send us the production code of products with quality problems through video, we will replace it with a new one for free or a full refund.
Похожие товары

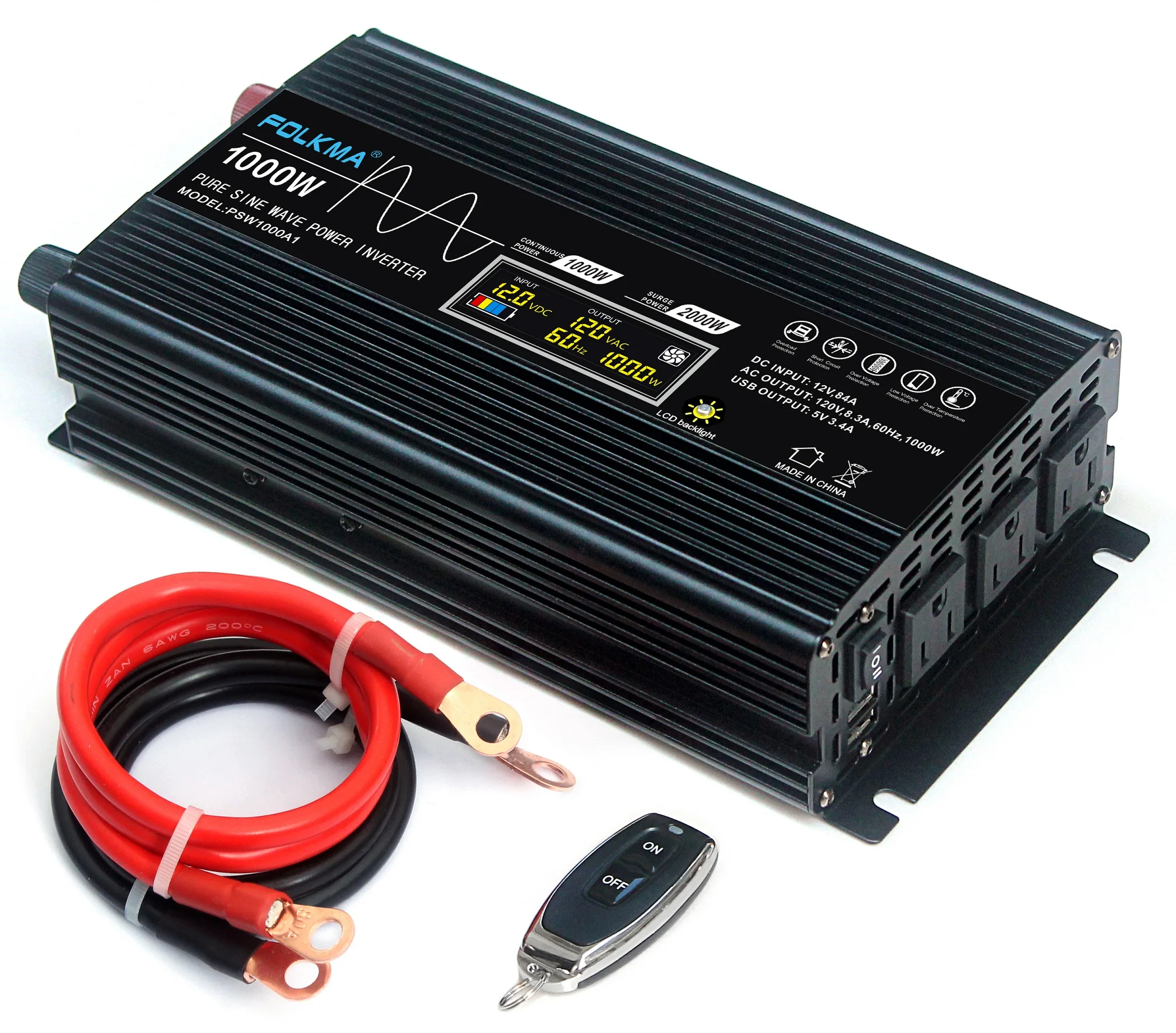

Folkma 1000 Вт чистый синусоидальный инвертор 2000 12 В постоянного тока в 110 переменного ETL Сертифицированный ЖК-дисплей и пульт дистанционного управления для дома/RV
9 154,22-9 535,65 ₽
Заводская распродажа дешевая цена высоковольтный Гибридный инвертор 3-фазный солнечный гибридный 10 кВт 12 Вт 15 20
25 301,24-63 443,81 ₽
DAH IP65 Гибридный Инвертор 30 кВт 40 50 высоковольтные 3-фазные солнечные инверторы
345 063,12-381 425,70 ₽
97.60% эффективность 220/380vac 230/400vac 8 кВт 10 12 15 20 3 фазы солнечный гибридный инвертор
22 771,12-57 099,43 ₽
DAH Солнечный 30 кВА 30000 Вт 50 50000 Гибридный инвертор Поддержка нескольких батарей параллельный
335 654,62-359 811,58 ₽

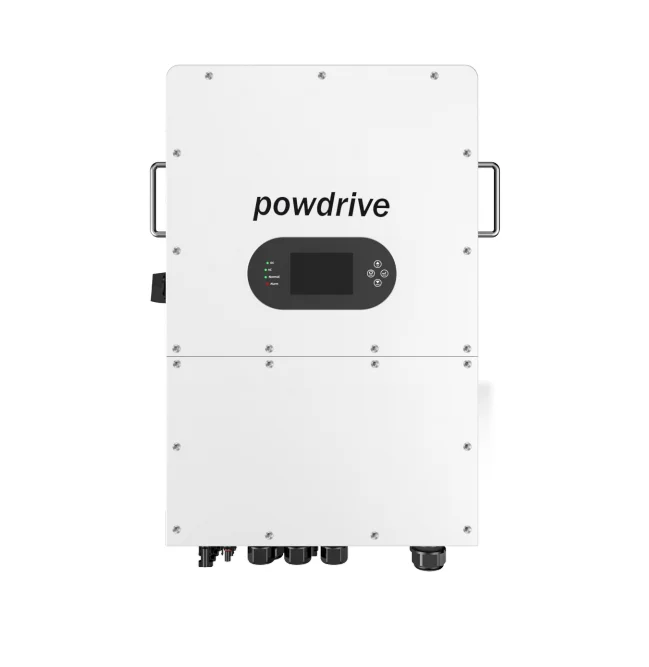

Привод Powdrive 10000 Вт PD008/100/120/150/200G-TPS-EU 240 В трехфазный инвертор 8 кВт 10 12 15 20 Гибридный
