Product Description

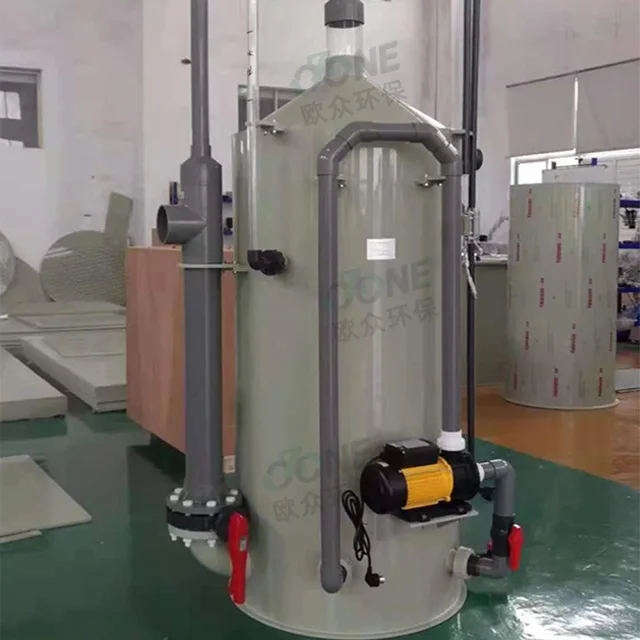

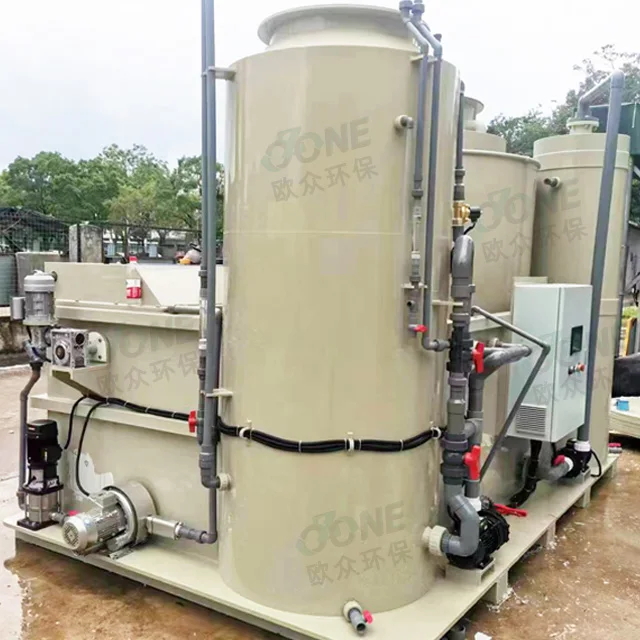

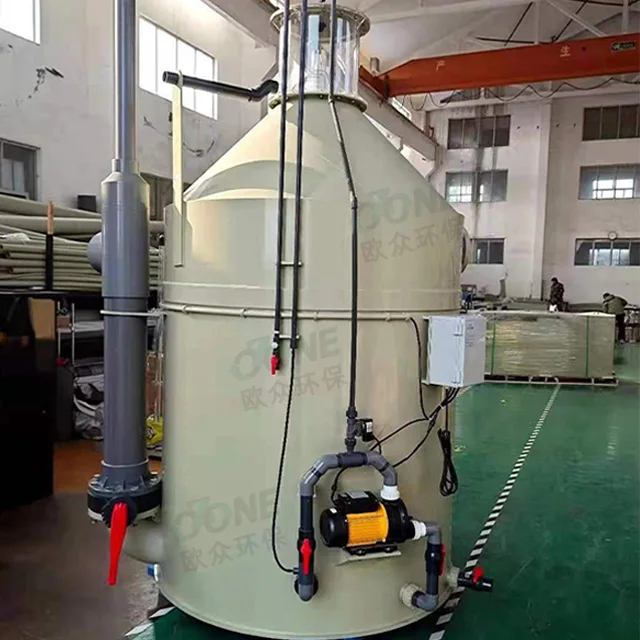

China manufacturer wholesale aquaculture protein skimmer
Water Treatment Capacity:
10T/Hr, 20T/Hr, 30T/Hr, 40T/Hr, 50T/Hr, 60T/Hr, 80T/Hr, 100T/Hr, 120T/Hr, 150T/Hr, 160T/Hr, 180T/Hr, 200T/Hr for sea water treatment or fresh water treatment.
We use with special structure, without power consumption, high efficiency for our protein skimmer.
It can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faeces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone for the water disinfections.
It can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faeces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone for the water disinfections.
Features
* Instead the using of Venturi, Booster pump, low power for saving energy.
* Using the collecting pipe, no need to clean, for saving water.
* PDO air intake device produces abundance air bubble, for high separate efficiency.
* Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
* Trouble-free design, long service life but free maintenance.
* Instead the using of Venturi, Booster pump, low power for saving energy.
* Using the collecting pipe, no need to clean, for saving water.
* PDO air intake device produces abundance air bubble, for high separate efficiency.
* Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
* Trouble-free design, long service life but free maintenance.
Main parts:
Water input, PDO air intake device, mixing chamber, collecting pipe, sewage disposal, ozone adding device, water output etc.
Water input, PDO air intake device, mixing chamber, collecting pipe, sewage disposal, ozone adding device, water output etc.
Working principle:
First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water
moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water
moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
Functions
* Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.
* Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.
* Removing the harmful air in water, stabilize the PH in water.

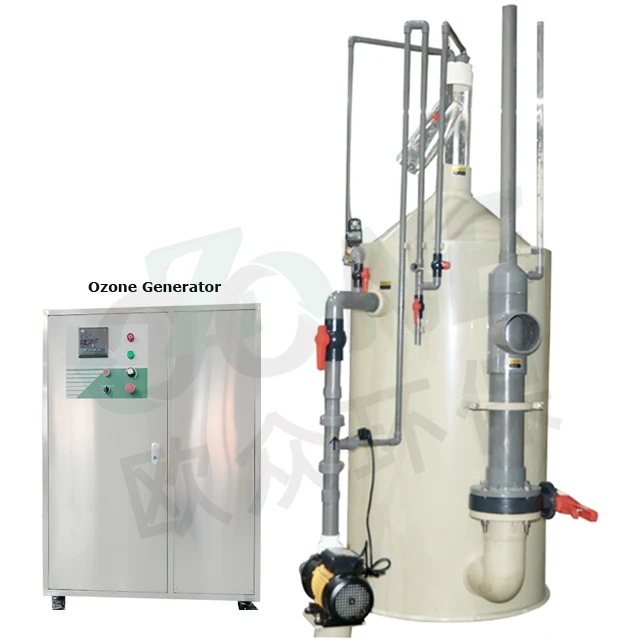

* Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
* Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.
* Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.
* Removing the harmful air in water, stabilize the PH in water.
* Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
Appliance
*Sea or fresh water treatment
* Seafood cultivating factory
* Seawater hatcheries
* Oceanopolis, aquarium etc
* Swimming pool water treatment
* Sewage water treatment, and the lines used for ozone mixing in water
*Sea or fresh water treatment
* Seafood cultivating factory
* Seawater hatcheries
* Oceanopolis, aquarium etc
* Swimming pool water treatment
* Sewage water treatment, and the lines used for ozone mixing in water
Specification
Model | Water flow rate | Size | Voltage | Power | Water Inlet/Outlet | ||||
M3/Hr | mm | (V) 50Hz | KW | HP | mm/Inch | ||||
GO-PS 10 | 10 | Ф600×2000 | 220 | 0.35 | 0.47 | Ф90(3'') | |||
GO-PS 20 | 20 | Ф750×2000 | 0.55 | 0.74 | Ф110(4'') | ||||
GO-PS 30 | 30 | Ф750×2300 | 0.75 | 1.01 | Ф110(4'') | ||||
GO-PS 40 | 40 | Ф1000×2500 | 0.9 | 1.21 | Ф140(5'') | ||||
GO-PS 50 | 50 | Ф1000×2800 | 1.1 | 1.47 | Ф140(5'') | ||||
GO-PS 60 | 60 | Ф1000×3000 | 1.5 | 2.01 | Ф160(6‘’) | ||||
GO-PS 80 | 80 | Ф1250×3200 | 1.85 | 2.48 | Ф160(6'') | ||||
GO-PS 100 | 100 | Ф1250×3350 | 2.2 | 2.95 | Ф200(8'') | ||||
GO-PS 120 | 120 | Ф1250×3500 | 3 | 4.02 | Ф200(8'') | ||||
GO-PS 160 | 160 | Ф1500×3600 | 3 | 4.02 | Ф250(10'') | ||||
GO-PS 200 | 200 | Ф1500×4100 | 3.7 | 4.96 | Ф250(10'') | ||||
GO-PS 250 | 250 | Ф1650×4200 | 4.4 | 5.90 | Ф315(12'') | ||||
GO-PS 300 | 300 | Ф1650×4600 | 6 | 8.04 | Ф315(12'') | ||||
Collection cup
Acrylic material, Strong and not deformed.
Venturi injection
Self made venturi inject with higher mixing efficiency.
Auto cleaning
Auto cleaning for the collection cup

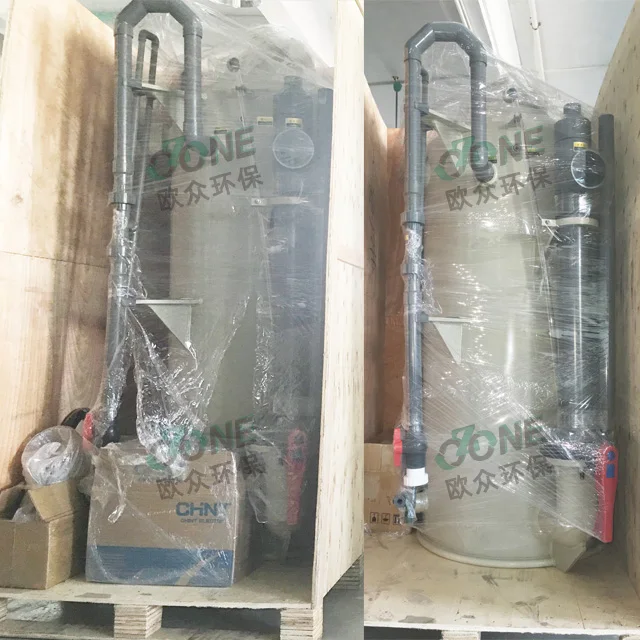

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Guangzhou Ozone Environmental Technology Co., Ltd. is located in Guangzhou, China, nearby Hong Kong. We mainly produce, manufacture, and serve Ozone generator from 1G/Hr to 30Kg/Hr. We have professional designers and engineers devoted in the applied research of Ozone technology, and a workshop of manufacturing Ozone chambers and discharge bodies. We attain several patents and technologies, which help us with high quality products of ceramic Ozone generator tubes and enamel Ozone generator tubes.
Our main products are air & water cooled ceramic Ozone generators, water cooled enamel Ozone generators, oxygen concentrators, portable Ozone generators and built-in oxygen source Ozone generators, etc. Our products have been applied to the fields of drinking water, waste water, pool water, aquaculture, waste gas treatment, medical and so on.
We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry.
Our main products are air & water cooled ceramic Ozone generators, water cooled enamel Ozone generators, oxygen concentrators, portable Ozone generators and built-in oxygen source Ozone generators, etc. Our products have been applied to the fields of drinking water, waste water, pool water, aquaculture, waste gas treatment, medical and so on.
We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(16.00%),Eastern Europe(14.00%),North America(13.00%),Western Europe(9.00%),Northern Europe(9.00%),South America(8.00%),Southern Europe(7.00%),Southeast Asia(6.00%),Africa(5.00%),Oceania(3.00%),South Asia(3.00%),Central America(3.00%),Mid East(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ozone generator spare parts,PSA oxygen concentrator,UV water sterilizer,Protein skimmer,Water treatment equipment
4. why should you buy from us not from other suppliers?
Guangzhou Ozone Environmental Technology Co., Ltd. is located in Guangzhou, China, nearby Hong
Kong. We mainly produce, manufacture, and serve Ozone generators, PSA oxygen concentrators, UV
water sterilizers, and other water treatment equipments etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2013,sell to Domestic Market(16.00%),Eastern Europe(14.00%),North America(13.00%),Western Europe(9.00%),Northern Europe(9.00%),South America(8.00%),Southern Europe(7.00%),Southeast Asia(6.00%),Africa(5.00%),Oceania(3.00%),South Asia(3.00%),Central America(3.00%),Mid East(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ozone generator spare parts,PSA oxygen concentrator,UV water sterilizer,Protein skimmer,Water treatment equipment
4. why should you buy from us not from other suppliers?
Guangzhou Ozone Environmental Technology Co., Ltd. is located in Guangzhou, China, nearby Hong
Kong. We mainly produce, manufacture, and serve Ozone generators, PSA oxygen concentrators, UV
water sterilizers, and other water treatment equipments etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
