Product Description

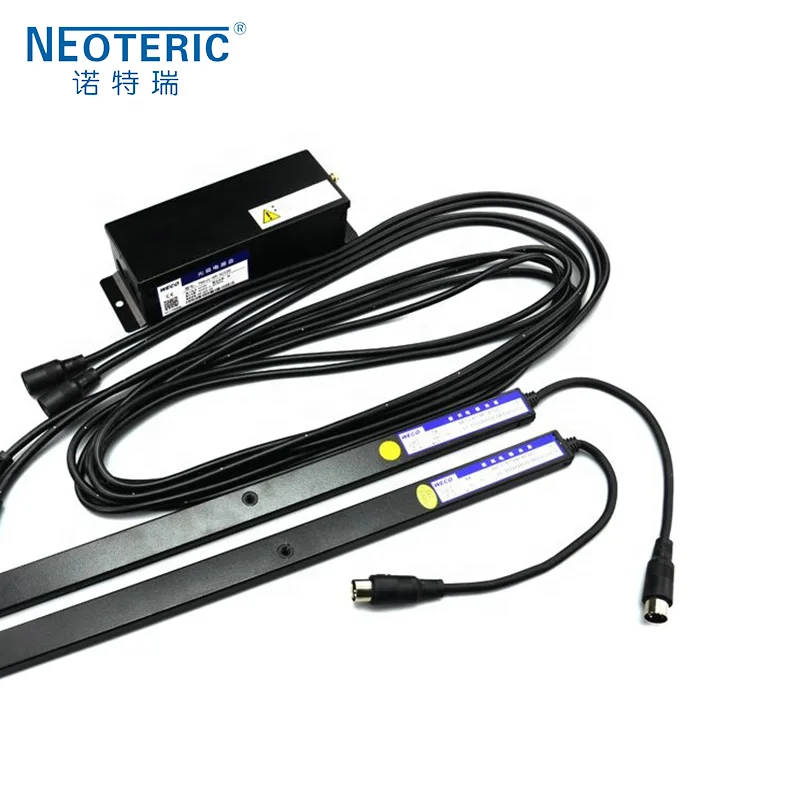

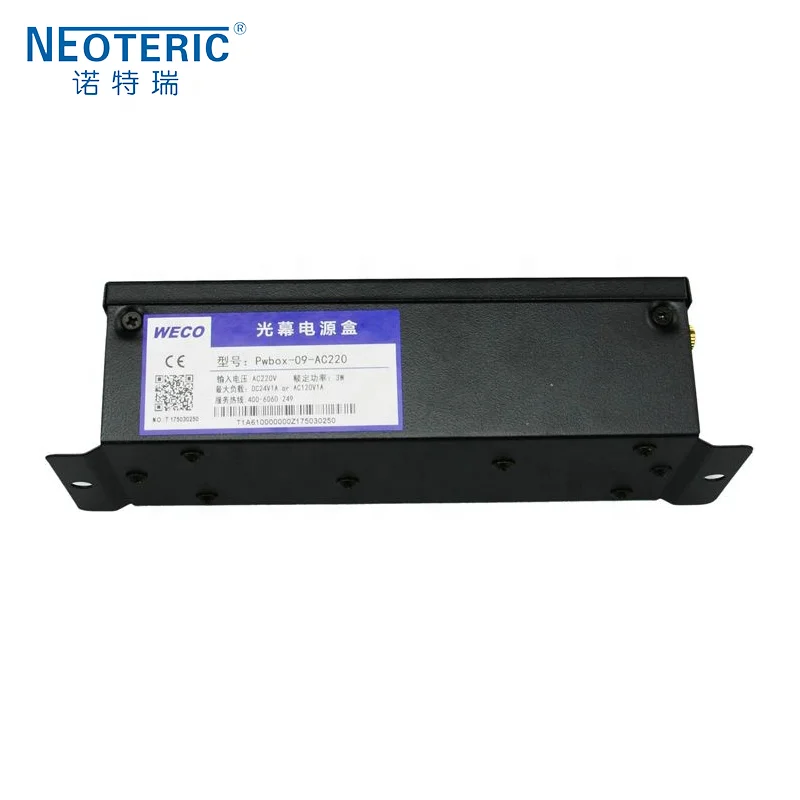

The elevator light curtain is a light-type elevator door safety protection device, which is suitable for passenger elevators and freight elevators to protect passenger safety. It consists of four parts: infrared transmitter and receiver installed on both sides of the elevator car door, power supply box mounted on the car top and special flexible cable. There are 32 (16) infrared transmitting tubes in the transmitter. Under the control of the MCU, the transmitting and receiving tubes are sequentially opened, and the car door area is continuously scanned from top to bottom to form a dense infrared protection light curtain. When any one of the lights is blocked, the control system immediately outputs the door opening signal, and the car door stops and closes until the passenger or the obstacle leaves the warning area, and the elevator door can be normally closed, thereby achieving the purpose of safety protection. It can avoid the accident of elevators.


Specification


ITEM
VALUE
Warranty
1 Year
After-sale Service
Online technical support, Other
Project Solution Capability
Others
Application
Elevator
Design Style
Contemporary
Place of Origin
China
Brand Name
NEOTERIC
Model Number
NTR-LC
Product name
Light Curtain
Certificate
CE
MOQ
1pcs
Warranty Time
12Months
Packing
Carton Box
Voltage
AC110V
Spec
Center Opening
Light Beam
94Beams




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile




Neoteric Elevator (PASO Elevator Asia-Pacific) originated from the history town of Granada, which is situated in sea port of Seville, the core city of Spain.
In accordance with the European modern style, till now have hundreds year.
Since 1970, PASO Elevator cooperation with Max. A Elins professor, the member who in charge of the engineering physics laboratory in Munich University,and forced on the technical development of Elevator and Sectional Driving.
From 2015, PASO Elevator and Neoteric cooperation in China, and build Asia-Pacific Factory, which located in the Yangtze River delta.
The Asia-Pacific Technical Development Dept. founded in Suzhou,and shared innovation with Germany laboratory. By this condition, Neoteric Elevator (PASO Elevator Asia-Pacific) With respect and understanding of technology concept, gradually becoming into a leader of customize elevator industry.
