Инвертор 6 кВт 6000 Вт 48 В
50 093,91-51 619,62 ₽
Гроватт PV система SPF 6000 ES плюс 6 кВт солнечный инвертор 48 В для хранения энергии проекта рынка Мьянма
- Категория: >>>
- Поставщик: Anhui Wingo Technology Co. Ltd.Anhui Ltd.
Сохранить в закладки 1601238008520:
Описание и отзывы
Характеристики
Product Description
Specification
Datasheet | SPF 4000T DVM | SPF 5000T DVM | SPF 6000T DVM | SPF 8000T DVM | SPF 10000T DVM | SPF 12000T DVM | ||||||
Battery Voltage | 48DVC | |||||||||||
Battery Type | Lithium/Lead-acid | |||||||||||
INVERTER OUTPUT | ||||||||||||
Rated Power | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | ||||||
Surge Rating | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | ||||||
Waveform | Pure sine wave/same as input(bypass mode) | |||||||||||
Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) | |||||||||||
Output Frequency | 50Hz/60Hz+/-0.3Hz | |||||||||||
Inverter Efficiency(Peak) | >85% | |||||||||||
Transfer Time | 10ms(max) | |||||||||||
SOLAR CHARGER | ||||||||||||
Maximum PV Charge Current | 80A | 120A | ||||||||||
Maximum PV Array Power | 5000W | 7000W | ||||||||||
Number of independent MPP trackers/string per MPP tracker | 1/1 | 2/1 | ||||||||||
MPPT Range@Operating Voltage(VDC) | 60~145VDC | 60~145VDC | ||||||||||
Maximum PV Array Open Circuit Voltage | 150VDC | 150VDC | ||||||||||
Maximum Efficiency | >98% | >98% | ||||||||||
AC INPUT | ||||||||||||
Voltage | 240VAC | |||||||||||
Selectable Voltage Range | 184~272VAC(UPS);154~272VAC(APL) | |||||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||||
Max.Charging Current | 40A | 50A | 60A | 70A | 80A | 100A | ||||||
MECHANICAL SPECIFICATIONS | ||||||||||||
Protection Degree | IP20 | |||||||||||
Dimensions(W/H/D) | 360/540/218mm | 360/540/218mm | 360/540/218mm | 380/650/225mm | 380/650/225mm | 380/650/225mm | ||||||
Weight | 42kg | 47kg | 52kg | 64kg | 66kg | 75kg | ||||||
OPERATING ENVIRONMENT | ||||||||||||
Operation Temperature Range | 0°C to 45°C | |||||||||||

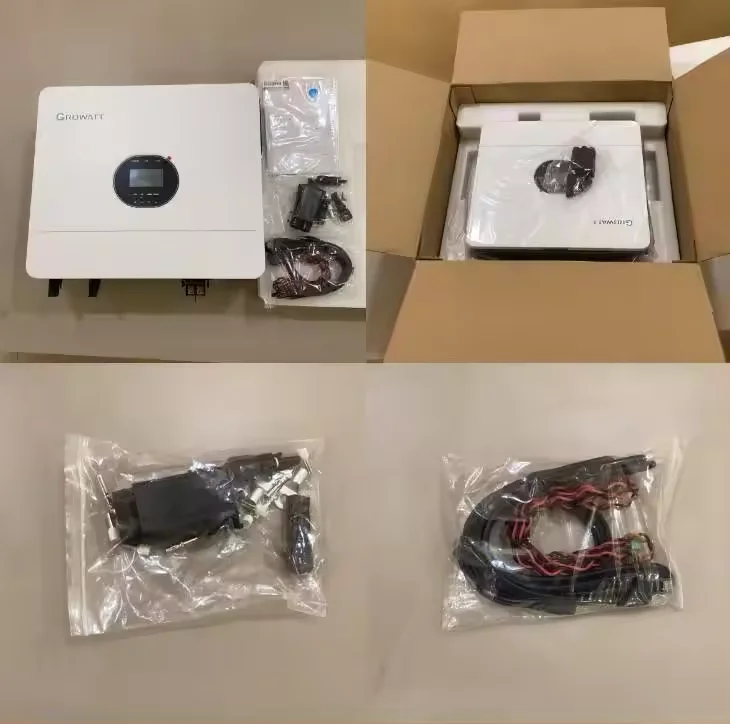

Packing & Delivery
Company Profile
Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar cells modules and 60,000 sets of solar power systems.
FAQ
Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
