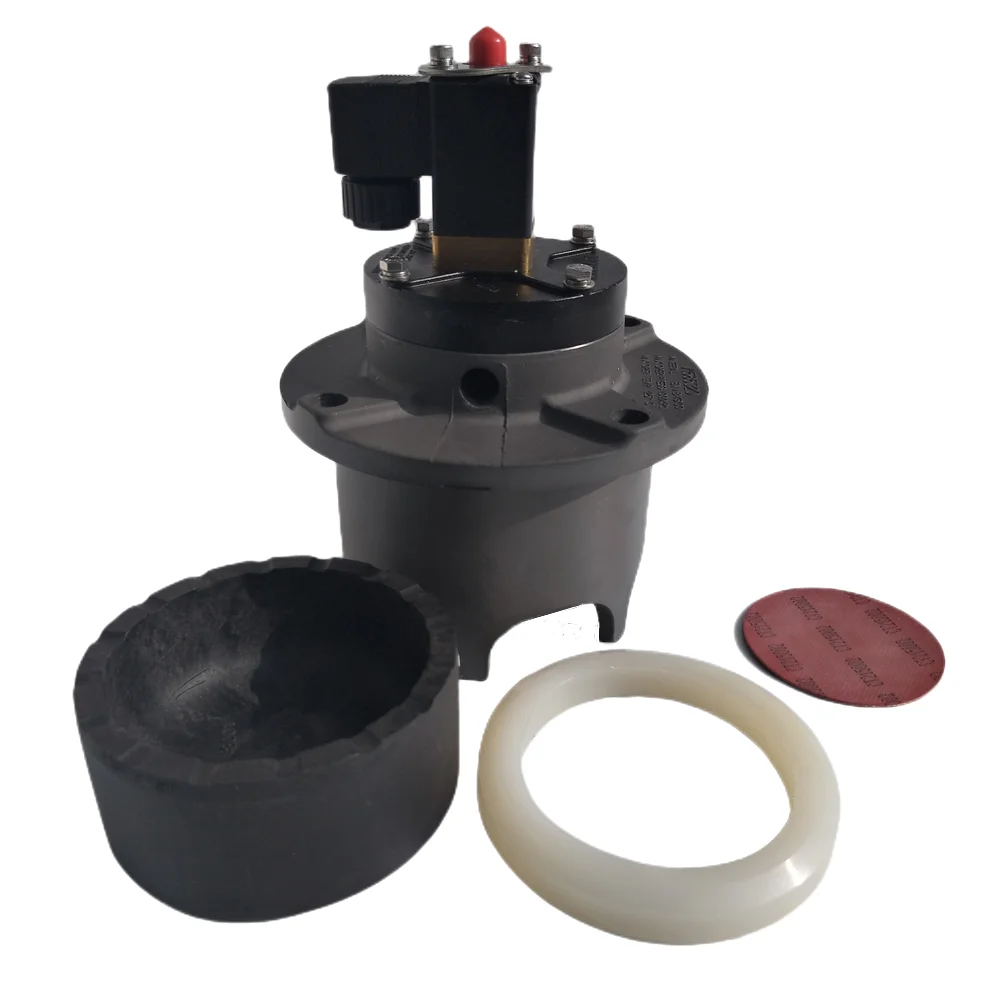

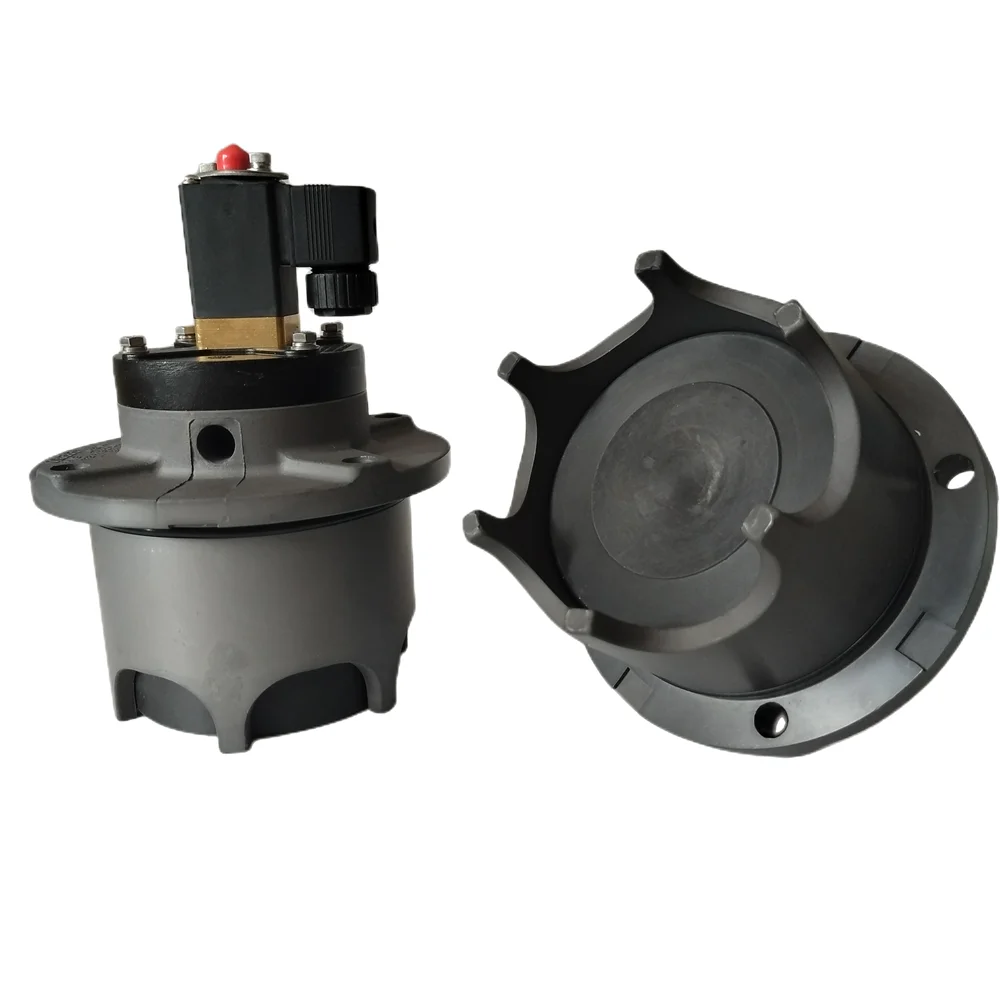

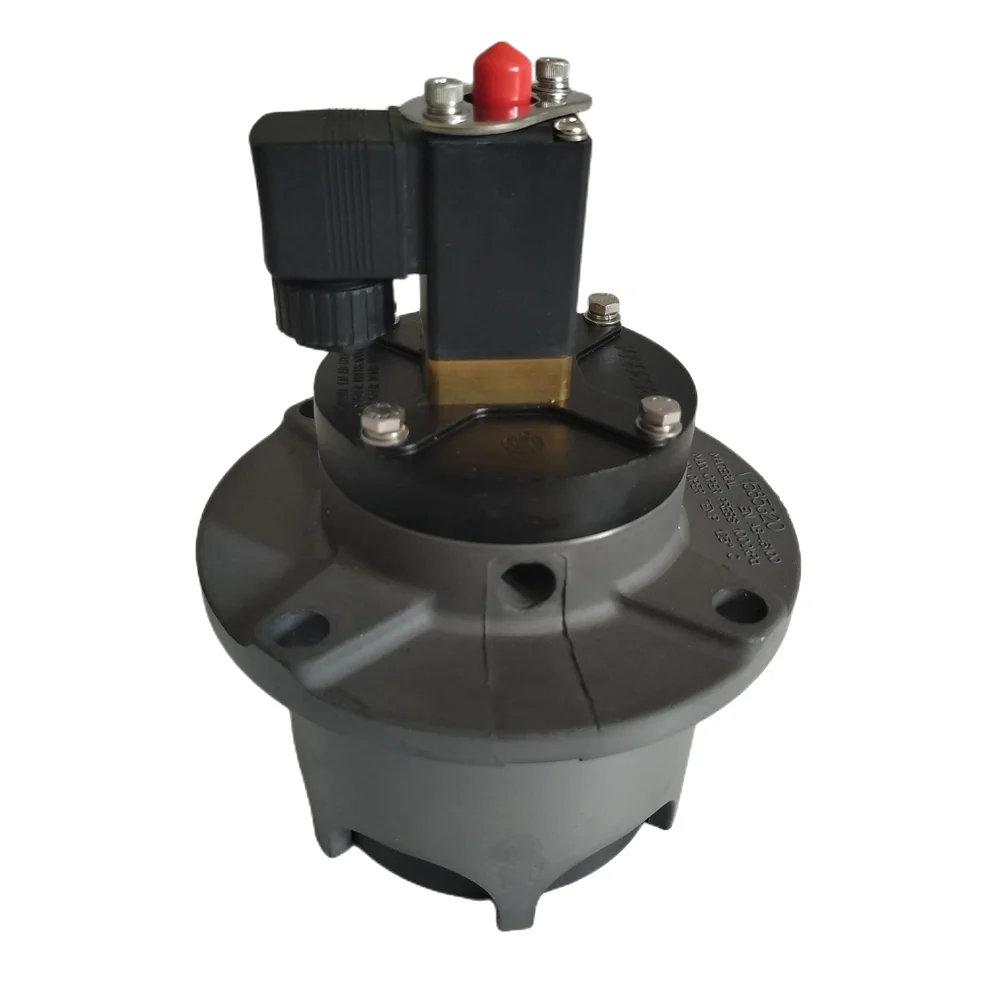

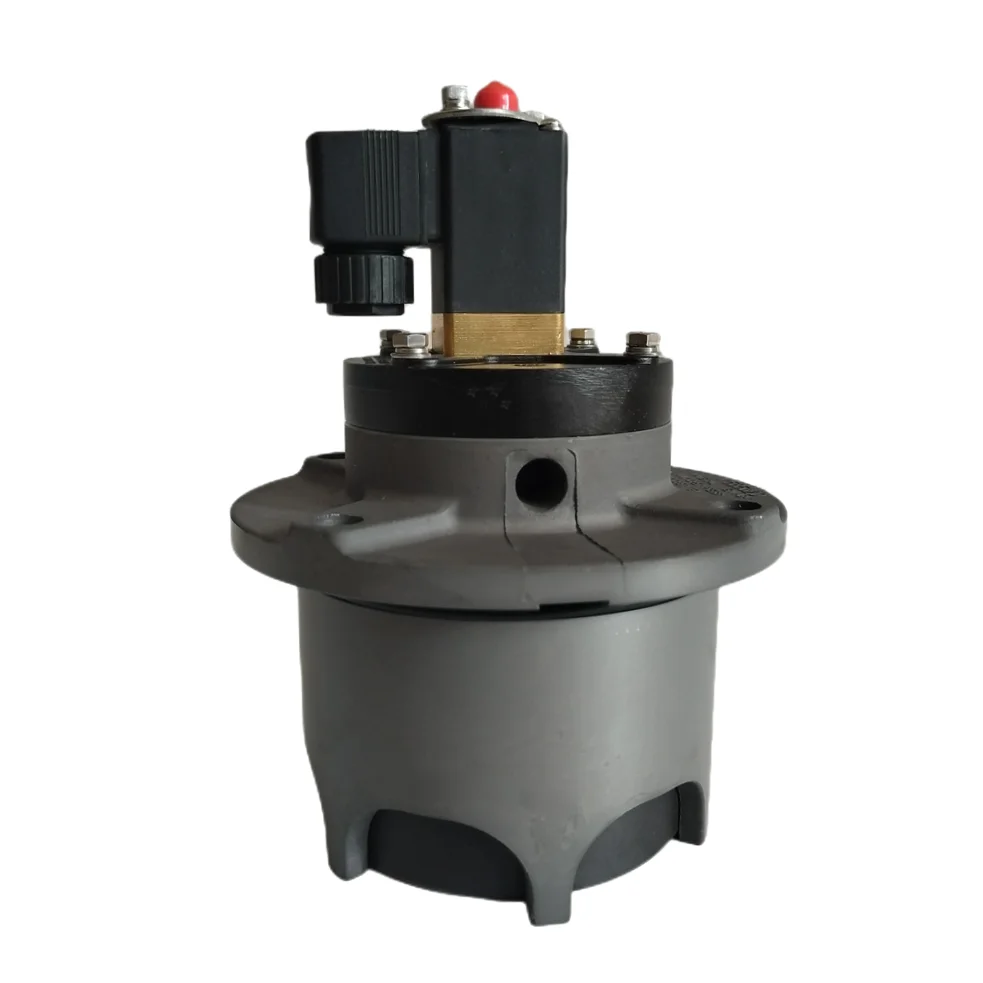

Product Overview
OUR OPTIPOW PULSE JET VALVE
The compact pulse valve fort he Optipulse fabric filters of different types.
1.Is a result of many years of experiences with in the fabric filter technology area.
2.Is quick acting with high efficiency.
3.Has small dimensions,the figure after the name stands
fir the diameter of the plunger.
fir the diameter of the plunger.
4.Is primarily designed to be used in combination with circular pressure tank.
5.Is easy to install and make service to.
6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.
7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.
FEATURES AT A GLANCE
Operating Temperature :
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow105 Fabric Filter
Service:
7*24 Hours Expert Consultation Online
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow105 Fabric Filter
Service:
7*24 Hours Expert Consultation Online
Basic Info
Model NO. | OPTIPOW 105 | Valve Structure | Pilot Membrane Structure |
Power Supply | DC Solenoid Valve | Usage | Drain, Dust Cleaning |
Standard | DIN | Application | Industrial Usage |
Used For | Dust Filter | Trademark | OPTIPOW |
Specification | 3" | Design static pressure | 15 bar (1500 kPa) |
Design temperature | 100 °C | Operating pressure | < 6 bar |
Operating pressure variation | 3 bar unlimited nos | Operation temperature | 50 °C |
RUBBER DISC PARAMETERS
ITEM | PART NO. | FIT | OUTSIDE | INSIDE | THICKNESS | MAIN MATERIAL | WEIGHT |
DIAMETER | DIAMETER | ||||||
RUBBER DISC | V3630530-0100 | Optipow105,Burkert,Danfoss | 108.00mm | 82.16mm | 13.54mm | TPU | 54.8g/pc |
V3640661-0100 |
Main Spare Parts for OPTIPOW105 Air Cleaning Valve
Product name | Article number | Pos. no. |
OPTIPOW 105(24V) | V1617803-0100 | ① |
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
OPTIPOW 105 (without solenoid, revolving 90° ) | V1617803-0800 | 一 |
Coupling Set | V3592382-0000 | 一 |
Membrane | V4549902-0100 | ② |
O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
Pilot Cover | V3630501-0100 | ⑤ |
Plate | V3630524-0100 | ⑥ |
Plunger | V3630527-0100 | ⑦ |
Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
Rubber Disc | V3630530-0100 | ⑧ |
Rubber Disc | V3640661-0100 | ⑧ |
Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
O-Ring 2136-1422 and 2136-1435 Rubber Disc V3640660-0100 Membrane
FILTER CLOTH
FILTER BAG
RIGHT ANGLE VALVE
Company Profile
Qingdao Star Machine Technology Co.,Ltd.is located in the beautiful coastal city-Qingdao.We are a large enterprise groups engaged in researching,production,marketing and technical services, having three large research and production bases and one large marketing center for Dust removal valve, filter cloth, filter bag, and other related dust removal equipment and
accessories.Covering 80,000 square meters,now we have 816 employees including 167 senior professional technicians and a global network of sales and service system. Keeping good partnership with Liaocheng University,Qingdao University,Shandong Agricultural
University,Shandong University and Chinese Academy of Agricultural Sciences,we are getting great technical support from industry experts.
“You provide a request,We'll give you a perfect product”.We uphold the business philosophy“integrity,efficiency,cooperation,innovation”,quality first, advanced,technology,precision production, integrity management,efficient service, to support our customers with the top quality products and super sophisticated technology.
accessories.Covering 80,000 square meters,now we have 816 employees including 167 senior professional technicians and a global network of sales and service system. Keeping good partnership with Liaocheng University,Qingdao University,Shandong Agricultural
University,Shandong University and Chinese Academy of Agricultural Sciences,we are getting great technical support from industry experts.
“You provide a request,We'll give you a perfect product”.We uphold the business philosophy“integrity,efficiency,cooperation,innovation”,quality first, advanced,technology,precision production, integrity management,efficient service, to support our customers with the top quality products and super sophisticated technology.
Application in Industrial
Successful Projects
Project in the Netherland
Project in the United Emirates
Project in the United States of America
SIMILAR PRODUCTS
Certifications
Efficient And Safe Shippment
Warranty Of Core Components
Warranty
The purchased product has a one-year warranty. If the product is damaged due to the product itself within one year, we will replace it free of charge for you.
We will provide 24-hour online service to provide product-related solutions for you.
SALES AND SERVICE NETWORK
FAQ
Q: Can we print our logo on your products?
A: Yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
Q: What is your main market?
A: North America, South America, Eastern Europe, Western Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia,
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Похожие товары
Оптовая цена от поставщика, газовые баллоны, клапаны 375psig, цилиндр, клапан для кемпинга
Winvall, большой крутящий момент, 24 В, 12 В, 3 В, клапан постоянного тока с электроприводом, система HVAC, ручная ручка, шаровой клапан с моторизованным управлением
RFZ25L серии предохранительный клапан
14 035,00 ₽

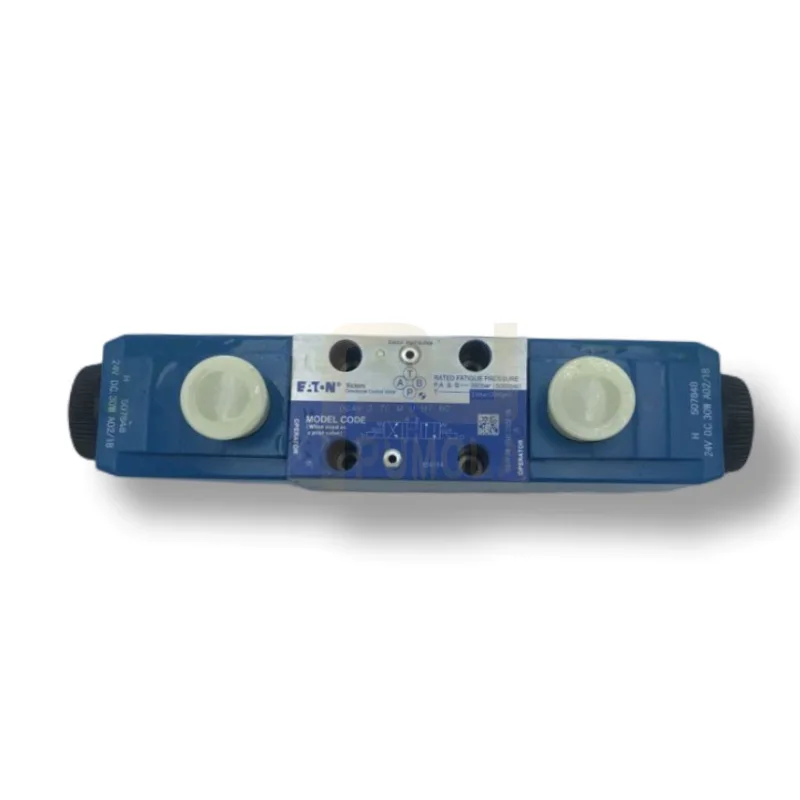

Eaton DG4V-3-7C-M-U-H7-60 Vickers электромагнитный клапан гидравлический направленный клапан

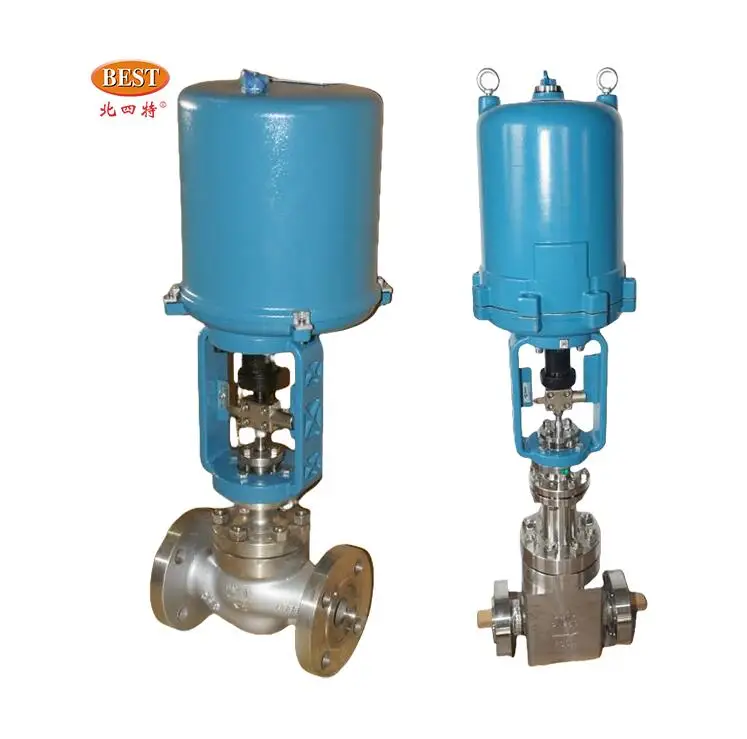

DN50 пропорция температуры, давление пара, регулирующий клапан, Одноместный пневматический мембранный регулирующий шаровой клапан
5 471,46 ₽ - 32 883,56 ₽

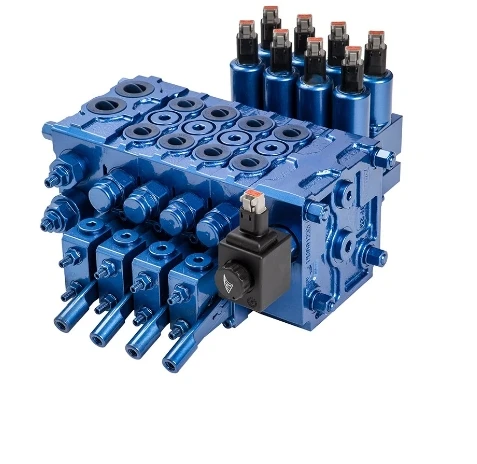

Направленный регулирующий клапан, электронный пропорциональный гидравлический регулирующий клапан для трактора, Электрический регулирующий гидравлический клапан
