Лучшая цена сетка для Growatt 50 кВт 60 70 3 МПВ фазы на сетке солнечный инвертор заводской крыши
2 395,00-2 560,00 $
Новое поступление 3 6 кВт 2 гибридный инвертор 24 В 48VDC 6200 Вт солнечный с инвертором 120 А MPPT
- Категория: >>>
- Поставщик: Beyer Industry LLCBeyer LLC
Сохранить в закладки 1601238300123:
Описание и отзывы
Характеристики

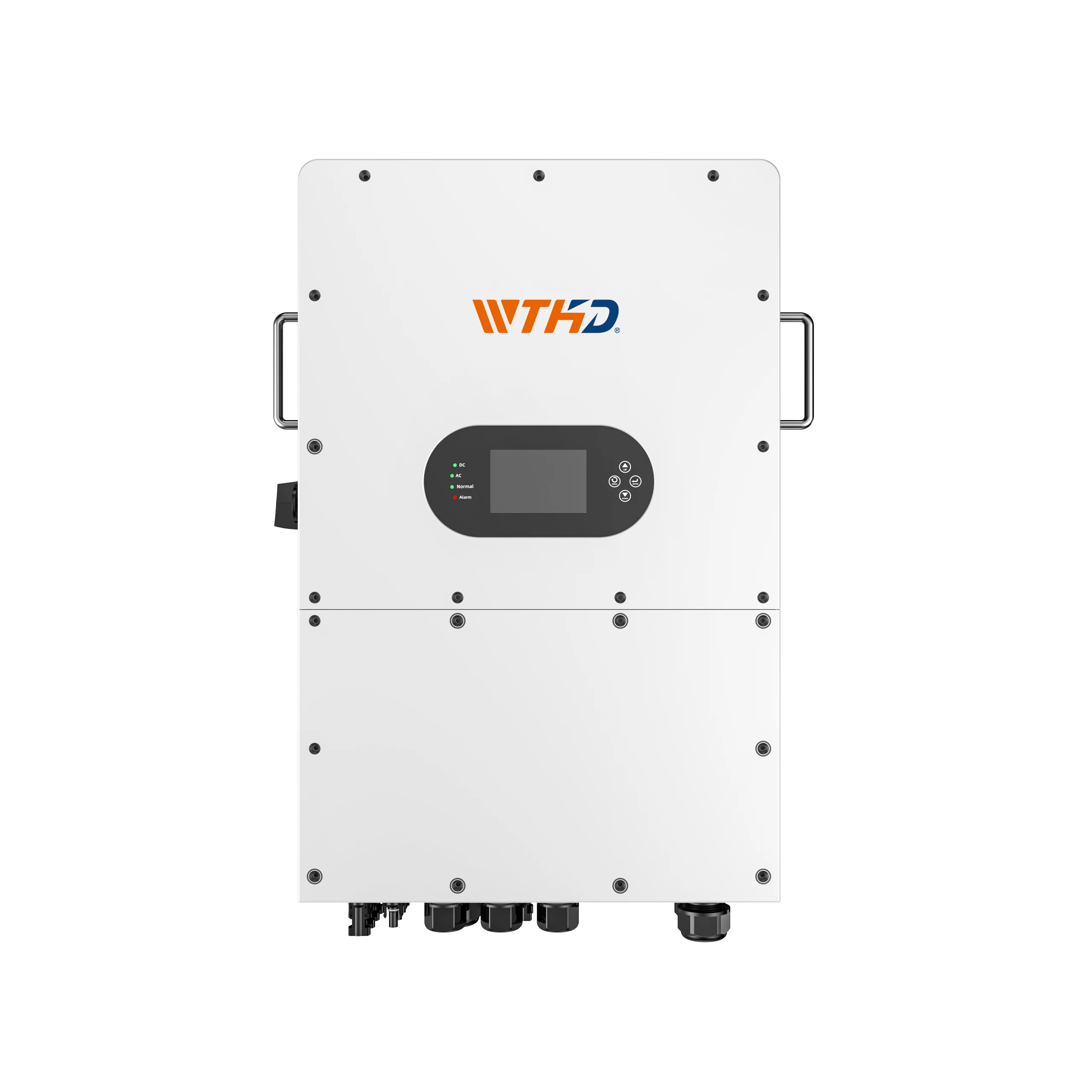

New three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Product Description
Model | 8000W | 10000W | 12000W | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Battery Voltage Range (V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
Rated PV Input Voltage (V) | 550V (150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
Full Load DC Voltage Range | 350-650 | |||||
PV Input Current (A) | 13+13 | 26+13 | ||||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | ||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 12000W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | |||||
Grid Type | Current Harmonic Distortion | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection | |||||
Surge protection | DC Type II / AC Type II | |||||
Specification
Packing & Delivery
1. We usually use the carton for packing.
2.As customer requirements packing.
2.As customer requirements packing.
Company Profile
Jilu Henghua (Hebei) Technology Co., Ltd. is a professional manufacturer and exporter with more than ten years of experience in the field of solar power systems.
As a world's leading supplier for solutions for electric energy and new energy and an electric energy company specialized in new energy, we has powerful strength and is engaged in both electric energy and new energy. Its main five kinds of products including inverters, solar controllers. solar inverters and batteries are widely used in the electric power market, the infrastructure market and the industrial market Since its establishment. A pioneer in the world's new energy field. The global sales volume has 150 million yuan and. in China, 600 employees, 3 factories. 30 customer service centers. more than 50 points of sale, 7 subsidiaries, 5 regional offices, 1 new energy power supply R&D center, 2 new energy battery R&D centers. more than 30 agents and a nationwide sales network.Inverters. UPS. solar controllers. solar inverters and batteries are exported to developing countries in Africa, Asia and South Africa, bringing positive economical, environmental and social changes for these countries in the process of active cooperation with partners, promoting sustainable development, makes active contributions to developing countries and enriches the environment-friendly life of people. By means of advanced green solutions, we helps countries reduce their energy consumptions and C02 emissions to create the best economical and social values and environmental benefits. The supporting products for solar power systems are widely used in families in developing countries. we has deeply recognized the significance of green solutions. so it carries out a 'Green World' strategy in its operation, products and service. We hopes to promote energy saving and environmental protection of the whole society through its own energy conservation and emission reduction
As a world's leading supplier for solutions for electric energy and new energy and an electric energy company specialized in new energy, we has powerful strength and is engaged in both electric energy and new energy. Its main five kinds of products including inverters, solar controllers. solar inverters and batteries are widely used in the electric power market, the infrastructure market and the industrial market Since its establishment. A pioneer in the world's new energy field. The global sales volume has 150 million yuan and. in China, 600 employees, 3 factories. 30 customer service centers. more than 50 points of sale, 7 subsidiaries, 5 regional offices, 1 new energy power supply R&D center, 2 new energy battery R&D centers. more than 30 agents and a nationwide sales network.Inverters. UPS. solar controllers. solar inverters and batteries are exported to developing countries in Africa, Asia and South Africa, bringing positive economical, environmental and social changes for these countries in the process of active cooperation with partners, promoting sustainable development, makes active contributions to developing countries and enriches the environment-friendly life of people. By means of advanced green solutions, we helps countries reduce their energy consumptions and C02 emissions to create the best economical and social values and environmental benefits. The supporting products for solar power systems are widely used in families in developing countries. we has deeply recognized the significance of green solutions. so it carries out a 'Green World' strategy in its operation, products and service. We hopes to promote energy saving and environmental protection of the whole society through its own energy conservation and emission reduction
FAQ
1.May i have a piece of sample to check the quality ?
Yes, we welcome sample order to test quality.
2.What kind of payment terms can be acceptable?
Bulk order:Flexible for payment terms, 30% T/T deposit and 70% T/T balance before shipment.
Sample term:T/T 100%.
3.How about the delivery time?
Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
4.Could we be your agent or distributor?
Yes, we do.
Yes, we welcome sample order to test quality.
2.What kind of payment terms can be acceptable?
Bulk order:Flexible for payment terms, 30% T/T deposit and 70% T/T balance before shipment.
Sample term:T/T 100%.
3.How about the delivery time?
Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
4.Could we be your agent or distributor?
Yes, we do.
Похожие товары

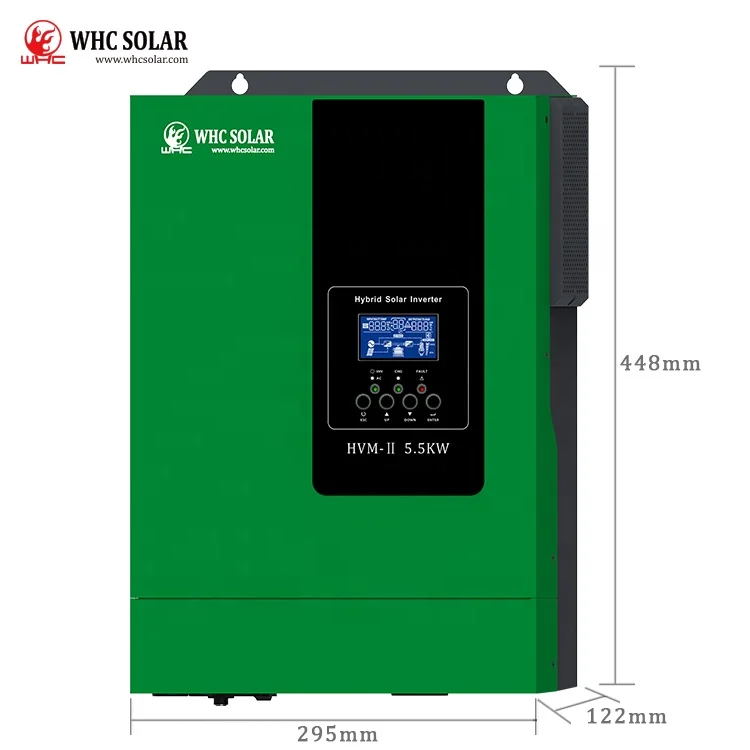

WHC солнечный инвертор 5.5kw 5500W солнечной энергии с чистым синусом Гибридный прямые поставки из Китая
Завод Ecsun производит инвертор 5 кВт Гибридный однофазный 48 В 220
320,00-350,00 $
Внутрисетевая система 1 мВт 2 5 10 Инвертор солнечной энергии 60 кВт 380 В 60000 Вт панели сетчатый инвертор
1 709,00-2 074,00 $

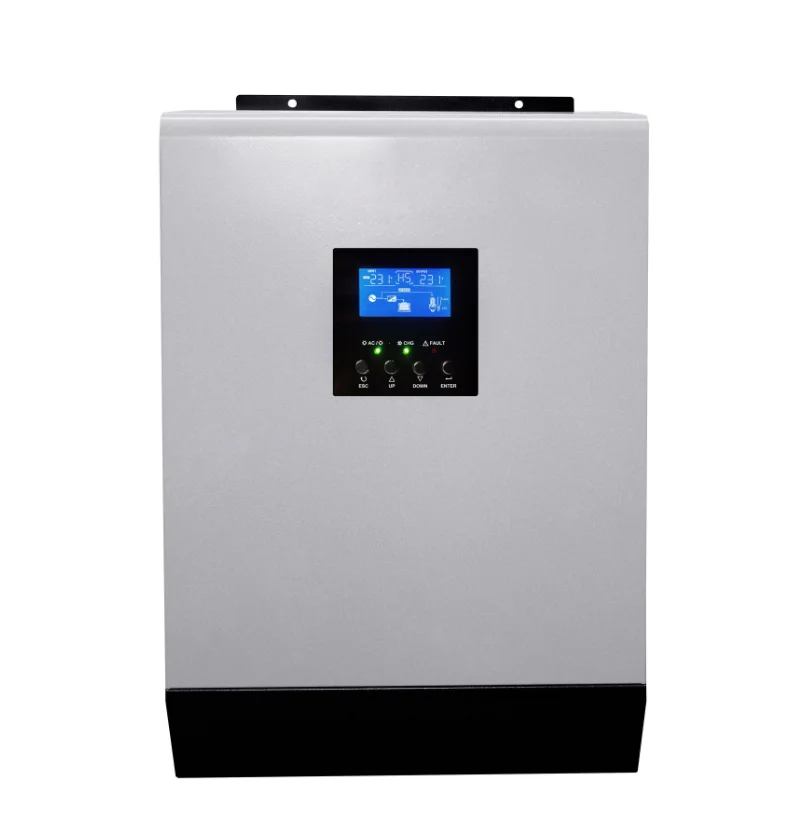

600 Вт солнечный инвертор 12 В/24VDC 110 В/230VAC чистый синусоидальный светодиодный дисплей интеллектуальная зарядка литиевые батареи
152,00 $

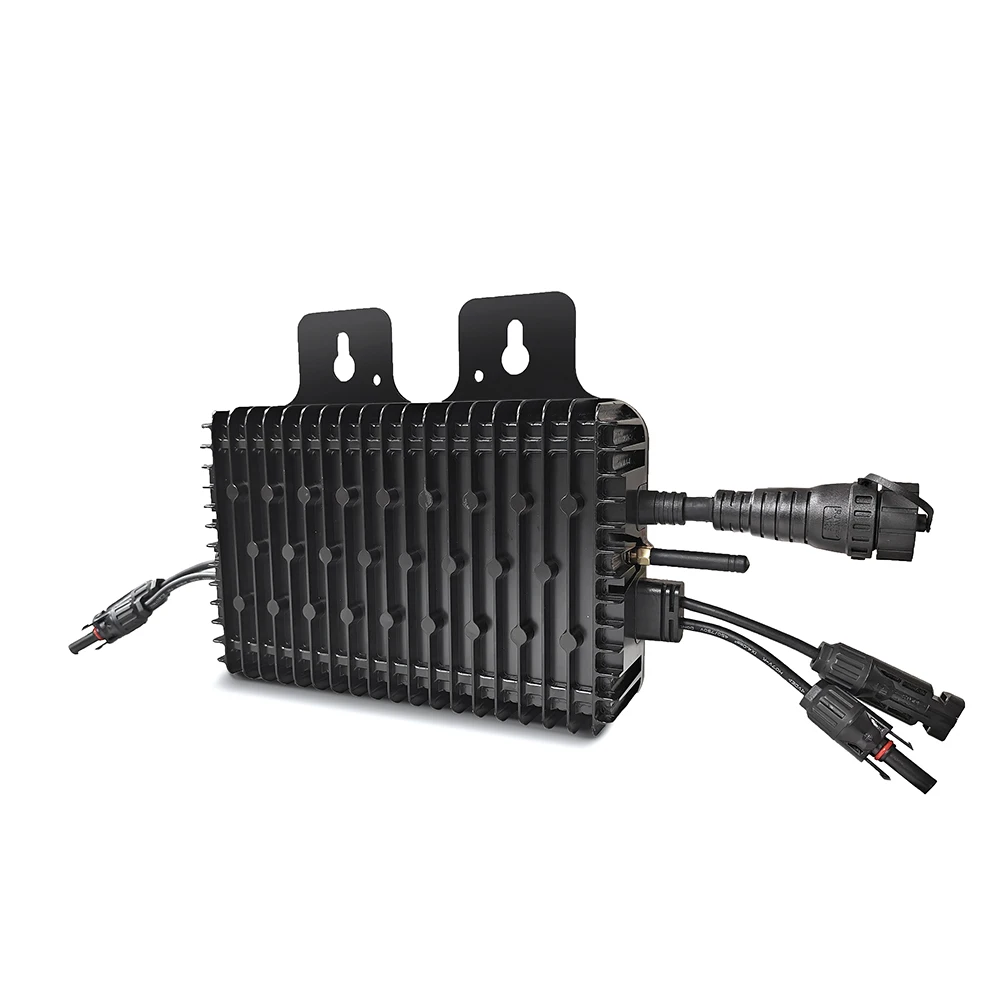

Микроинвертор на сетке 800 Вт Балконная электростанция 110 В 220 Wi-Fi мобильное приложение комплекты солнечных панелей микроинвертор
54,00-59,00 $

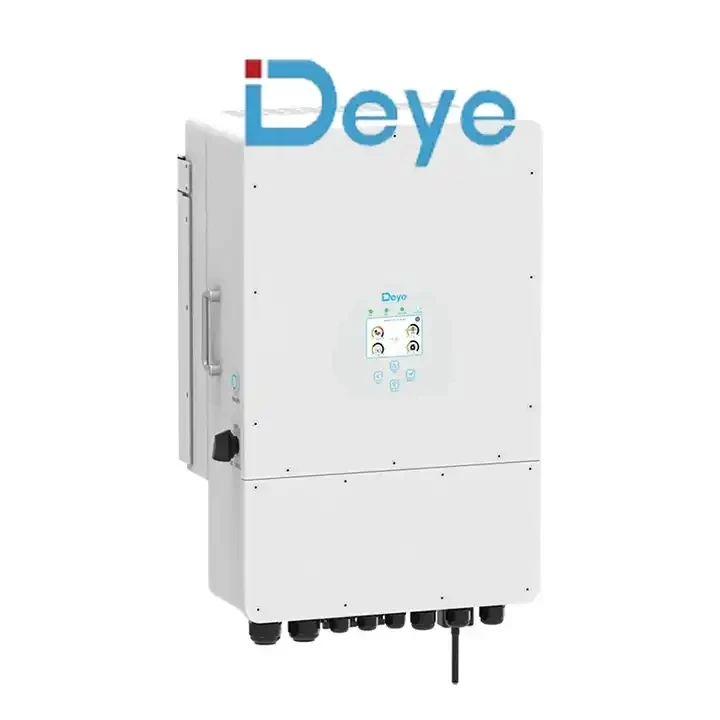

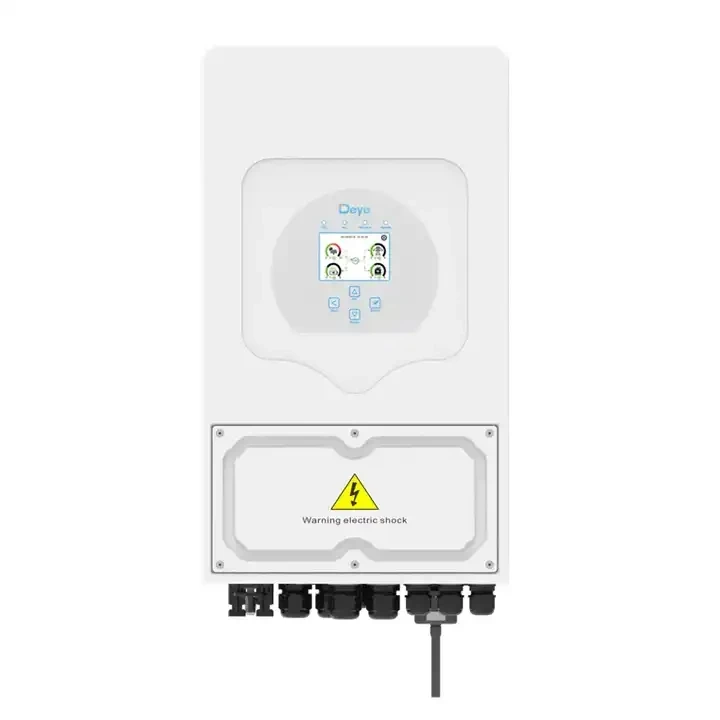

Deye солнечный инвертор SUN-5K-12K-SG01LP1 Гибридный на сетке для солнечной системы питания
