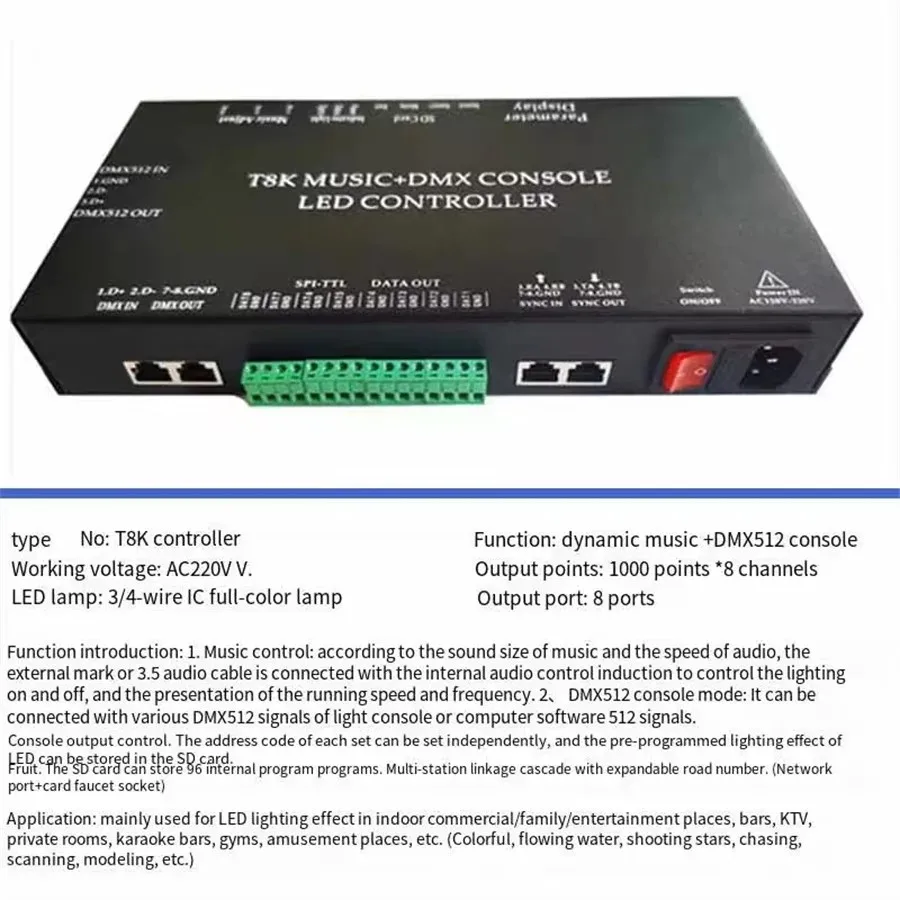

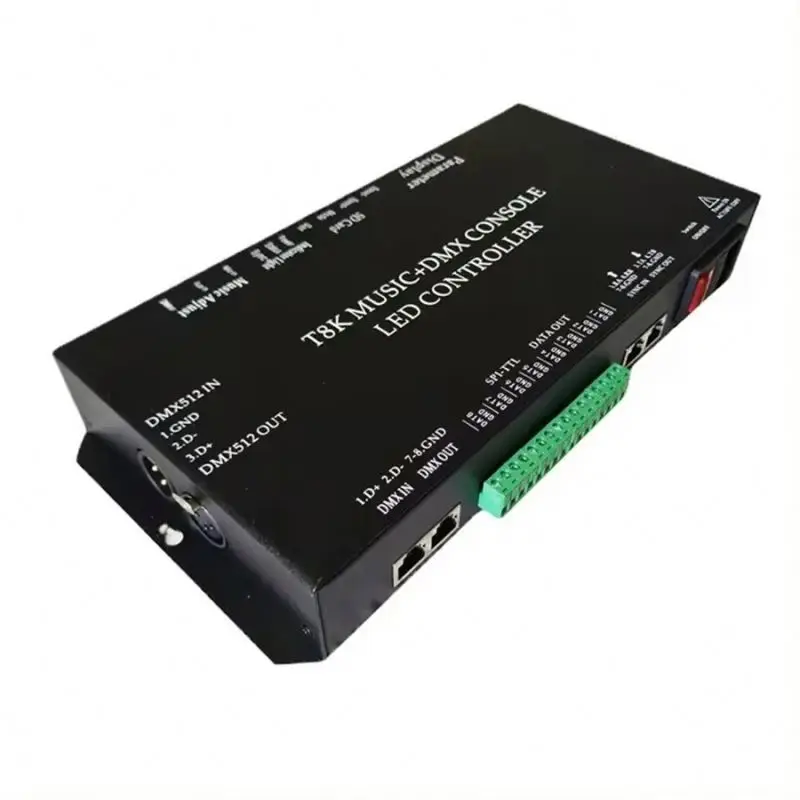

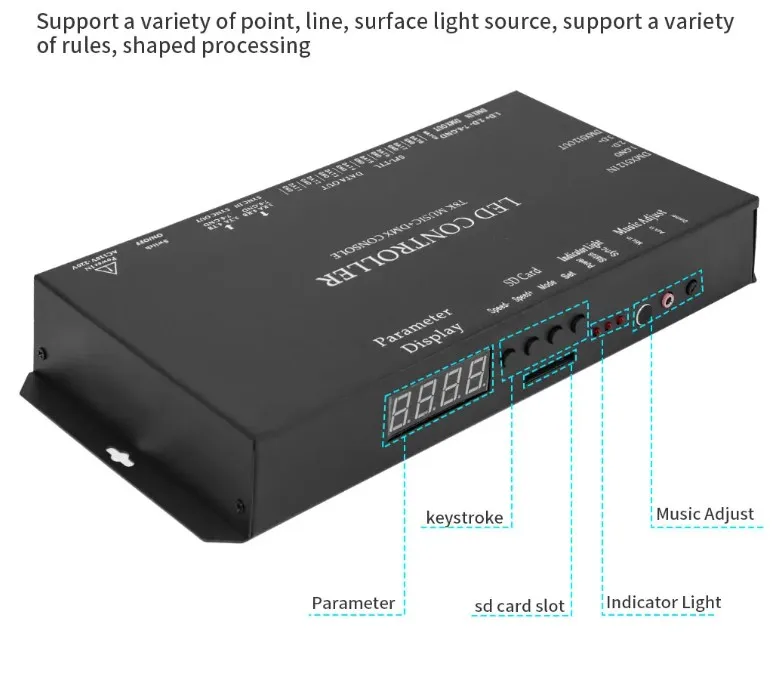

T8K Музыка + DMX консоль программируемый адресуемый SPI светодиодный контроллер WS2811 WS2812B SK6812 RGBW Светодиодная лента
6 085,01-6 133,21 ₽
T8K Музыка DMX консоль программируемый адресуемый SPI светодиодный контроллер WS2811 WS2812B SK6812 RGBW Светодиодная лента
- Категория: >>>
- Поставщик: Shenzhen Ledsune Optoelectronics Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601238432170:
Описание и отзывы
Характеристики
Product Description
Specific parameter:

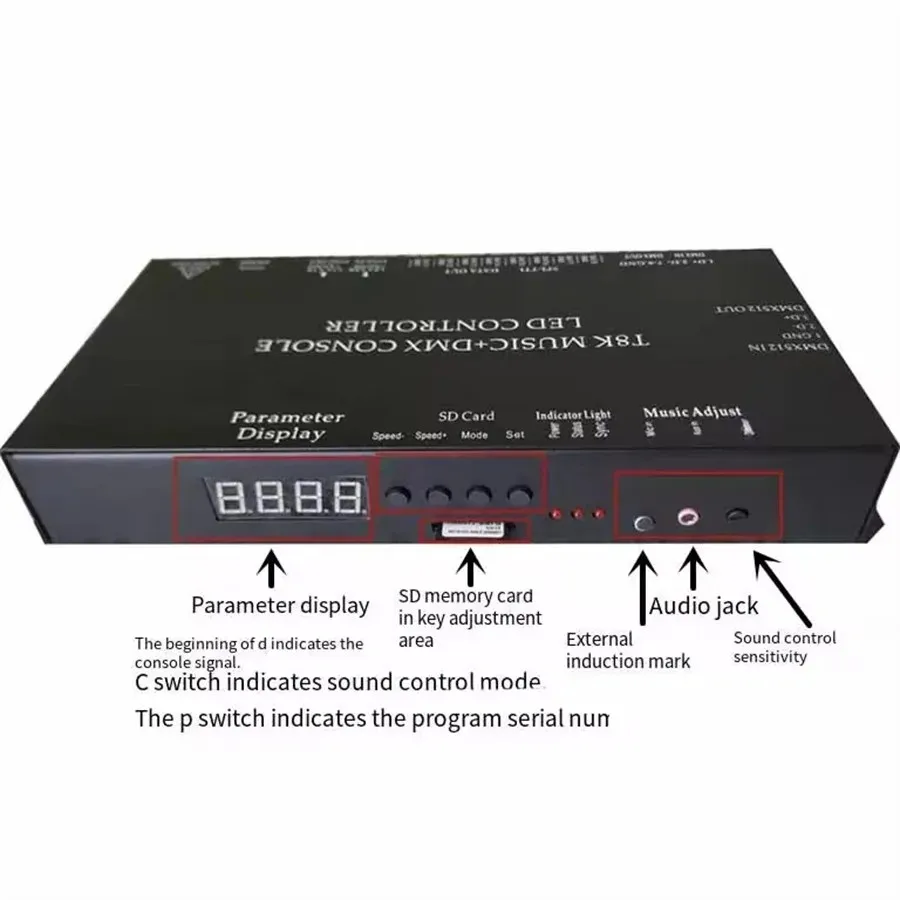

Instructions for use (P mode is normal mode, C mode is music mode)
1. When making the effect program, select the controller model T-8000-1903 or K-8000 in the software, and copy the finished file to the SD card and insert it into the controller for use. (Please turn off the power and insert the card to avoid burning the card)

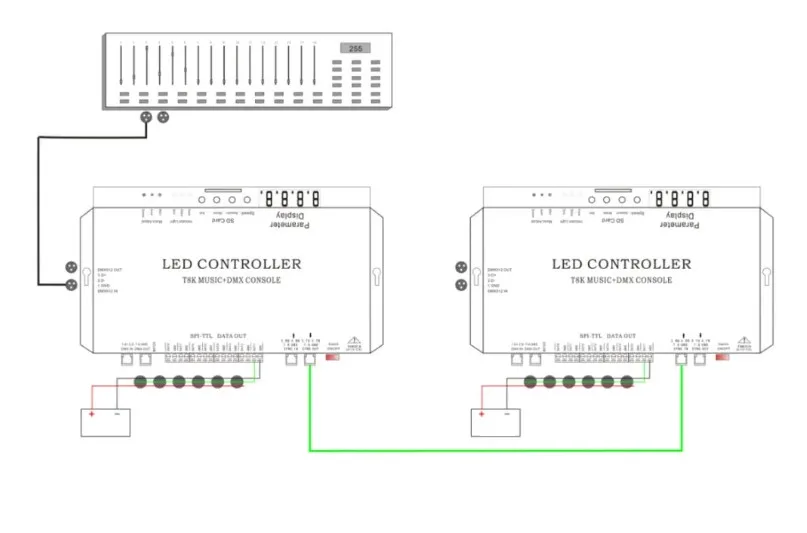

2. Multiple controllers can be synchronized with the network cable cascade.
3. Press the mode button in P mode to switch programs, and A-01 will be displayed as a loop for all programs.
4. The duration of the multi-program loop (A-01) in C mode can be set by an EXCEL configuration file in the SD card to set the playback time of each program, the file name is music.csv. Each line corresponds to the order of the file program number, the first number line corresponds to the number of seconds of the first program. The second line, the number 5, is the number of seconds of the second file program. This means that 5 seconds of playback is passed to the next program, the maximum number is 30000 seconds, if there is no such playback time profile or error, the default playback time is 1 minute per program.
5. Each controller has a microphone and headphone jack in cascade mode, only the host receives the music signal, and the slave in the rear cascade only receives the synchronization signal of the host.
6. The controller can support up to 80 programs to play in a loop, which can bring different and non-repetitive cool effects to the music.
7. C mode, the controller can have two playback forms for production effect. Below 800 frames is sound control amplitude mode,above 800 frames is sound control speed mode, press the Set key to adjust the sensitivity of the music controller (volume and speed) H-01 to H-12, which increases the difference in the display effect and makes the scene cooler. In addition, there is anadjustable sensitivity knob (Dimmer) on the control panel to further adjust the music visuals.
8. In P mode, the controller can be connected to the DMX console for use, and the d001 display indicates that the connection is successful. DXXX is the first segment of the DMX address occupied by the controller.
9. When the controller is connected to the DMX console, it has 6 channels: 1. Program setting, 2. Speed setting, 3. Overall
brightness setting, 4. Red brightness setting, 5. Green brightness setting, 6. Blue brightness setting.
10. Adjust the program selection, speed selection, total brightness selection and RGB brightness of the three colors played by the controller through the console fader.
11. In the DXXX state, you can set the DMX address of this controller by pressing the speed and speed buttons, adding or
subtracting 3 per press. If you need to use multiple DMX controllers on the site, you can set the addresses of each device
differently, and the address numbers should be separated by at least 6, for example, when one is d001, the other can be set to d007.... And so on.
12.P mode, select the control chip through the Set key on the panel, supported chip models: UCS19**, UCS29**, TM18**,,1*, SM1670*,GS8205, GS8206, 6812, 9823, 9883, TM1914, LPD1886, 6803, 5109, 8109, 8806, 16716, 9813 and DMX, DMX512 and other chips, if you need to add support for other chips, please inform your dealer.
13. After the button sets the appropriate playback speed, you need to wait 8 seconds after the program control chip plays, and the controller will save the information set by the button at this time, and you do not need to set it again when you turn it on next time.
14. Multiple controllers are cascaded, only the first controller needs to be controlled. Each controller must be plugged in and the number of programs on the card must be the same and the same serial number and the number of program points and speeds must be the same.
2. Multiple controllers can be synchronized with the network cable cascade.
3. Press the mode button in P mode to switch programs, and A-01 will be displayed as a loop for all programs.
4. The duration of the multi-program loop (A-01) in C mode can be set by an EXCEL configuration file in the SD card to set the playback time of each program, the file name is music.csv. Each line corresponds to the order of the file program number, the first number line corresponds to the number of seconds of the first program. The second line, the number 5, is the number of seconds of the second file program. This means that 5 seconds of playback is passed to the next program, the maximum number is 30000 seconds, if there is no such playback time profile or error, the default playback time is 1 minute per program.
5. Each controller has a microphone and headphone jack in cascade mode, only the host receives the music signal, and the slave in the rear cascade only receives the synchronization signal of the host.
6. The controller can support up to 80 programs to play in a loop, which can bring different and non-repetitive cool effects to the music.
7. C mode, the controller can have two playback forms for production effect. Below 800 frames is sound control amplitude mode,above 800 frames is sound control speed mode, press the Set key to adjust the sensitivity of the music controller (volume and speed) H-01 to H-12, which increases the difference in the display effect and makes the scene cooler. In addition, there is anadjustable sensitivity knob (Dimmer) on the control panel to further adjust the music visuals.
8. In P mode, the controller can be connected to the DMX console for use, and the d001 display indicates that the connection is successful. DXXX is the first segment of the DMX address occupied by the controller.
9. When the controller is connected to the DMX console, it has 6 channels: 1. Program setting, 2. Speed setting, 3. Overall
brightness setting, 4. Red brightness setting, 5. Green brightness setting, 6. Blue brightness setting.
10. Adjust the program selection, speed selection, total brightness selection and RGB brightness of the three colors played by the controller through the console fader.
11. In the DXXX state, you can set the DMX address of this controller by pressing the speed and speed buttons, adding or
subtracting 3 per press. If you need to use multiple DMX controllers on the site, you can set the addresses of each device
differently, and the address numbers should be separated by at least 6, for example, when one is d001, the other can be set to d007.... And so on.
12.P mode, select the control chip through the Set key on the panel, supported chip models: UCS19**, UCS29**, TM18**,,1*, SM1670*,GS8205, GS8206, 6812, 9823, 9883, TM1914, LPD1886, 6803, 5109, 8109, 8806, 16716, 9813 and DMX, DMX512 and other chips, if you need to add support for other chips, please inform your dealer.
13. After the button sets the appropriate playback speed, you need to wait 8 seconds after the program control chip plays, and the controller will save the information set by the button at this time, and you do not need to set it again when you turn it on next time.
14. Multiple controllers are cascaded, only the first controller needs to be controlled. Each controller must be plugged in and the number of programs on the card must be the same and the same serial number and the number of program points and speeds must be the same.

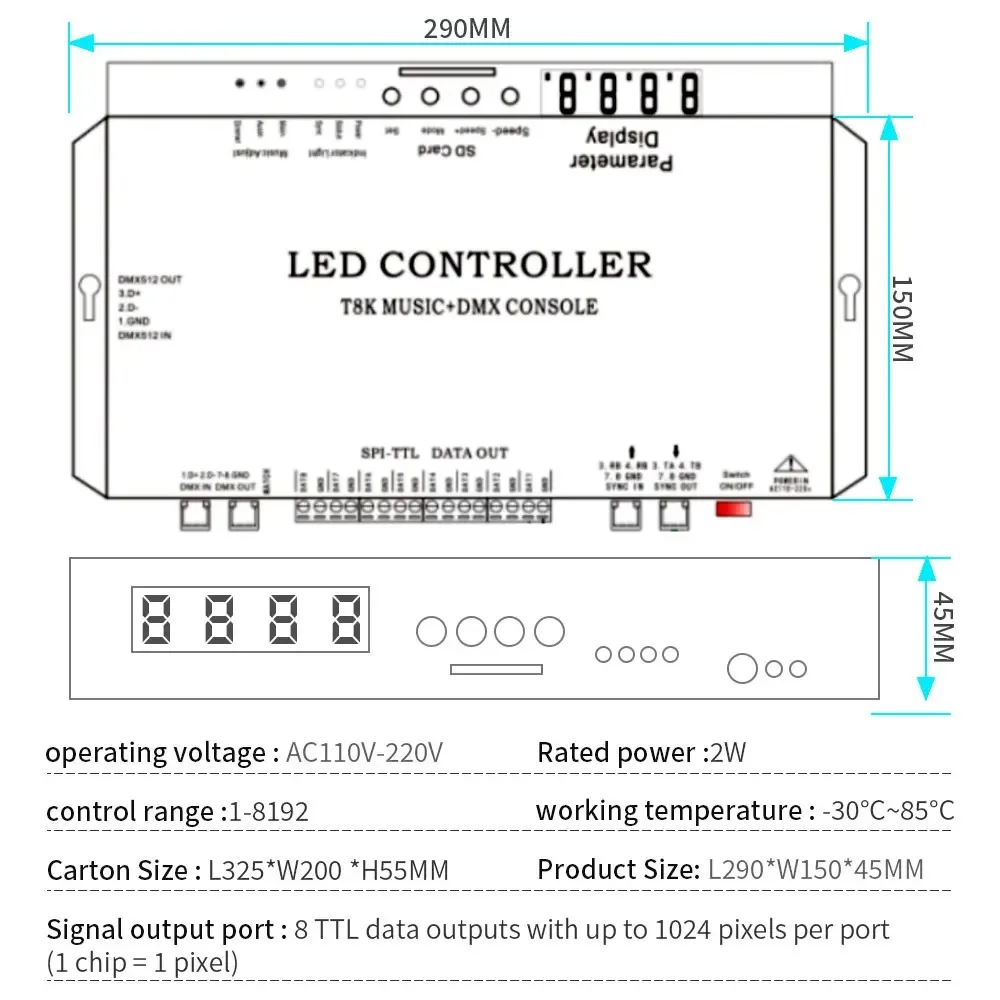

Working Voltage | AC 110V-220V | ||||||
Rated Power | 2W | ||||||
Signal Output Port | 8 ports TTL data output, each port can carry up to 1024 pixels (1 chip = 1 pixel) | ||||||
Control Range | 1-8192 | ||||||
Working Temperature | -30 ° C ~ 85 ° C | ||||||
Product size | 280 * 150 * 45MM | ||||||
Net weight | 1KG | ||||||
LED Strip Accessories
Application
About US
FAQ
Q1 . What are the advantages of LEDSUNE ?
- LEDSUNE is TOP 10 Addressable RGBIC LED Strip manufacturers in China.
- We already had CE, RoHS etc certificates.
- 10 years of experience focus on pixel LED.
Q2 .What are the best-selling products in LEDSUNE?
- RGBIC LED Strip: Mainly WS2811, WS2812b, WS2813, WS2815, SK6812 RGBW
- Neon Rope Light
- LEDSUNE is TOP 10 Addressable RGBIC LED Strip manufacturers in China.
- We already had CE, RoHS etc certificates.
- 10 years of experience focus on pixel LED.
Q2 .What are the best-selling products in LEDSUNE?
- RGBIC LED Strip: Mainly WS2811, WS2812b, WS2813, WS2815, SK6812 RGBW
- Neon Rope Light
- COB LED Strip
- SMD Chip
- LED Controller
- Automobile Light：Car underglow ,Rock Light,Whip light,Wheel light etc
-
Q3 .Can LEDSUNE offer OEM ODM products?
Yes, OEM ODM products are allowed. We have an excellent design/engineering team to offer support and we have several years of experience in OEM ODM. The strips can have different sizes, customer logos and labels. We will strictly follow the principle that we won’t disclose or sell customers' unique designs or jointly developed products to another third party.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Usually, we had material in stock, regular order lead time is 2-7 days after the order is paid. Custom products 8--15 days.
- SMD Chip
- LED Controller
- Automobile Light：Car underglow ,Rock Light,Whip light,Wheel light etc
-
Q3 .Can LEDSUNE offer OEM ODM products?
Yes, OEM ODM products are allowed. We have an excellent design/engineering team to offer support and we have several years of experience in OEM ODM. The strips can have different sizes, customer logos and labels. We will strictly follow the principle that we won’t disclose or sell customers' unique designs or jointly developed products to another third party.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Usually, we had material in stock, regular order lead time is 2-7 days after the order is paid. Custom products 8--15 days.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

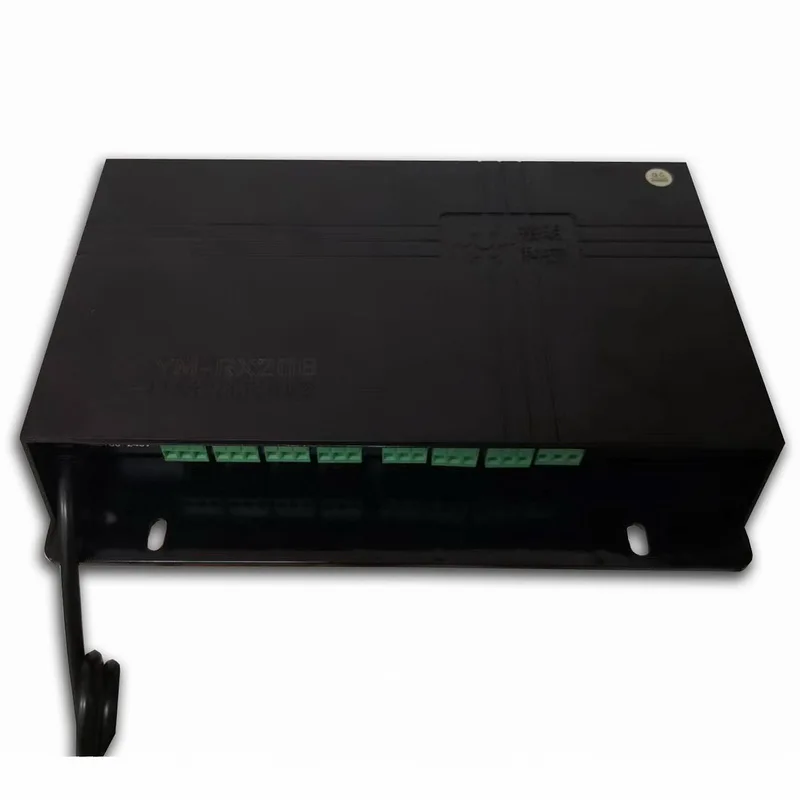

Высокое качество программируемые YM-RX206 онлайн СИД DMX контроллер 8x1024 пикселей для DMX512 RGB/RGBW Перемещение головы свет

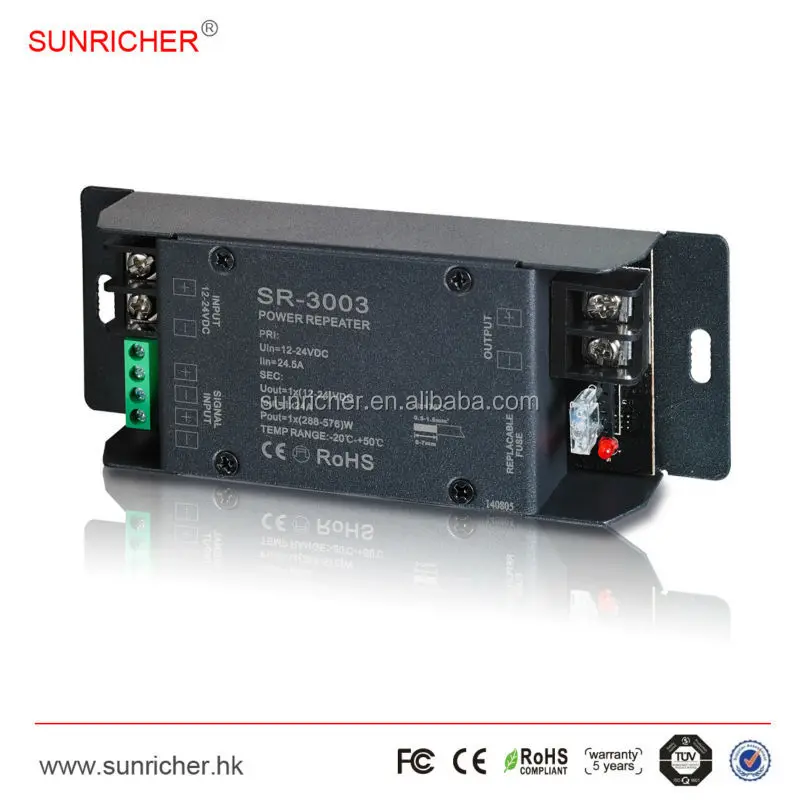

Усилитель 24A SR-3003 с металлическим корпусом
Контроллер светодиодного диммера 12 В

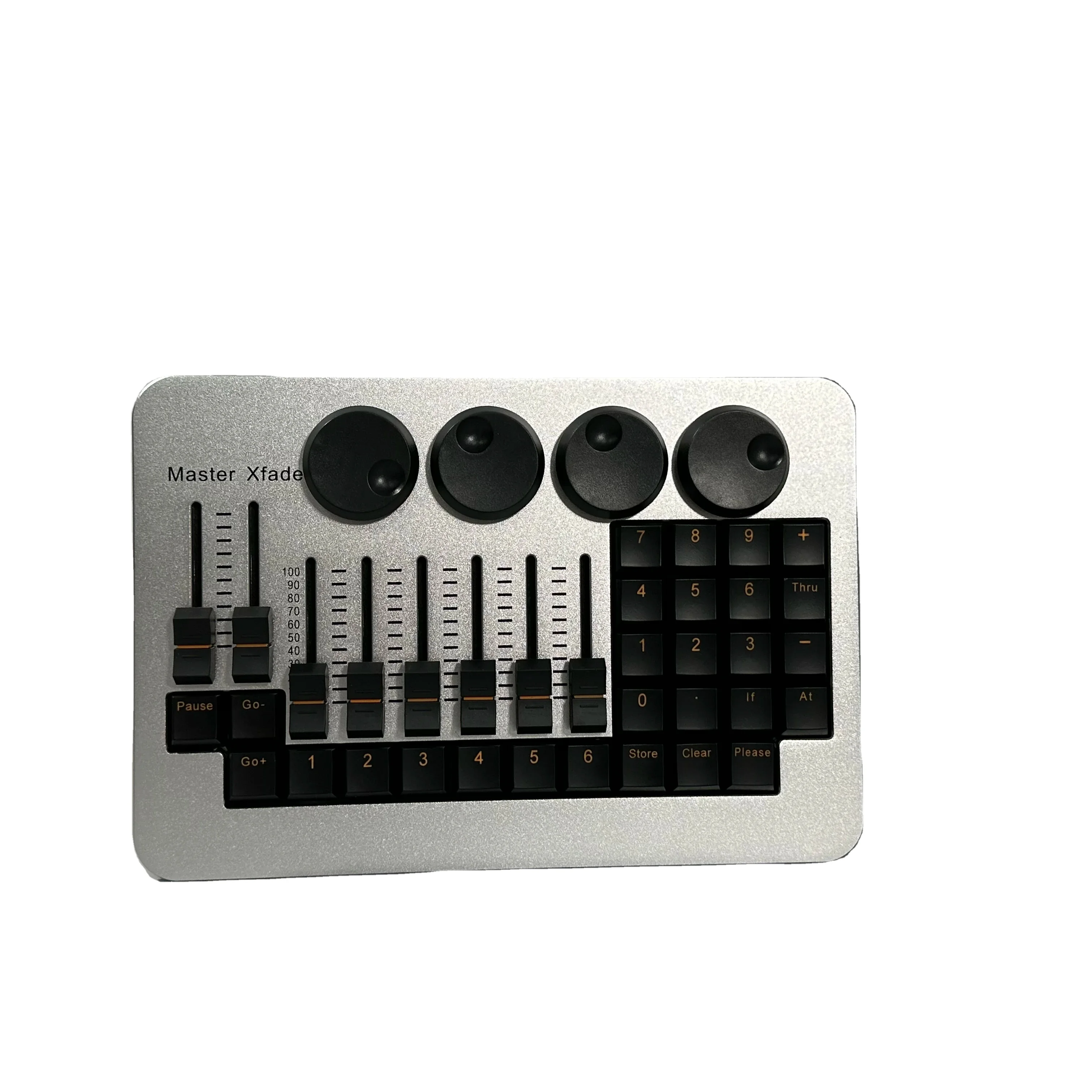

Мини-командное крыло аналогичная компоновка MA2 командная секция
24 701,52 ₽
Беспроводной светодиодный Радиочастотный пульт 12-24 В
406,07-481,99 ₽

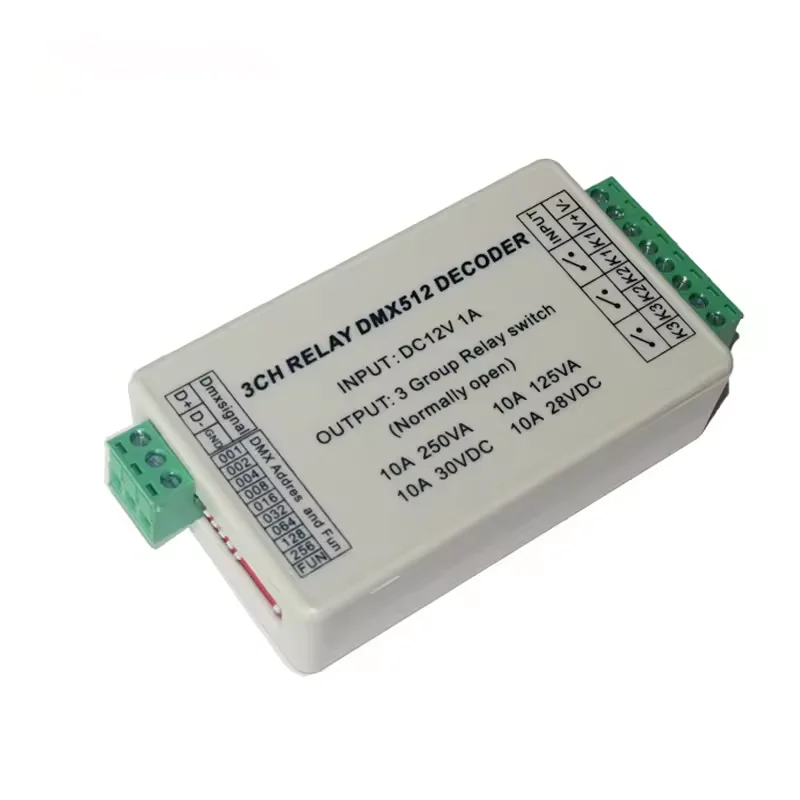

Лидер продаж DC12V 3ch DMX512 переключатель реле RGBW контроллер декодера для светодиодной ленты
1 565,24-1 685,73 ₽

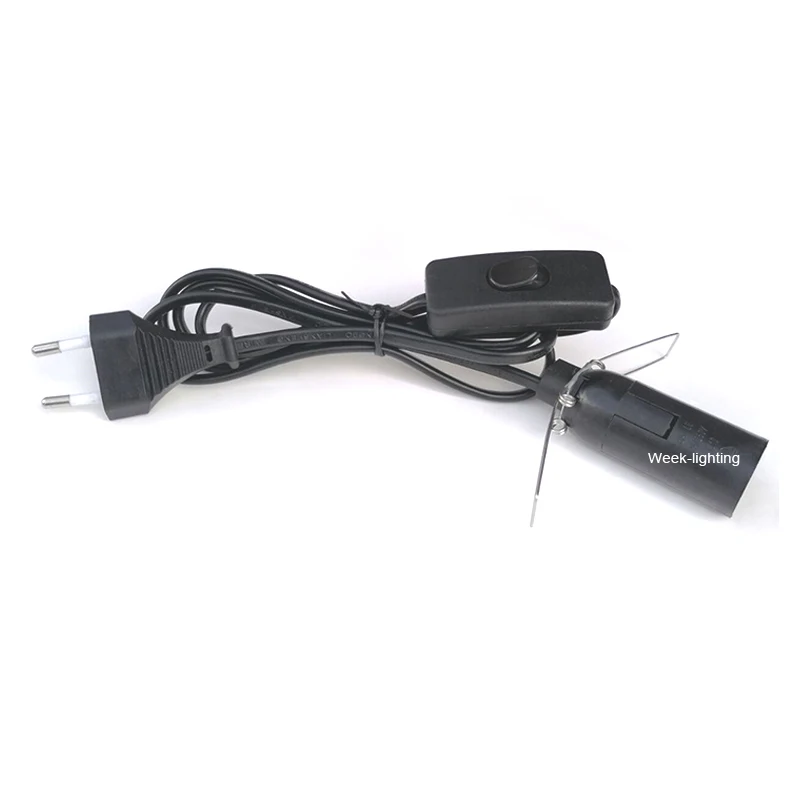

Цоколь для лампы E14 E27 с проводом переключателя шнур питания 1 8 м кабель подвесной светодиодной держатель штепсельная вилка европейского стандарта
