Product Description

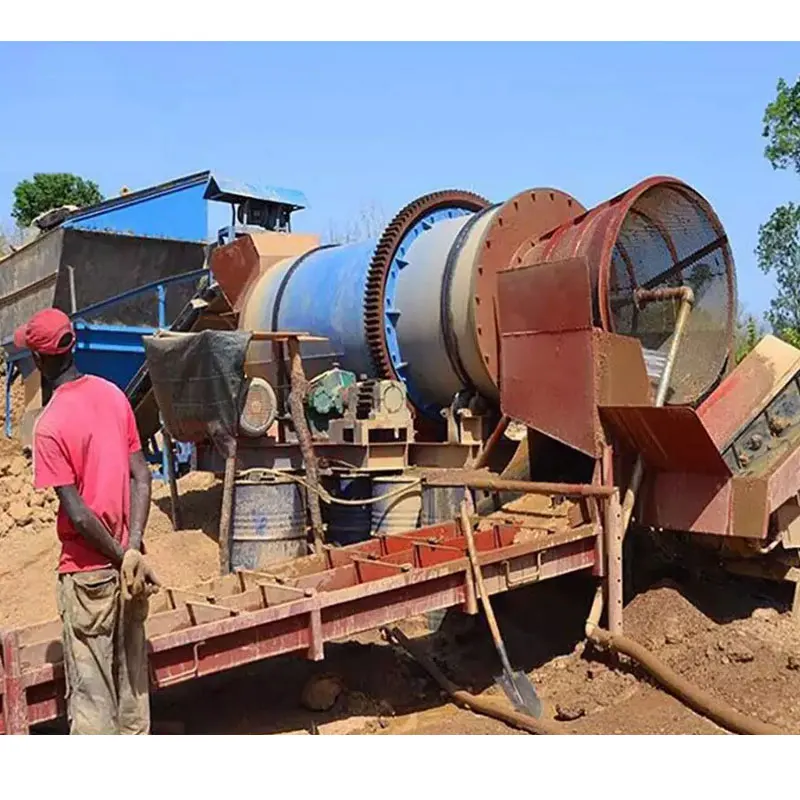

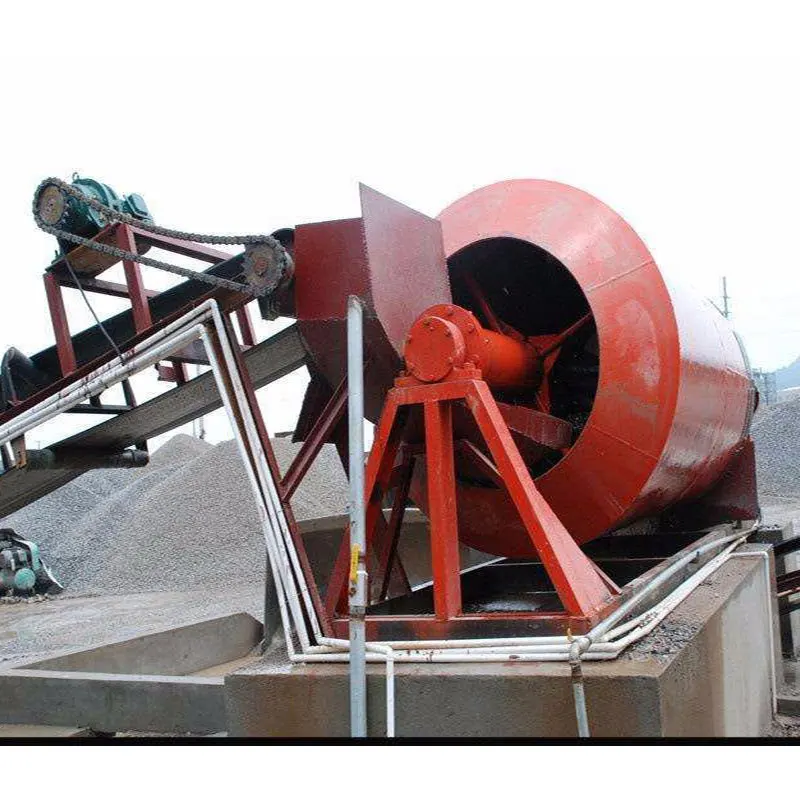

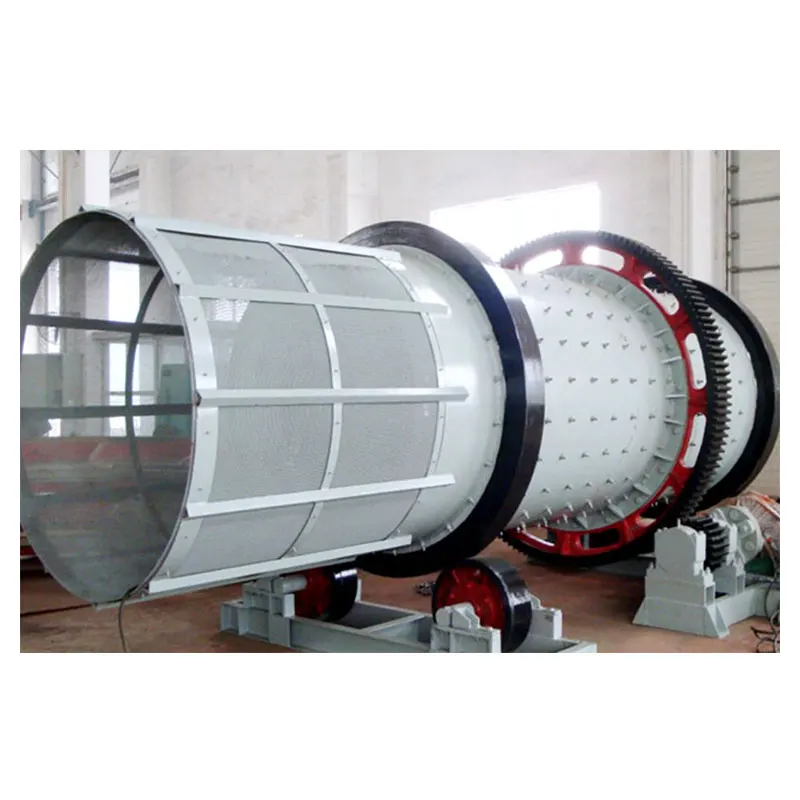

Stone washing machine

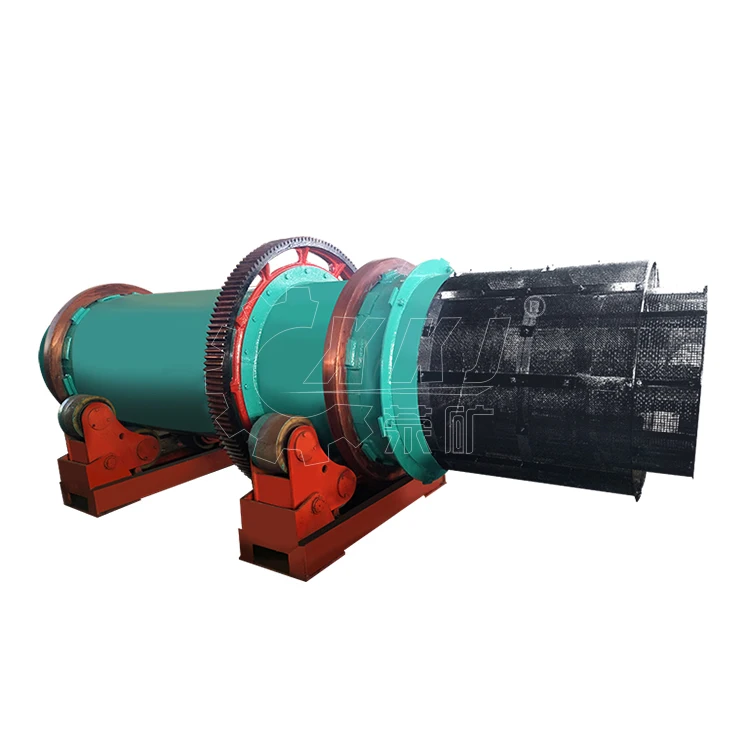

The gold washing trammel scrubber is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space ,there are some plate in this part.
Trommel Washing Plant Scrubber suitable to Alluvial type mineral with sticky clay. The drum part to wash the clay, the screen part to sieve the particle size .It's widely used in gold,Diamond,Tin, Chrome, Coal etc processing plant.
Working Principle
Main structure of trommel scrubber washer
Drum : For washing the clay.
Inner plate: separating the clay and ores.
Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
Motor: electric or diesel according to your needs.
Carrier rollers: For support the drum
Gear： Reduction Box, coupling.
Frame: Supporting the reduction box and motor.
Screen of trommel washing machine
The screen mesh size& layer qty & screen
materials can be customized.
Screen material has below choices
①PU: wear resistant, long life time, fix with
screw, easy to replace
②Manganese Steel: normal material, not
easy to replace, short life time
③Stainless Steel: Good quality, not easy
to replace.
materials can be customized.
Screen material has below choices
①PU: wear resistant, long life time, fix with
screw, easy to replace
②Manganese Steel: normal material, not
easy to replace, short life time
③Stainless Steel: Good quality, not easy
to replace.

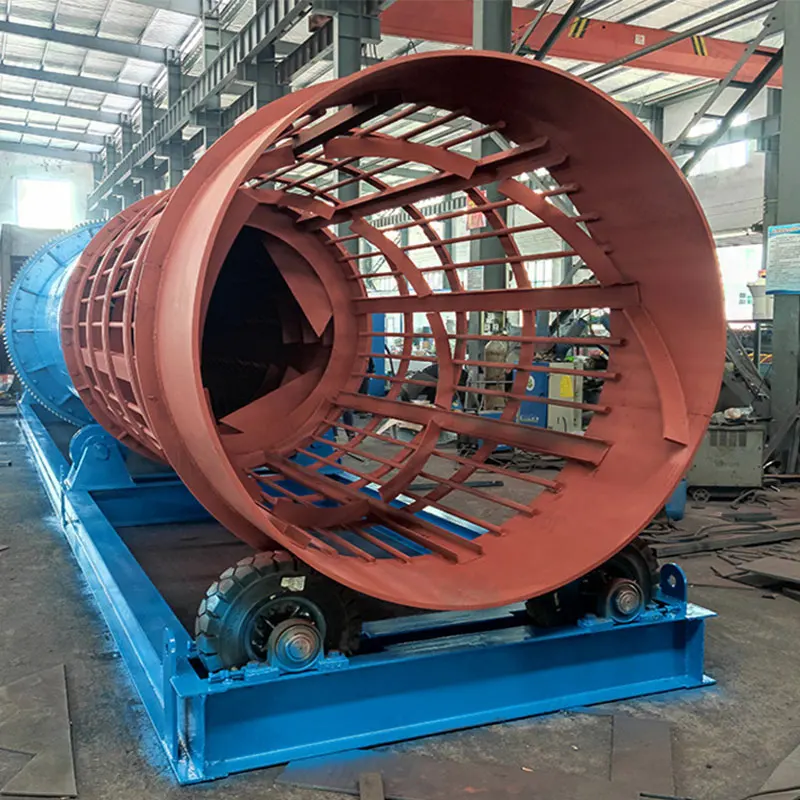

Inner Lined Plates of trommel washing
machine
machine
Inside Drum scrubber can be Lined with plate
for washing more clean sticky clean
material has below choice:
①Rubber lined Plates: wear resistant,
long lifetime, fix with screw, easy to replace
②Iron Plates Welded inside Drum : normal
quality, welded, So the plates are not replaceable
for washing more clean sticky clean
material has below choice:
①Rubber lined Plates: wear resistant,
long lifetime, fix with screw, easy to replace
②Iron Plates Welded inside Drum : normal
quality, welded, So the plates are not replaceable
Electric Motor for Alluvial Washing
Machine
Machine
Motor is high quality, Chinese Famous Brand,can
be speed-adjustable motor,with Frequency
conversion electric cabinet,make trommel scrubber
working more stable.
be speed-adjustable motor,with Frequency
conversion electric cabinet,make trommel scrubber
working more stable.
Model | capacity(t/h) | motor power(kw) |
Φ1.2×4.5 | 10-30 | 22 |
Φ1.5×5 | 15-45 | 30 |
Φ1.8×5.5 | 25-75 | 45 |
Φ2×6 | 30-100 | 75 |
Φ2.4×6.5 | 50-160 | 110 |
Φ2.6×7 | 45-210 | 132 |
Φ3×7.5 | 90-300 | 185 |
Production Example
In a gold mining plant in South Africa, placer gold mines exist in a natural gold state with a coarse particle size, generally 0.1~1.0mm, and the particle size less than 0.074mm contains very little gold and contains colloidal clay.
We give a gold selection plan: after using a drum ore washing machine to clean the ore, and then through the shaker selection process, the gross gold and heavy sand are directly produced.The reselection process equipment is simple and the process is relatively complete, which not only saves costs, but also improves the recovery rate of placer gold.
We give a gold selection plan: after using a drum ore washing machine to clean the ore, and then through the shaker selection process, the gross gold and heavy sand are directly produced.The reselection process equipment is simple and the process is relatively complete, which not only saves costs, but also improves the recovery rate of placer gold.
SUCCESFUL PROJECTS
Mexico 500t copper ore production line
South Africa 600t gold mine production line
India grinding production line
Tibet zinc mine production line
Morocco 500t silver mine production line
Zambia 500t fluorite mine production line
Factory Strength
Company Information：
Henan Xingyang Mining Machinery Manufactory(XKJ GROUP), a factory with over 30 years' history, is specializing in researching
and developing mining machinery. With rich experience in ore dressing technology and work flow, we keep leading in ore dressing
machinery manufacturing, including ferrous metal and nonferrous metal beneficiation production lines.
* We design and manufacture general mining machines such as crushers, ball mills, floatation machines, magnetic separators,
driers and other related products.Based on developing our advantages on ore dressing production line, we actively bring new
high technology and have developed new machines such as energy-saving ball mills, MQG ball mills, and agitating tanks.
and developing mining machinery. With rich experience in ore dressing technology and work flow, we keep leading in ore dressing
machinery manufacturing, including ferrous metal and nonferrous metal beneficiation production lines.
* We design and manufacture general mining machines such as crushers, ball mills, floatation machines, magnetic separators,
driers and other related products.Based on developing our advantages on ore dressing production line, we actively bring new
high technology and have developed new machines such as energy-saving ball mills, MQG ball mills, and agitating tanks.
XKJ GROUP now occupied 40000 m', with building area 10000m', manufacture equipment more than 60 sets, has already build up
advantage technology workflow production line . With experience labor 365, there are 38 engineers support the technical for the
machinery manufacture. Establish well selling network has already own international sales department, area sales agent and typical
project demonstration sales. Also have branch company in China Tibet.
advantage technology workflow production line . With experience labor 365, there are 38 engineers support the technical for the
machinery manufacture. Establish well selling network has already own international sales department, area sales agent and typical
project demonstration sales. Also have branch company in China Tibet.
XKJ GROUP has also passed GB/T19001-2016/ISO9001:2015 quality system certification and GB/T24001-2016/ISO14001:2015 environmental
system certification.
system certification.
Henan Xingyang Mining Machinery Manufactory has passed the international ISO9001-2000 authentication, possessing the
independent right to import and export within People’s Republic of China. Products are classified into two series with more
than 100 kinds of specifications. While expanding domestic market percentage constantly, our products are being exported to
Tanzania,Iran,Chile, Venezuela, Peru, Russia, Ukraine, Georgia, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia,
Vietnam, Africa and so on, more than 50 countries and regions totally.
independent right to import and export within People’s Republic of China. Products are classified into two series with more
than 100 kinds of specifications. While expanding domestic market percentage constantly, our products are being exported to
Tanzania,Iran,Chile, Venezuela, Peru, Russia, Ukraine, Georgia, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia,
Vietnam, Africa and so on, more than 50 countries and regions totally.
FAQ
1. Are you manufacture or trading company?
We are factory, established in 1956.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need a complete mineral processing line, can you help us build it?
We are factory, established in 1956.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need a complete mineral processing line, can you help us build it?
Yes, we can help you build a complete production line and provide you with relevant professional advice. We have established many mining projects in China and overseas.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

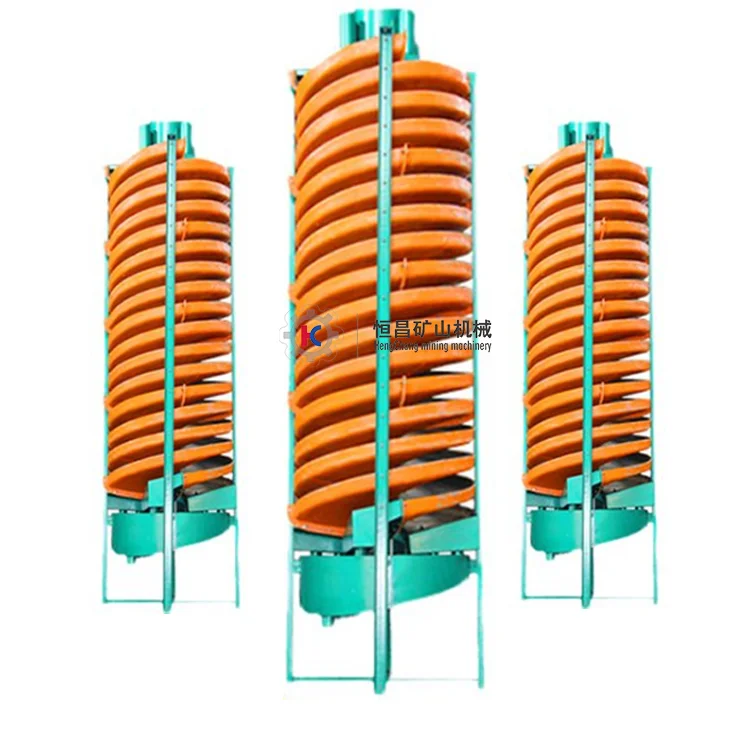

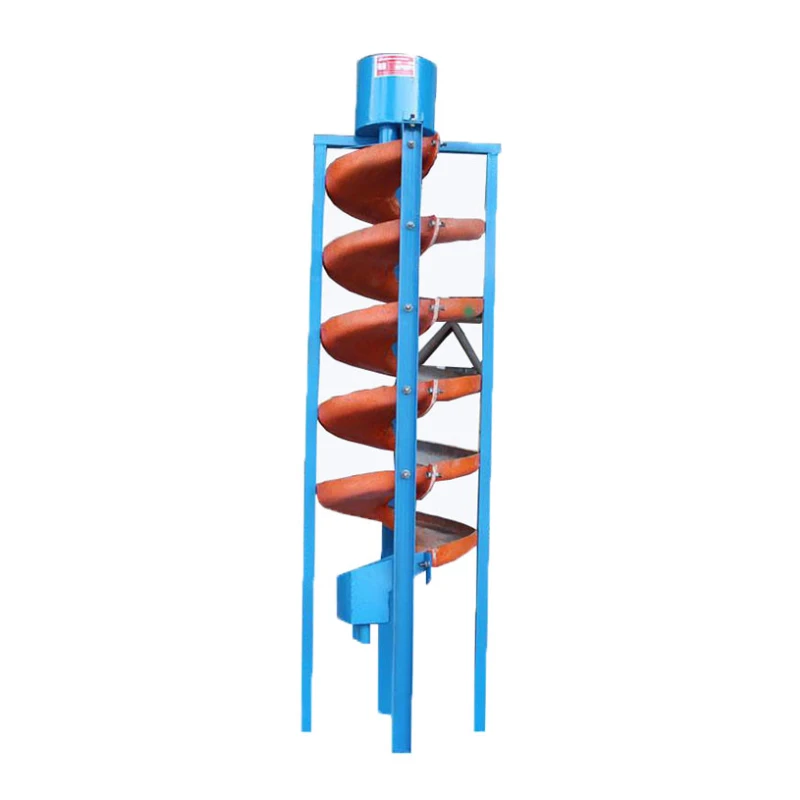

Золотой концентратор Спиральный сепаратор/Высокопроизводительный спиральный желоб/гравитационный классификатор
88 742,00 ₽ - 99 834,75 ₽

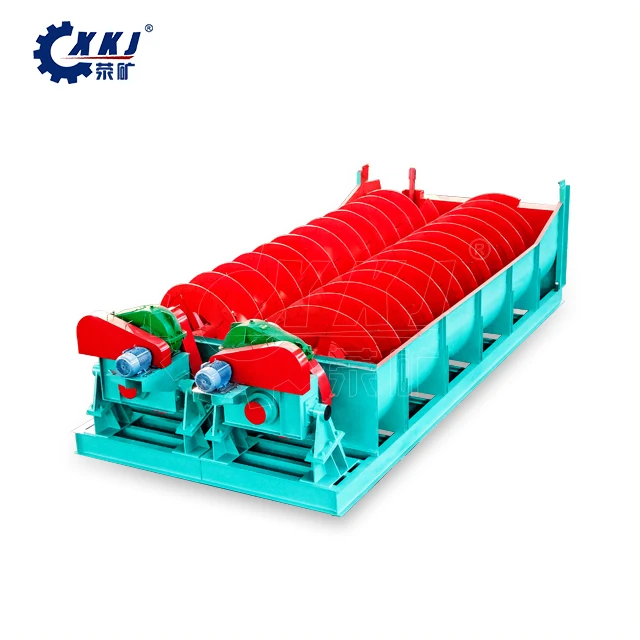

Спиральный классификатор сепаратор для золотых горных работ
1 941 231,25 ₽

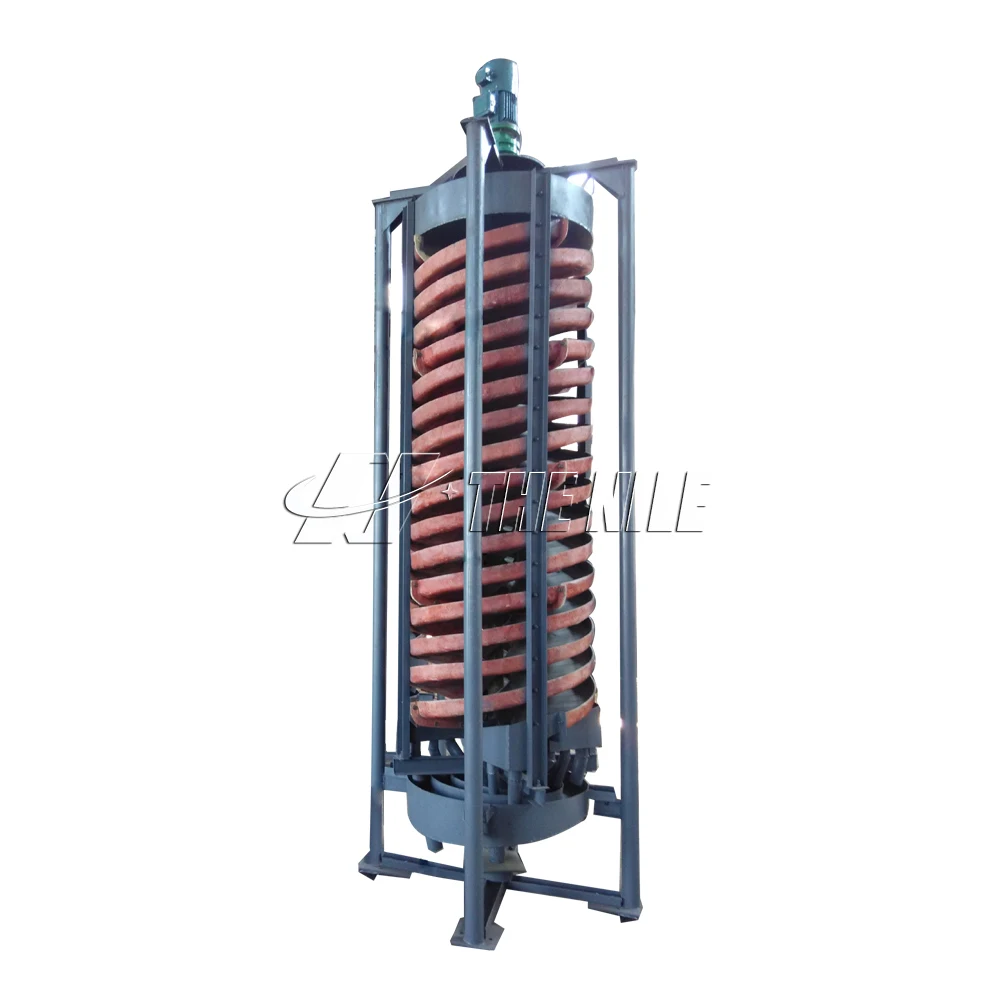

Высокопроизводительная промышленная золотодобывающая техника спиральный желоб гравитационный сепаратор для минералов
99 834,75 ₽ - 122 020,25 ₽

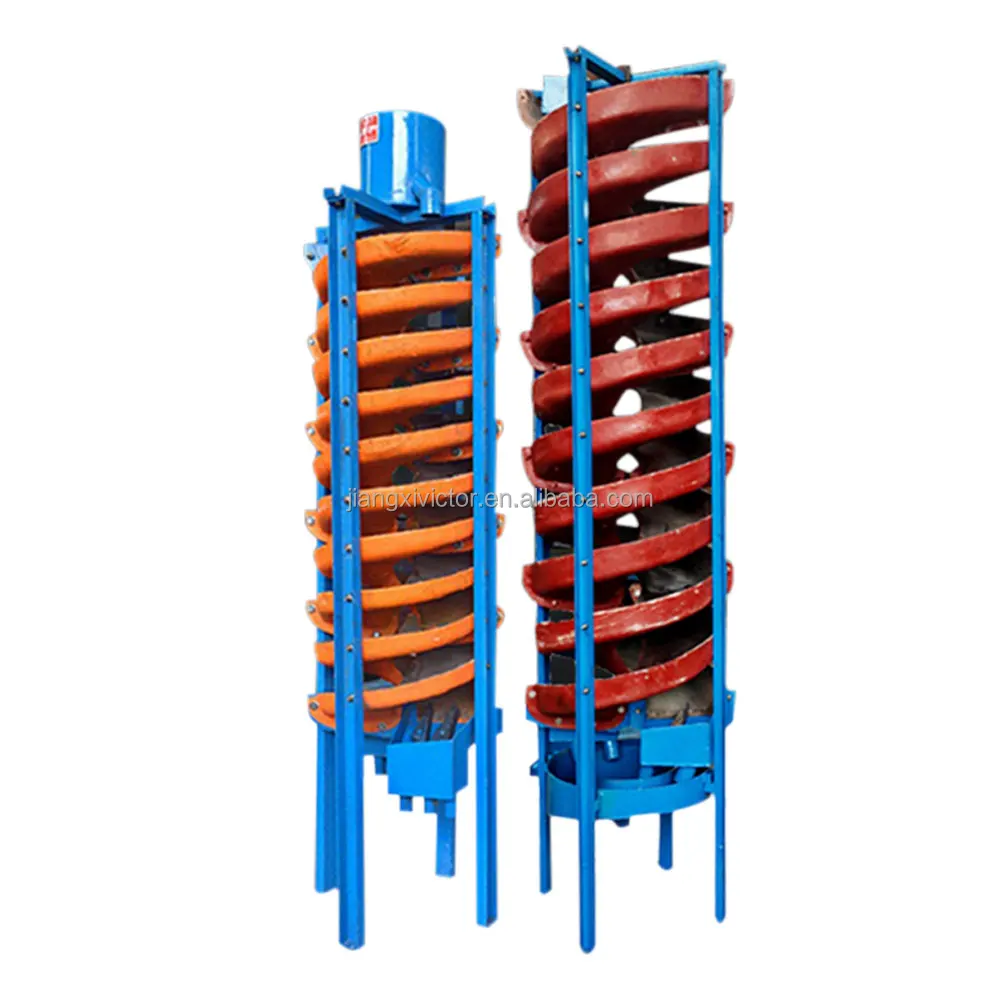

5LL-1200 Вольфрамовая руда Оловянная рудная гравитационный сепаратор и для сепаратора сепарации золотистой руды FRP спиральный желоб
50 915,73 ₽ - 55 352,83 ₽
Оборудование для переработки минерального сырья 5LL-600 небольшой Спиральный сепаратор желоба
166 501,07 ₽ - 199 779,32 ₽

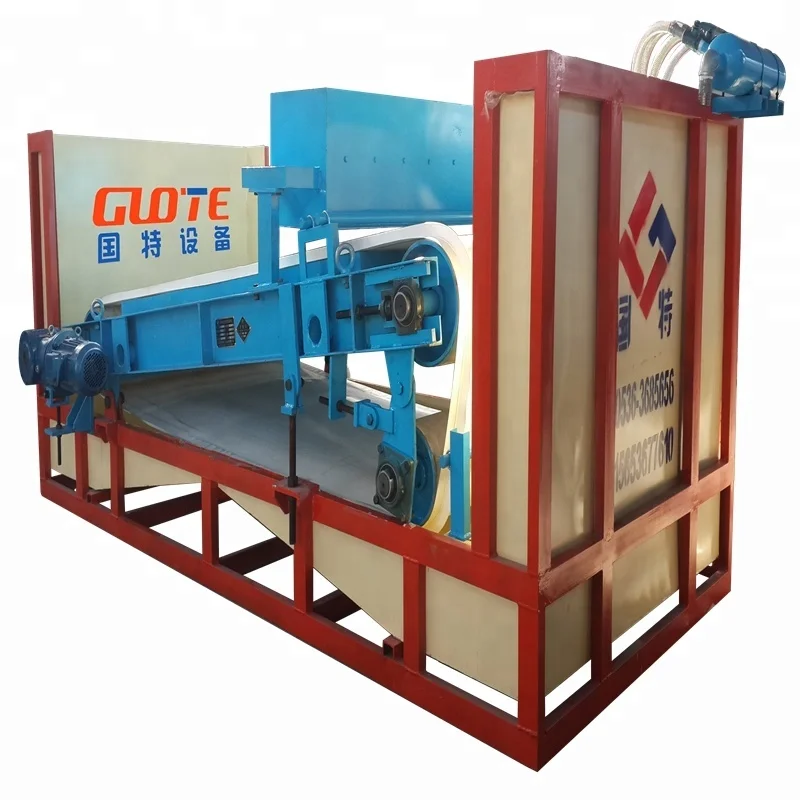

Влажный сильный градиент плоский магнитный сепаратор в машине сепаратора стекольной промышленности
