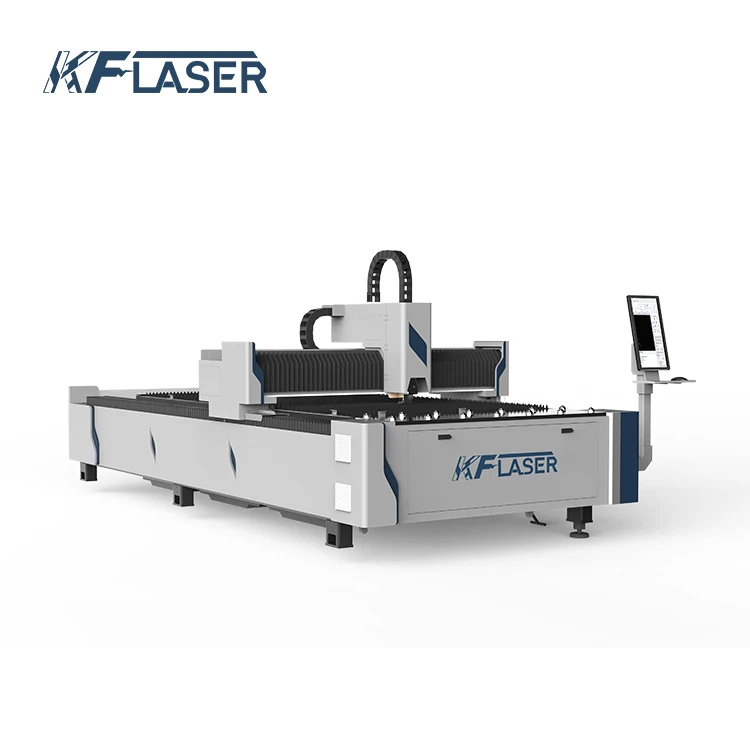

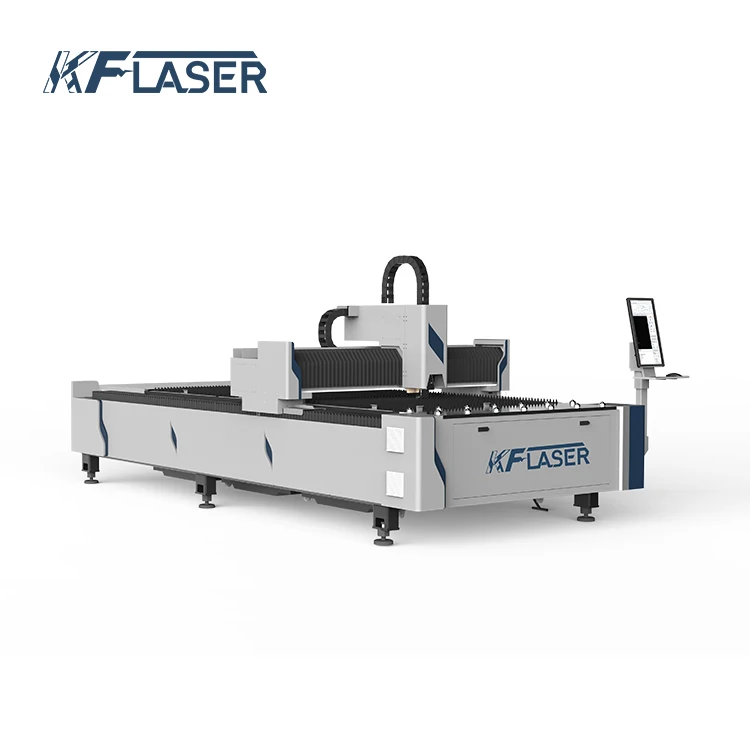

Полностью закрытая машина для лазерной резки металла 3 кВт 20 мм 8x4 с камерой
1 942 160,40 ₽ - 2 373 751,60 ₽
Станок для лазерной резки 4000 Вт волоконно лазерная резка цена 1 5 мм нержавеющая сталь стоимость 8 футов на 4 фута
- Категория: >>>
- Поставщик: Jinan Kf Laser Equipment Co. Ltd.
Сохранить в закладки 1601238944936:
Описание и отзывы
Характеристики
Product Description

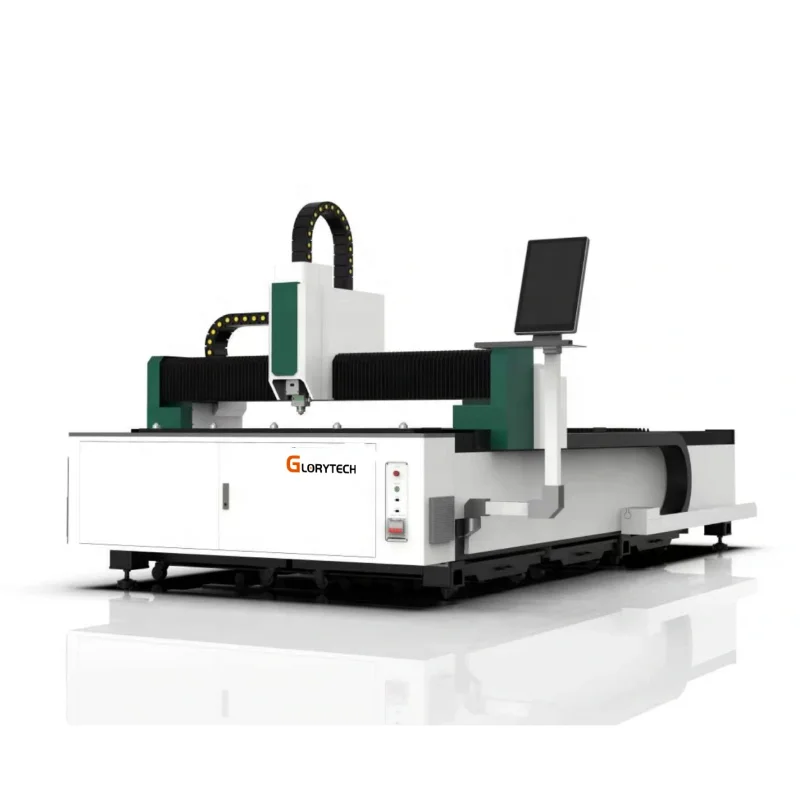

New design
2024 new design, with a larger format than ordinary cutting machines, and a working area of 3250*1550mm. Cost-effective single-platform cutting machine model, supporting power up to 6KW, standard machine fast delivery within 7 days.
Heavy-duty welded bed frame:
The bed frame is welded using thick square tubes and reinforced internally to enhance structural strength and tensile resistance.It undergoes high-temperature annealing and natural aging treatment to eliminate welding stress, prevent deformation, reduce vibrations, and ensure excellent cutting precision.
Laser Cutting head
Autofocus function, which automatically adjusts the focal length according to the thickness of different materials to ensure cutting quality and efficiency
Dual water cooling circuit system, it effectively reduces the operating temperature of the laser head and improves the stability and life of continuous work.
With IP65 dustproof performance, it effectively prevents dust and particles from entering the laser head and protects key components from pollution and damage.
Autofocus function, which automatically adjusts the focal length according to the thickness of different materials to ensure cutting quality and efficiency
Dual water cooling circuit system, it effectively reduces the operating temperature of the laser head and improves the stability and life of continuous work.
With IP65 dustproof performance, it effectively prevents dust and particles from entering the laser head and protects key components from pollution and damage.
Bus system
Precision: Ensures precise control over the laser cutting head for high-quality results.
Versatility: Supports various laser cutting processes for different materials and thicknesses.
User-Friendly: Features an intuitive interface for easy input and monitoring of cutting parameters.
Customizability: Offers powerful programming capabilities to customize cutting paths and parameters as needed.
Precision: Ensures precise control over the laser cutting head for high-quality results.
Versatility: Supports various laser cutting processes for different materials and thicknesses.
User-Friendly: Features an intuitive interface for easy input and monitoring of cutting parameters.
Customizability: Offers powerful programming capabilities to customize cutting paths and parameters as needed.
Transmission and precision
The Z axis uses TBI ball screw transmission, the two sides of the machine body are equipped with YYC racks and Taiwan Hiwin guide rails, and the beam is Casting aviation aluminum. It is equipped with Japanese Yaskawa electric motors and Desboer reducers, high torque, low noise, and the positioning accuracy of the machine tool can reach 0.02mm.
Transport in Bulk at a Knockdown Price
8 sets of S3 series can be packaged in 1 40HQ standard container. We can enable rush delivery and usually charge significantly reduced freights. After arrival, users may assemble all together by using quick insert. No waiting for new installation.
Technical Parameters | ||||||
Machine Model | S3 seris | S4 series | S6 serie | |||
Working Area | 3250*1530mm | 4100*2050mm | 6100*2550mm | |||
Laser Power | 1.5KW-12KW | |||||
Dimension | 4500*2800*1825mm | 5500*3275*1855mm | 7400*3700*1855mm | |||
Weight | 2500KG | 4000KG/6200KG | 7500KG/8900KG | |||
Maximum Idle Running Speed(m/min) | 100m/min-120m/min | |||||
Maximum idle acceleration(G) | 1.0G/ 1.2G/ 1.5G | |||||
X/Y axis positioning accuracy/mm | ±0.05mm | |||||
Repeat positioning accuracy/mm | ±0.03mm | |||||
Cutting accuracy/mm | ≤0.1mm | |||||
Working Voltage | 380V，three-phase /50Hz-60Hz | |||||
Supported image formats | LXD/.DXF/.PLT/.AI/.Gerber/.DWG | |||||
Purchase Process
After- Service Process
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1)What is your material
2)The size of material
3)The thickness of material
Q: Payment terms?
A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally
collect the 70% balance before shipping.
Q:How to install, use and after-sales?
A:1)We provide free training in our factory
2)We provide free online after-sales service
3)We have complete installation instructions and video tutorials
4)Door-to-door service charges are based on region and aircraft model
5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage
A: In order to recommend you the most suitable machine model, just tell us below information
1)What is your material
2)The size of material
3)The thickness of material
Q: Payment terms?
A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally
collect the 70% balance before shipping.
Q:How to install, use and after-sales?
A:1)We provide free training in our factory
2)We provide free online after-sales service
3)We have complete installation instructions and video tutorials
4)Door-to-door service charges are based on region and aircraft model
5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage

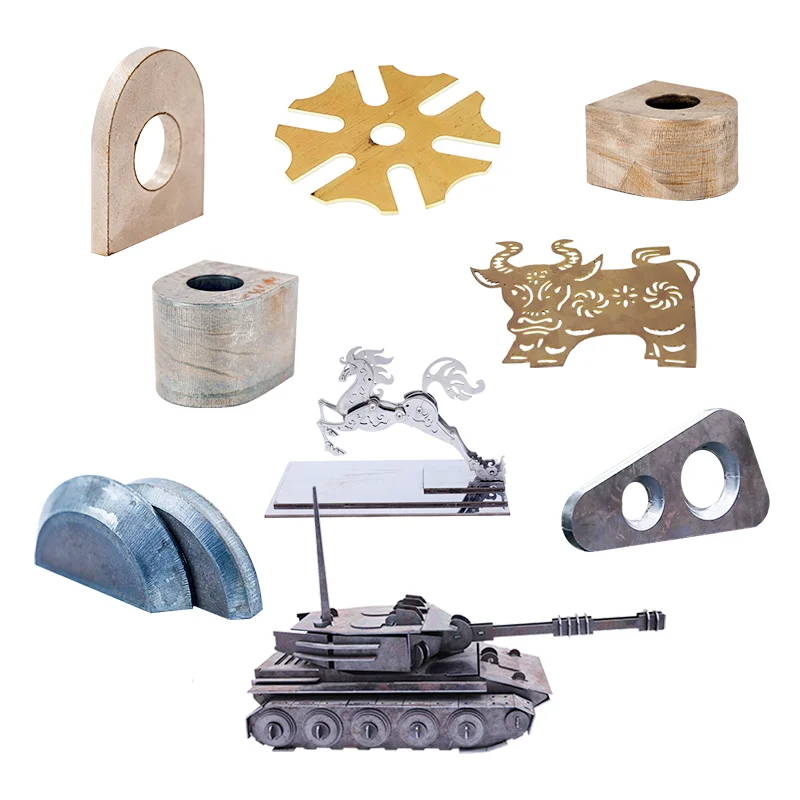

Application Industry
* Prices are for prepayment only.
Похожие товары
Станок для лазерной резки алюминиевых сталей с автофокусом MAX IPG Reci GW FEIBO, недорогой Промышленный Лазерный режущий раствор
500 106,31 ₽ - 543 226,58 ₽

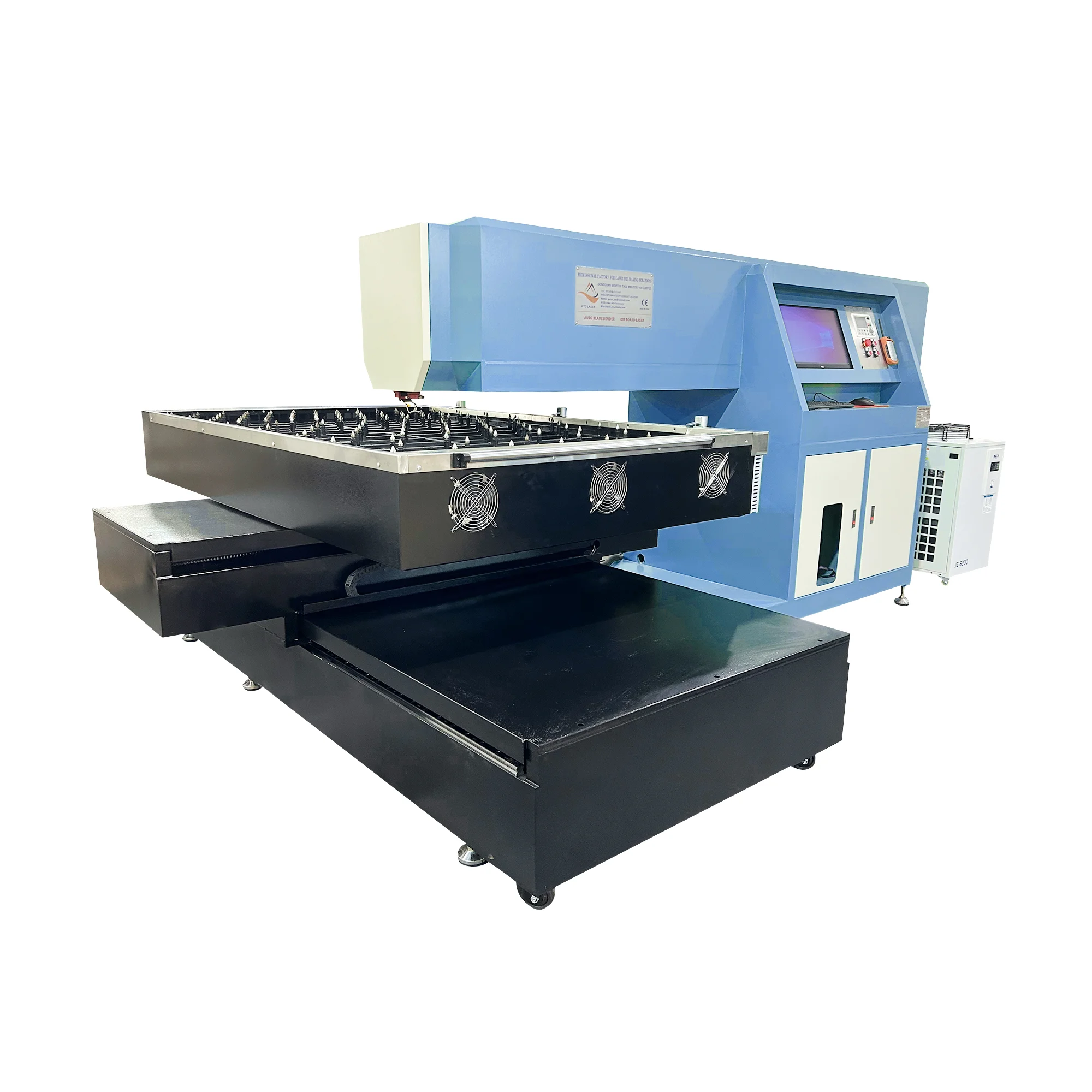

Доска для лазерной резки фанеры 1825 мм для печати и упаковки
1 078 978,00 ₽ - 2 157 956,00 ₽

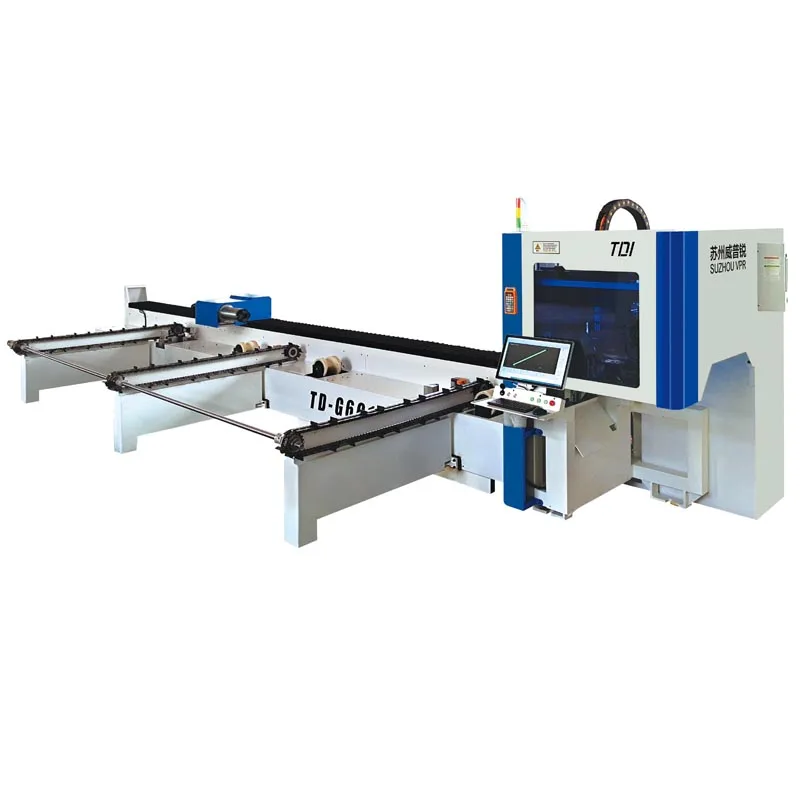

Высокое качество 3000 Вт 6023 RNS три патрона полупогрузка и разгрузка и волоконно-лазерная машина для резки труб по низкой цене
7 257 098,14 ₽ - 7 272 311,72 ₽
Высокое качество 3000 Вт 6023 RNS три патрона полупогрузка и разгрузка и волоконно-лазерная машина для резки труб по низкой цене
7 257 098,14 ₽ - 7 272 311,72 ₽

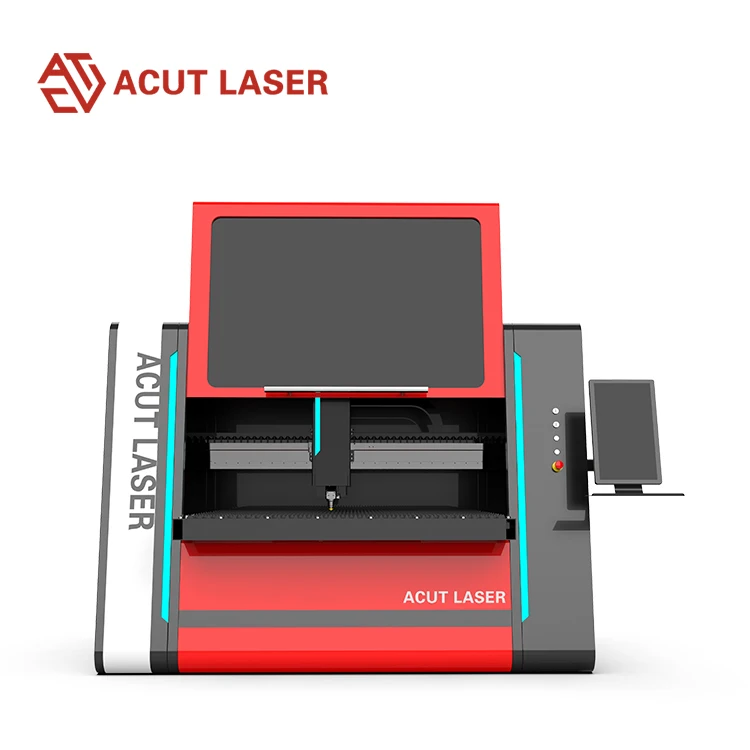

Лучшее качество волоконно-лазерная резка машина высокой точности 1390 Мини 1000 Вт небольшой полностью Автоматический Металлический волоконный лазерный резак.
