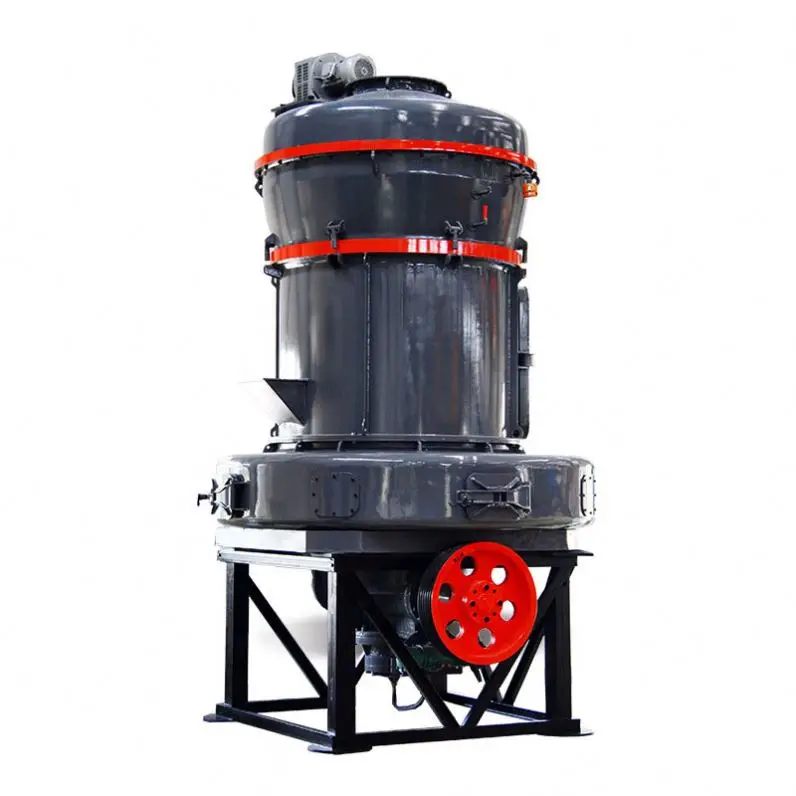

Высокоэффективная многофункциональная мельница Raymond из натурального гипсового порошка
- Категория: >>>
- Поставщик: Henan Kolev Equipment Technology Co. LtdHenan Ltd
Сохранить в закладки 1601238947916:
Описание и отзывы
Характеристики
High Efficient Multifunctional Raymond Mill Plant Natural Gypsum Powder Grinding Mill
Name: Raymond Mill, Gypsum Powder Grinding Mill, Powder Grinding Mill Plant
Powder Fineness Process Ability: 50-600mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-50 t/h
Application: calcite, calcium carbonate, dolomite, gypsum, carbon black, plaster, kaolin, marble, limestone, mica, talc, feldspar, barite and so on
Features: vertical structure , land-saving, convenient to operate, transmission is steady and reliable, the screen-passing rate can reach to 99%
Application: calcite, calcium carbonate, dolomite, gypsum, carbon black, plaster, kaolin, marble, limestone, mica, talc, feldspar, barite and so on
Features: vertical structure , land-saving, convenient to operate, transmission is steady and reliable, the screen-passing rate can reach to 99%
Why Choose Us: Henan Kolev has more than 20 years of experience in grinding equipment, and solved many problems of powder grinding mill production lines.
If you are interested in Raymond grinding mill equipment & Gypsum Powder production lines solutions, click here, please leave us a message，our manager will contact you within 1hours.
Note: This specification is just referencing, any changes are subject to the products.
Model | KL500 | KL650 | KL780 | KL980 | KL1100 | KL1450 | KL1760 | KL1950 | KL2100 | ||||||||
Capacity(t/h) | 0.5-2 | 0.5-2.5 | 1-3 | 1.5-4 | 2-6 | 6-10 | 8-20 | 15-30 | 20-40 | ||||||||
Main engine motor power(kw) | 7.5 | 15 | 18.5 | 30 | 45 | 90 | 132 | 185 | 220 | ||||||||
Fan motor power(kw) | 5.5. | 11 | 15 | 22 | 45 | 100 | 160 | 185 | 220 | ||||||||
Analyzer motor power(kw) | 1.1 | 120 | 2.2 | 2.2 | 5.5 | 7.5 | 22 | 37 | 45 | ||||||||
Main shaft speed(r/m) | 120 | 120 | 120 | 120 | 120 | 90 | 90 | 90 | 90 | ||||||||
Diameter of Grinding ring(mm) | 500 | 650 | 780 | 980 | 1100 | 1450 | 1760 | 1950 | 2100 | ||||||||
Diameter of grinding roller(mm) | 150 | 180 | 260 | 300 | 320 | 400 | 450 | 570 | 630 | ||||||||
max.feed size(mm) | 15 | 15 | 15 | 20 | 25 | 30 | 30 | 40 | 40 | ||||||||
Final size(mm) | |||||||||||||||||
Weight(t) | 1.8 | 2.8 | 3.8 | 6.5 | 14.5 | 26 | 48 | 65 | 85 | ||||||||

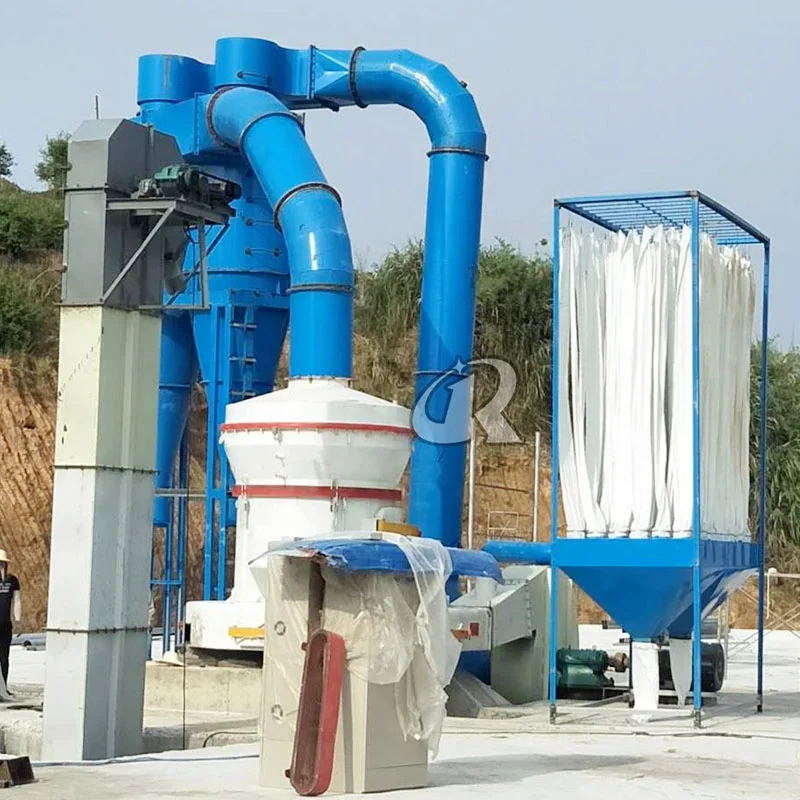

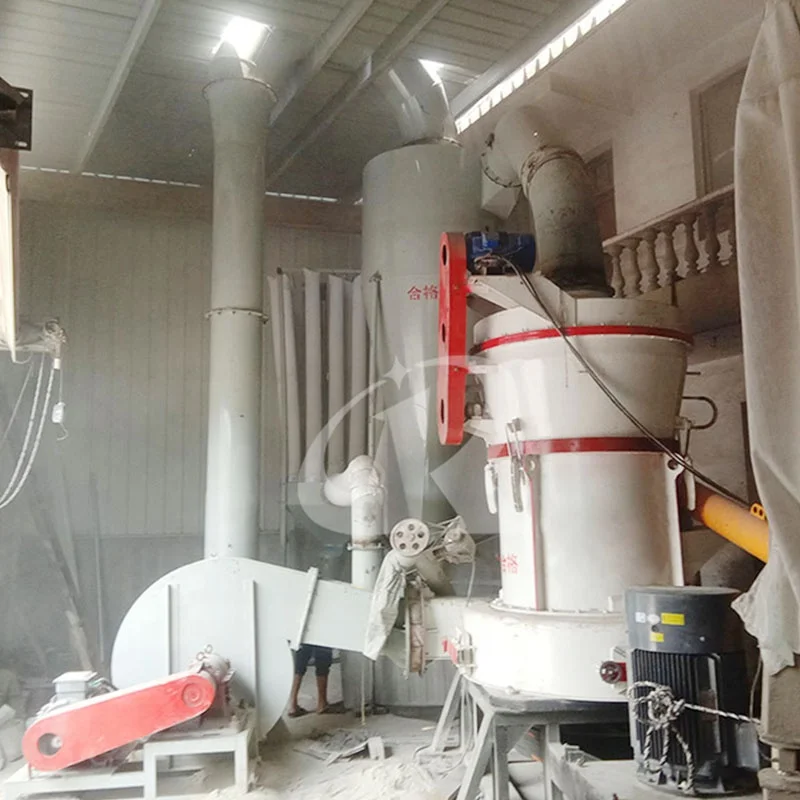

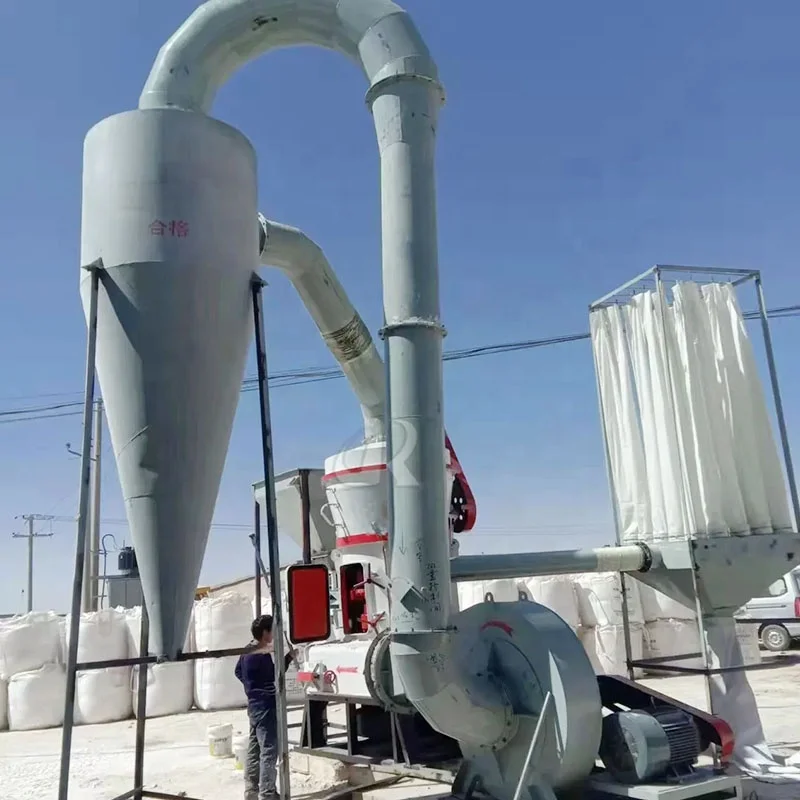

The whole raymond grinding mill machine is collocated with jaw crusher, elevator, hopper,electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded. After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding. When the particle size is up to the required flow into the cyclone collector, the finished product is discharged through the powder outlet tube after collection.
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded. After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding. When the particle size is up to the required flow into the cyclone collector, the finished product is discharged through the powder outlet tube after collection.
Raymond mill can be used in more than 300 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, plaster, kaolin, marble, limestone, mica, talc, feldspar, barite and so on.
Application of Raymond mill such as: mining, chemiscal, transport and many other different areas.
Application of Raymond mill such as: mining, chemiscal, transport and many other different areas.
The main parts of Raymond mill is grinding roller, grinding ring, grinding roller assembly, the plum flower frame, air flue,
coupling, perching knife and so on.
coupling, perching knife and so on.
1.Do you want Raymond grinding mill equipment or powder grinding mill plant?
2.How many tons per hour do you want to grind?
3.What raw materials do you want to grind?
4.How many mm or mesh do you want to grind?
5.Do you have any questions about the powder grinding plant?
Send us a Message & get 5% Discount and Solutions
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
A1: We are factory with CE. We have factory in China.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
Похожие товары

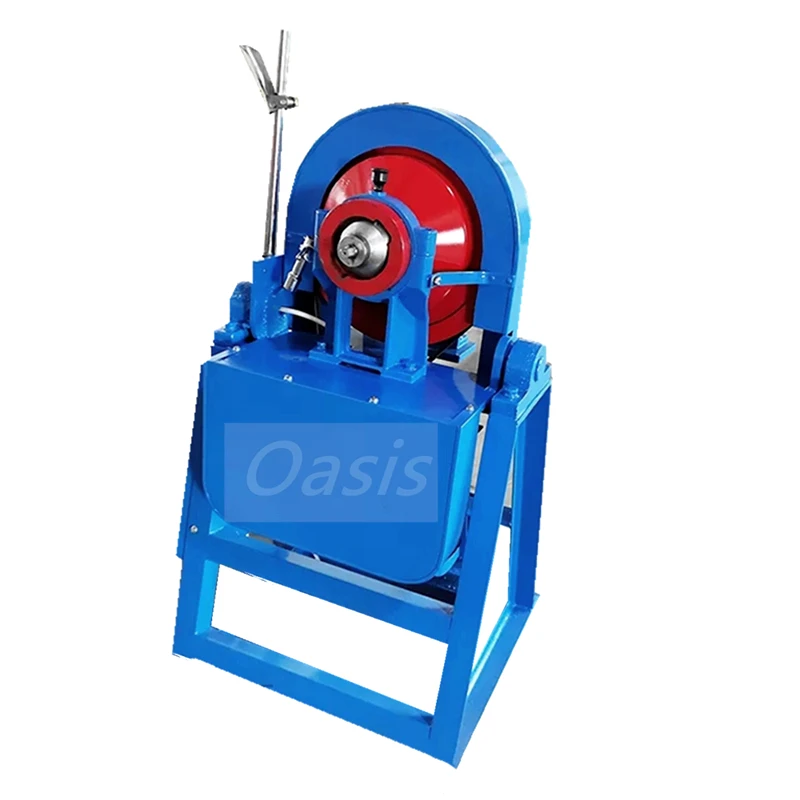

Энергосберегающая рудная промышленность небольшая лаборатория/лабораторная конусная шаровая мельница для фрезерования минералов
165 284,47-184 355,76 ₽

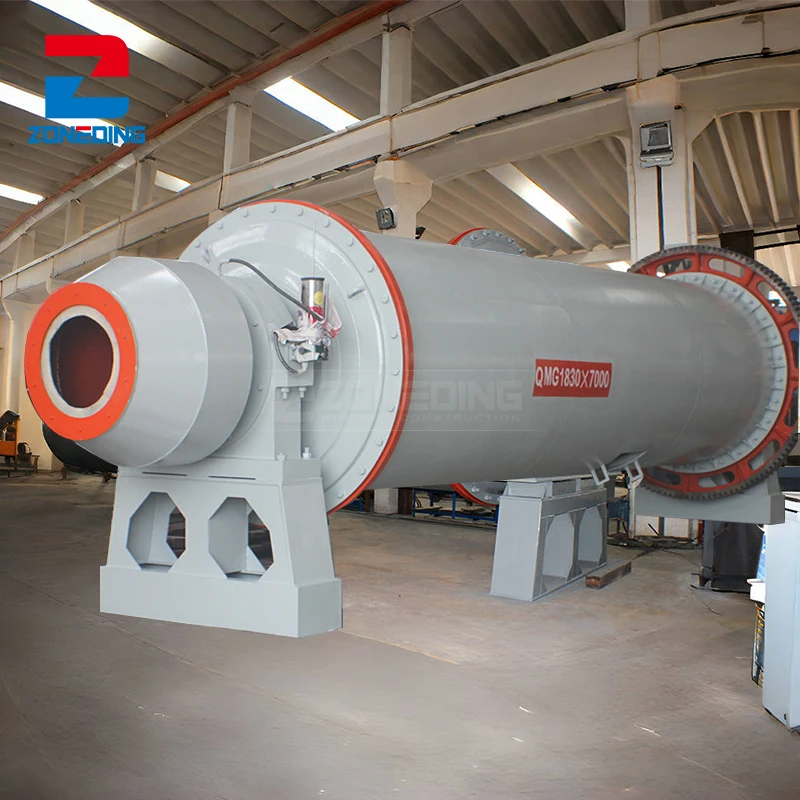

Известь каолиновая шаровая мельница бентонитовая циркониевая пескоструйная дробилка эффективная машина для мокрой шаровой мельницы полный набор золота
800 993,97-826 422,35 ₽

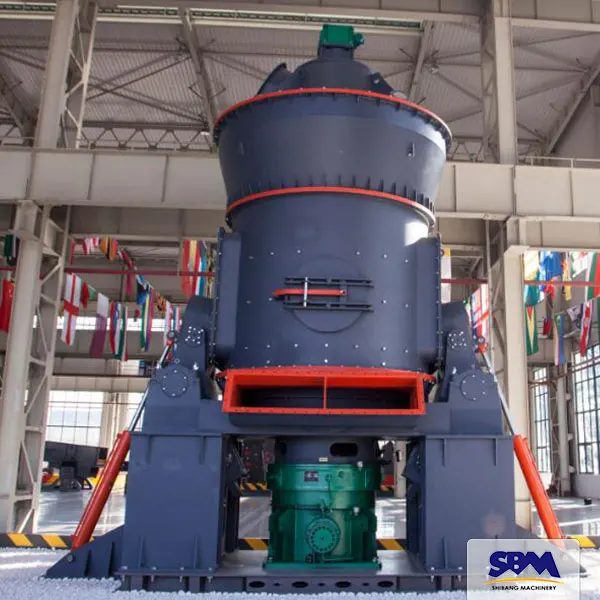

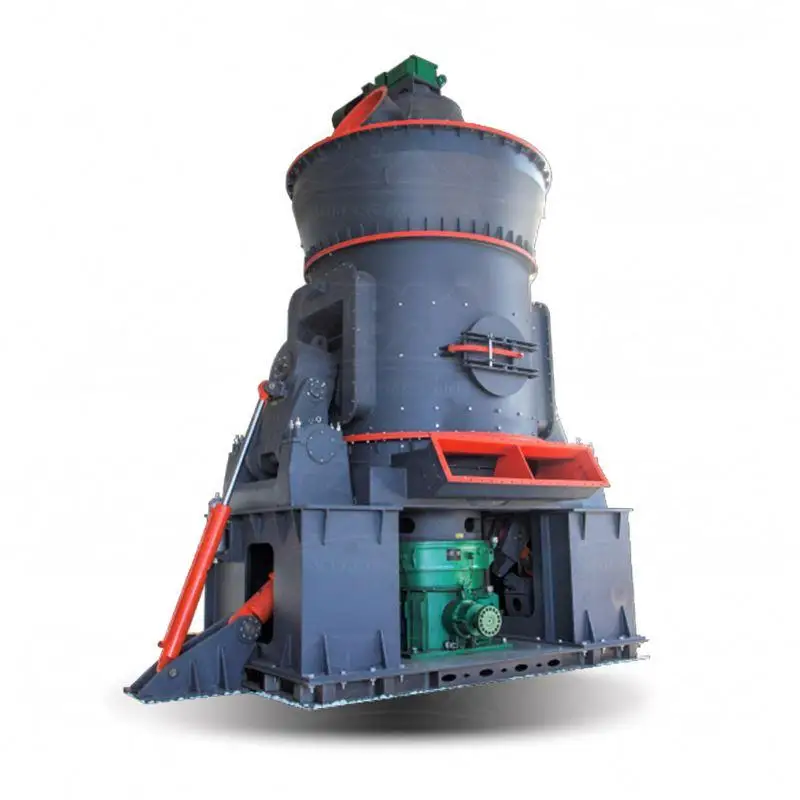

Поставщик Китай графитовый порошок поисковая прокатка по дешевой цене Lm вертикальная роликовая шлифовальная мельница
3 280 261,02-3 407 402,92 ₽

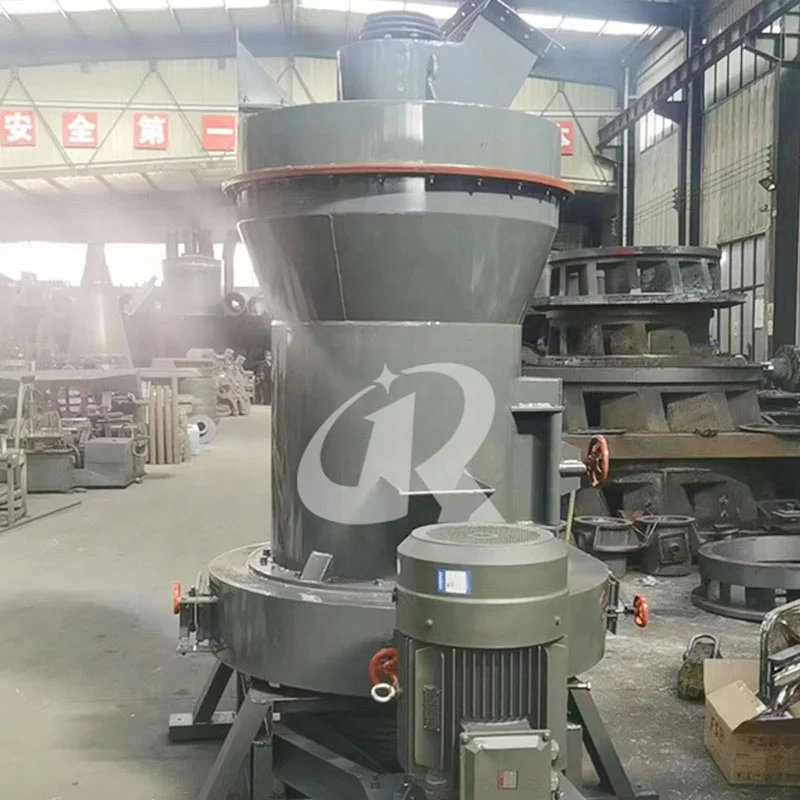

Оптовая продажа бентонит/отбеливающий грунт/гипс/петкокс/графитовый порошковый станок для измельчения муки
3 687 115,10-3 801 542,81 ₽

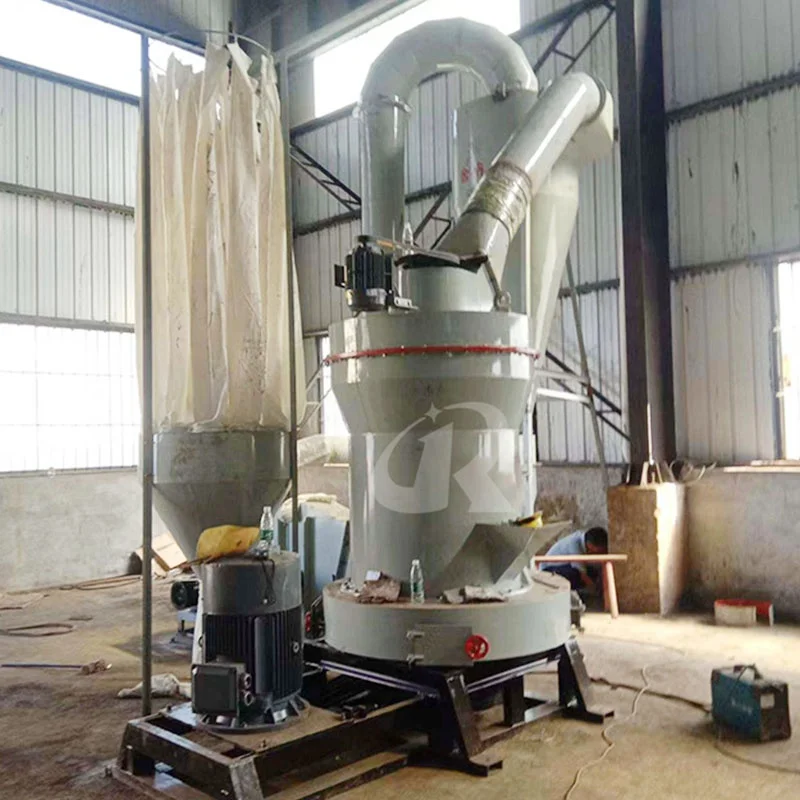

Графитовая порошковая мельница производственная линия роликовая
10 171 352,00-11 442 771,00 ₽

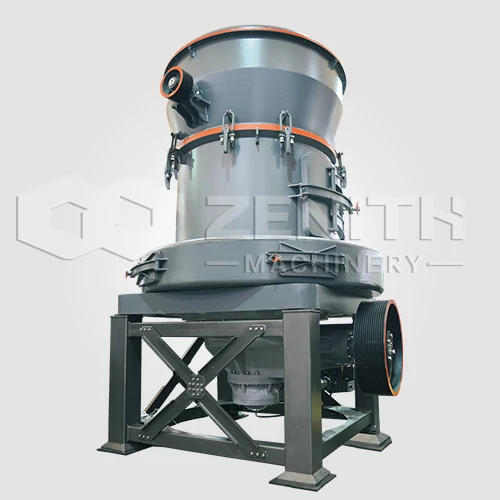

Флюорит талька доломит известковый графит 325 сетка руда порошок мельница Raymond 3 ролика цена
