Product Description

 Features on XN17 Mini Excavator

üTop-tier core configuration

  lLaidong380 Engine with 25HP

  lOptional Kubota D722 Engine compliant with U.S. EPA Tier 4 and EU Stage V standards

üTop-mounted Hydraulic Cylinder and Build-in Piping

  lPotential Damage Prevention

üAdditional Breaker Pipeline

  lEquipped with overflow valve to prevent oil leaks when installing breakers

üFuel-efficient and cost-effective

  lEquipped with load-sensitive flow distribution systems

üReinforced structural components

  lBooms, sticks and undercarriage are weld by robots for durability and reliability

üComponents within easy to reach

              lConvenient for maintenance

üOptional Upgrade Configurations

  lCab and Air Conditioning

  lPivot Control System

  lQuick Couple

  lKubota D722 Engine

  lMultiple Sizes of Bucket: 300/400/500/600/800/1000mm

Attachments include: Bucket; Auger; Rake; Toothless Bucket; Ripper; Breaker; Grapple; Log Grapple; Quick Change; Sieve Bucket; etc.

After Service: One-year warranty

Free Toolbox Included

Engine

Engine Model

Kubota D722/Laidong380

No. of Cylinders

3

Power

25HP

Emissions

EPA/EURO/China National T2

Weight

Operating weight

1500kg

Bucket

Capacity

0.03m3

Width

380mm

Dozer Blade



Width

1100mm

Height

210mm

Travel System



Max. Gradeability

30°

Control Platform



Control Platform

Hydraulic Pilot or Mechanical Lever





Hydraulic System



Hydraulic Pump

Shimadzu(Japan)

Operating Pressure

16+3MPa

Pump Flow

19+7L/min

Refill Capacity



Hydraulic Oil Tank

17L

Engine Oil Tank

3.5L

Fuel Oil Tank

22L

Dimensions



Shipping Length

2960mm

Shipping Width

1100mm

Shipping Height

2220mm

Track Type

Rubber with steel wire inside

Length to Center of Track

920mm

Track Width

180mm

Track Length

1390mm

Ground Clearance

400mm

Cooling System



Cooling System

Water Cooled





Working Range



Max. Digging Force

8kN

Max. Reach at Ground Line

3290mm

Max. Cutting Height

3000mm

Max. Digging Depth

1800mm

Max. Loading Height

2060mm

Min. Front Swing Radius

1260mm

Notes:

All dimensions are approximate and may vary depending on bucket selection

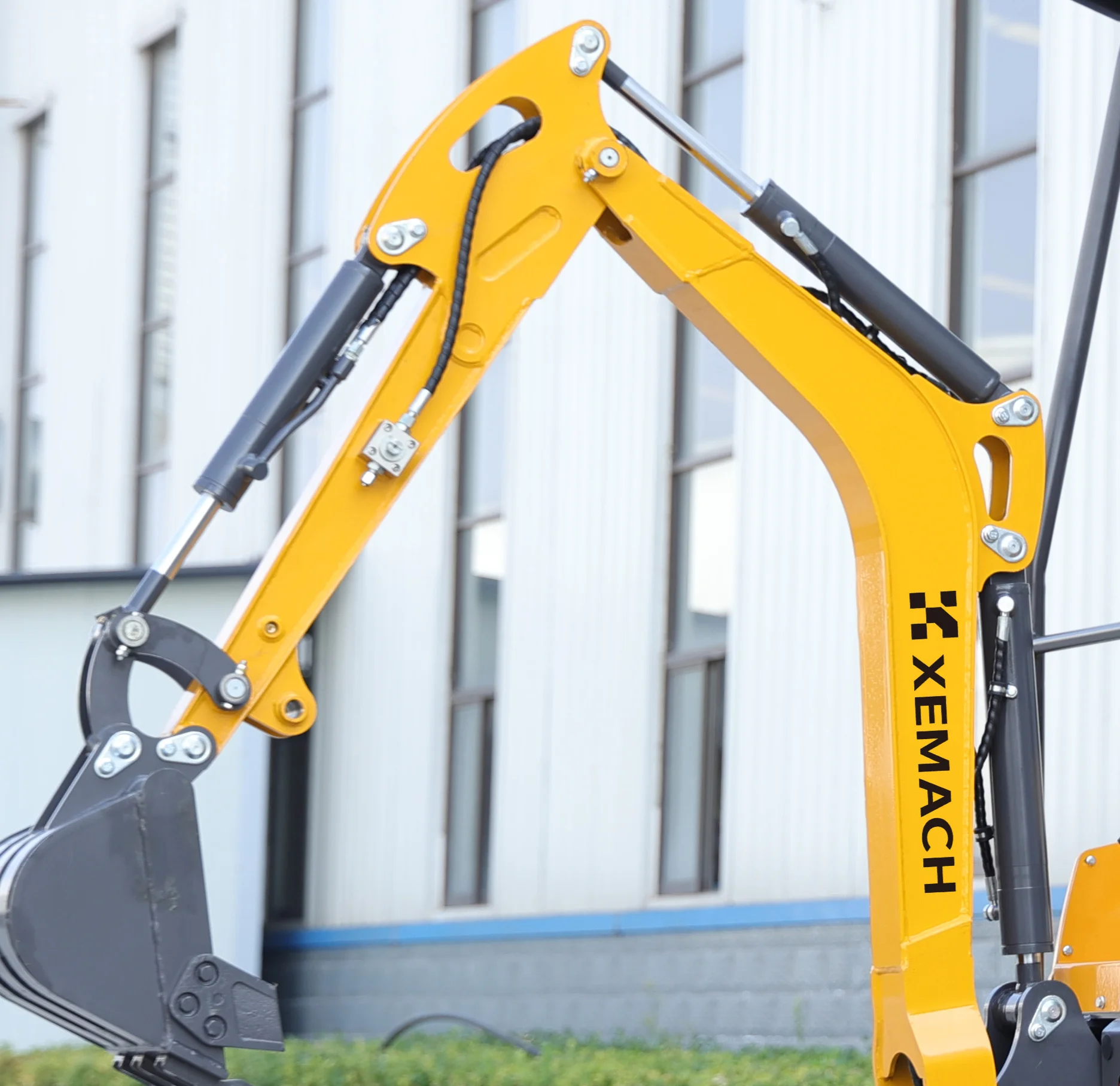

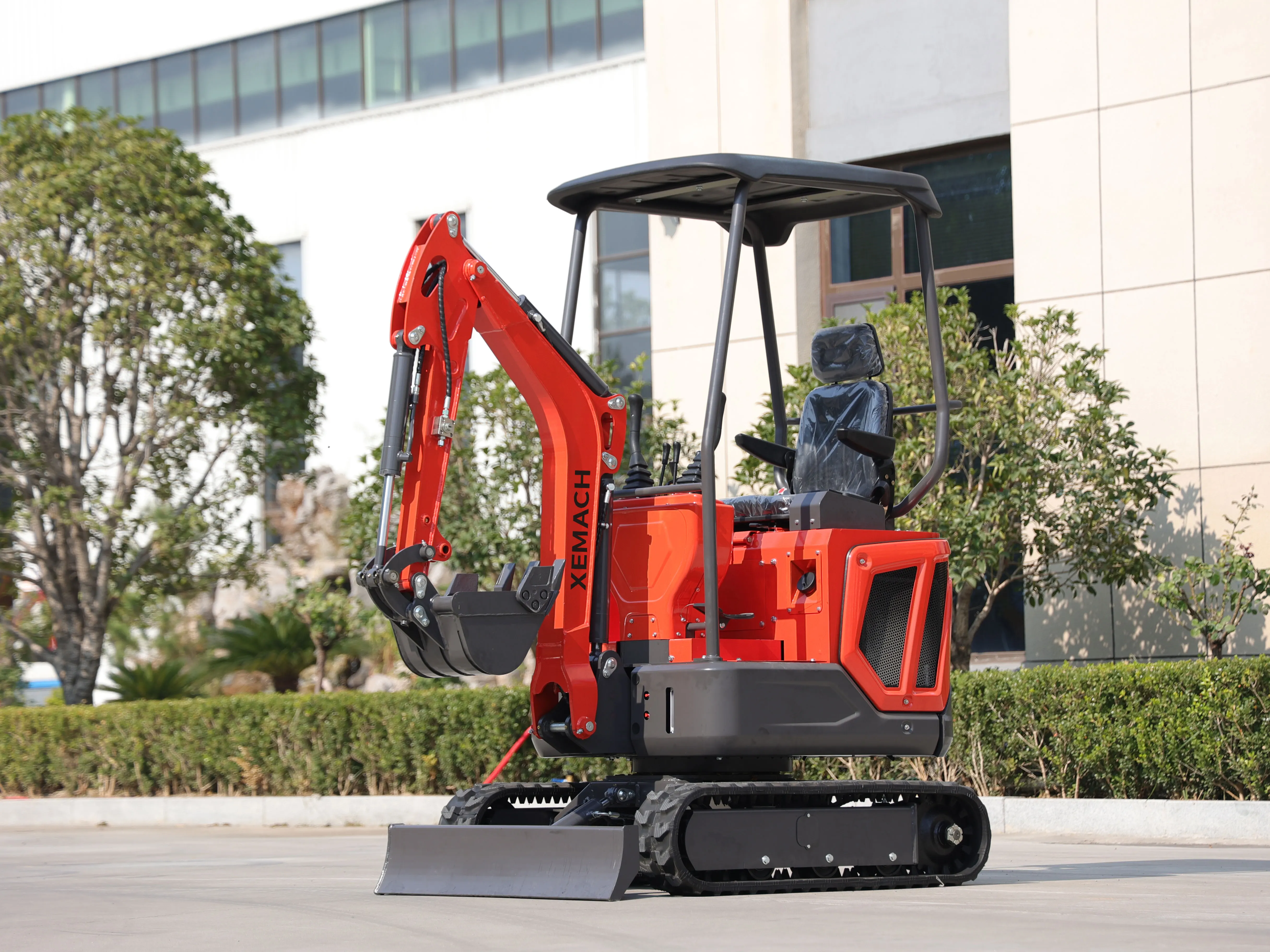

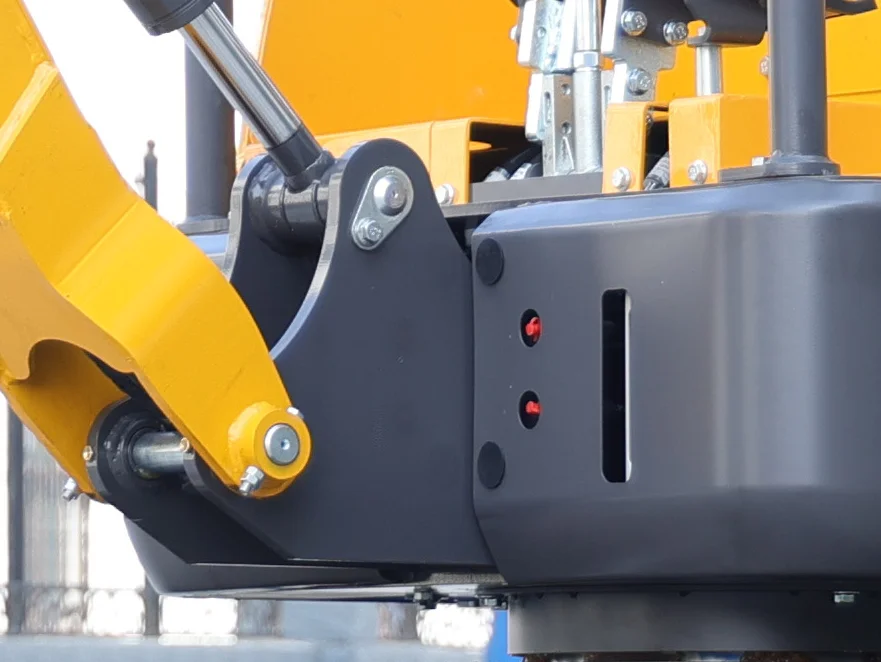

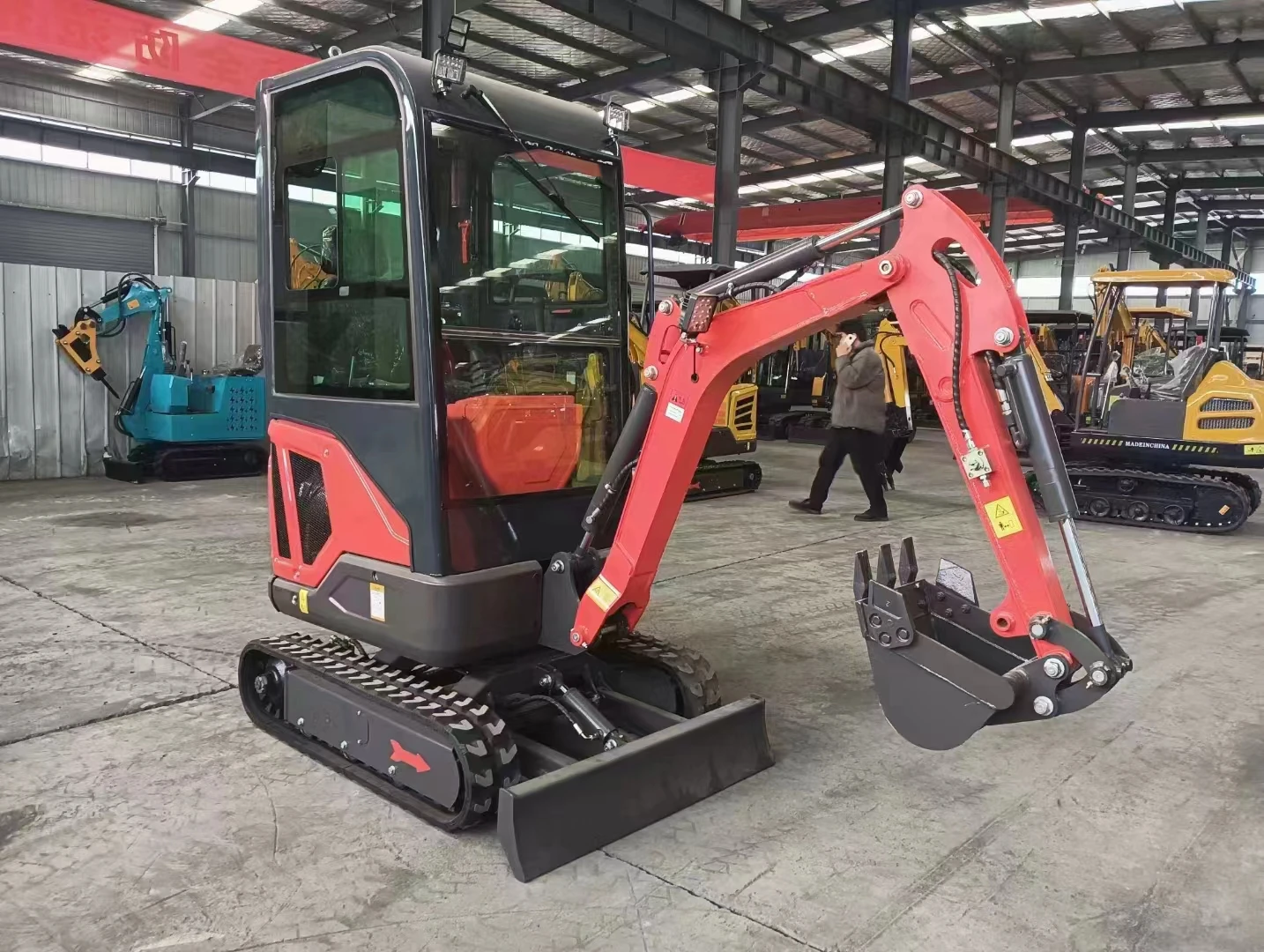

Detailed Images
17_20240619110604Comparision



Related Products

2_02 2_032_052_041_041_051_061_051_081_071_101_111_121_13

Question: Why should we choose you as a supplier?

Answer: We are committed to helping our customer solve problems and building long-term cooperative relationships. So we are doing our best to provide most price competitive product with most reliable quality

Question: Can I order customized solution/product?

Answer: Sure. we can customize our offerings to meet your specifications, including but not limited to logo/graphic, machinery color, main configurations

Question: Can I track the order?

Answer: Yes. We will keep you updated throughout the entire process, including important production and shipping milestones, to ensure transparency and timely delivery

Question: Do you have any training classes?

Answer: Yes. We can offer operational and maintenance video trainings to assist your team in quickly getting started

Question: Can I provide feedback on the products?

Answer: We are open-minded to your suggestions regarding the product. We will offer you an additional discount if your suggestions are implanted by our R&D team

Question: Do you offer any additional value-added services?

Answer: Our founders used to be part of management team of Fortune 500 industrial company, and will provide market trends analysis to power your business
