Static Pass Box Embedded
Product Description
The air shower pass box is an auxiliary device for clean room. It is mainly used for transferring small articles between clean areas or between clean and non-clean areas. Through the pass box, the clean room door opening frequency can be reduced and the pollution of clean areas can be minimized.
To reduce dust particulate caused by the goods moving in and out, the purified air from HEPA filter spay on the goods in different direction through rotary nozzle. It can get rid of dust particulate efficiently.
To reduce dust particulate caused by the goods moving in and out, the purified air from HEPA filter spay on the goods in different direction through rotary nozzle. It can get rid of dust particulate efficiently.
Configuration Option
① Material: Powder coated steel,Polish SUS 201/304/316; Mirror SUS 201/304/316
②Power: AC 1/3N 110,220,380V/50,60Hz
③Door Type: standard external door; auto lifting door
④Lock Type: mechanical interlock, electromagnetic interlock
⑤ Others Option: sterilizer, buzzer alarm, inter phone, micro computer operation panel, conveyor
②Power: AC 1/3N 110,220,380V/50,60Hz
③Door Type: standard external door; auto lifting door
④Lock Type: mechanical interlock, electromagnetic interlock
⑤ Others Option: sterilizer, buzzer alarm, inter phone, micro computer operation panel, conveyor
Products Description
Product Parameter | ||||||
Item | Air Shower Pass Box | |||||
Model | YN-FLC-01 | YN-FLC-02 | YN-FLC-03 | |||
External size W×D×H(mm) | 850×500×1350 | 950×600×1450 | 1150×800×1650 | |||
Internal Size W×D×H(mm) | 500×500×500 | 600×600×600 | 800×800×800 | |||
Nozzle | 4 Pcs | 4 Pcs | 6 Pcs | |||
Air Velocity | 22-27m/s | 22-27m/s | 22-27m/s | |||
Noise | ＜65 dB（A） | ＜65 dB（A） | ＜65 dB（A） | |||
G4 Pre filter size(mm) | 300×300×21×1 Pcs | 400×300×21×1 Pcs | 600×300×21×1 Pcs | |||
H13 HEPA Filter(mm) | 310×310×69×1 Pcs | 410×410×69×1 Pcs | 610×610×69×1 Pcs | |||
Filter Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | |||
Fan Power (W) | 550W×1 Pcs | 550W×1 Pcs | 550W×1 Pcs | |||
UV Power (W) | 8W×1 Pcs | 8W×1 Pcs | 15W×1 Pcs | |||
Lock Type | Mechanical interlock、Eletromagnetic interlock | |||||
Supply Power | AC 1/3N 220,380V/50,60Hz | |||||

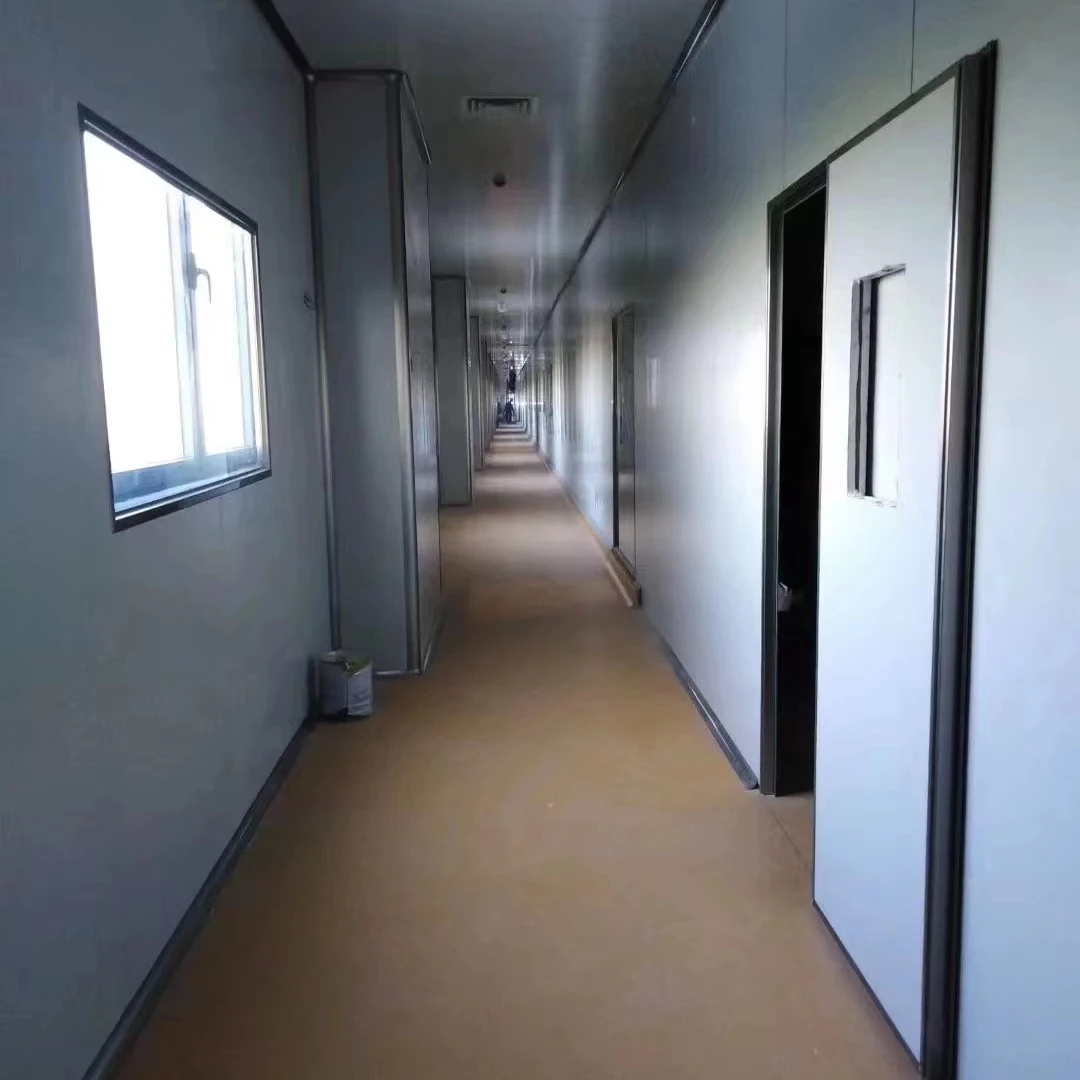

Success case show
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.
30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Enterprise, Famous Brand Enterprise in Guangdong
Packing&Delivery
Exhibition
FAQ
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
7. what is air shower pass box
Air shower pass box is a type of dynamic pass box. This is an integrated device between an air shower and a pass box to transfer objects between clean rooms and non-clean rooms.
Air shower pass box is a type of dynamic pass box. This is an integrated device between an air shower and a pass box to transfer objects between clean rooms and non-clean rooms.
8.What is the purpose of a pass box?
As the name states itself, the primary and only work of a pass box is to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation.
As the name states itself, the primary and only work of a pass box is to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation.
