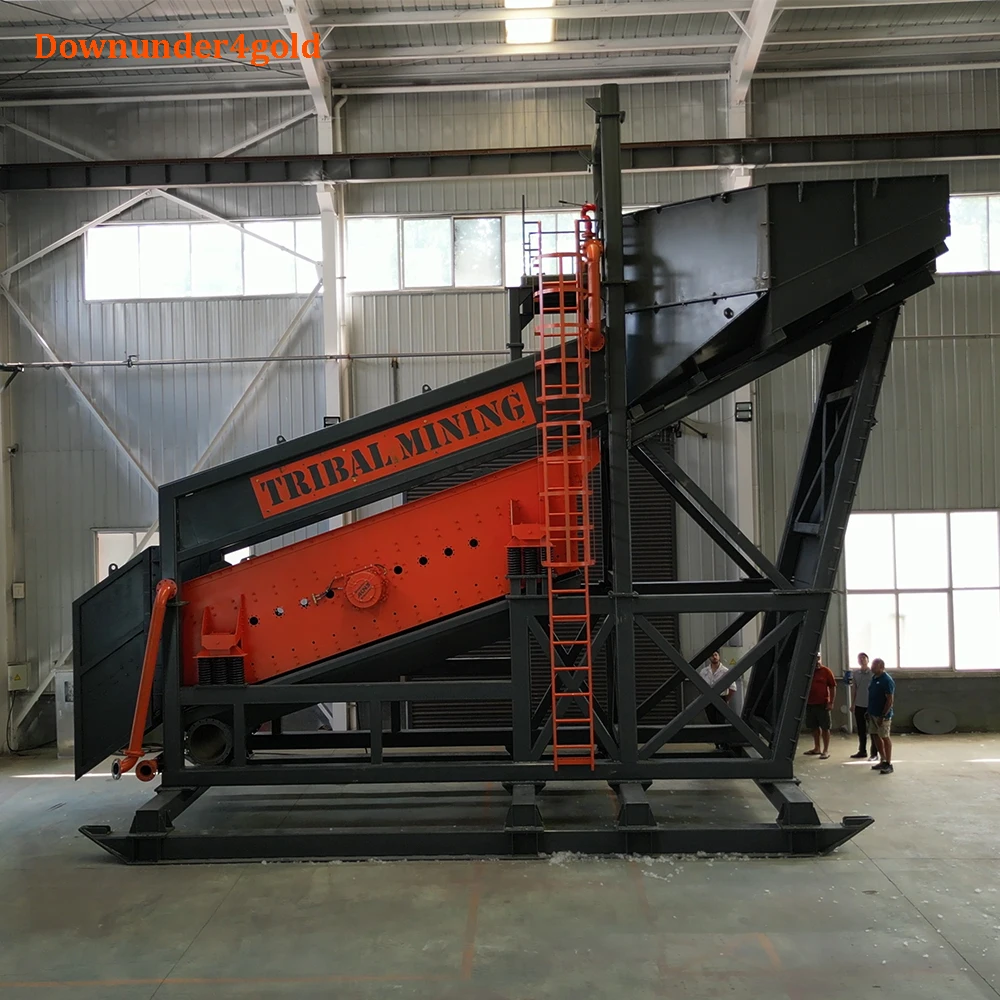

500 TPH золото шлака россыпь горнодобывающая стиральная
- Категория: >>>
- Поставщик: Downunder (yantai) Mining Technology Co. Ltd.
Сохранить в закладки 1601239485060:
Описание и отзывы
Характеристики

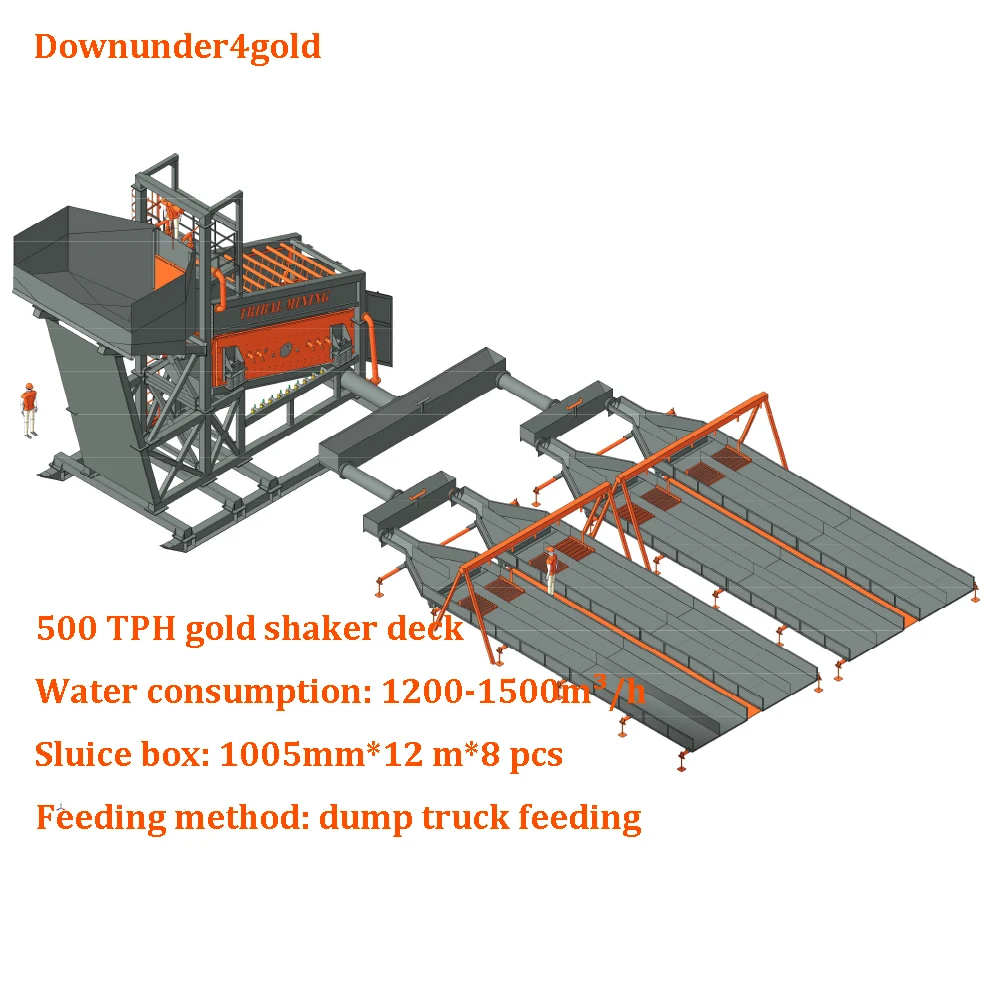

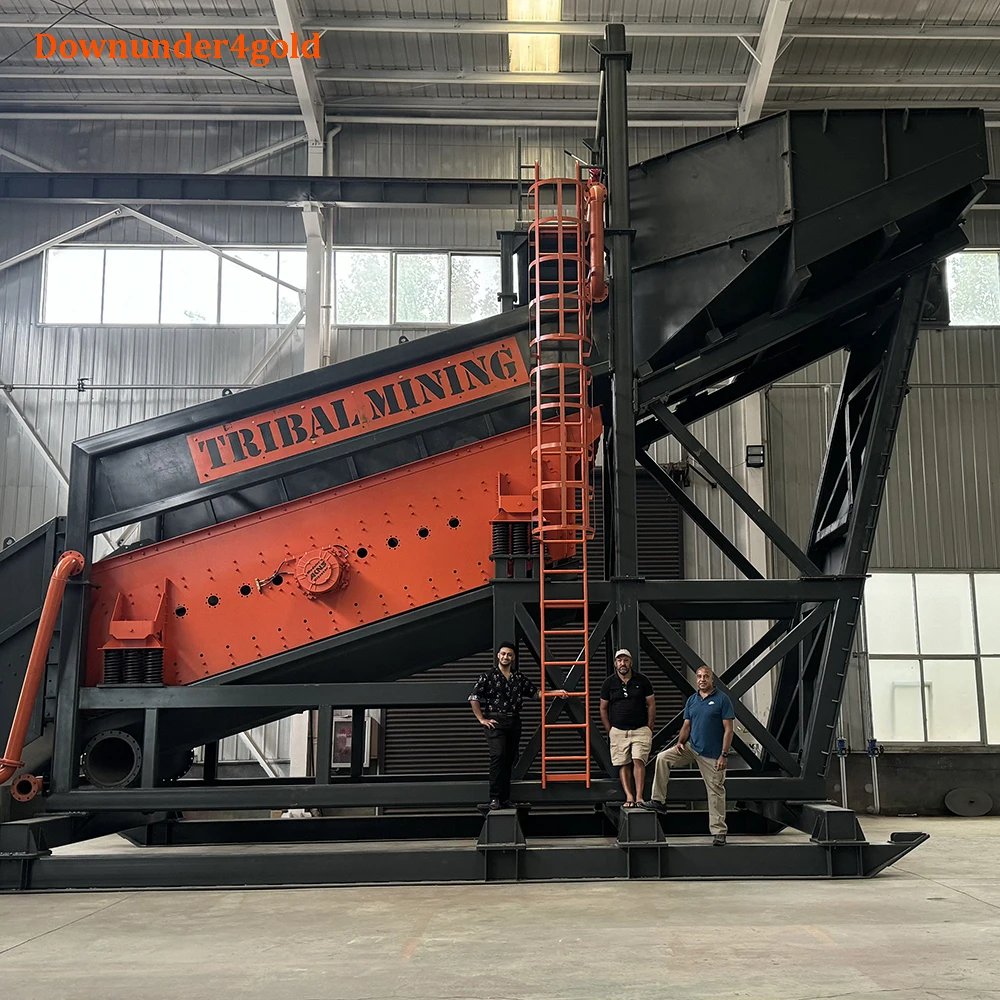

DMT-500 gold trommel wash plant | ||
Make | Downunder4gold | |
Model | DMT-500 | |
Name | Gold shaker deck, vibrating screen washer | |
Capacity | 300 YPH (500 TPH) | |
Supply Voltage | 380 Volt | |
Water Connection | 2 pcs*12 inch Water Feed with Camlock Fitting | |
Floating water pontoon optional | ||
Diesel water pump prefered | ||
Feed hopper | Dump truck feeding | |
Hopper width 4.8 meter, length 5.5 meter | ||
Volume: 30m³ | ||
2 pcs*4 inch water cannon | ||
Sluice box | 2050*12000 mm*4pcs (Length, Width, Quantity) | |
Hydraulic riffle,Expand mesh, Rubber mat, Miner moss, Other mats optional | ||
Screen box | 2 decks newest design vibrating screen | |
Screen dimension: 2000*6000mm | ||
Top screen: 20 mm thick, high manganese steel plate laser cutting screen hole. bottom screen use high manganese welding mesh or woven mesh. Screen opening: top deck 80-100 mm, bottom deck 10-30 mm optional, default size 14 mm | ||
Structure | Heavy duty steel foot base, 400 mm square pipe, 300 mm square pipe, Q 345 steel, | |
Diesel generator | 200kw generator | |
PLC control | ||
Transmission power | 30 kw motor | |
Optional gravity separation method | Sluice box, centrifugal concentrator | |
Total weight | 55 ton | |
Quantity load | Total loaded with 2*40 HQ, and extra 40 m³ bulk on deck shipping | |
Q: Are you a factory ?
Reply: Yes, we are factory, 3200 square meter workshop and office.
Q: Gold trommel vs Gold shaker deck ？
Reply: While the capital equipment cost for trommel and shaker decks of equal diameter/width is
similar,trommel screen plants come with the advantage of longer maintenance intervals and slightly lower operating costs for maintenance. The shaker deck design handles higher tonnage throughput and providesthe opportunity for running a primary sluice run in the screen under pan. Downunder4gold offers both trommel and shaker deck wash plants that can be configured to most ground conditions.
Reply: Yes, we are factory, 3200 square meter workshop and office.
Q: What is gold recovery rate of your equipment ?
Reply: All gravity recovery methods are highly dependent on particle size and shape.
Besides operational variables, such as feed presentation (screen aperture, feed rate, solids/water ratio) and sluicebox design (i.e. length, width, slope, riffle pattern), the gold particle size distribution and shape are inherent factors determining the gold recovery rate.
anyone say that equipment recovery is 80%, 90% something is not true. it’s all depends. but 90% of placer mining gold wash plant will use sluice boxes rather than jig, concentrator, etc.
Reply: All gravity recovery methods are highly dependent on particle size and shape.
Besides operational variables, such as feed presentation (screen aperture, feed rate, solids/water ratio) and sluicebox design (i.e. length, width, slope, riffle pattern), the gold particle size distribution and shape are inherent factors determining the gold recovery rate.
anyone say that equipment recovery is 80%, 90% something is not true. it’s all depends. but 90% of placer mining gold wash plant will use sluice boxes rather than jig, concentrator, etc.
Reply: While the capital equipment cost for trommel and shaker decks of equal diameter/width is
similar,trommel screen plants come with the advantage of longer maintenance intervals and slightly lower operating costs for maintenance. The shaker deck design handles higher tonnage throughput and providesthe opportunity for running a primary sluice run in the screen under pan. Downunder4gold offers both trommel and shaker deck wash plants that can be configured to most ground conditions.
Q: What is difference of Downunder4gold equipment ?
Reply: we consider more than others how to ensure our plant will work well on mine site. we spend years on designing new model, we combine all the good thing others mining experience. we are compete with suppliers from Canada, USA, South Africa. Downunder4gold supply ratio from 5 tons per hour upto 500 tons per hour. we have hydraulic riffle sluice box, miner moss, rubber mat. gold trommel, gold scrubber trommel, shaker screen (deck). that can be configured to most ground conditions.
Reply: we consider more than others how to ensure our plant will work well on mine site. we spend years on designing new model, we combine all the good thing others mining experience. we are compete with suppliers from Canada, USA, South Africa. Downunder4gold supply ratio from 5 tons per hour upto 500 tons per hour. we have hydraulic riffle sluice box, miner moss, rubber mat. gold trommel, gold scrubber trommel, shaker screen (deck). that can be configured to most ground conditions.
Q: What is delivery time ?
Reply: Most of our model will be in stock, after recieve deposit 10-15 days. if no stock, take 3-4 weeks for production.
Reply: Most of our model will be in stock, after recieve deposit 10-15 days. if no stock, take 3-4 weeks for production.
Q: Are you supply accessories used on gold wash plant ?
Reply: Yes, we supply all accessories and tools, such as water pump, layflat hose, diesel generator, even we can out sourcing trucks, Wheel loader, Bulldozer, Excavator.
we will put orders together in our factory, and we can book the shipment for our client.
Reply: Yes, we supply all accessories and tools, such as water pump, layflat hose, diesel generator, even we can out sourcing trucks, Wheel loader, Bulldozer, Excavator.
we will put orders together in our factory, and we can book the shipment for our client.
Q: Do you supply installation service ?
Reply: Yes, Downunder4gold will give the installation guide to our client. most of our wash plant model are modular, easy and fast installation. remote installation will help in most case.
Reply: Yes, Downunder4gold will give the installation guide to our client. most of our wash plant model are modular, easy and fast installation. remote installation will help in most case.
Похожие товары

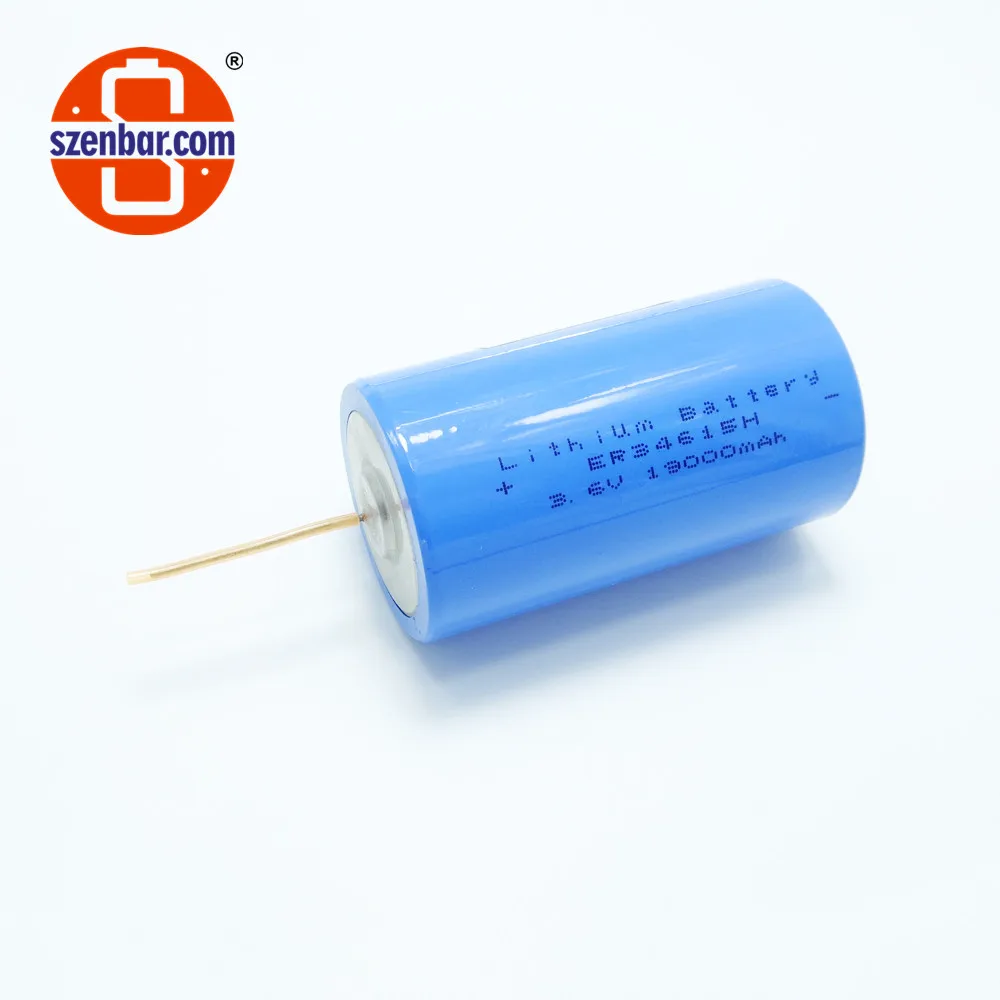

Литиевая батарея Enbar для GPS-трекера ER34615 3 6 В 19000 мАч размер
525,09 ₽ - 546,97 ₽
Двойной пуховый спальный мешок с подушками 3 Сезона наполнителем из утиного пуха заполняющий свет для кемпинга в холодную
6 837,09 ₽ - 10 829,95 ₽
Куркума куркумин в капсулах куркума добавка с биоперином 95% черного перца для максимального поглощения веганская поддержка
240,67 ₽ - 328,19 ₽

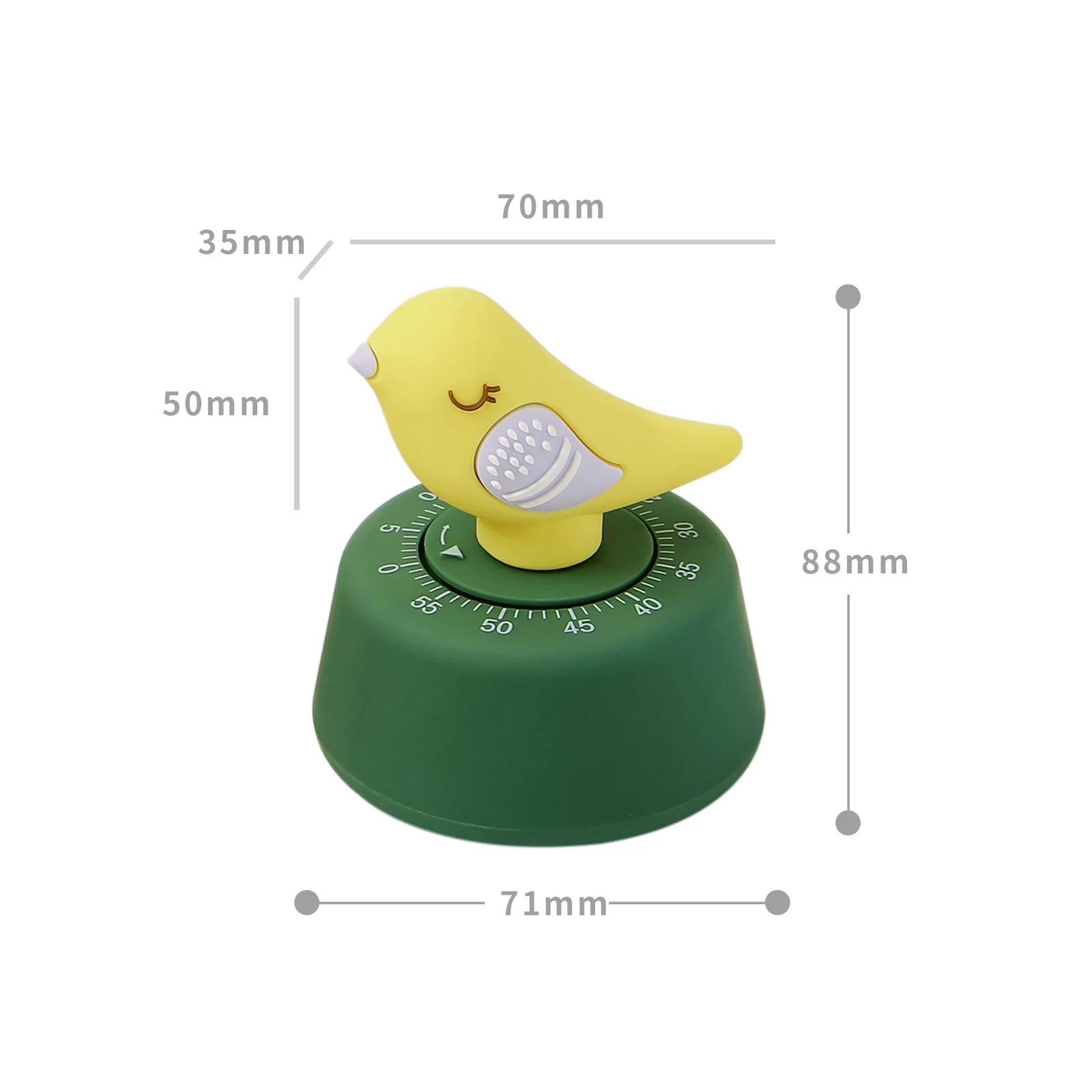

Механический таймер WMT67 с милой птицей на 60 минут кухонный Ручной для приготовления пищи Детский обучающий менеджер по времени
340,22 ₽ - 366,47 ₽

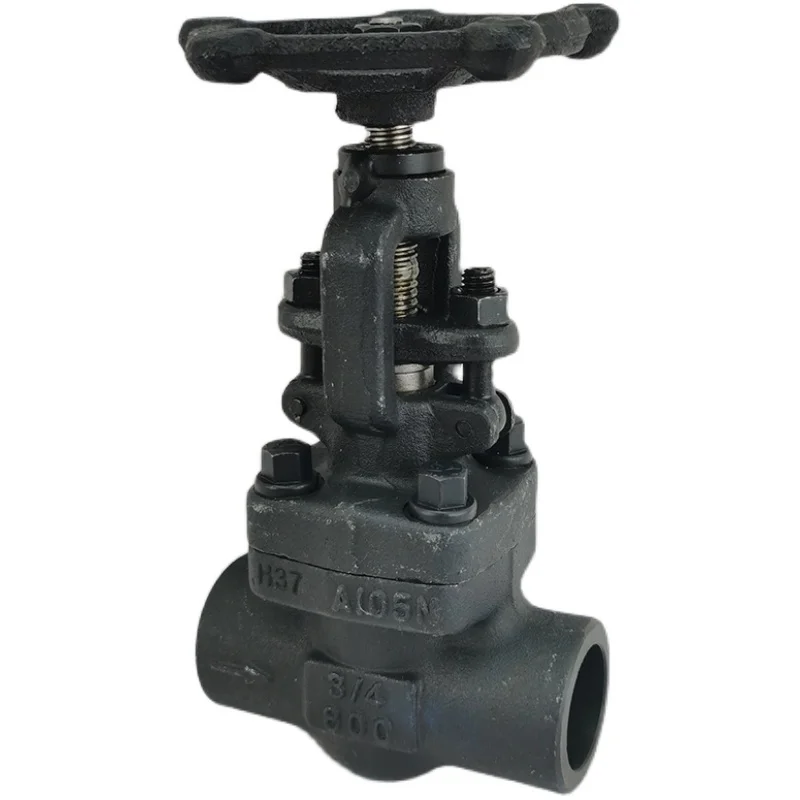

Производство клапаны Z61H-800LB API A105N SW шаровой клапан 6D B16.5 патрубок под
