diesel Engine Hydraulic Rock Splitter Wedges

Yugong is specialized in the rock splitting machine, including the small hydraulic rock splitter and excavator mounted rock splitter. Rock splitter is a kind of machine for splitting rock. It can split all kinds of natural stones, rock, granite, marble mining & quarrying and also break concrete. The rock splitting tool is mostly used in construction, decoration, engineering construction, ore mining, secondary disintegration of large ore, partial and total removal of concrete components. Safety, fast speed, adjustable oil pressure.

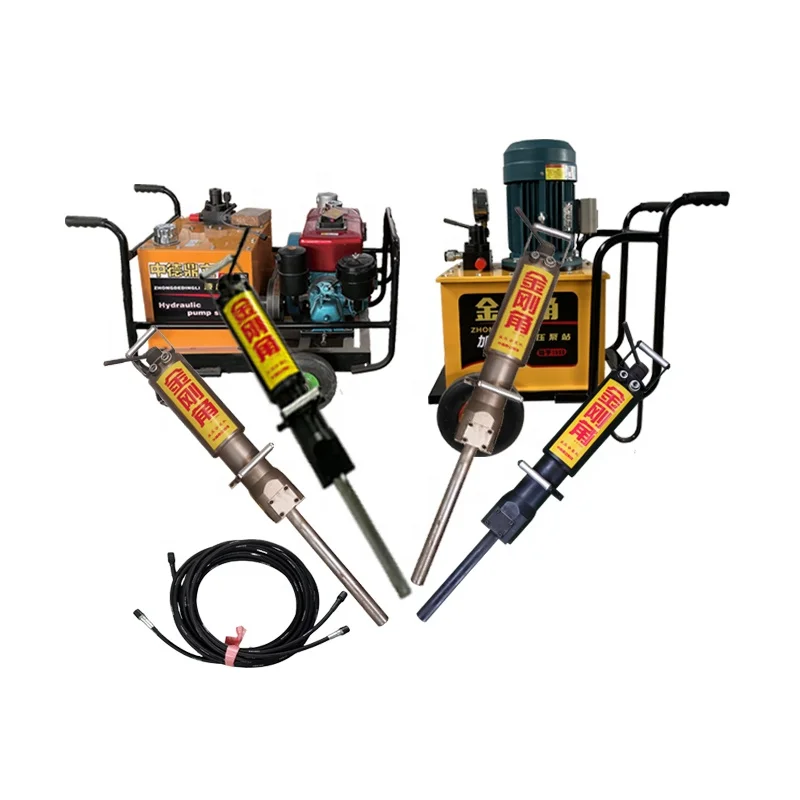

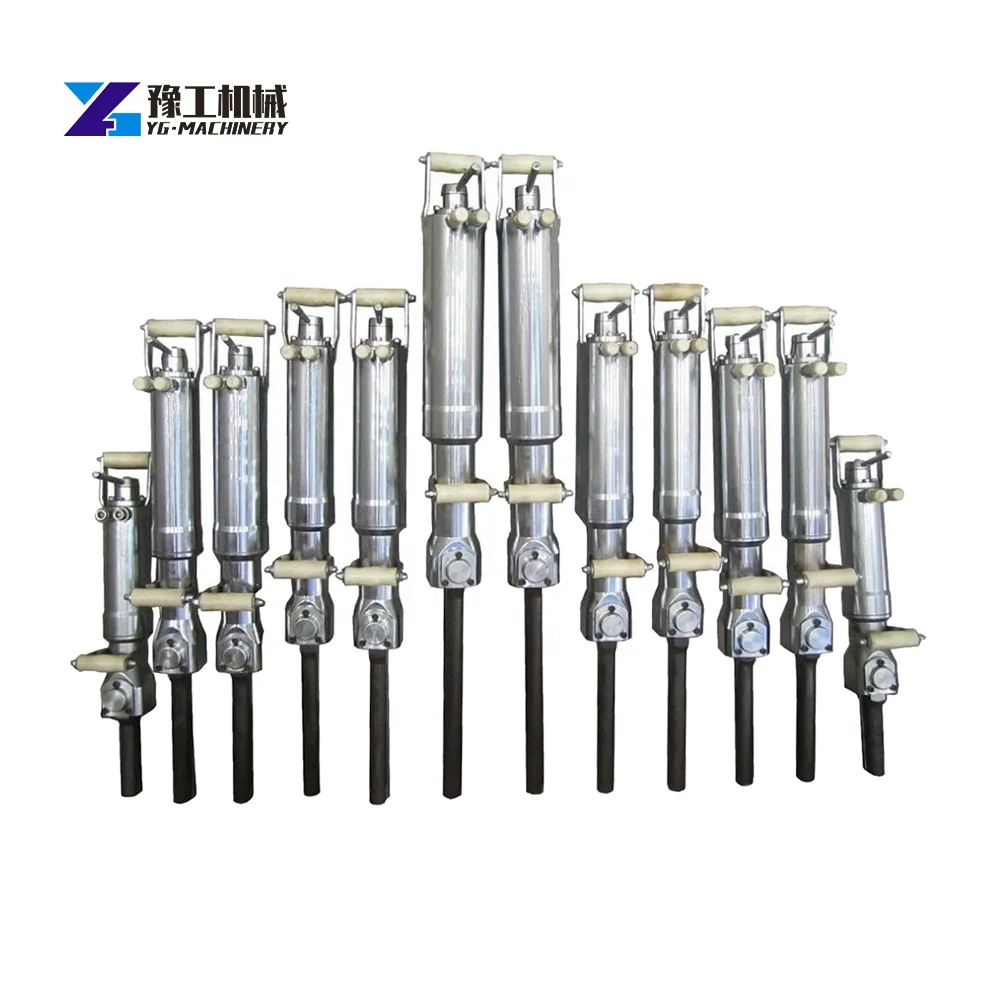

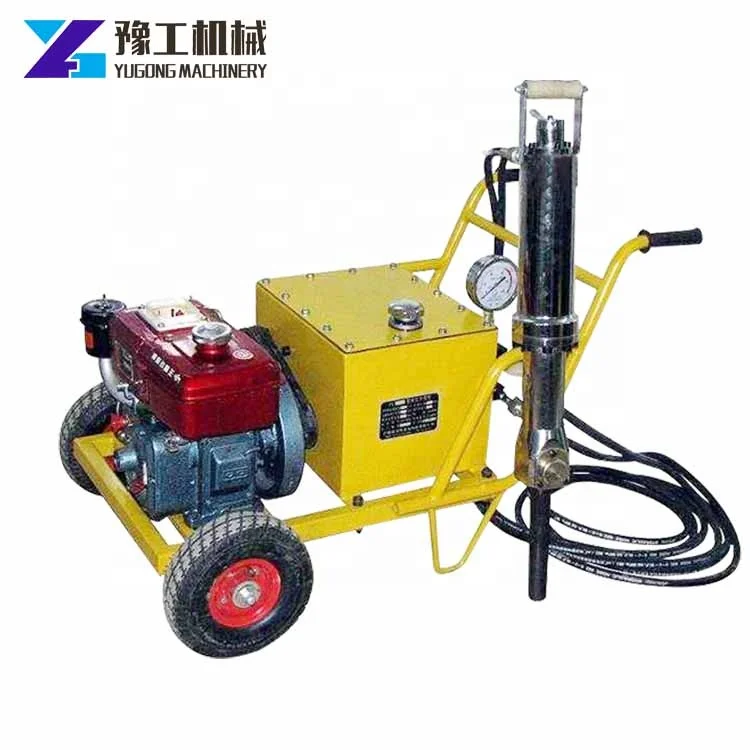

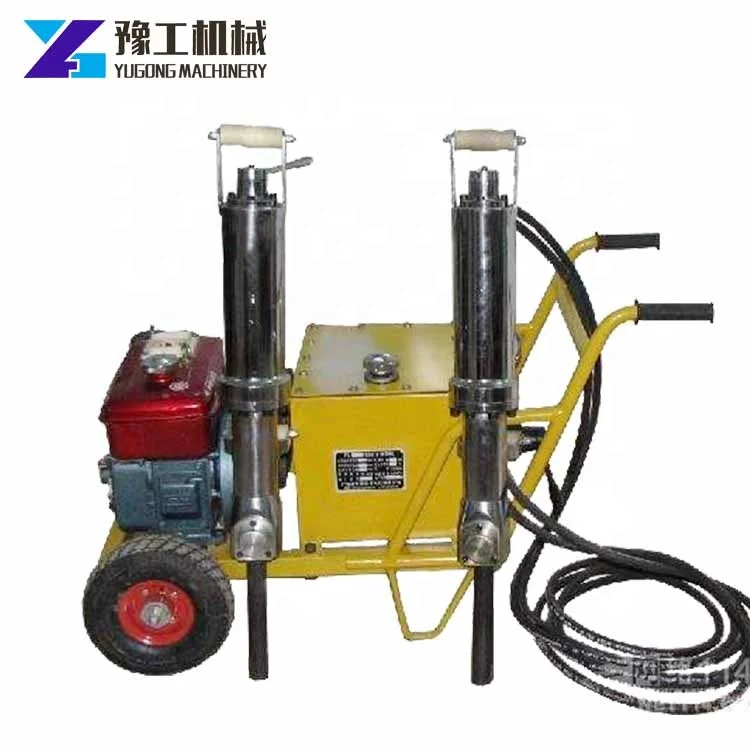

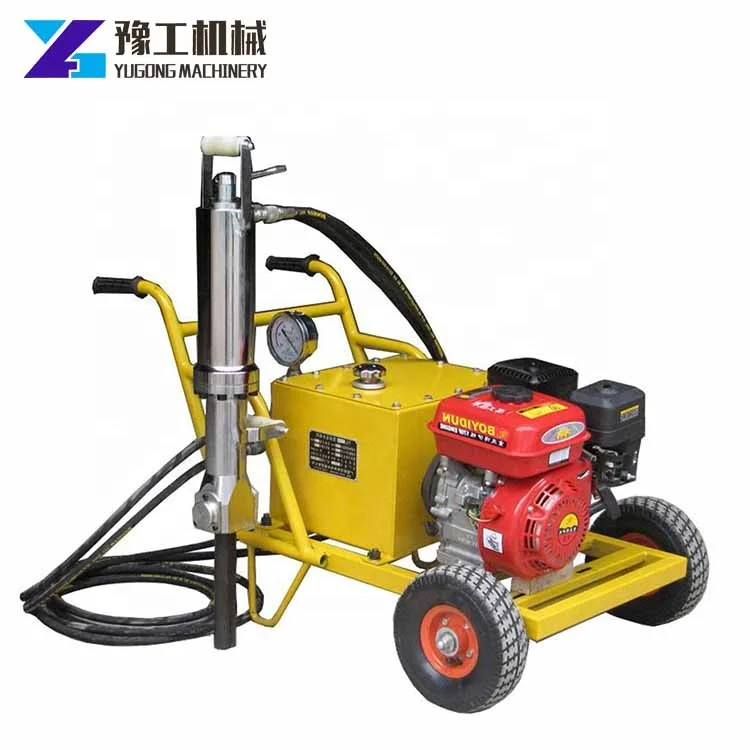

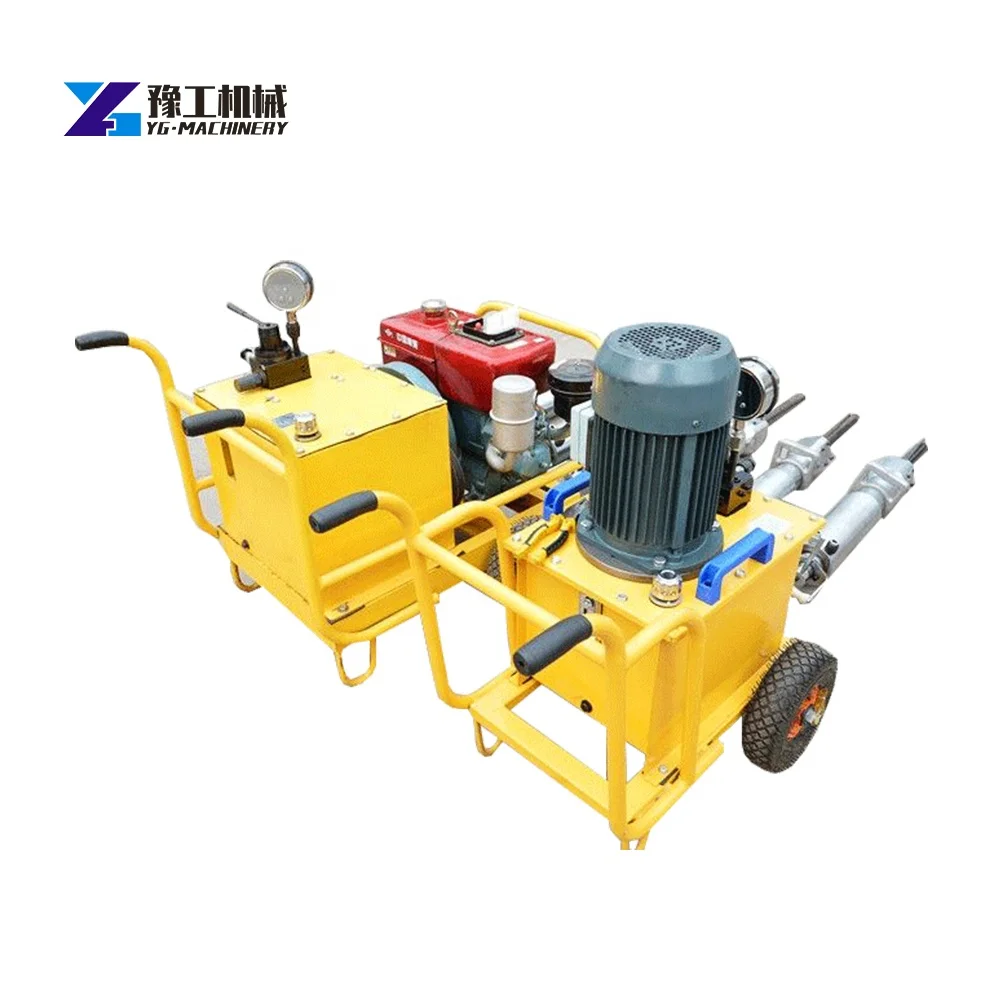

Hydraulic splitter is composed of two parts: pump station(electric type or the diesel engine type) and splitter. When working, the high-pressure oil from pump station drives the cylinder, which generates huge thrust. The middle wedge in the wedge group is pushed forward, and the reverse wedge is pushed to both sides to split the splitted object.

The concrete implementation steps are as follows:

1. First drill hole in stone.

2. Then insert hydraulic cylinders which is contain wedge and feathers. Start engine to provide hydraulic pressure.

3. Repeat the process until the whole structure is fractured into smaller sections and ready for removal.

1. Quarry splitter machine can be used for open-pit stone mine, mining and excavation;
2. Remove redundant reinforced concrete structures, concrete machine beds and plinths, broken and demolished;
3. It is a stone-breaking tool in road-building;
4. Concrete breaker, concrete wall, concrete block splitting, demolition and crushing;
5. Blocks of stone, secondary decomposition;
6. Rock breaking tools for building foundation, rock broken;
7. Demolition equipment for tunnel, rock breakage, tunneling;
8. Tower Foundation, Shaft Excavation.

Notes

1. Drill hole 40-42mm using the rock drill, drilling depth is not less than 50cm (otherwise the middle wedge is easy to break). YG-350 type drill hole with 46 bits. After drilling, it is necessary to clear the hole, clear the slag and water, and use No. 46 hydraulic oil.
2. Don't shake the splitting gun before the hydraulic oil is returned to the oil. When pulling out the splitting gun, be careful not to shake left and right. Don't use it as a crowbar to avoid damaging the splitting block.
3. Clean up the splitting block and the intermediate wedge in time after use. Do not use water to avoid rust. Use butter to smear the splitting block and the intermediate wedge before using the splitting gun to maintain lubrication.
4. When the splitter can't pull out, the splitting stones are too big and the cracks are too small to be stuck, and they are broken with brazes.

Other matters needing attention please contact us.
