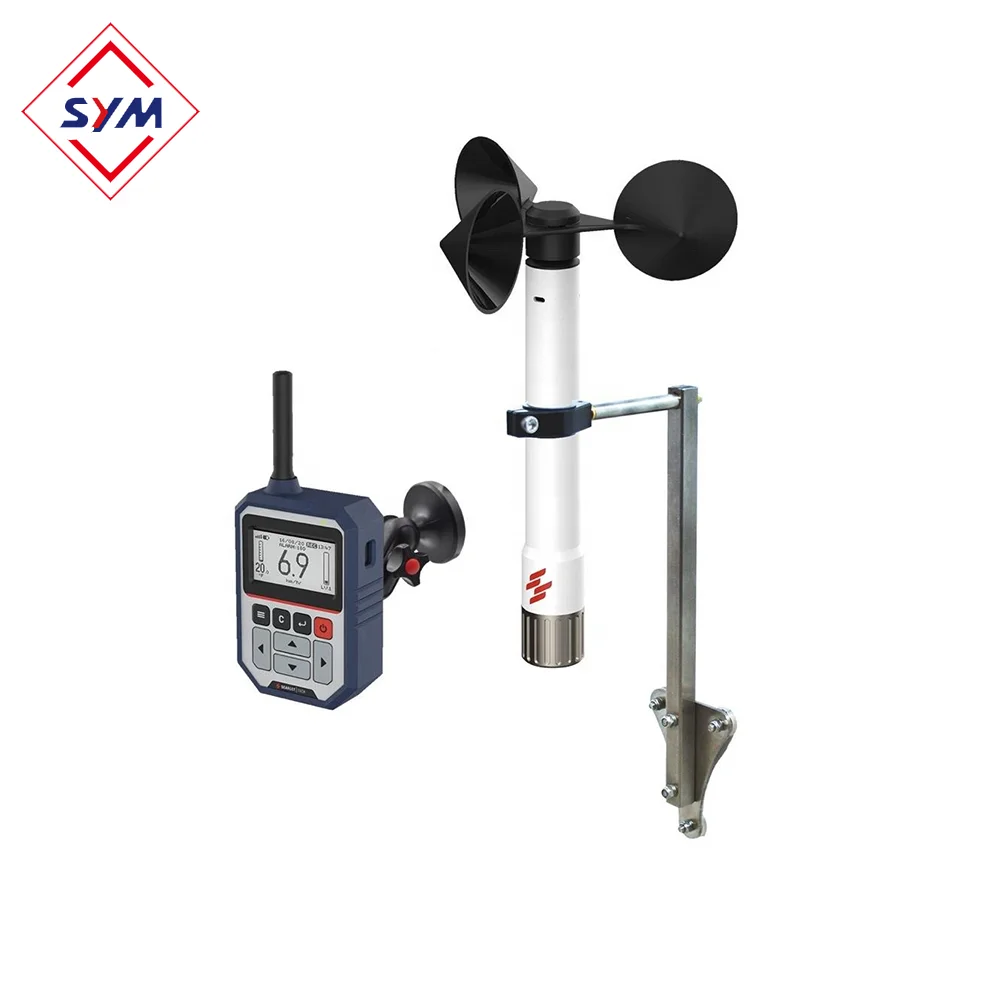

Product Overview

Cranes operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on
both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during
lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance.
The challenge to know the wind speed is the connection between sensor and display. Traditional cabled-anemom

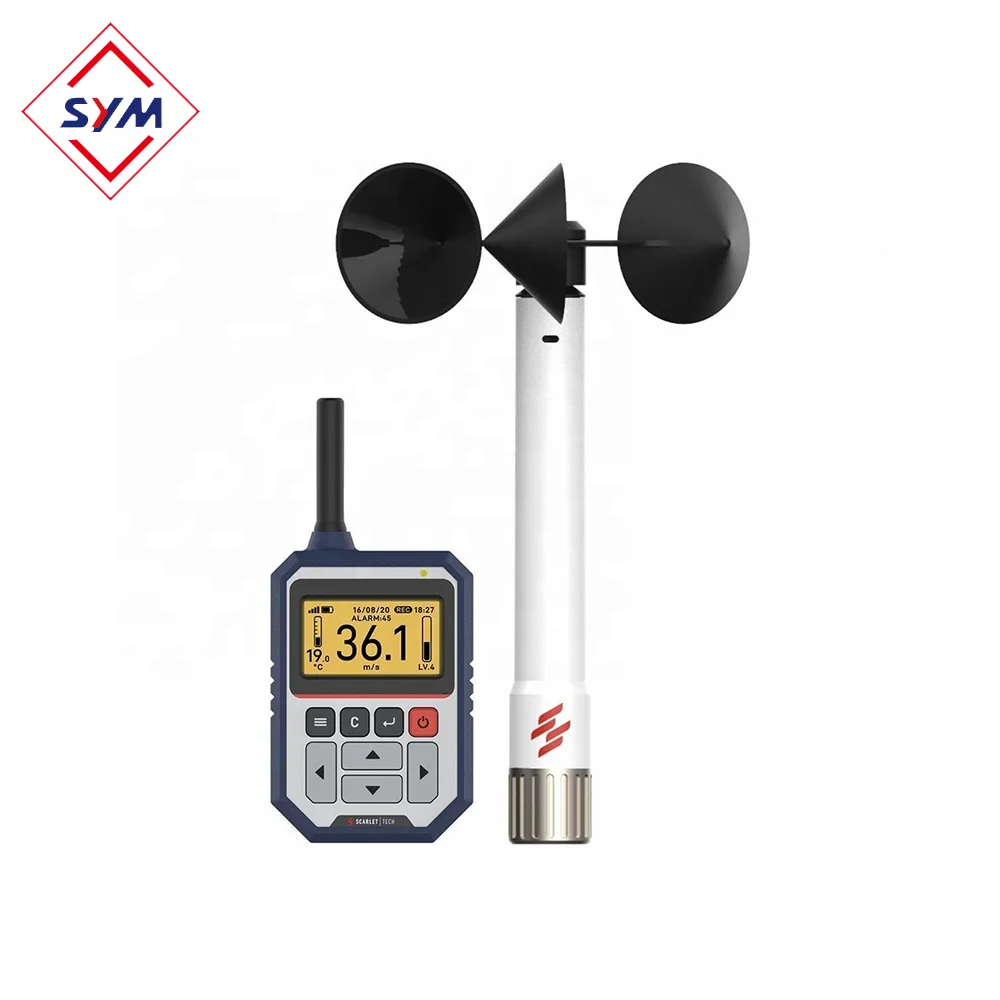

eter wouldn’t work well with the staggering heights among cranes and complex working condition. WR-3 Plus
Wireless Anemometer offers a trusted and stable wind measurement solution.

Features

- Max 500m ultra-long wireless transceiver
- Audible & visual wind speed alarm
- Data recording up to 1 year
- Wind speed, temperature, air pressure measurements
- Max 3 years sensor battery life
- IP67 waterproof & impact resistant
- Fast & secure magnetic installation kit

Application Areas

- Cranes & Construction
- Marine, Ports& Offshore
- Film Production & Outdoor Entertainment
- Scaffolding & Temporary Structure
- Rigging & Communications Industry
- Wind Farm & Turbine.

Functions

Instant Wind Speed Alarm

Instant Wind Speed Alarm
WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr) Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be trigger when the limit has beenreached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site.

Data Recording

WR-3 Plus capture and storage wind speed, temperature, air pressure measurements.
64MB built-in memory and outstanding battery life supports up to 1 year of continuous data recording. (based on
10s logging interval, adjustable: 2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins)
The recorded data can be easily export in Excel format further analysis.

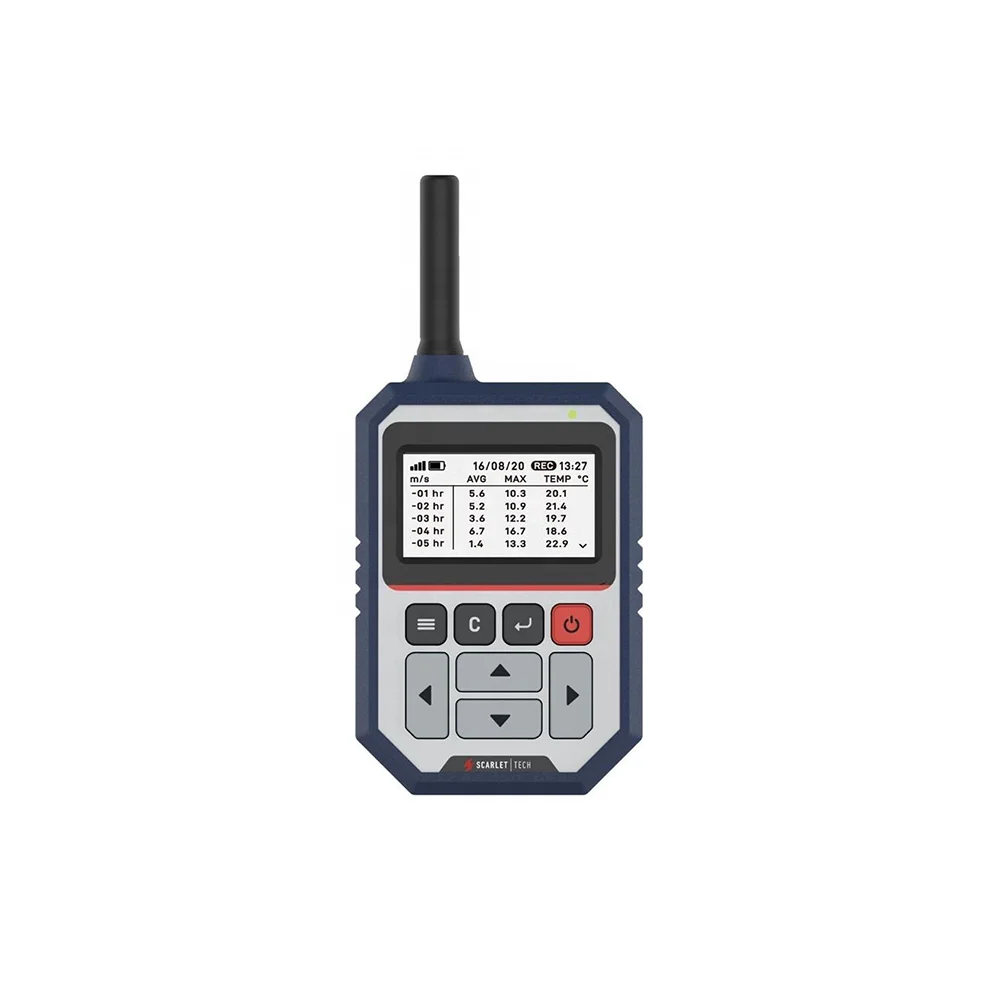

Graphical Display

The large LCD backlit display with user-friendly interface clearly indicates live weather data in various units of
measurement. Users can view hourly wind records and historical bar charts from the past 12 hours on different
pages.

Techincal Specifications

Wireless Sensor
Frequency	868MHz(default), 915MHz
Distance	Max 500m* (depends on the applied environment)
Data Rate	Every 2 seconds
Power Supply	3.6V 18505 Lithium battery x1
Waterproof Rating	IP67
Weight	406g
Dimension	262.5 x 183.5 x32mm

Receiver Datalogger
Receiver Buzzer	> 80dB
Built-in Memory	64MB
Output	.xlxs, .xls
Data Logger	wind speed, temperature, atmospheric pressure
Logging Interval	2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins
Power Supply	1.5V AA battery x3, Micro USB port
Dimension	189.6 x 75.6 x 36.3mm
Weight	205g

Wind Speed Sensor
Unit	m/s knots MPH km/hr
Range	0.3…50 m/s
Resolution	0.1 m/s 0.1 knots 0.1 MPH 0.1 km/hr
Accuracy	±2% FS
Temperature Sensor
Unit	°C °F
Range	-30°C…60°C
Resolution	0.1°C 0.1°F
Accuracy	±1°C
Atmospheric Pressure Sensor
Unit	hPa mmHg bar
Range	500…1100 hPa
Resolution	1 hPa 0.1 mmHg 0.001 bar
Accuracy	±4 hPa

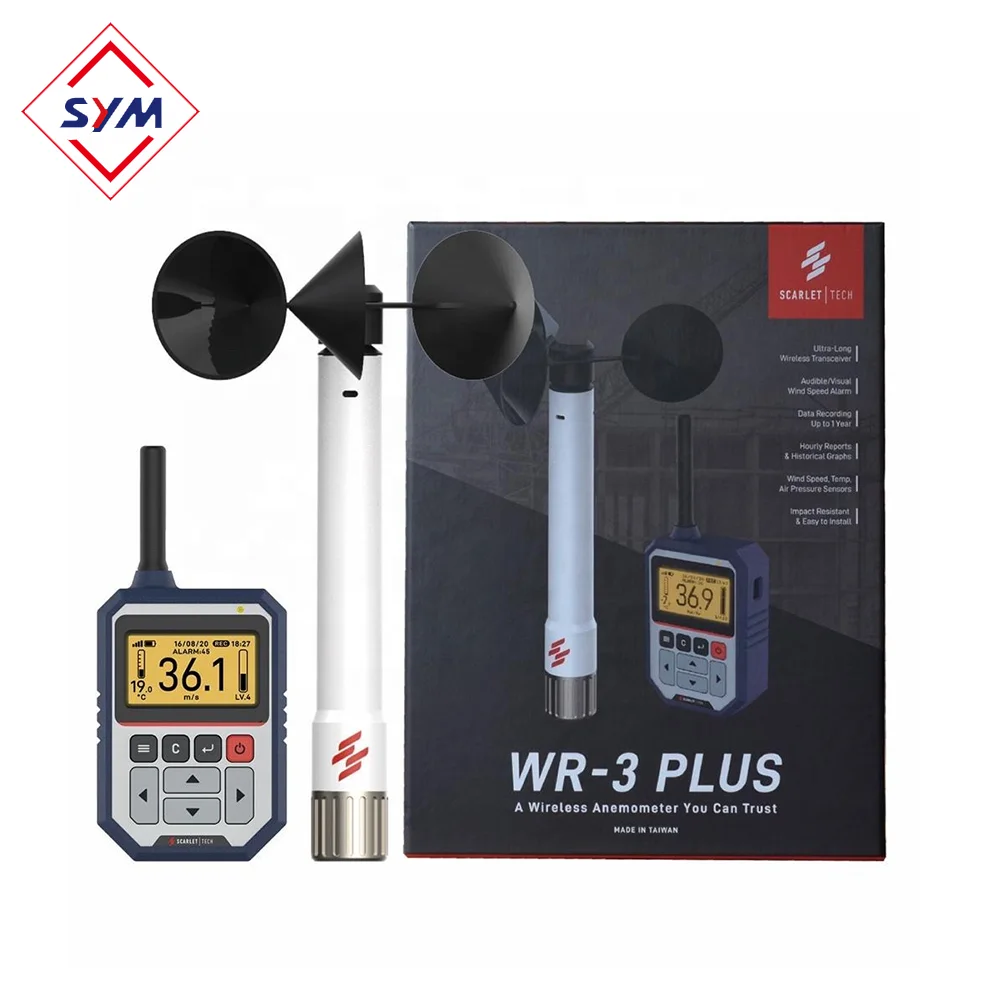

Package List

▪Wireless Sensor
▪Wind Cups
▪Receiver
▪Receiver Antenna
▪Receiver Holder
▪Adhesive Metal Flakes x 3 (for Receiver Holder installation)
▪AA Battery x 3 (for Receiver)
▪3.6V 18505 Lithium Battery x1 (placed in Sensor)
▪User Manual & Certificate

Optional Accessories & Spare Parts
