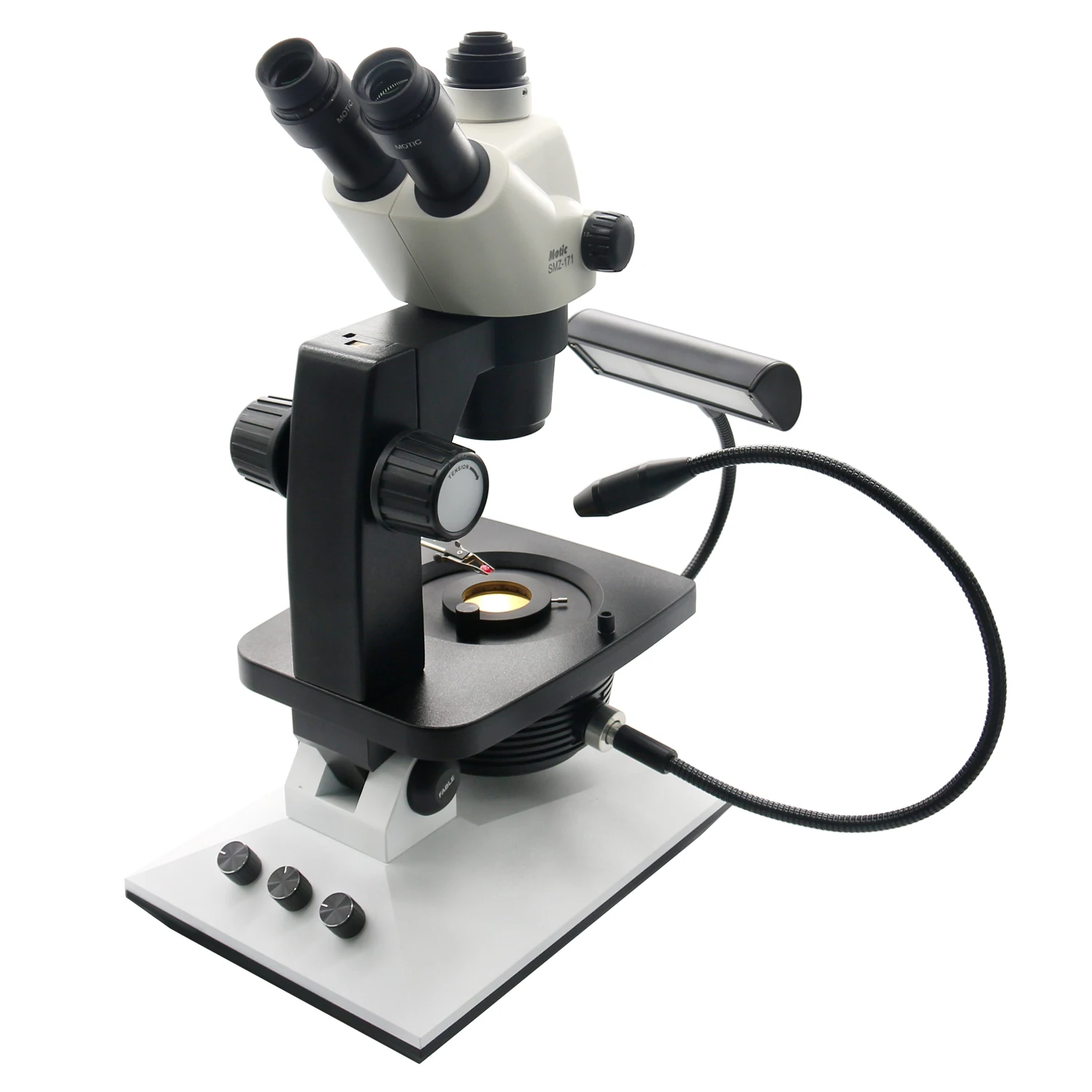

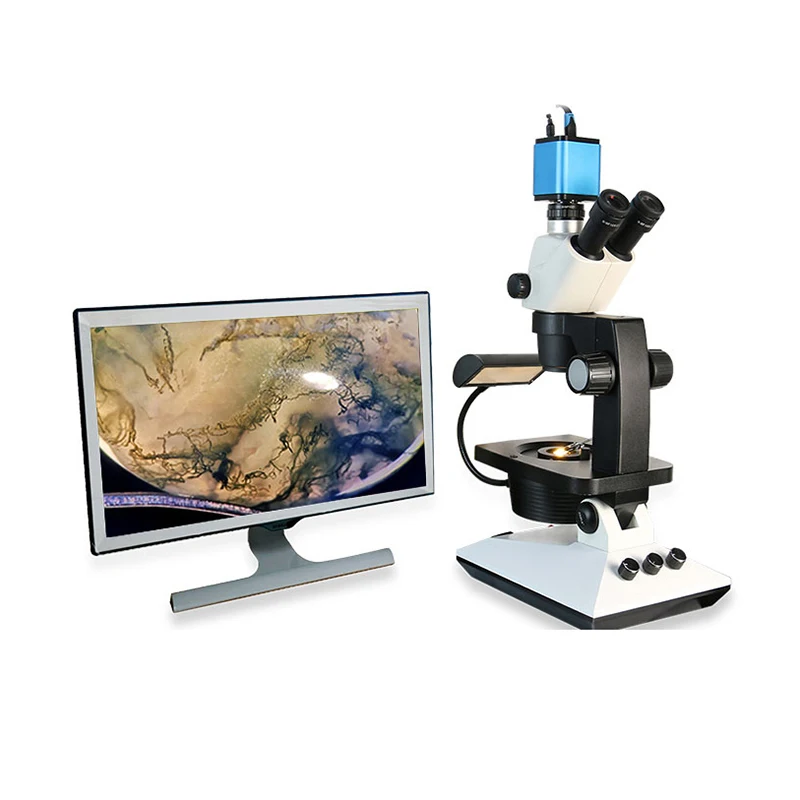

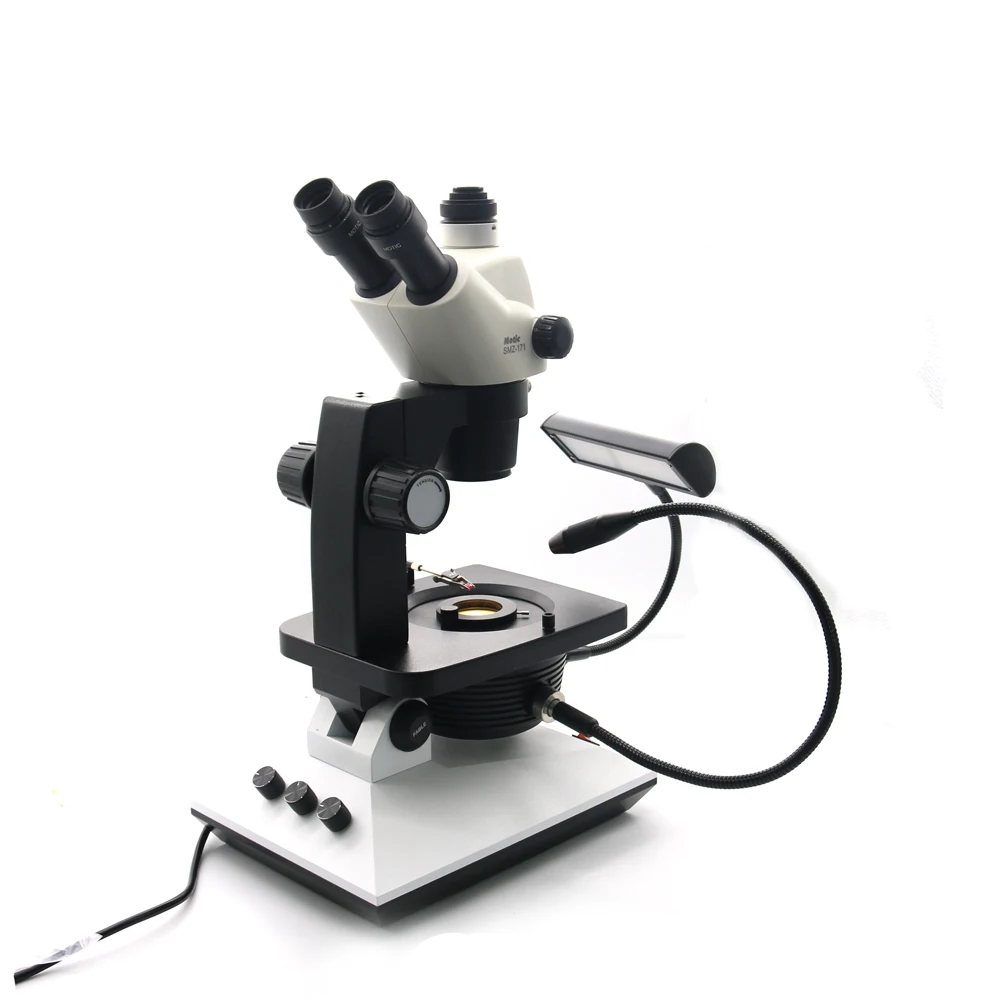

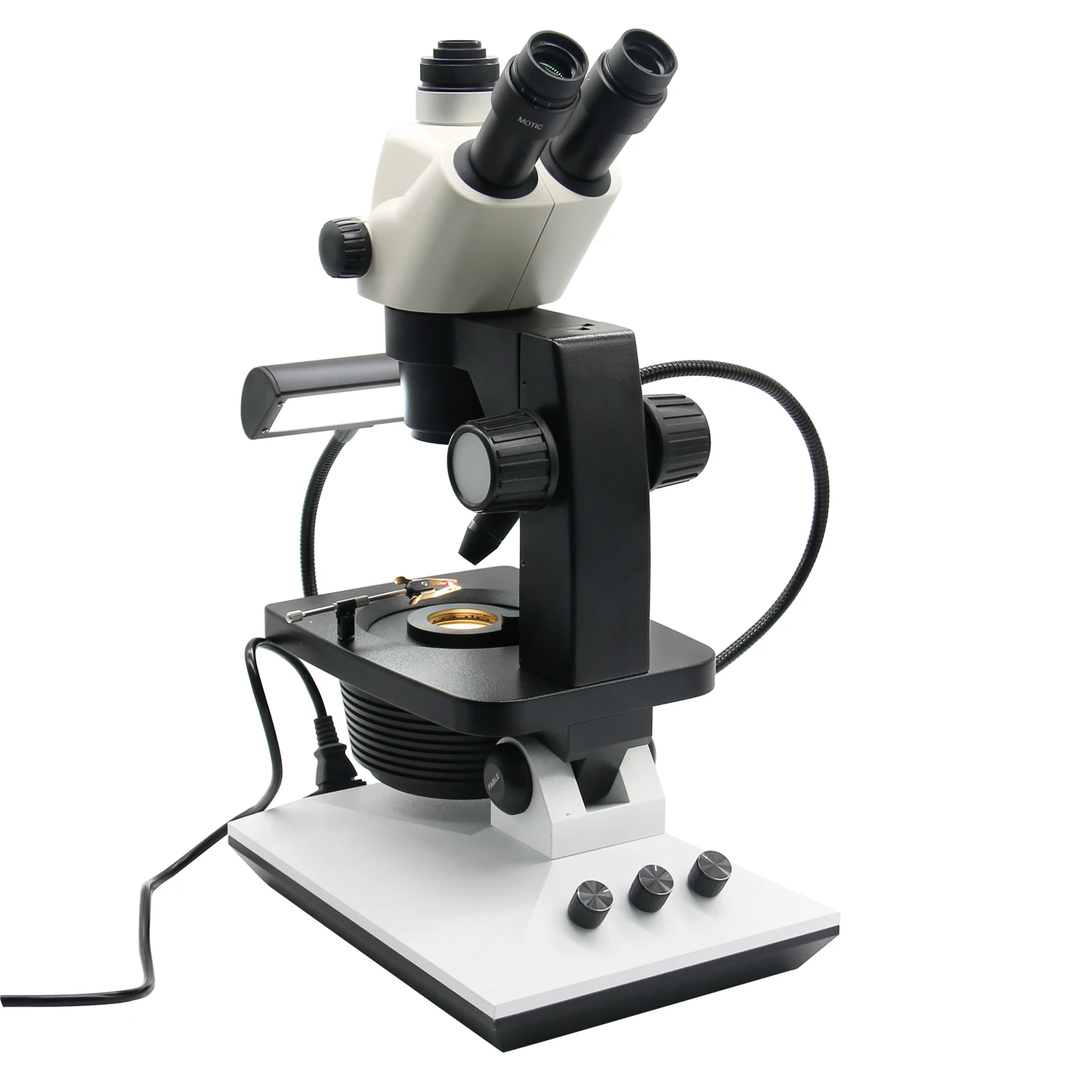

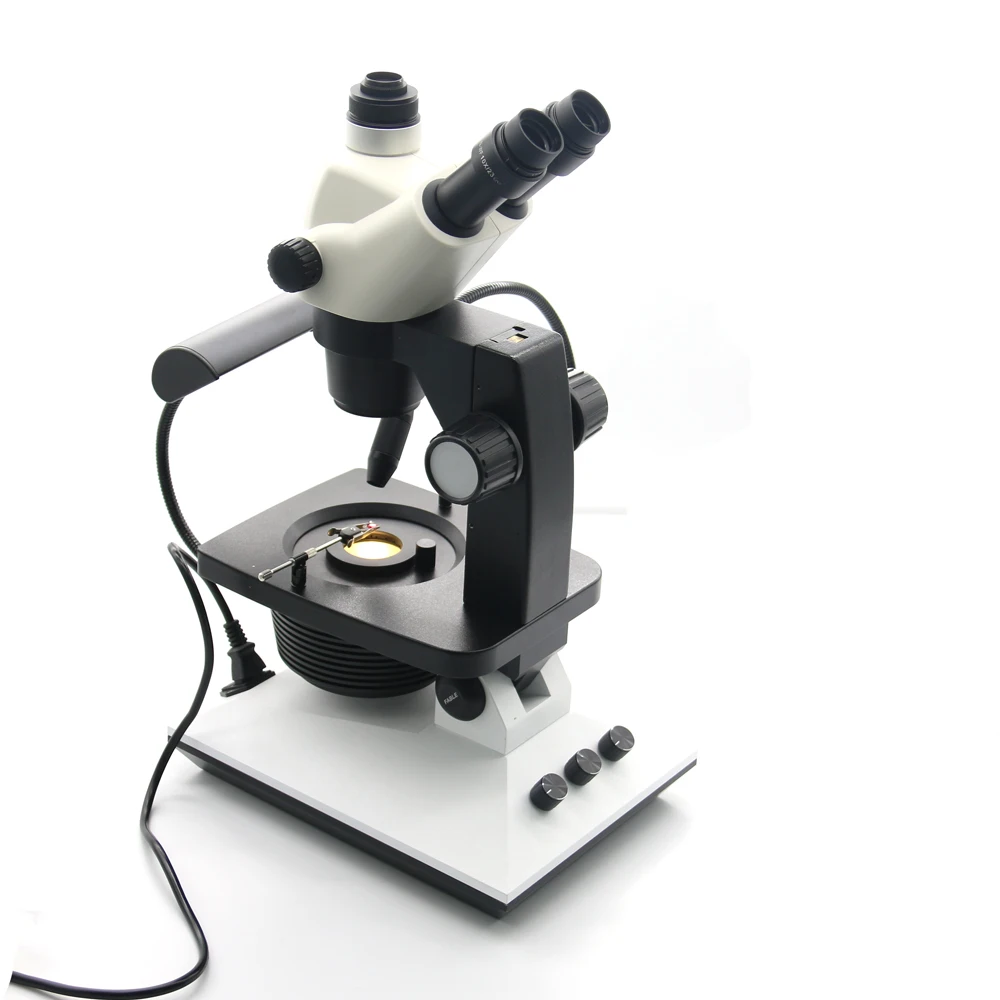

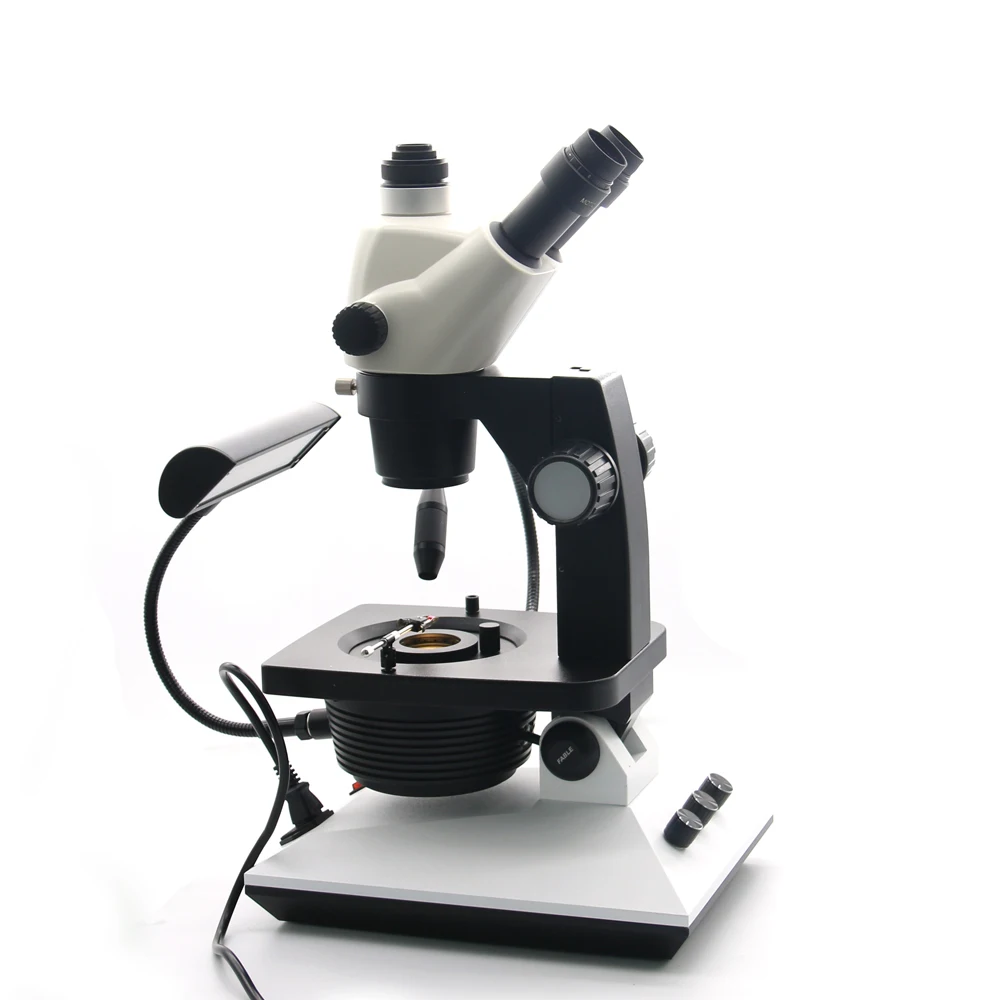

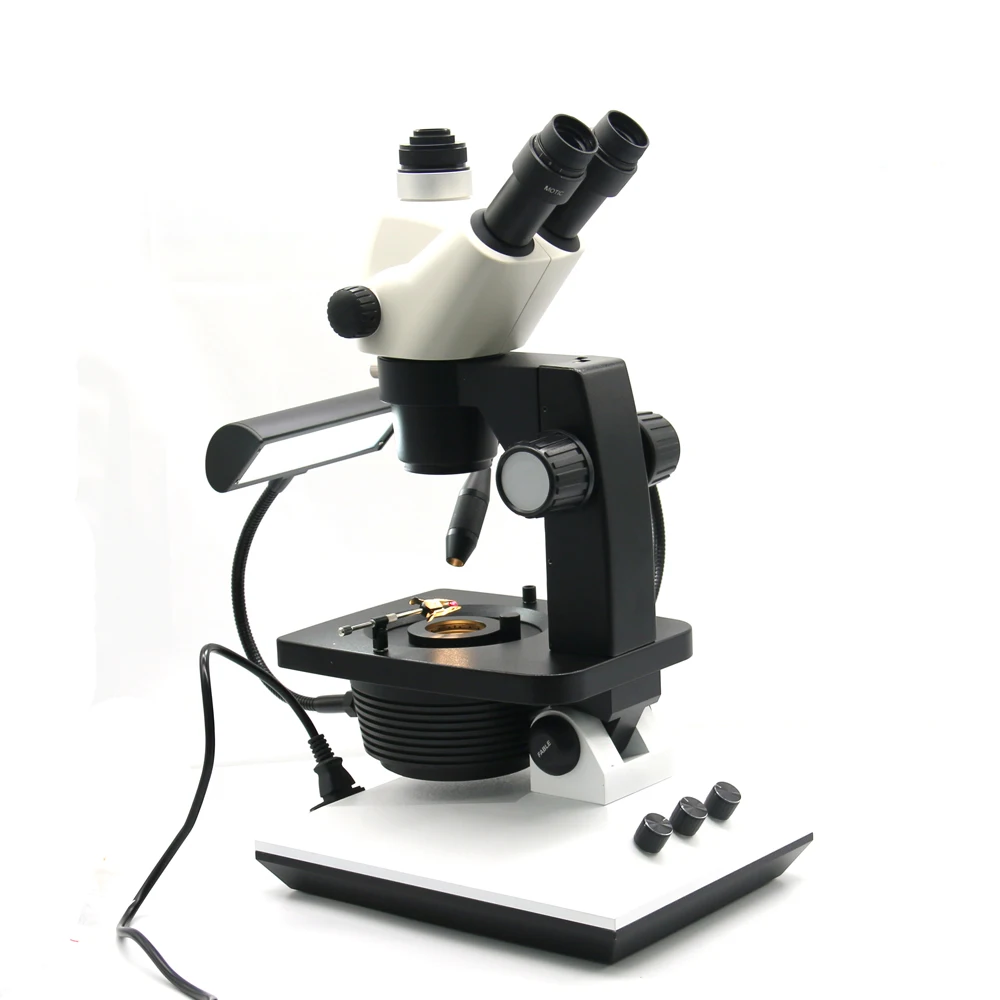

Fable 10W lighting mode Swing-arm 7.5-50X TRINOCULAR Gem Microscope FGM-R6S-171T-C40

Specification:

* Adjustable automatic locking structure, avoid long time working and wear down lead to gliding;

* Humanized design, both sides with gem clamp mounting hole;

* Equip light beam diameter 2-42mm continuous adjustable diaphragm, ring dark filed DIFFUSER which fixed without screw;

* adopt latest patent illumination system (patent technology 201120391412.4), bright field and dark field complete separation, optimized dark field and bright field;

* Addition orthogonality polarized conoscope system, add more key evaluation basis that the gems under orthogonality polarizing;

* Equipped with Trinocular Motic SMZ-171 lens: magnify upright image, high definition, vivid color, strong three-dimensional sense, and wide field of vision. The optical components are processed by special film layer to form a good contrast flat image in the ultra-wide field of vision, and the field of view edge image is clear and bright.7.5X-50X continuous precision doubling, doubling ratio 1:6.7;
The operating distance is 110mm, the eyepiece tube is tilted 45 degrees relative to the horizontal direction, and the pupil distance adjustment range is 48mm-75mm.

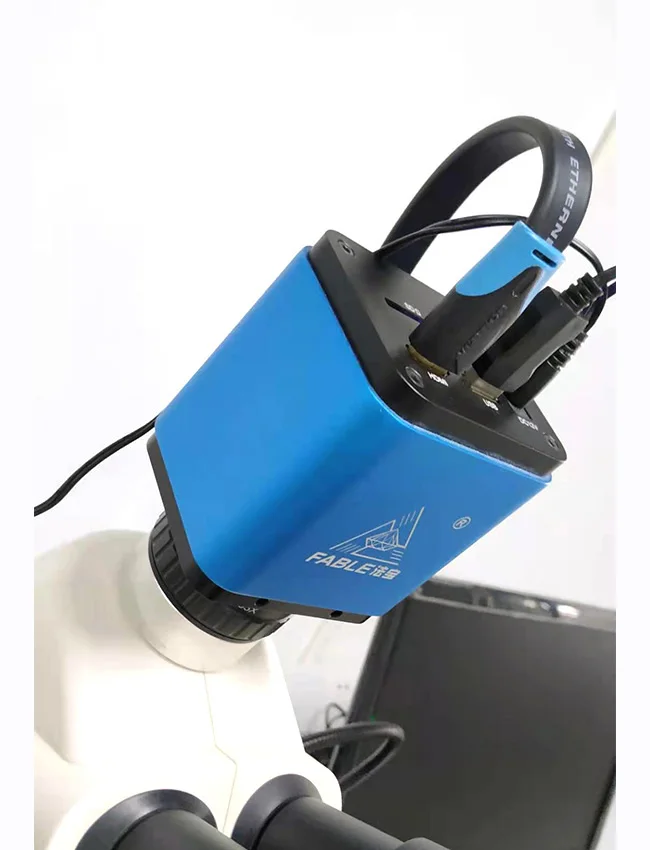

* With Camera CCD(C40)

Specification:

C-mount camera with Sony high-sensitivity CMOS sensor;
HDMI & WiFi can achieve simultaneous output;
When used as an HDMI camera, built-in mouse control software XCamView, all camera functions can be realized by USB interface mouse operation XCamView software; and support multi-language operation interface;
output resolution:1920*1080 (1080P)
realize 2.0M pixels (1920*1080) (AM1080P-HD);
realize SD card storage of 1080P video stream (asf format); When used as a WiFi camera, insert the USB interface WiFi module, which can be freely connected with ToupView/ToupLite software, and supports hot-swappable use; Ultra-Fine color engine ensures accurate color reproduction; Advanced video and image processing application software ToupView is provided with the camera;
Provide Windows/Linux/OSX multi-platform standard SDK;
