Прямая продажа с завода все модели самосвалов Германия benz Япония hino самосвалы грузовики тракторы для продажи в Дубай
4 331 111,80 ₽ - 4 364 006,32 ₽
Самосвал Sinotruck HOWO 380 л.с. 400
- Категория: >>>
- Поставщик: Liangshan Linghangzhe Automotive Trading Co. Ltd.
Сохранить в закладки 1601240483366:
Описание и отзывы
Характеристики
Factory Direct Sale, More Than 10 Years
Our Main Products Heavy Trucks, Electric vehicles and Construction Machinery. Like Brand SINOTRUK, SHACMAN, DONGFENG, WULING, FOTON ETC.... include tractor trucks, dump trucks, cargo trucks, trailer truck, Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader.
Products Description
SINOTRUK HOWO Dump Truck | ||
Chassis Model | ZZ3257N3847B1 (Left/ Right Hand Driving Type Optional) | |
Driving type | 4X2 6x4 8X4 4X4 6X6 8X8 | |
Engine | Model: WD615.47, Euro 2, 371 HP | |
6-cylinder in-line with water cooling, turbo-charging and intercooling | ||
Displacement: 9.726 L | ||
371HP / 340HP / 340HP / 380HP / 400HP / 430HP, Euro II / V | ||
Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance | |
Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) | |
Front Axles | VGD95 9500kg with drum brake system | |
Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 | |
Front suspension | 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension | 12 pcs leaf springs with bogie spring and stabilizer | |
Steering System | famous brand power steering, model ZF8118 , hydraulic steering with power assistance | |
Braking System | Front drum rear drum brake, four-circuit protection valve | |
Service brake: dual circuit compressed air brake | ||
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | ||
Tires | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre | |
Fuel Tank Volume (L) | 300 | |
Dead Weight | 12020/8630 | |
Gross Vehicle Weight (kg) | 25000 | |
Rated Loading Weight (kg) | 12850; 12640 optional | |
Overall Dimension | 8650x2550x3500 mm | |
Wheelbase (mm) | 3800+1350 | |
Min.Ground Clearance (mm) | 314 | |
Approach/Depart Angle(°) | 19/ (27/65) | |
Gradeability (%) | ≥50 | |
Min. Turning Diameter (m) | 15 | |
Cargo Body Size (LxWxH) | 5600x2300x1500 option | |
Cargo Body Volume (m3) | 19 option | |
Our adaptable Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously engineered to meet all
your heavy-duty hauling requirements efficiently. It's the perfect solution for those in need of reliability and versatility in
their transport tasks.
Meticulously crafted for excellence, our dump trucks feature a robust chassis, spacious tipping box, and a powerful hydraulic
cylinder. These premium features make them ideal for transporting sand, stone, gravel, and more. As a premier supplier, Jining
Liangshan Linghangzhe Automobile offers a variety of configurations including 4x2, 6x4, and 8x4 models, ensuring we meet
your specific needs seamlessly.
Advantages of this dump truck are as follows:
1. Perfect for earthwork, gravel, and bulk materials, ensuring versatile use and high adaptability.
2. High production efficiency with a specific unloading angle, designed to minimize downtime and maximize productivity.
3. Significant transportation cost savings, making it a cost-effective choice for any business.
4. Customized designs to meet diverse customer needs, providing tailored solutions for any requirement.
Dump Truck Description:
The loading carriage automatically tips over for unloading at a specific angle, significantly saving unloading time and labor.
This innovation shortens the transportation cycle, enhances production efficiency, and reduces costs. Truly a commonly used
special transport vehicle.
1. Classified by appearance: Single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer,
and three-axle semi-trailer dump trucks-offering a variety of options to suit different needs.
2. Classified by purpose: Agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks-each
designed for specific industry requirements.
3. Classified by driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks-catering to various operational preferences.
4. Classified by use: Mining dump trucks for coal, sand, and gravel; environmental sanitation and green dump trucks for garbage
transportation-delivering specialized solutions.
5. Classified by car rollover direction: Front lift, rollover dump trucks, and two-way side dump trucks, primarily used in
construction projects-ensuring the right fit for the job.
your heavy-duty hauling requirements efficiently. It's the perfect solution for those in need of reliability and versatility in
their transport tasks.
Meticulously crafted for excellence, our dump trucks feature a robust chassis, spacious tipping box, and a powerful hydraulic
cylinder. These premium features make them ideal for transporting sand, stone, gravel, and more. As a premier supplier, Jining
Liangshan Linghangzhe Automobile offers a variety of configurations including 4x2, 6x4, and 8x4 models, ensuring we meet
your specific needs seamlessly.
Advantages of this dump truck are as follows:
1. Perfect for earthwork, gravel, and bulk materials, ensuring versatile use and high adaptability.
2. High production efficiency with a specific unloading angle, designed to minimize downtime and maximize productivity.
3. Significant transportation cost savings, making it a cost-effective choice for any business.
4. Customized designs to meet diverse customer needs, providing tailored solutions for any requirement.
Dump Truck Description:
The loading carriage automatically tips over for unloading at a specific angle, significantly saving unloading time and labor.
This innovation shortens the transportation cycle, enhances production efficiency, and reduces costs. Truly a commonly used
special transport vehicle.
1. Classified by appearance: Single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer,
and three-axle semi-trailer dump trucks-offering a variety of options to suit different needs.
2. Classified by purpose: Agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks-each
designed for specific industry requirements.
3. Classified by driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks-catering to various operational preferences.
4. Classified by use: Mining dump trucks for coal, sand, and gravel; environmental sanitation and green dump trucks for garbage
transportation-delivering specialized solutions.
5. Classified by car rollover direction: Front lift, rollover dump trucks, and two-way side dump trucks, primarily used in
construction projects-ensuring the right fit for the job.

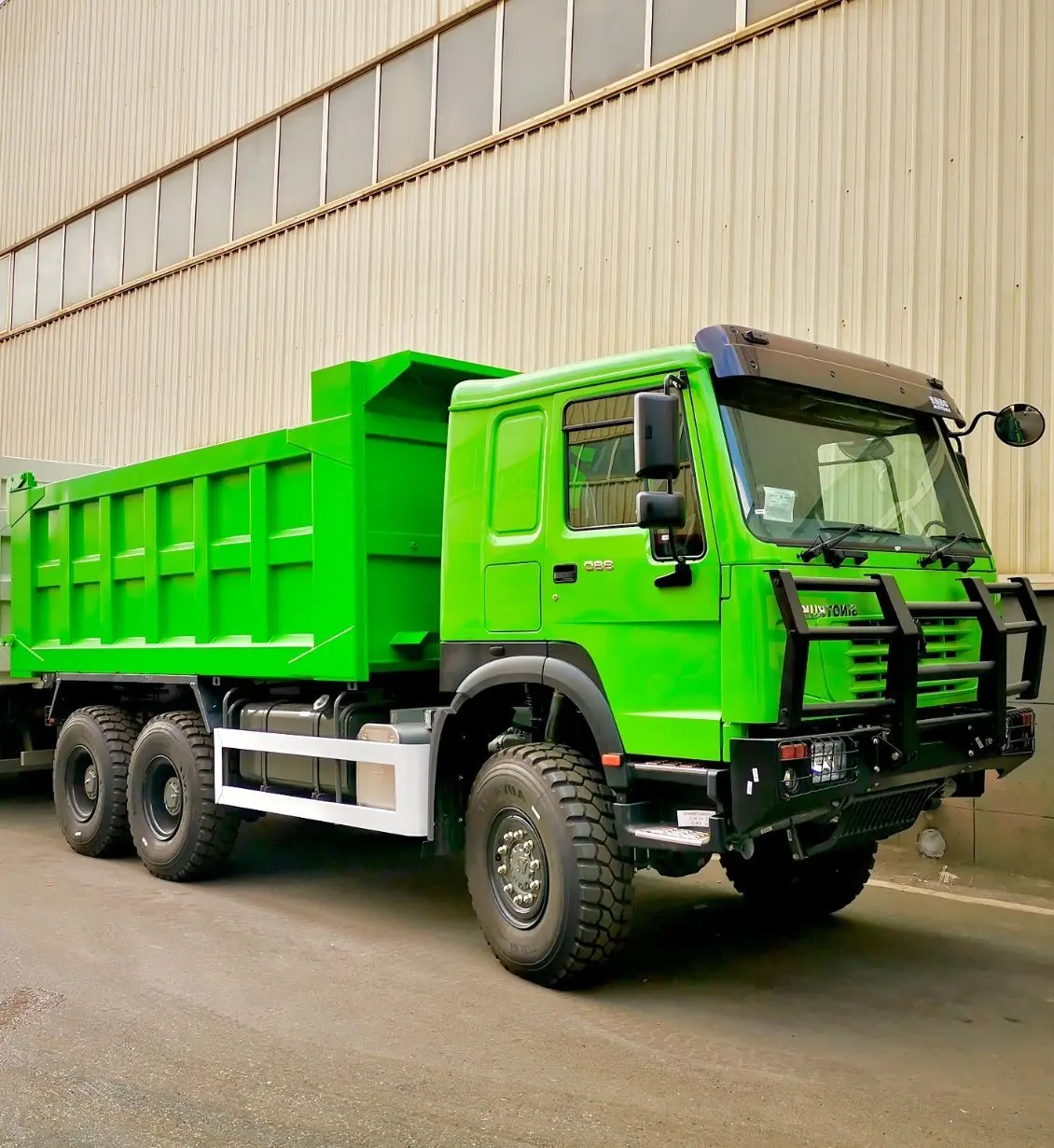

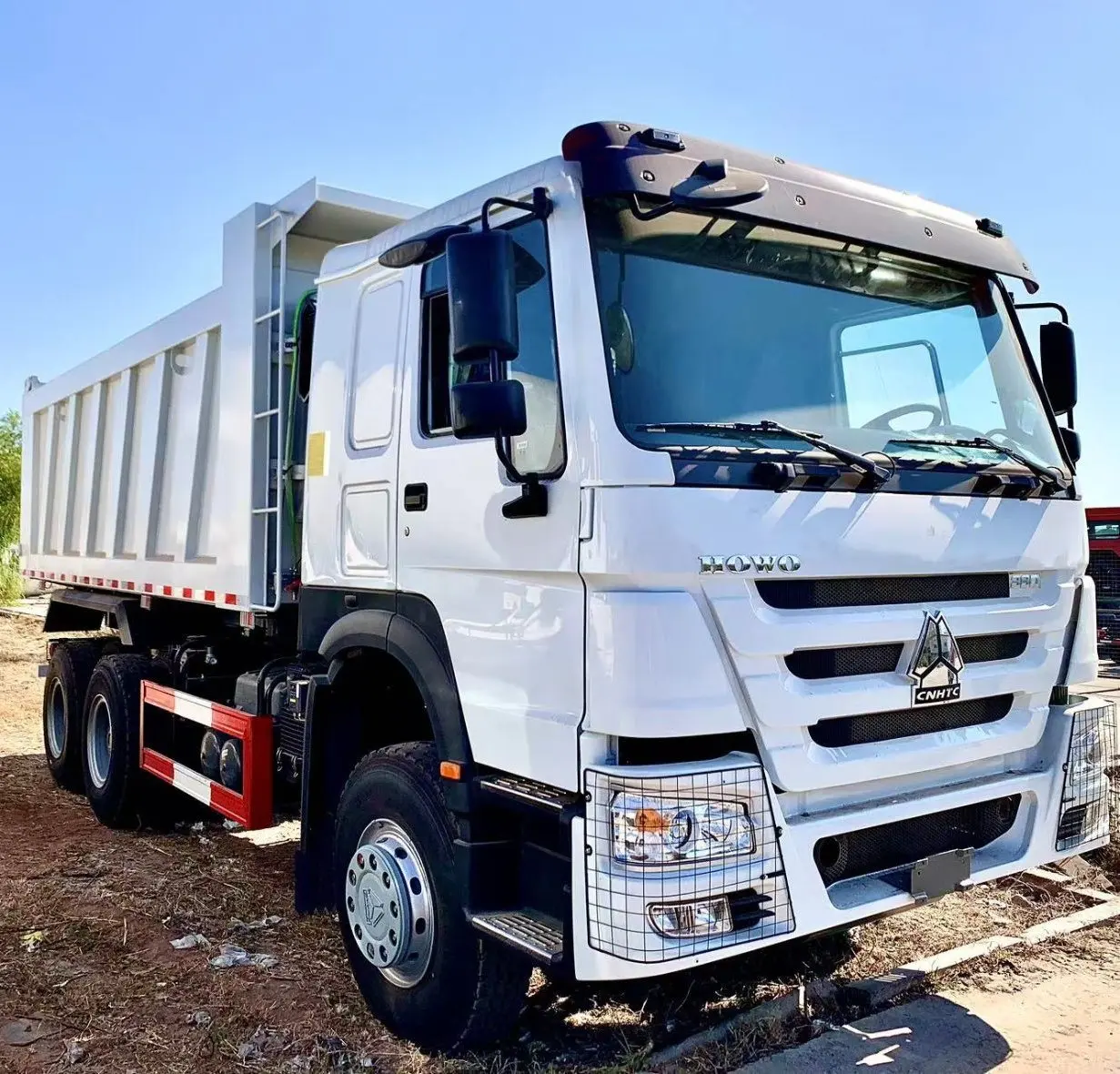

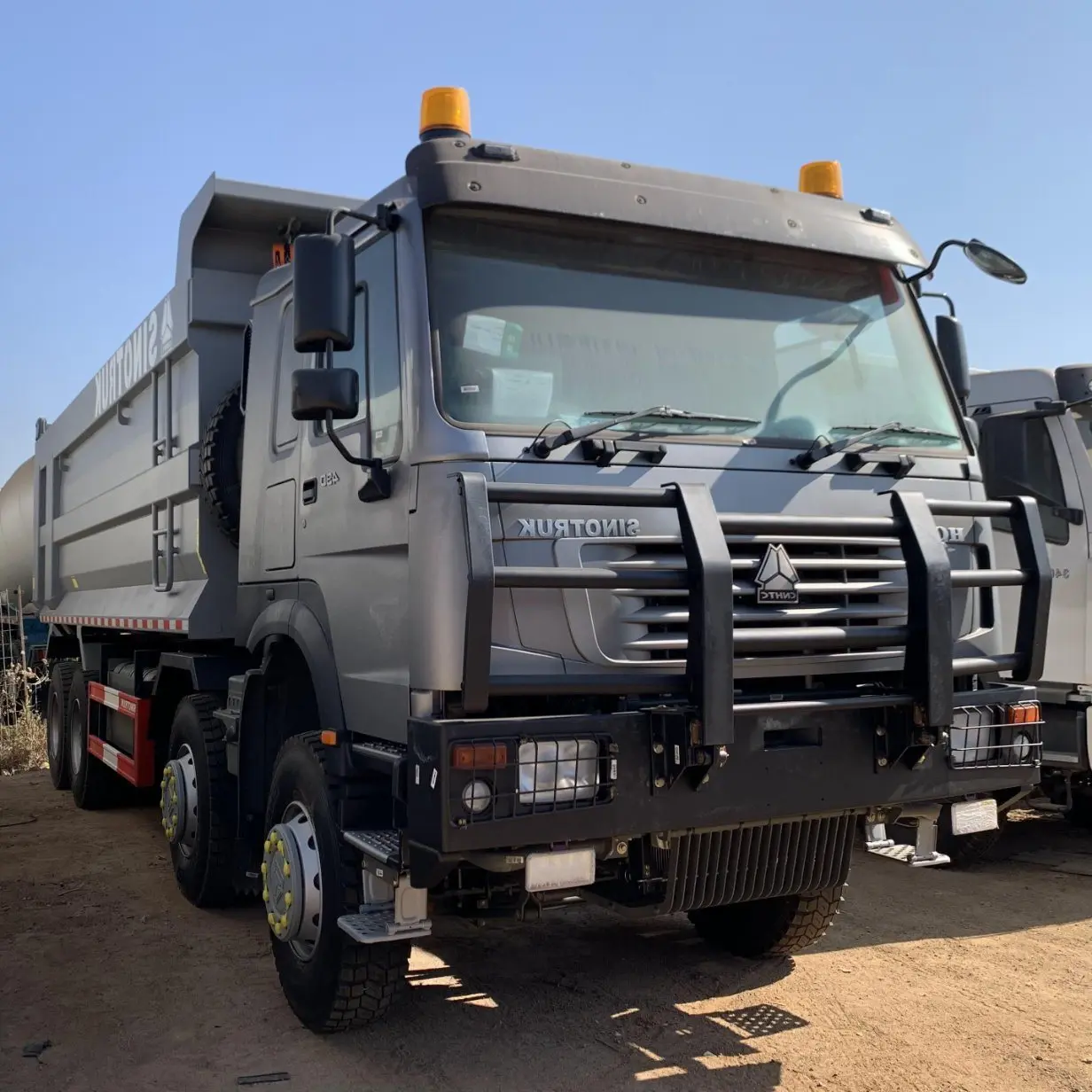

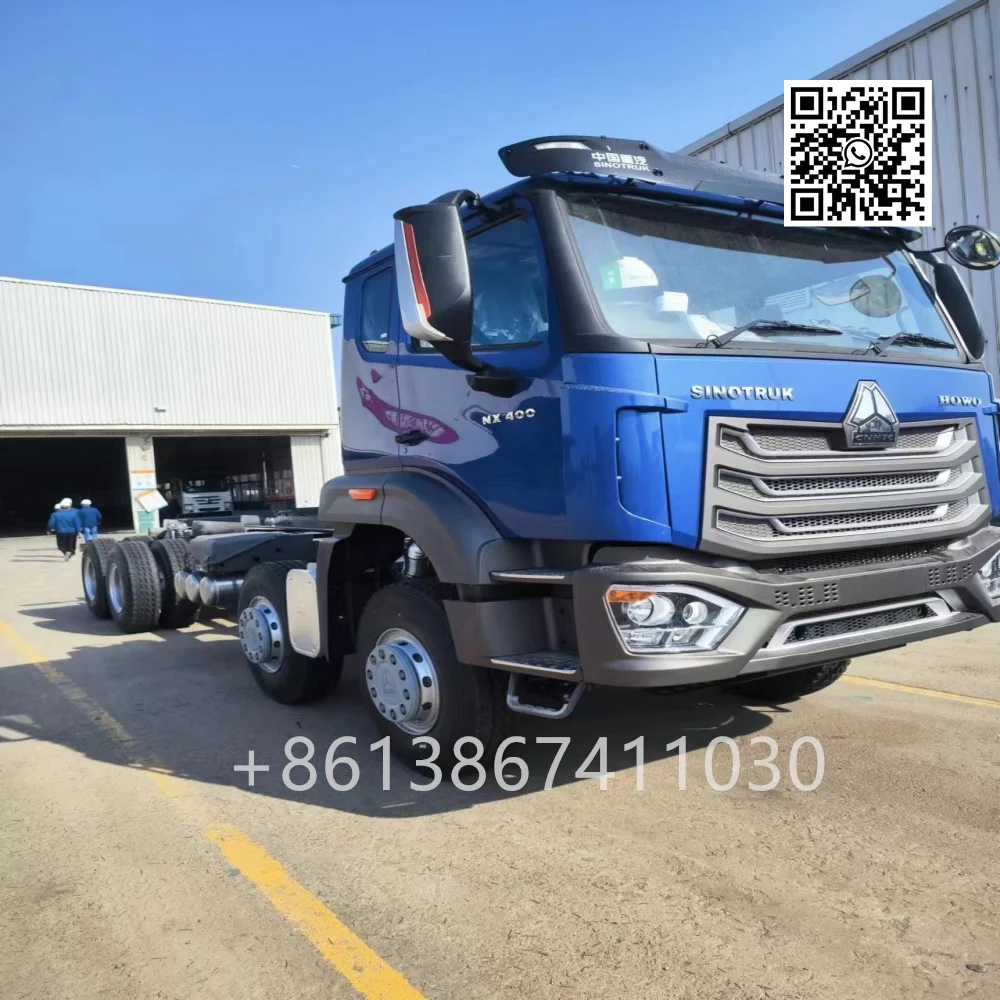

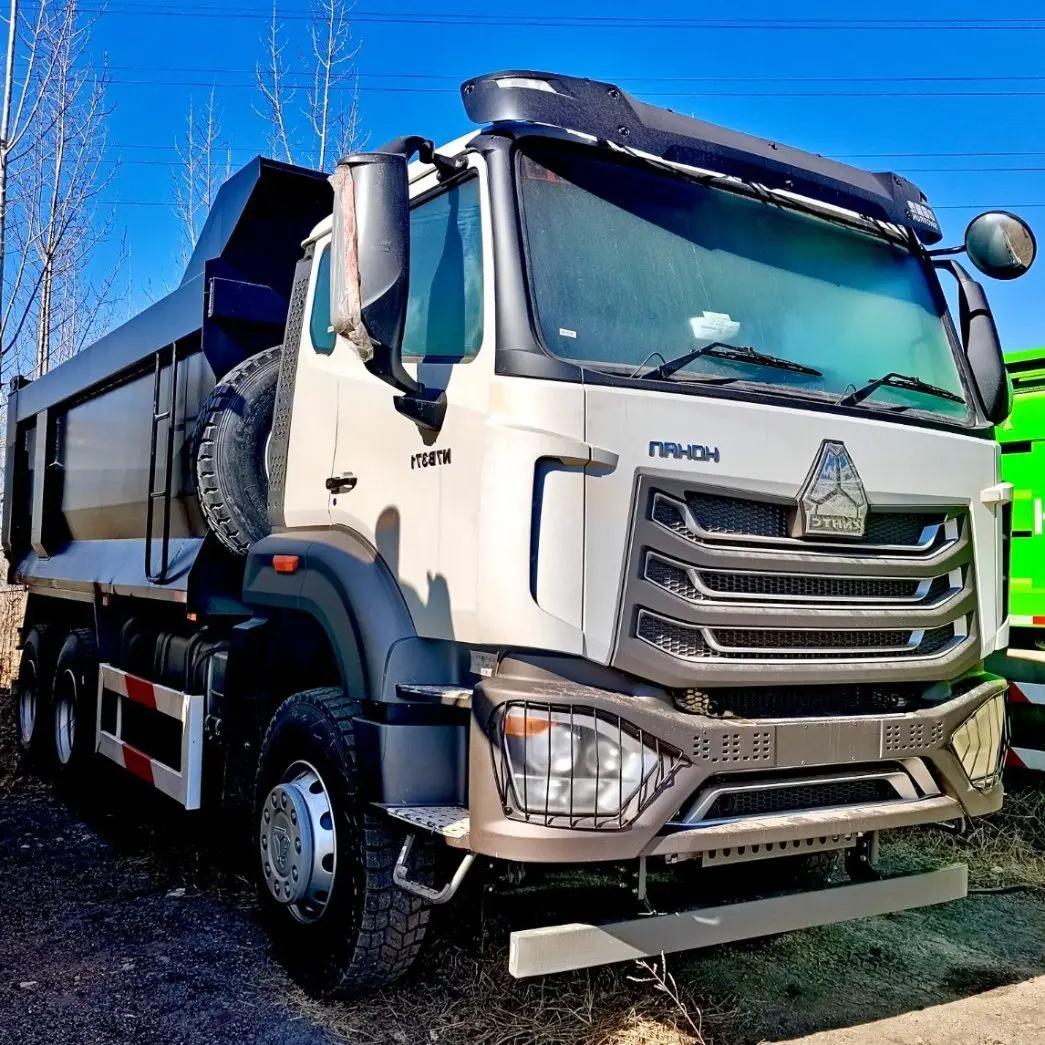

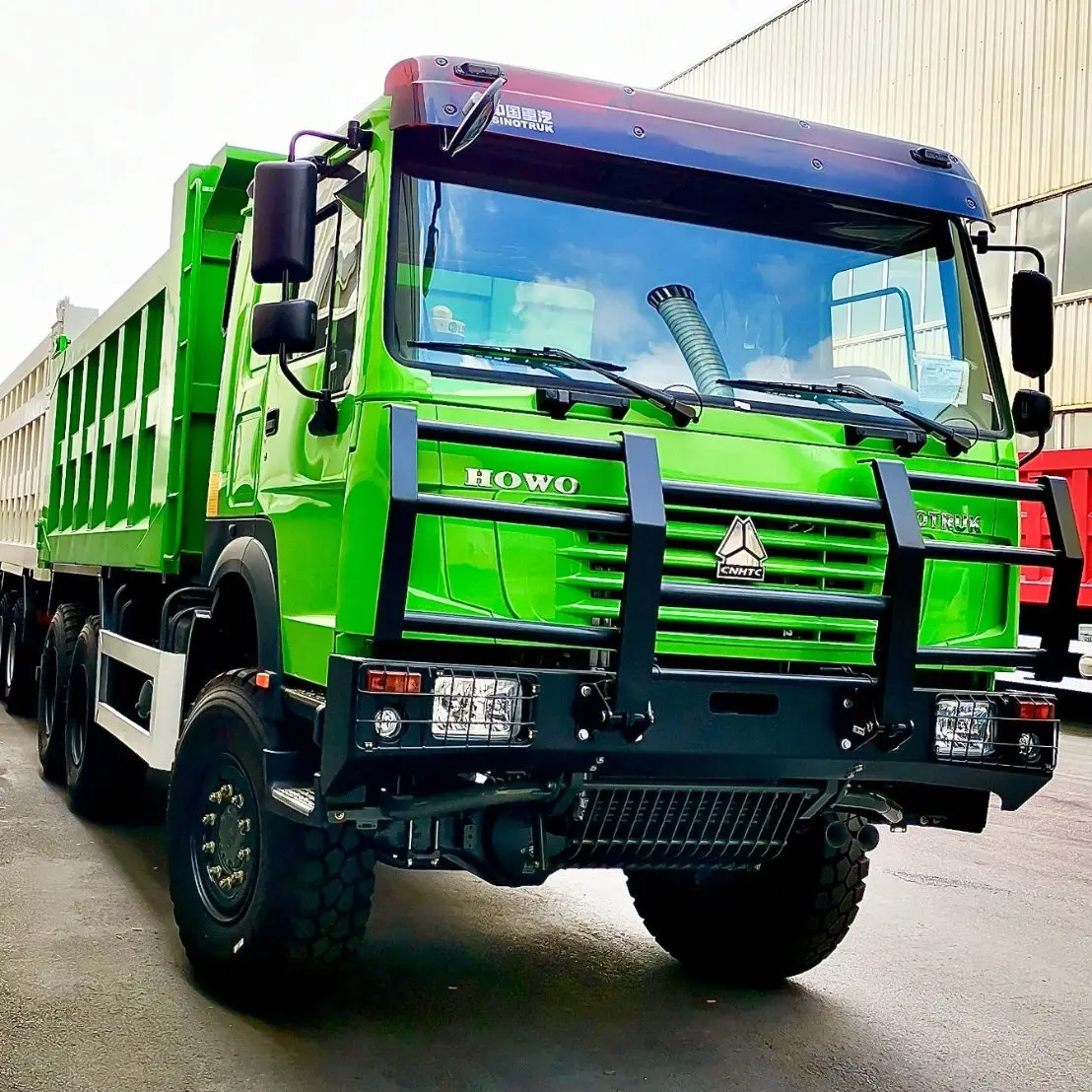

Details Images
Company Profile
Welcome To Our Factory
Liangshan Linghangzhe Automobile Co., Ltd., founded in May 2012, is a special vehicle manufacturing enterprise integrating technology innovation, intelligent process equipment, comprehensive management information ability and integration. The company is mainly composed of two industrial parks: special vehicle industrial park and crane industrial park, with more than 200 products in seven series covering dump trucks, semi-trailers, tank truck, truck crane, loader crane, cold chain logistics transport truck and multi-wheel drive special vehicle.
International Market
Excellent after-sales service
Liangshan Linghangzhe Automobile Co., Ltd. has a stock car warehouse, parts warehouse and vehicle refurbishment workshop in Liangshan. All exported vehicles will be cleaned, beautified, maintained, repaired and modified in accordance with Chinese laws and application conditions to maximize the quality of vehicles.
At the same time, we have offices and car sales shops in Almaty, Kazakhstan and Bishkek, Kyrgyzstan, to provide customers with the fastest delivery speed and better after-sales service.
Our best-selling trucks are Sinotruk, Shacman, Beiben, FAW, Dongfeng, Mercedes-Benz, etc., no matter what brand of trucks you need, we can meet you, looking forward to working with you.
At the same time, we have offices and car sales shops in Almaty, Kazakhstan and Bishkek, Kyrgyzstan, to provide customers with the fastest delivery speed and better after-sales service.
Our best-selling trucks are Sinotruk, Shacman, Beiben, FAW, Dongfeng, Mercedes-Benz, etc., no matter what brand of trucks you need, we can meet you, looking forward to working with you.
Product packaging
Our Partners
