2024 XTool IP919 полный диагностический инструмент для автомобилей FCA ECU кодирование двунаправленный сканер автомобиля Профессиональный с 42 + услугами
114 619,76 ₽ - 115 060,60 ₽

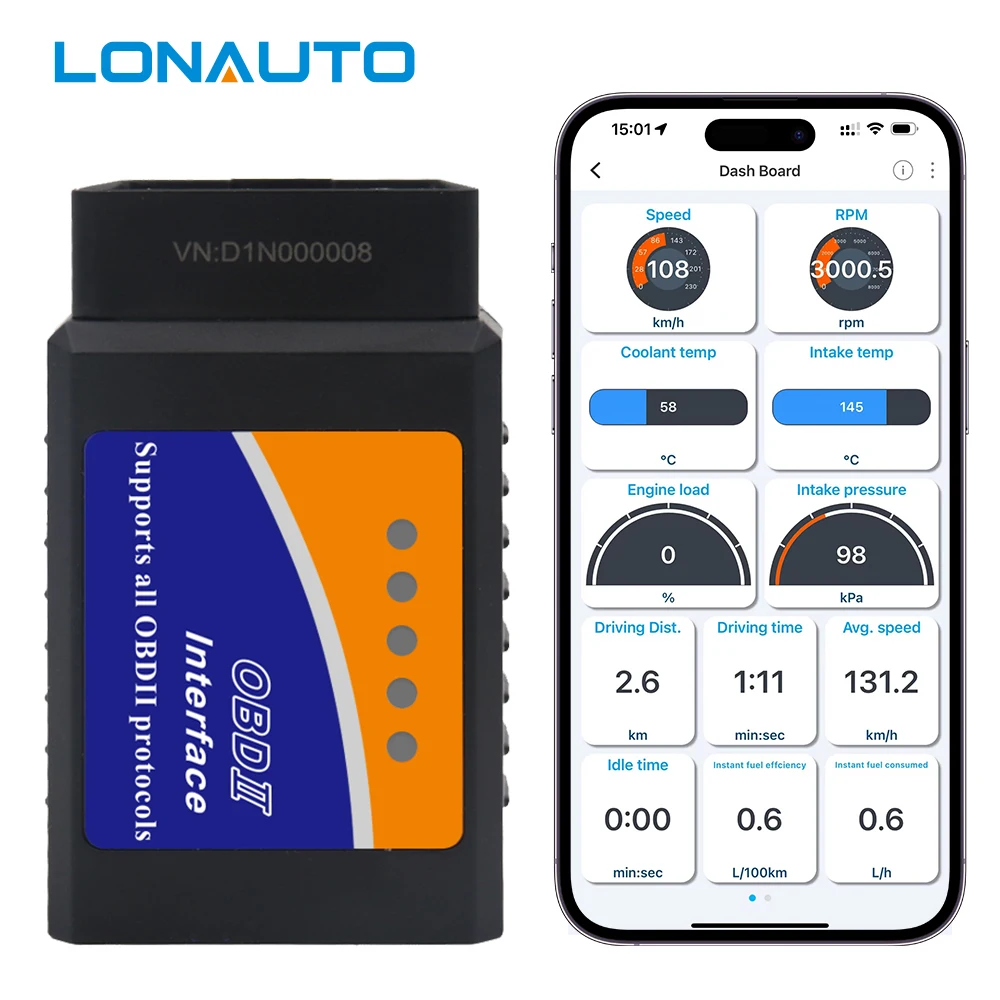

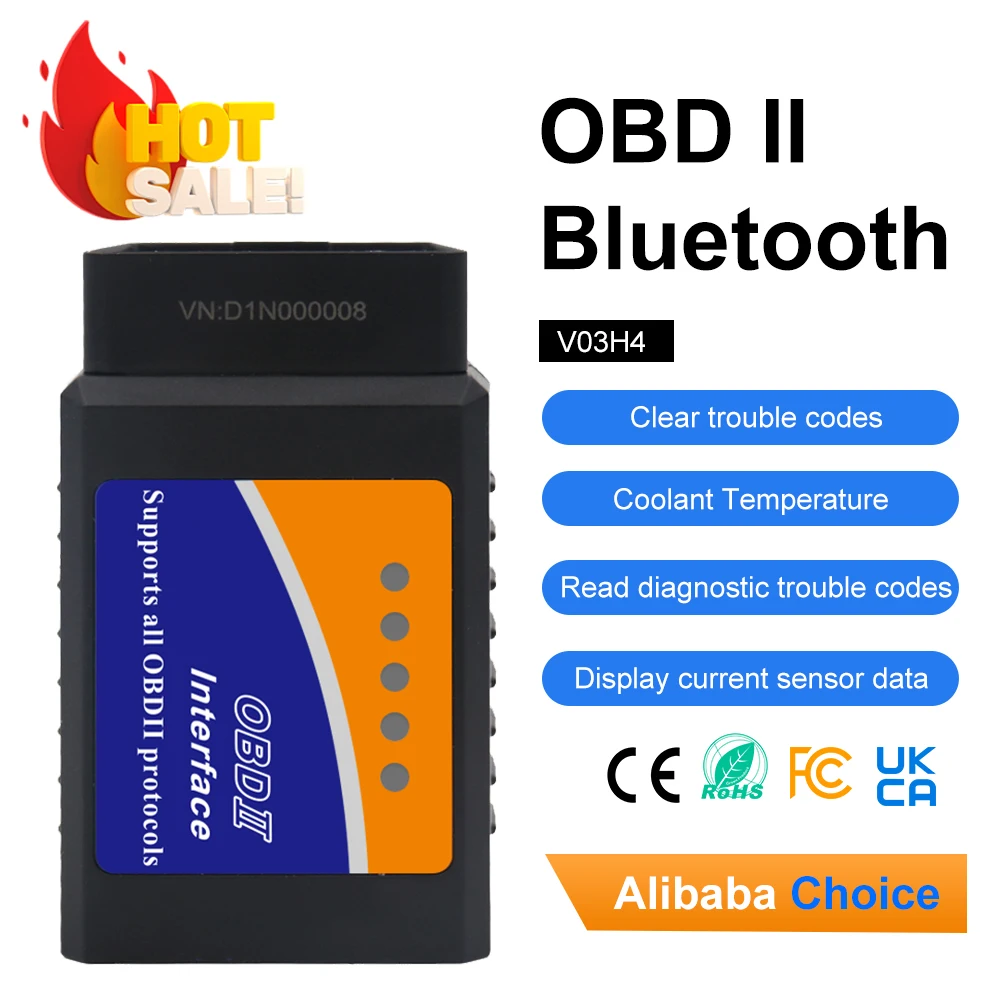

Source Factory V03H4 ODB 2 BLE 4 0 elm327 автоматический сканер с несколькими языками поддержка всех функций OBD2 диагностический
- Категория: >>>
- Поставщик: Shenzhen Lonauto Technology Co. Ltd.
Сохранить в закладки 1601240535113:
Описание и отзывы
Характеристики
Product Description
Product Specifics:
Communication method: Bluetooth 4.0
Master chip: No master chip.Compatible platform: Android / iOS/Windows
Firmware version: V 1.5
Operating voltage: 9V~16V
Operating current: 16mA
Operating temperature: -40°C~85°C
Operating voltage: 9V~16V
Operating current: 16mA
Operating temperature: -40°C~85°C
Storage temperature: -30°C~80°C
Operating humidity: <60%
OBDII protocols supported: OBDII 9 protocols
OEM/ODM: Yes
Shell material:ABS
Operating humidity: <60%
OBDII protocols supported: OBDII 9 protocols
OEM/ODM: Yes
Shell material:ABS
Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Software & Platform:
√ Compatible software:
For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;
For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
For Symbian version: OBDScope.
√ Compatible platform：
Support System: Windows XP, Windows 7/8, Windows 10, Android, iOS, Symbian.
√ Compatible software:
For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;
For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
For iOS version: inCarDoc, DashCommand, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
For Symbian version: OBDScope.
√ Compatible platform：
Support System: Windows XP, Windows 7/8, Windows 10, Android, iOS, Symbian.
Product Features:
The program helps you perform the following
operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND many others...
operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND many others...
Other Information: | ||
Packing list | 1 x Bluetooth 4.0 OBDII 1 x Static Bag | |
Warranty | Certified CE, FCC, RoHS compliant Warranty: 1 year | |
Support OEM&ODM (optional) | Bluetooth name Product label Packing box, manual Product shell silk-screen Product shell color / shape Product firmware development, feature upgrade.. | |
Payment | Alibaba Trade Assurance, Paypal, West Union, T/T and Bank Transfer are acceptable. Kindly note that a few transaction fee will be charged by Paypal. | |
Delivery | For small order, products will be delivered with 1-3 working days after payment. For OEM order, please check the shipping time with us. We can send out goods by expressUPS/DHL/TNT/FDEX/EMS,ocean shipping are Available. | |
Details Images
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: If customization order,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. If ready-to-ship order, 100% payment done well before shipping.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDP,DAP,CPT.
Q4. How about your delivery time?
A: Generally, it will take 3 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: If customization order,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. If ready-to-ship order, 100% payment done well before shipping.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDP,DAP,CPT.
Q4. How about your delivery time?
A: Generally, it will take 3 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары
V03H4 bluetooth elm 327 автоматический диагностический инструмент bble 4 0 obd obd2 elm327 v1.5 mini OBDII приложение Автомобильный сканер для Android/IOS считыватель кодов
126,75 ₽ - 167,53 ₽
Новый сканер Nexzcheck NC610 2 в 1 OBD2 12 В 24
4 188,03 ₽ - 4 408,46 ₽
2024 диагностический сканер OBD2 | WT01 цифровой автомобильный тестер тормозной жидкости гидравлический анализатор влажности жидкости/масла DOT3/4/5.1
2 094,02 ₽ - 4 717,05 ₽
Профессиональный дилерский диагностический инструмент для автомобилей BENZ
41 880,30 ₽ - 55 105,65 ₽
Диагностика для MB STAR C6 VCI мультиплексор DoIP с программным обеспечением Xentry das wis epc 12v & 24 автомобильный диагностический инструмент планшетом F110
88 169,04 ₽ - 121 232,43 ₽
Супер M6 pro DOIP Xentry DAS ECP WIS SD 12V/24V для тяжелых грузовиков PK C5 C6 мультиплексор диагностического инструмента Benz FUSO
41 880,30 ₽ - 49 595,09 ₽

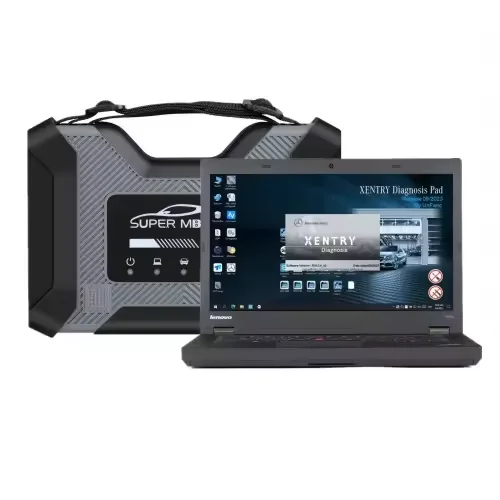

Super MB Pro M6 + полная версия DoIP для B-enz с программным обеспечением SSD предустановленным L-enovo T440P ноутбука I7 CPU 8GB Memory
