Высококачественное уплотнение масляного цилиндра LongCheng из полиуретана пыленепроницаемый Гидравлический масляный уплотнитель Un Uhs Dh
11,01 ₽ - 63,84 ₽
Аксессуары для ремонта автомобильного рулевого управления с гидроусилителем высокого давления
- Категория: >>>
- Поставщик: Dongguan Dier Seal Co. Ltd.
Сохранить в закладки 1601240584333:
Описание и отзывы
Характеристики
Product Description
The Power Steering Oil Seal is used in the power steering system of automobiles. Its function is to prevent dust, sand, and water from entering the steering system, keep gears lubricated, and ensure the normal operation of the power steering system.
To replace the steering wheel oil seal, first remove the steering wheel, loosen the dust cover, and loosen the disassembly steering wheel and lever. Next, it is necessary to remove the inner retaining spring limit, install a new oil seal, and apply some sealant during installation. Finally, add the steering oil to the low point to avoid excessive oil pressure. Please note that the steering gear oil seal is an important component of the steering gear, which plays a crucial role in the steering function and driving safety of the car.
Tyeps of Power Steering Oil Seal
Hot selling specifications of Power Steering Oil Seal:
| TYPE | SIZE(mm) | TYPE | SIZE(mm) | TYPE | SIZE(mm) |
| TC4Y | 12*21 *7/8 | TC4Y | 20*36*7 | GNB | 23*37*9 |
| TC4Y | 12*26.8*10 | TC4Y | 20*36*7/8 | SC4 | 23*38*6.5/7 |
| CNB8 | 12*27* 10/10.5 | TC4Y | 20*36*7/8 | CNB | 23*38.2*8.5 |
| TC4Y | 15*21*5/6 | CNB | 20*38.5*8 | CNB1W11 | 23*39*8.5 |
| SC4 | 16*28*7 | TC4P | 20*39.62*6.35/8 | CNB1 | 23*40*9 |
| TB | 17*34*7.9 | CNB1 | 20*40* 7 | CNB | 23*41.2*8 |
| TC4P | 18*30*6.4/7 | TC4P | 20.65*34.14*7/7.7 | GNB2 | 23*34.2/38*8 |
| TC4P | 18.5*30*5/6.7 | TC4Y | 21*33*8/9.5 | SOAP | 23.3*37.5*6 |
| TCPW11 | 18.64*34.72*6.35/7.13 | CNB | 22*32*7 | SCYP | 23.36*29.75*4/6 |
| TC4P | 18.75*30*5/7.3 | CNB1W11 | 22*32*8 | SGNP | 23.5*29.9*4.5 |
| TC4P | 18.8*30*5/6 | TC4Y | 22*32*5/6 | CNB1W11 | 23*37.5*8.5 |
| ISZ | 19*29*5/6 | ISZ | 22*32*5/5.5 | CNB1W11 | 23.5*39*8.5 |
| TC4P | 19*29*7/8 | TC4P | 22*34*6/6.4 | SC | 24*29.7*4 |
| TC4P | 19*29*7.7/9 | CNB | 22*35*8.5 | TG4P | 24.33*5/5.5 |
| TC4P | 19*29* 7/7.8 | CNB13W11 | 22*35*9/10 | CNB1W11 | 24*35*8.5 |
| TC4P | 19*30*5/6 | CNB1 | 22*36*7 | TC4P | 24*36*5.5/6.1 |
| TC4Y | 19*30*5/6 | TC4Y | 22*36*7/8 | CNB13W11 | 24*36.5*9/10 |
| TC4Y | 19*31*5/6 | TC4Y | 22*36*7/8 | CNB1 | 24*37*8.5 |
| TC4P | 19*32*6/7 | CNB | 22*37*9 | GNB1 | 24*38*7.5 |
| TC4PW11 | 19*32*6/7 | TC4P | 22*37*7.5/9.5 | CNB1 | 24*38*8 |
| TC4P | 19*32*7/8 | CNBW11 | 22*38*8 | GNB1 | 24*38-8.5 |
| TC4P | 19*32*6.5 | CNBW11 | 22*38*8 | GNB1W11 | 24*38.2*8.5 |
| TG4P | 19'35*5/5.5 | CNB1 | 22*38.2*8 | CNB1W11 | 24*38.2*8.5 |
| TC4Y | 19*38*7/7.5 | CNB1 | 22*38.2*8 | CNB | 24*38.2*8.5 |
| TG4P | 19*38* 7/7.8 | CNB5 | 22*38.2*13/14.5 | CNB1W11 | 24*39*8.5 |
| TC4P | 19*38.1*6.5/9 | CNB5 | 22*382*13/14.5 | CNB11 | 24*39*16.5 |
| TC4P | 19*38.1 *6.5/9 | TG4P | 22.3*32.2*5/5.7 | CNB1 | 24-40* 7 |
| TC4P | 19*38.1*7/7.8 | CNB2 | 22.5*34.3/40.2*32/7.5 | CNB1 | 24*40*8 |
| TC4P | 19.05*34.6*6.3/7.3 | GNB3 | 23,32*6/8.3 | GNB1W11 | 24*40*8 |
| TC4P | 19.05*34.64 *6.28/9 | GNB22 | 23*32.7*5.5/7.5 | GNB1W11 | 24*40*8.5 |
| TC4P | 19.5*39.7*6.5 | SC4 | 23*34*6.5 | CNB | 24*40* 8.5 |
| TC4P | 20*34*7 | 23*34.3*6.35 | GNB1 | 24*41*8.5 | |
| CNB | 20*35*8 | CNB1 | 23*36.5*8 | CNB | 24*41*8.5 |
| TC4 | 20*36*7 | CNB1 | 23*37*8.5 | CNB1 | 24*42*8 |
| TYPE | SIZE(mm) | TYPE | SIZE(mm) | TYPE | SIZE(mm) |
| GNB1 | 24*42*8.5 | GNB | 25.5*39*8.5 | GNB*W11 | 26*45*8.5 |
| CNB1W | 24*42.5*8 | GNB | 25.5*39.5*8 | CNB | 26*45.2*7 |
| GNB1W11 | 24*42.5*10 | GNB | 25.5*39.5*8.5 | SCNY | 26.85*36.9*3.5/7 |
| CNB5 | 24*42.5*13 | CNB | 25.5*41* 8.5 | SCN2P | 27*37* 3.5/7 |
| CNB13W11 | 24*42.5*9/10 | GNB | 25.5*41.1*8 | TC4 | 27*37*7.5/9.5 |
| CNB5 | 24*42.5*13/14.5 | GNB1 | 25.5*42.5*8 | SCN2P | 27*37*7/3.5 |
| CNB1 | 24*43*8.5 | GNB | 25.5*44*8.5 | SC4P | 27*38*5.5 |
| CNB1 | 24*45*12.5 | CNB | 25.5*44*8.5 | CNB1 | 27*38*5.5 |
| CNB1W11 | 24.5*38*6.3 | GNB1 | 25.5*44*8.5 | SC4P | 27*38*5.5 |
| CNB | 25*35*8 | TC4P | 26*34*4.5/7 | TC4P | 27*38*7 |
| TC4Y | 25*35*7/8 | TCN2P | 26*34*4.5/7 | CNB1 | 27*38*85 |
| TC4Y | 25*35*9/10 | TC4P | 26*35*5.8/6.3 | TC4 | 27*39*10.5 |
| TC4P | 25*36*5/5.5 | SC4P | 26*35.5*6.5 | CNB1W11 | 27*40*8.5 |
| CNB | 25*37.5*7 | TG4P | 26*35.5*6.8/7.3 | CNB1 | 27*41*8.5 |
| SD7 | 25*38*7.5 | TC4P | 26*35.5*6/6.35 | CNB | 27*41*8.5 |
| CNB | 25*38*8 | SG4P | 26*37*7 | CNB | 27* 42*8.5 |
| CNB13 | 25*38*7/8 | TC4P | 26*37*7/8 | CNB | 27*43*85 |
| TC4P | 25*38*7/7.8 | CNB11 | 26*37.5*6.5 | CNB1W11 | 27*44*8.5 |
| GNB | 25*38.5*8 | SCNP | 26*38*6.5 | CNB1W11 | 27.5*39.6*7 |
| GNB | 25*39.5*8.5 | SC4P3W11 | 26*38*7 | CNB1W11 | 27.7*39*8.5 |
| TC4P | 25*40*8.9 | CNB | 26*38*7 | CNB1 | 27.7*40*8 |
| TC4P | 25*40,6.5/7.5 | TC | 26*38*8 | CNB1 | 27.7*40*8.5 |
| GNB1 | 25*41*7.5 | CNB | 26*38*8.5 | CNB1 | 27.7*42*8.5 |
| GNB1 | 25* 41.2*8 | CNB13W11 | 26*38*9/10 | CNB11W11 | 27.7*42*9/10 |
| GNB1 | 25* 41.2*8 | CNB13W11 | 26*38*9/10 | CNB13W11 | 27.7*42*9/10 |
| GNB1W11 | 25,4T8.5 | SCNP | 26*38*6.5/7 | CNB5W11 | 27.7*46*13/14 |
| GNB7 | 25*42*12.5 | GNB1 | 26*41*8.5 | CNB1 | 27.96*40*8 |
| GNB1W11 | 25*42.5*8.5 | GNB1W11 | 26*43*8.5 | TC4P | 28*35*5.8/6.3 |
| CNB7W11 | 25*42.5*12.5 | GNB1 | 26*43*8.5 | SC4P | 28*37*5 |
| GNB1W11 | 25*43*8 | CNB4 | 26*43*12.5 | SC4 | 28*38*7 |
| CNB1 | 25*43*8 | CNB | 26*44*8 | CNB7 | 28*38*7/9 |
| CNB | 25*44*8.5 | CNB1 | 26*44*8 | CNB7 | 28*38*15/17 |
| CNB | 25*45*8 | CNB1 | 26*44*8.5 | TG4P | 28*38*6.5/7 |
| GNB2 | 25*37.5/41.5*3.2/7.4 | CNB1 | 26*44*10 | TC4P | 28*38*7/7.5 |
| TYPE | SIZE(mm) | TYPE | SIZE(mm) | TYPE | SIZE(mm) |
| CNB11 | 28*39*15 | CNB1W11 | 30*42*8.5 | CNB1W11 | 32*44.5*8.5 |
| CNB3W11 | 28*39.2*4.2/6.5 | CNB1W11 | 30*42*8.5 | CNB1 | 32*50*8.5 |
| CNBW11 | 28*39.64*6.35 | TG4P | 30*42*7/7.5 | SC4P | 32.15*42.87*6.7 |
| GNB20 | 28*39.64*6.5 | GNB1 | 30*42.5*8 | SC4P | 32.7*42.7*6.5 |
| TC4P | 28*40*6/7 | GNB | 30*46*8 | CNB1 | 35*47*7 |
| ISZ | 28*40-6/7 | CNB1W11 | 30*46*8 | GNB | 35*50*8 |
| CNB1W11 | 28*41*8 | GNB | 30*46*8 | CNB1 | 35*50*8 |
| GNB1W11 | 28*41*8 | GNB1 | 30*46*8 | GNB | 35*50*8.5 |
| CNB20 | 28*41*8.5 | GNB1 | 30*46*8.5 | GNB1 | 35*53*8 |
| TC4P | 28*43*8 | GNB | 30*47*7 | TC4Y | 35*55*8/9 |
| SD7 | 28*43*8 | GNB1 | 30*48*8 | GNB1 | 35*56*8 |
| CNB | 28*44.5*8.9 | GNB1W11 | 30*48*8 | CNB1 | 35*57*8 |
| CNB | 28*48*8 | GNB1 | 30*48*8.5 | CNB1W11 | 35*61*9 |
| CNB1 | 29*42*8 | CNB11 | 30**50*8.5 | CNB1 | 35*61*9 |
| CNB1 | 29*42.5*8 | CNB1 | 30*50*8.5 | GNB | 36-50.5*9.5 |
| SCY | 29*43*7 | CNB11 | 30*50*9/10 | CNB | 38*51*8.5 |
| TG4P | 29*43*7/7.5 | CNB8 | 30*54*9/10 | CNBW11 | 38*51*8.5 |
| SCN2P | 29.75*23.36*4/6 | TC4Y | 32*40*7/8 | CNB | 56*70*5.5 |
| TC4Y | 30*40*6.5/7 | TC4Y | 32*44*8/9.5 | GNB15-BR | 57* 74.6*9/9.5 |
| TC4P | 30*42*6 | CNB7 | 32*44.5*7 | CNB1W13 | 60*74*8.5 |
If the specifications you require are not listed in the table, please contact us. We can also produce customized sizes

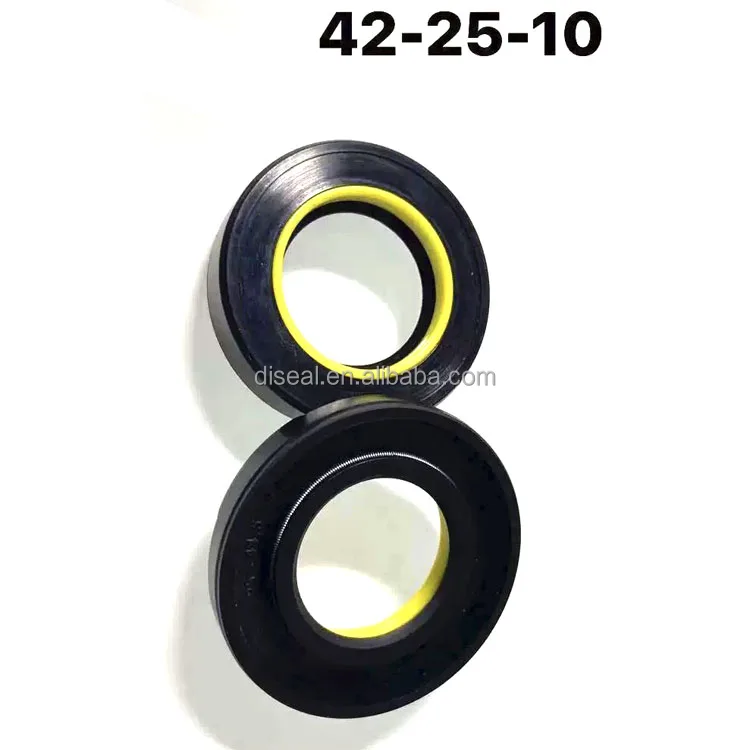

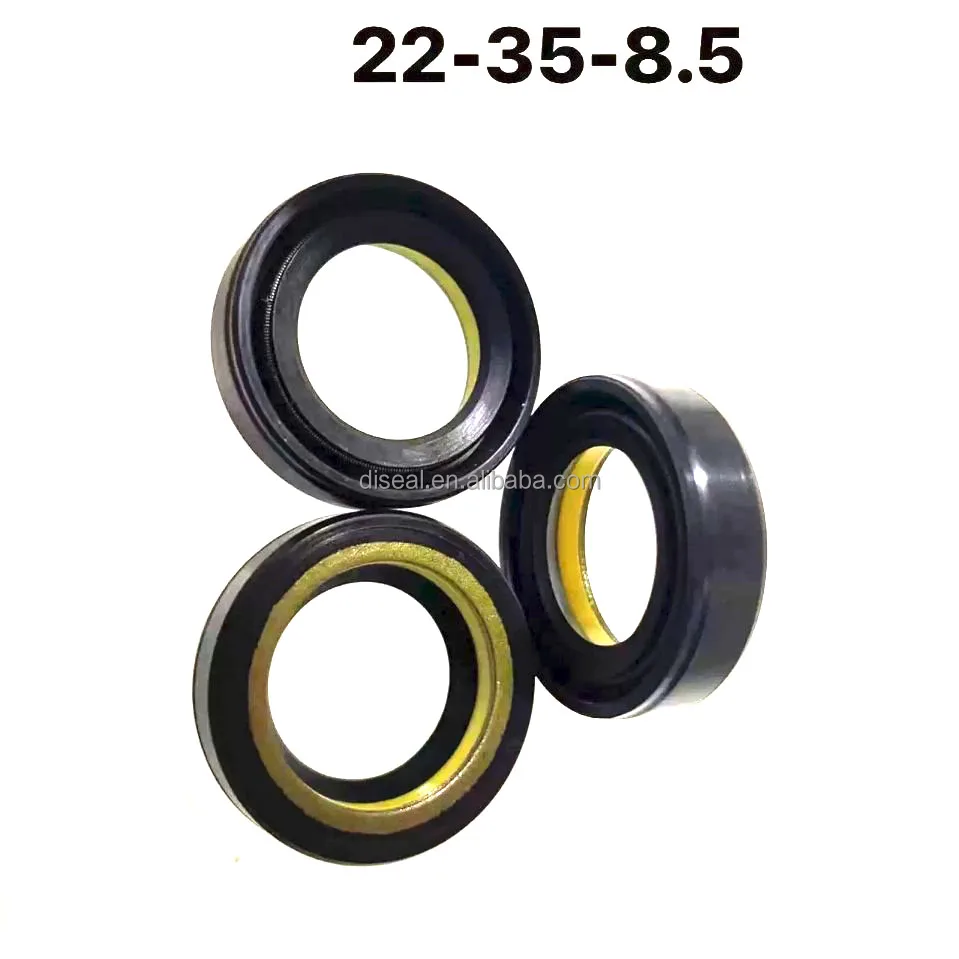

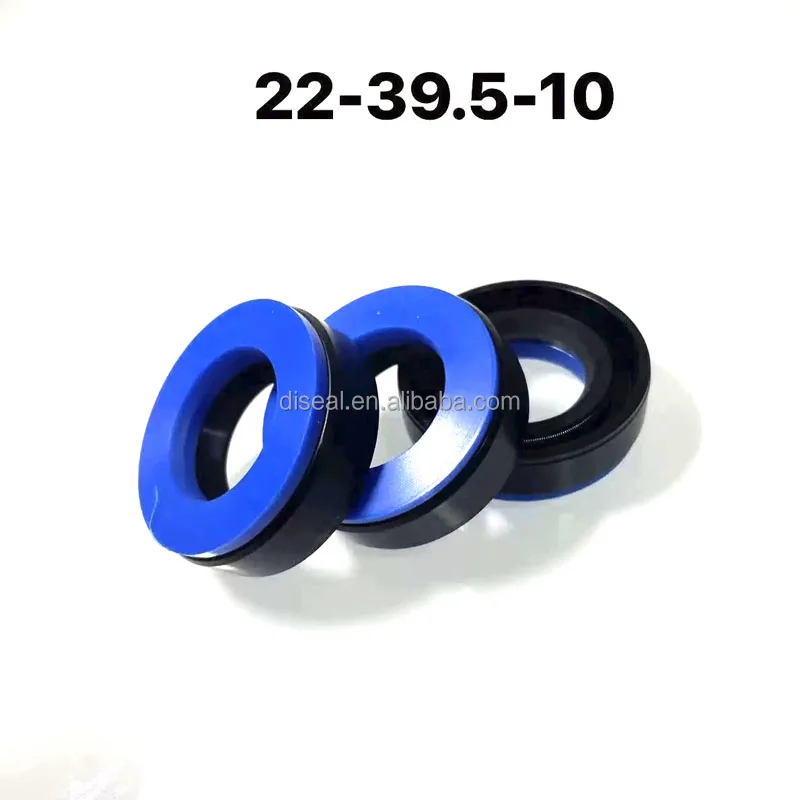

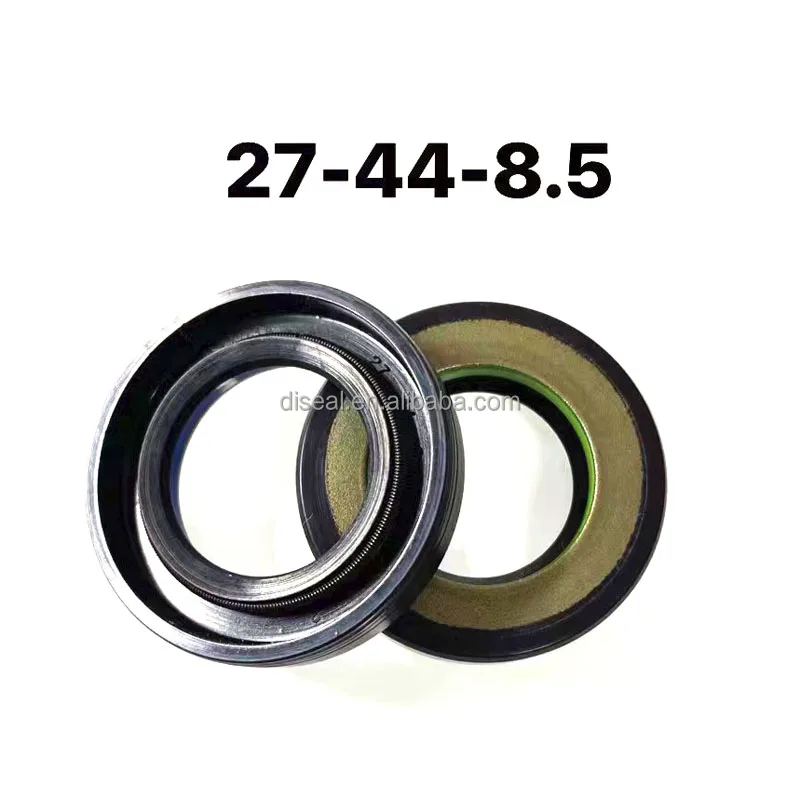

Detailed Images
Company Information
Diseals is specialized in standard sealing rings and custom rubber, plastic, and hardware products. 30,000 standard sealing rings are availible. Our leading products are O-Rings, Oil Seals, Hydraulic Seals and Pneumatic Seals, which are mainly used in automotive, mechanical engineering, stationary hydraulics, mobile hydraulics, pneumatics, fluid power engineering and electrical engineering, chemical industry, process engineering, oil and gas equipment, as well as agriculture industry.
