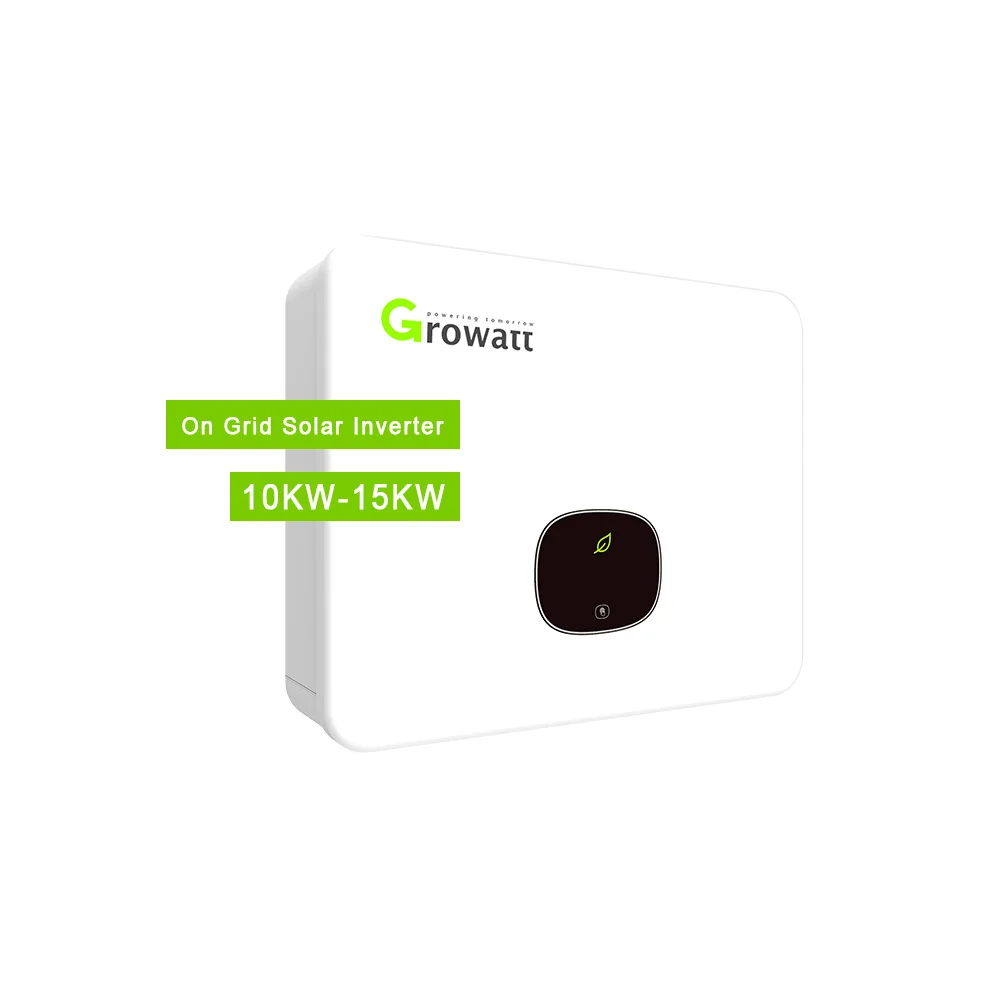

Growatt MOD 10KTL3-X MOD 12KTL3-X MOD 15KTL3-X On Grid Солнечный инвертор
81 869,11 ₽ - 90 977,73 ₽
Высококачественный Гибридный инвертор 1 кВт Солнечный контроллер EPever IP1000 чистый синусоидальный MPPT DC12V до 110V 120Vac
- Категория: >>>
- Поставщик: Shenzhen Suns Energy Co. Limited.
Сохранить в закладки 1601240719391:
Описание и отзывы
Характеристики
Product Description
1KW Pure Sine Wave Inverter MPPT 12V
Safe Quality EPever IP1000-11 Solar Controller Inverter Pure Sine Wave Inverter MPPT DC12V 110V 120Vac 1KW Hybrid inverter
Product models:
IP500-12 / IP500-22 / IP500-11 / IP500-21 / IP1000-12 / IP1000-22 / IP1000-11 / IP1000-21
IP1500-12 / IP1500-22 / IP1500-11 / IP1500-21 / IP2000-22 / IP2000-42 / IP2000-21 / IP2000-41
Specifications:
| Model | IP1000-12 | IP1000-22 | IP1000-11 | IP1000-21 | IP1500-12 | IP1500-22 | IP1500-21 | IP1500-21 |
| Rated Input voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC |
| Input Voltage Range | 10.8~ 16VDC | 21.6~ 32VDC | 10.8~ 16VDC | 21.6~ 32VDC | 10.8~ 16VDC | 21.6~ 32VDC | 10.8~ 16VDC | 21.6~ 32VDC |
| Input surge voltage | <20VDC | <40VDC | <20VDC | <40VDC | <20VDC | <40VDC | <20VDC | <40VDC |
| Output Voltage | 2 2 0 V A C ( ± 5%) 230VAC (-7% ~ + 5%) | 110VAC (± 5%) 120VAC (-10% ~ + 5%) | 2 2 0 V A C ( ± 5%) 230VAC (-10% ~ + 5%) | 110VAC (± 5%) 120VAC (-10% ~ + 5%) | ||||
| Output Frequency | 50/60±0.1Hz | |||||||
| Output Continuous Power | 800W | 1200W | ||||||
| Output Power 15 min. | 1000W | 1500W | ||||||
| Surge power | 1600W | 2400W | ||||||
| Power factor | 0.2-1(VA lower than output continuous power) | |||||||
| Output Wave | Pure sine wave | |||||||
| Distortion THD | THD≤3%(1) | THD≤5%(2) | THD≤3%(1) | THD≤5%(2) | ||||
| Max. Efficiency | 94.5% | 92.5% | 93% | 94% | 93% | 94% | ||
| No-load current | <0.8A | <0.5A | <0.8A | <0.5A | <1.0A | <0.6A | <1.0A | <0.6A |
| USB Output Port(2) | 5VDC/Max.1A | |||||||
(1) Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
(2) Conventional products don’t have this port; the port is optional.
Product features:
1. Safe design with input and output electrical isolation
2. Adoption of advanced SPWM technology, pure sine wave output
3. Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch
4. LED indicators for fault status and working status
5. Lower No-load consumption
6. Max. efficiency up to 95%(IP2000-22, IP2000-42)(1)
7. Input protection: Over voltage protection, low voltage protection
8. Output protection: Over load protection, short circuit protection
9. Over temperature protection: Temperature-controlled Fan Ventilation;
10. Inverter turns off automatically when overheating
11. Operational USB output 5VDC/1A
12. Operational RS485 communication port(2)
(1)The efficiency is tested at rated input voltage,220V output with resistive load, 25 Ambient temperature,1500W and higher version
(2) 1000W and higher version support RS485 communication port optional.
Remarks:
The product is a pure sine wave inverter which can convert 12/24VDC to 220/230VAC, 50/60Hz based on full digital and intelligent design. It features high reliability, high efficiency, concise outline, small volume, full protection functions, easy installation and operation. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply, etc.
Company Information
FAQ
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 13 years experience in off grid solar field.
In addition, we use alibaba platform for 13 years as supplier.
Q2:Where is your factory located?
A:Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap
A:Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap
and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).
Q4:How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.![shipping-delivery-750]()
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).
Q4:How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
