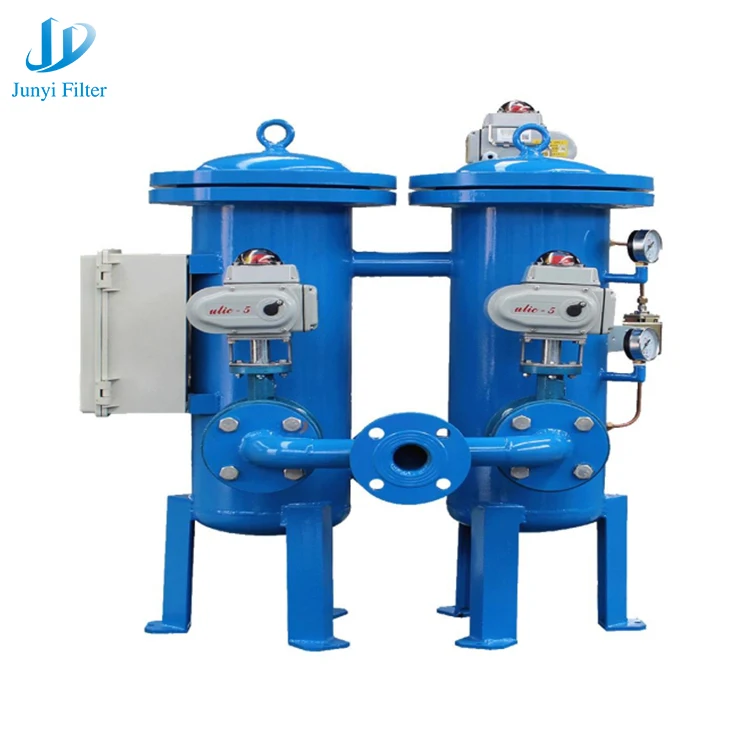

Высокоточная 304 316 автоматическая фильтрация обратной промывки для холодильных систем нагрева воды
- Категория: >>>
- Поставщик: Shanghai Junyi Filter Equipment Co. Ltd.
Сохранить в закладки 1601241008993:
Описание и отзывы
Характеристики

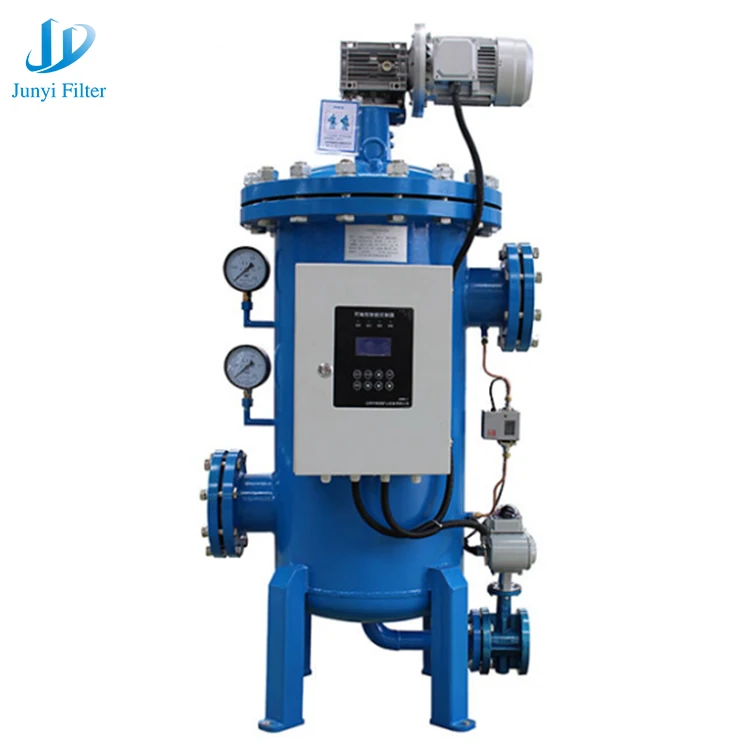

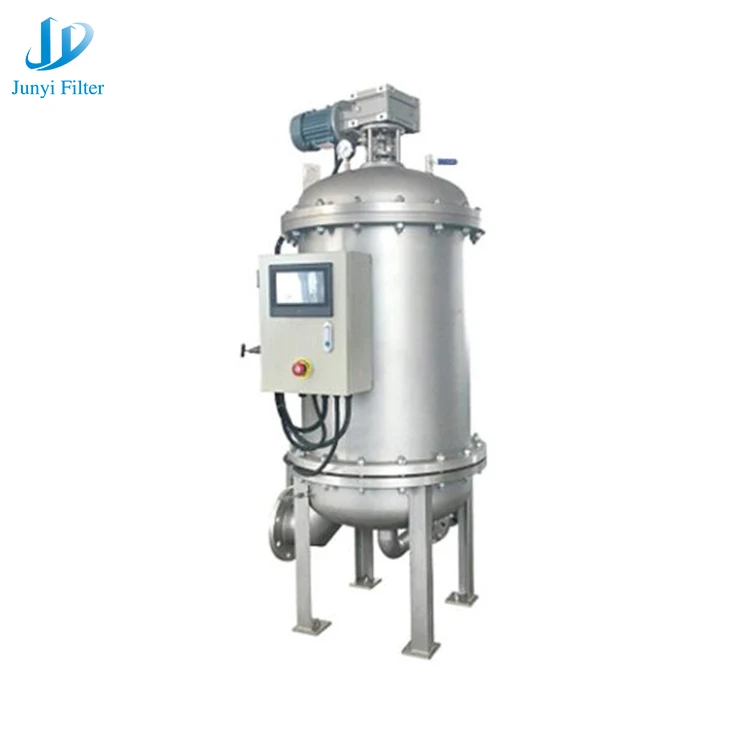

Products Description
The Backflushing Filter is a precision equipment, which can remove the suspended solids/ particles in the water, reduce the turbidity, reduce the system fouling, bacteria , algae and rust to purify the water quality and assure the normal operation of the system and other equipment. It can realize the automatic filtration/cleaning/slag discharging and no interruption during the
backblushing.
backblushing.
Features
1. Automatic continuous filtration. The filtration will not stop when backflushing, reducing the stop time and the maintenance cost.
2. The control system can be customized to monitor the pressure of different kinds of the liquid and set the time.
3. Higher precision and larger filtration area.
4. Less pressure drop and higher backflushing efficiency.
5. Cover less space and easy to be installed.
6. The inlet and outlet can be adjusted based on the special requirements of each client.
3. Higher precision and larger filtration area.
4. Less pressure drop and higher backflushing efficiency.
5. Cover less space and easy to be installed.
6. The inlet and outlet can be adjusted based on the special requirements of each client.
Specification
Applicable liquid | All kinds of raw material, cooling water, process water and low viscosity liquid (<40 cps), the impurity content should be <300ppm. |
Working pressure difference | The pressure difference between the outlet of filter and the outlet of backflush >0.15MPA |
Filtration precision | 10----2,000um |
Standard designed pressure | 0.7MPA/1.0MPA |
Working temperature | 0-95℃ |
Flow range | 17--10,560M3/H |
Cleaning pressure difference | 0.05MPA-0.07MPA |
Control system | Siemens controller. Controlled by time and pressure difference. |
Gear motor | 180W/370W |
Inlet/outlet size | 2’’--24’’/DN50----DN1000 |
Anti-corrosion coating of inner surface | Epoxy coating, seawater resistance PA11, rubber lining |
Material of sealing | Butadiene/ EPDM/VITON |
Actuator of valve | Pneumatic or electric, IP65 Protection |
Valve of backflush | Butterfly valve/ ball valve |
Air required | 0.4---0.6MPA clean dry compressed air |
How the backflush filter works?
1. After the liquid has been fed into the automatic backflushing filter from the inlet (3), 50% unfiltered liquid will flow up to the top of the filter (4) from the middle first, then it will flow into the cartridge (5) from the top. The other 50% liquid flows into the cartridge (6) from the bottom directly.
2. After the liquid flows into the cartridge from the top and from the bottom at the same time and has been filtered, the clean filtered liquid will flow out from the outlet (7).
3. When it reaches to the set pressure difference or the time (9), the filter will start the backflushing automatically. The gear motor will drive the cleaning arm (1) to clean the cartridges one by one, at the same time the filtration will go on continuously.
4. When backflushed, the top of the cartridge will be blocked by the slider (2). The valve of the backflushing will be opened. Because of the pressure difference between the outside of the cartridge and the outlet of the backwash, the filtered clean liquid will rush to the internal surface (8) quickly. The impurities washed down will be discharged from the drain pipe.
Company Profile
Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.
After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.
We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.
We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
Packing & Shipping
FAQ
Q: Are you manufacturer?
Q: How to select the type you needed?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q.Is it easy to operate for the new user ?
A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What's MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:What's the payment terms ?
A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
Похожие товары

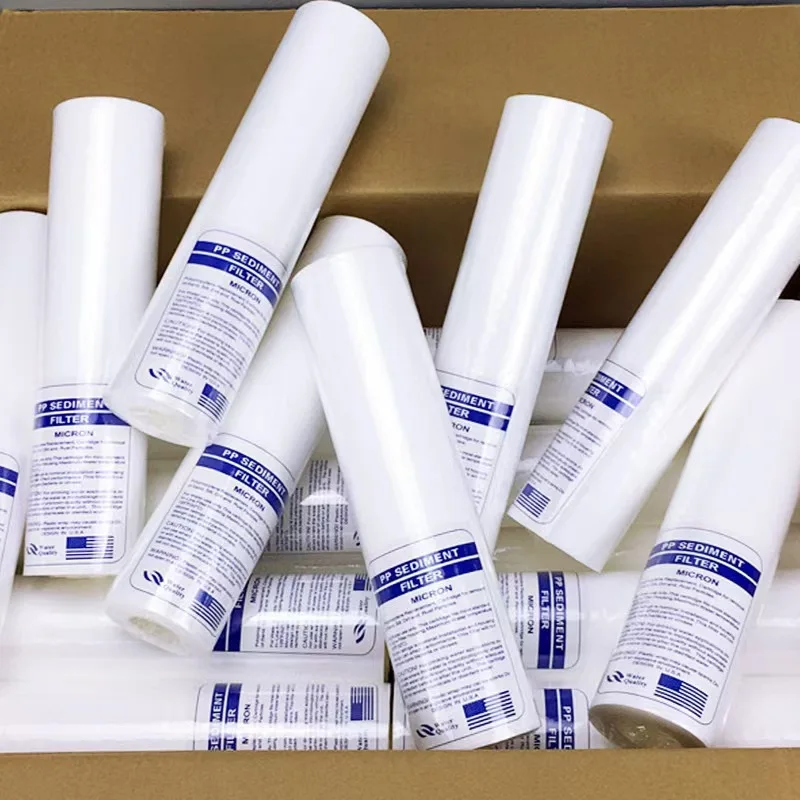

Полипропиленовый хлопковый фильтр 10 дюймов Универсальный бытовой очиститель воды аксессуары 5 микрон 1 микрон расплавленный хлопковый фильтрующий элемент

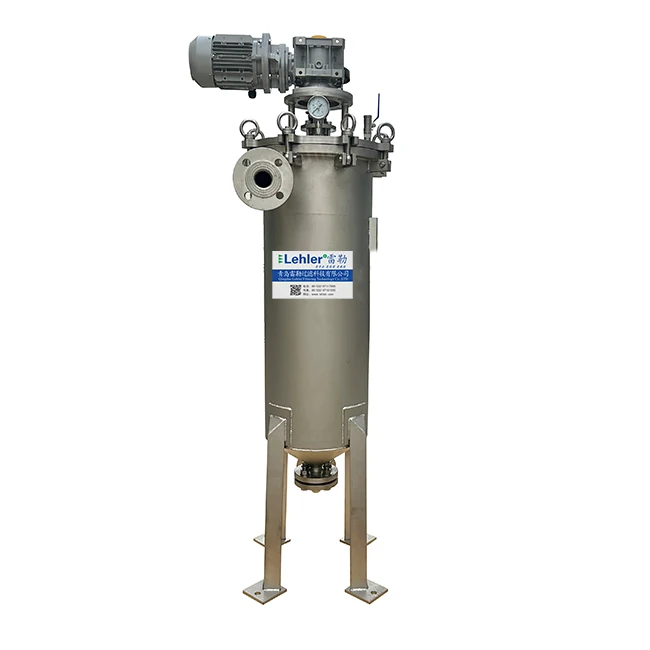

Мобильная система фильтрации SS304 автоматический самоочищающийся корпус фильтра для фильтрации краски
189 762,83 ₽

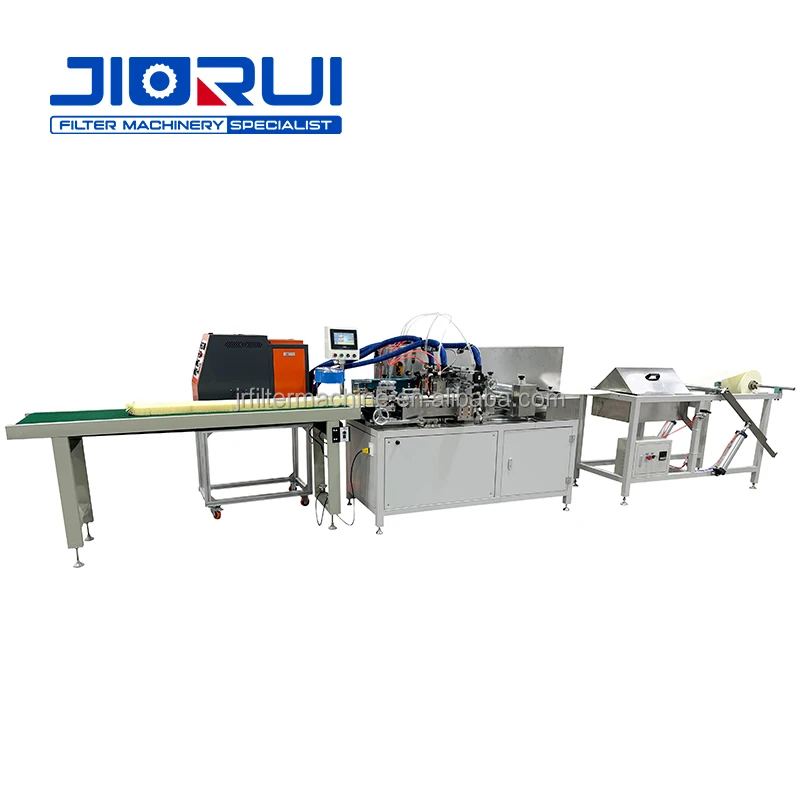

Новый экономичный интеллектуальный лазерный станок для изготовления бумажных плиссированных фильтров для автомобиля, полностью автоматическая машина для изготовления фильтров
1 084 359,00 ₽ - 1 192 794,90 ₽

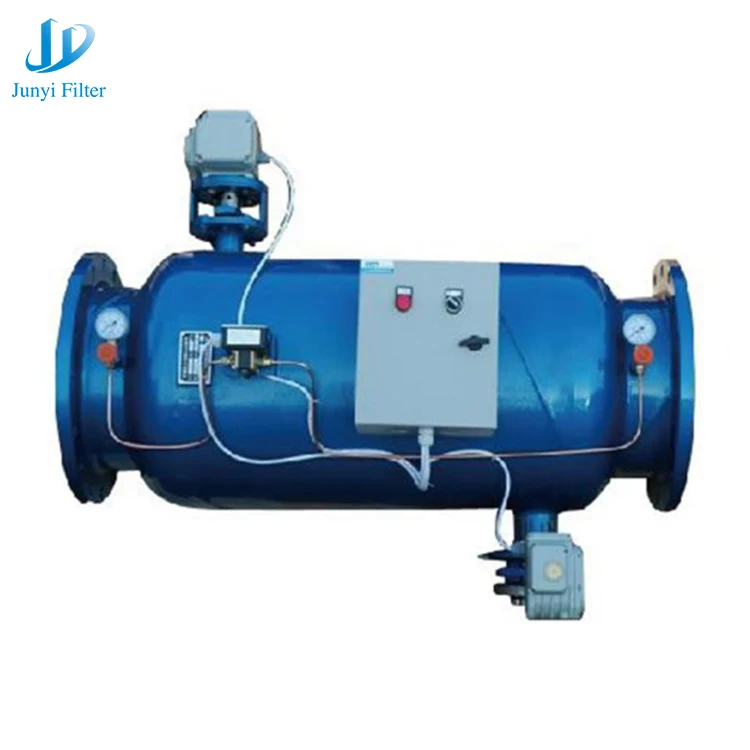

Автоматический привод мотора фильтра системы фильтрации Речной Воды
271 078,91 ₽ - 301 202,40 ₽
Высококачественный промышленный спиртовой дистиллятор/пилотный роторный вакуумный испаритель для короткой перегонки
477 009,53 ₽
Непрерывный энергосберегающий испаритель для Обезвоживания Сточных вод с восстановительной пленкой для растворителей, испаритель типа FC, кристаллизатор, вакуум
433 635,17 ₽ - 477 009,53 ₽

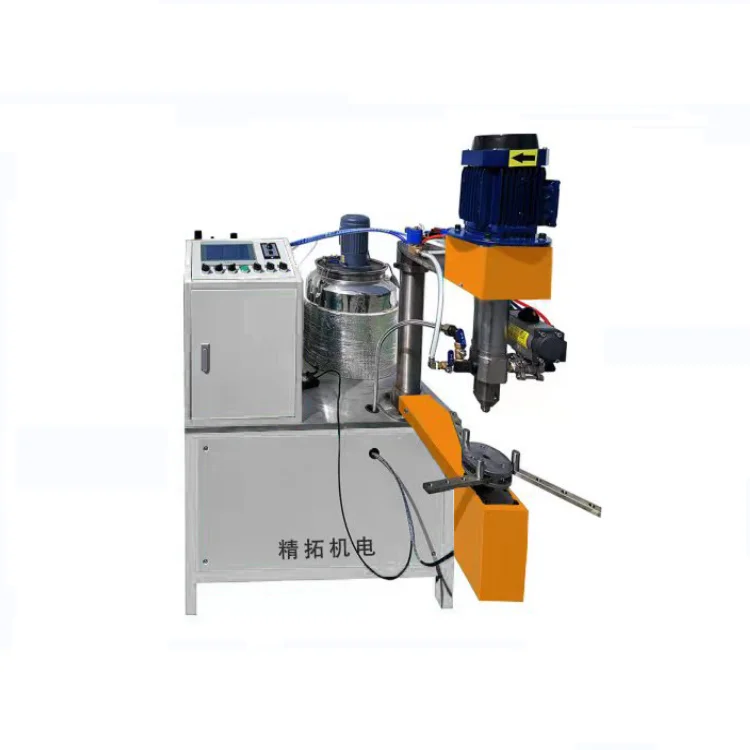

Машина для склеивания клея для изготовления воздушного фильтра
