Product Description
GEL (Deep Cycle GEL) series is designed for frequent cyclic charge and discharge applications under extreme enviroments. By using strong grids, high purity lead and patented Gel electrolyte, GEL series offers excellent recovery after deep discharge under frequent cyclic discharge, and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine, RV and deep discharge UPS etc.
Configuration

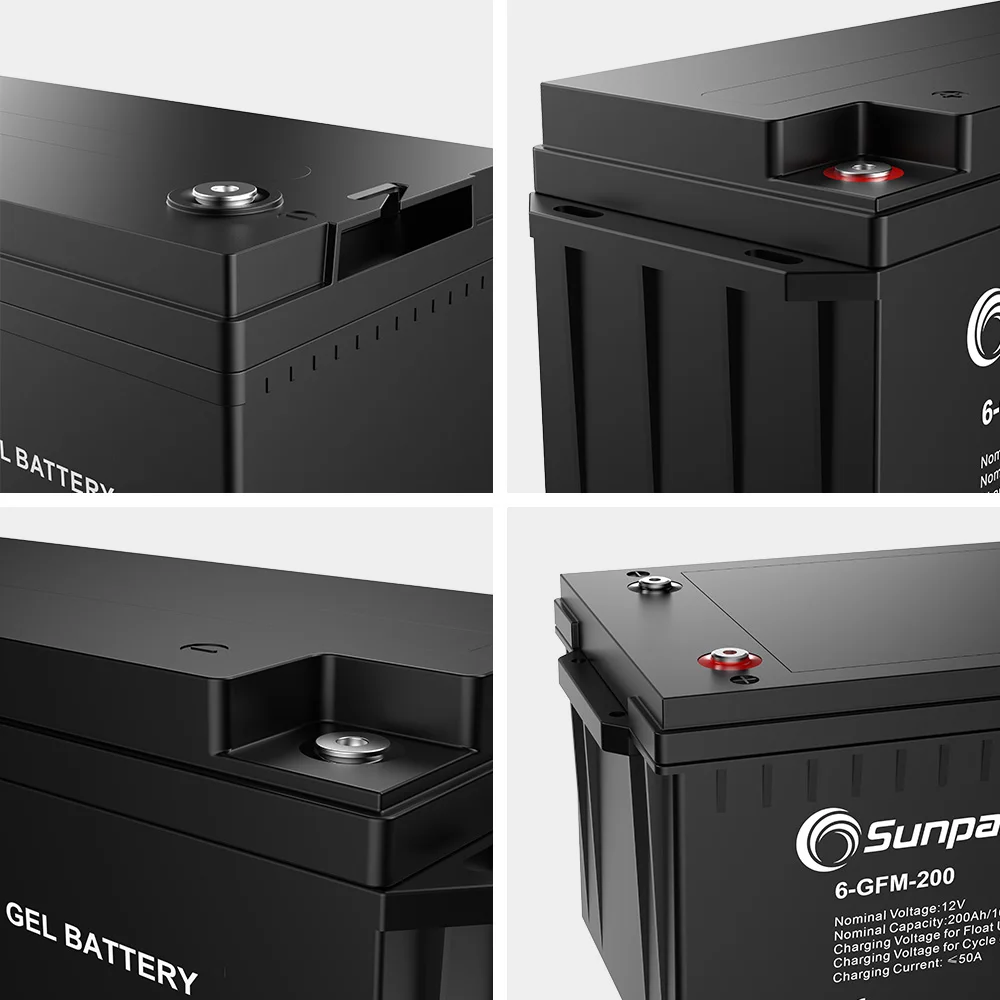

Battery Terminal Options
T1 Terminal
FASTON TYPE (Copper) quick disconnect tabs; silver coating for better conductivity
T2 Terminal
FASTON TYPE (Copper) quick disconnect tabs; silver coating for better conductivity
T3 Terminal
Brass Coated With Tin
Torque: 3.9 ~ 5.4 N*m(34.39 ~ 47.75 in*lbs)
Torque: 3.9 ~ 5.4 N*m(34.39 ~ 47.75 in*lbs)
T4 Terminal
Brass Coated With Tin
T5 Terminal
Lead Torque: 3.9 ~ 5.4 N*m(34.39 ~ 47.75 in*lbs)
T6 Terminal
Brass Coated With Tin; Threaded Insert 6mm STUD Torque: 3.9 ~ 5.4 N*m(34.39 ~ 47.75 in*lbs)
T7 Terminal
Brass Coated With Tin; Threaded Insert 6mm STUD Torque: 3.9 ~ 5.4 N*m(34.39 ~ 47.75 in*lbs)
T9 Terminal
Lead Torque: 11 ~ 14.7 N*m(97.28 ~ 130.0 in*lbs)
Specification
Model | 6-GFM-100Ah | 6-GFM-150Ah | 6-GFM-200Ah | 6-GFM-250Ah | |||
Cells Per Unit | 6 | ||||||
Voltage Per Unit | 12V | ||||||
Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C | |||
Weight | 29kg | 42kg | 58.5kg | 67kg | |||
Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ | |||
Terminal | F1/F2 | ||||||
Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) | |||
Design Life | 10~15 years | ||||||
Maximum Charging Current | 25A | 37.5A | 50A | 62.5A | |||
Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell | ||||||
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Cycle Use Voltage Temperature Compensation: -30mV/°C/Cell | ||||||
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | ||||||
Features:
* Maintenance free and longer cycle life
* Safety and no leakage
* Excellent recharge and discharge performance
* Low self-discharge rate and good deep discharge performance
* Adapt to high or low temperature
* Maintenance free and longer cycle life
* Safety and no leakage
* Excellent recharge and discharge performance
* Low self-discharge rate and good deep discharge performance
* Adapt to high or low temperature
Characteristics Data
Show Details
Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products, mainly in charge of solar panels, solar batteries, solar inverter and a complete solar system.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate(WMTC) by CE.ISO Laboratory Certificate by TUV SUD.
Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate(WMTC) by CE.ISO Laboratory Certificate by TUV SUD.
Sunpal focused on research and manufacture of solar battery since the year 2005, we have exported our various kinds of battery to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.

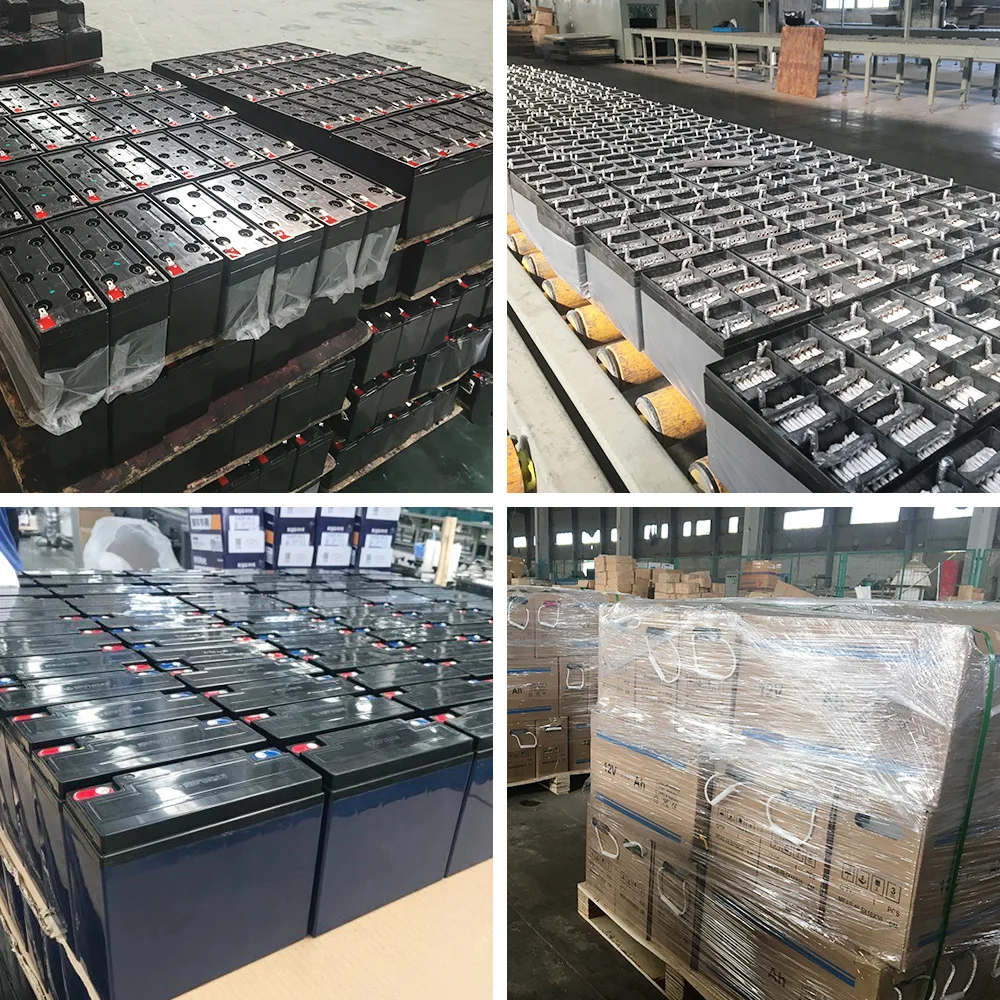

Packing and Delivery
Certifications
Strict QC System
We have always prided ourselves on the quality of our technical support. We maintain laboratory and testing facilities containing the latest state-of-the-art equipment. All our batteries are subject to stringent quality controls throughout every step of manufacturing and through to their final dispatch.
FAQ
1.How long can a battery last?
The service design life of a battery varies considerably with how it is used, how it is maintained and charged, temperature, among other factors.
2.Do I need to add water to my battery?
No. Sealed lead acid batteries do not require the use of water.
3.What determines the life of a VRLA battery?
Sealed lead acid battery life is determined by many factors. These include temperature, depth and rate of discharge, and the number of charges and discharges (called cycles).
4.What is the difference between float and cycle applications?
A float application requires the battery to be on constant charge with an occasional discharge. Cycle applications charge and discharge the battery on a regular basis.
5.What is the definition of "cycle use" and "standby use"?
“Cycle Use” – direct power source: Cycle Use – IT can provide the power supply to power tools, and portable electronic products. It can also be used for cycling charging and discharging usage such as electronics motorbike or vacuum cleaner. “Standby Use” – back up power: Standby Use is mainly used for emergency power to avoid future damage that may be caused by a sudden power outage.
6.When should a deep-cycle battery be used?
Deep-cycle batteries are used when 50% or more of the capacity is used per cycle. The most common use of deep-cycle batteries is in applications that require deep, repetitive drain, like powerful car audio systems, trolling motors, golf carts, electric wheelchairs, or RV house power sources. Public safety and high performance vehicles are other applications that call for the special characteristics of deep-cycle batteries.
7.How are batteries rated?
Lead acid batteries are rated based on a capacity given in a defined time. There is not a set industry standard for how to rate a battery.
2.Do I need to add water to my battery?
No. Sealed lead acid batteries do not require the use of water.
3.What determines the life of a VRLA battery?
Sealed lead acid battery life is determined by many factors. These include temperature, depth and rate of discharge, and the number of charges and discharges (called cycles).
4.What is the difference between float and cycle applications?
A float application requires the battery to be on constant charge with an occasional discharge. Cycle applications charge and discharge the battery on a regular basis.
5.What is the definition of "cycle use" and "standby use"?
“Cycle Use” – direct power source: Cycle Use – IT can provide the power supply to power tools, and portable electronic products. It can also be used for cycling charging and discharging usage such as electronics motorbike or vacuum cleaner. “Standby Use” – back up power: Standby Use is mainly used for emergency power to avoid future damage that may be caused by a sudden power outage.
6.When should a deep-cycle battery be used?
Deep-cycle batteries are used when 50% or more of the capacity is used per cycle. The most common use of deep-cycle batteries is in applications that require deep, repetitive drain, like powerful car audio systems, trolling motors, golf carts, electric wheelchairs, or RV house power sources. Public safety and high performance vehicles are other applications that call for the special characteristics of deep-cycle batteries.
7.How are batteries rated?
Lead acid batteries are rated based on a capacity given in a defined time. There is not a set industry standard for how to rate a battery.
