Products Description

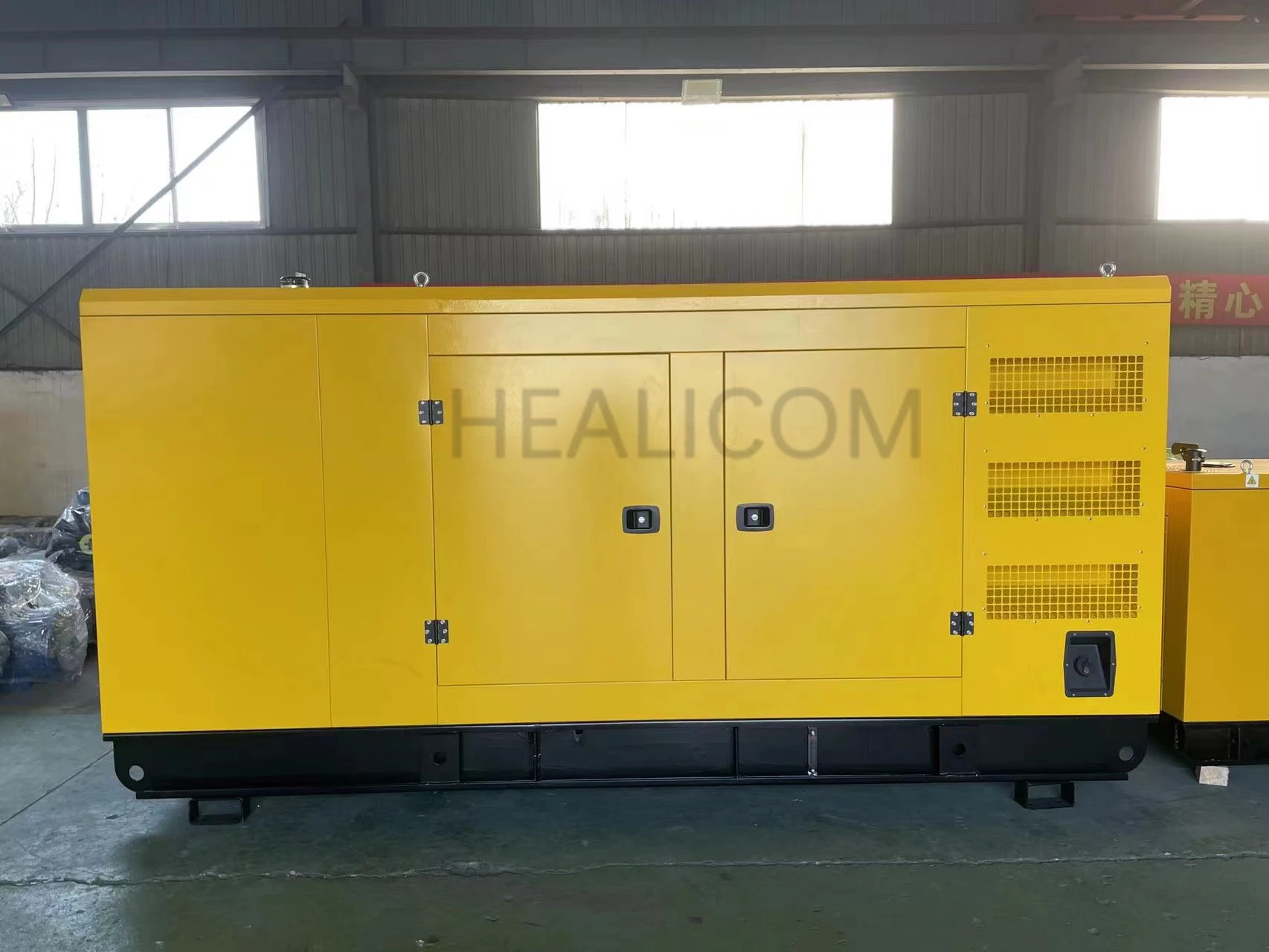

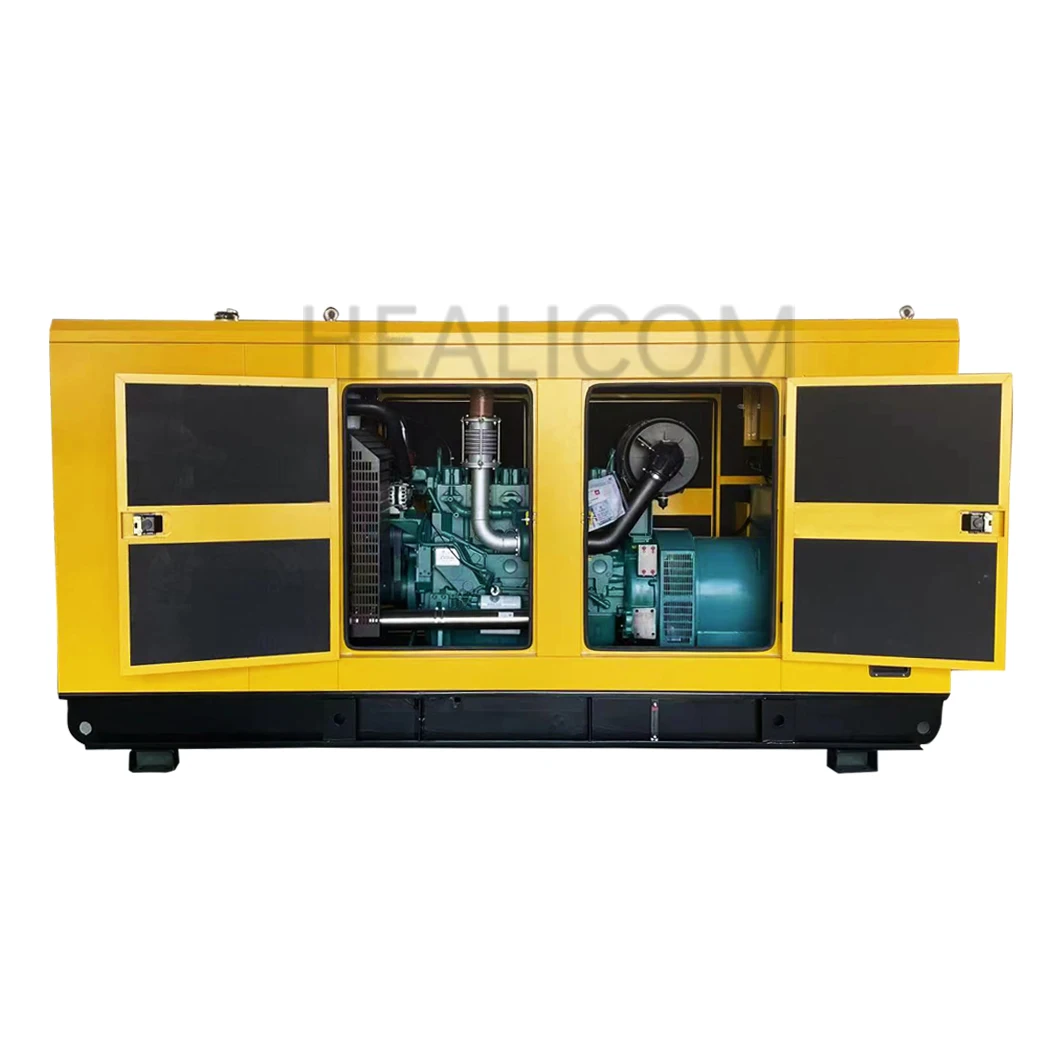

Low Fuel Consumption Electronically Controlled Fuel Injection System Technology Diesel Generators
Main configuration:
1. Engine: Steyr four-valve + supercharged intercooler technology, sufficient intake air, full combustion, low fuel consumption; electronically controlled fuel injection system technology, stable operation, good transient speed regulation, and loading capacity Strong; the high-quality alloy cast iron cylinder block with arc-shaped reinforcing rib grid structure, high-strength spiral graphite cast iron cylinder head, double-protected lid anti-shock gasket structure, and the original cooling technology at the bottom of the cylinder head have high reliability; Some carbon scraping self-cleaning technology, low lubricating oil consumption; electric pre-supply oil technology, effectively protect the moving pair, improve engine life; one cylinder and one cover structure, easy maintenance; product performance meets the G3 performance level requirements in GB2820;
2- Generator: Brushless AC generator, 2/3 winding pitch suppresses excessive neutral line current, single pivot structure, maintenance-free sealed bearings as standard, IP23 protection level as standard, EVR308AVR and permanent magnet motor excitation as standard, three-phase induction detection and ±0.5% voltage regulation, stable voltage output, 400/230V, 3Ph, 50Hz, 1500Rpm.
3- Cooling system: increase the radiator to meet the heat dissipation requirements of the ambient temperature of 50 ° C, fast heat conduction, good heat dissipation, heat dissipation capacity can meet the needs of the engine under various working conditions, strong oxidation and corrosion resistance, and can adapt to various Water quality, small size, light weight, easy to disassemble and maintain; install safety shield, full protection type.
4-Control system: With microprocessor as the core, the operation protection parameters can be flexibly set through the panel buttons, the engine battery voltage can be measured and displayed, the speed, water temperature, oil pressure, running time and other parameters can be programmed, the engine throttle type can be set, and a variety of oil pressure and temperature sensor types are built in for users to choose from. The controller adopts DIN72 standard housing, and all connections are connected through pin-type locking terminals, making the connection, movement, maintenance and replacement of the equipment simple and convenient.
5- Chassis structure: humanized design, compact structure, small size, novel and beautiful shape, stable performance, reliable operation, low emission, low fuel consumption rate; the silent cover is made of international cold plate, corrosion-resistant and well-sealed , rain-proof and moisture-proof; the noise reduction standard conforms to the regulations of ISO3744 and GB2820-90, and has a silent cover that meets the requirements of urban environmental protection. The noise is suppressed to the greatest extent; the perfect ventilation design and heat radiation prevention measures ensure that the unit always works at a suitable ambient temperature; the efficient shock absorption measures ensure the balanced operation of the unit; the scientific observation window and emergency stop button are convenient for observing the operating status of the unit and operate the unit.
6- Accessories: battery cable, muffler, filter, engine oil, battery, antifreeze, oil inlet and outlet pipes, random documents, special tools, etc.
1. Engine: Steyr four-valve + supercharged intercooler technology, sufficient intake air, full combustion, low fuel consumption; electronically controlled fuel injection system technology, stable operation, good transient speed regulation, and loading capacity Strong; the high-quality alloy cast iron cylinder block with arc-shaped reinforcing rib grid structure, high-strength spiral graphite cast iron cylinder head, double-protected lid anti-shock gasket structure, and the original cooling technology at the bottom of the cylinder head have high reliability; Some carbon scraping self-cleaning technology, low lubricating oil consumption; electric pre-supply oil technology, effectively protect the moving pair, improve engine life; one cylinder and one cover structure, easy maintenance; product performance meets the G3 performance level requirements in GB2820;
2- Generator: Brushless AC generator, 2/3 winding pitch suppresses excessive neutral line current, single pivot structure, maintenance-free sealed bearings as standard, IP23 protection level as standard, EVR308AVR and permanent magnet motor excitation as standard, three-phase induction detection and ±0.5% voltage regulation, stable voltage output, 400/230V, 3Ph, 50Hz, 1500Rpm.
3- Cooling system: increase the radiator to meet the heat dissipation requirements of the ambient temperature of 50 ° C, fast heat conduction, good heat dissipation, heat dissipation capacity can meet the needs of the engine under various working conditions, strong oxidation and corrosion resistance, and can adapt to various Water quality, small size, light weight, easy to disassemble and maintain; install safety shield, full protection type.
4-Control system: With microprocessor as the core, the operation protection parameters can be flexibly set through the panel buttons, the engine battery voltage can be measured and displayed, the speed, water temperature, oil pressure, running time and other parameters can be programmed, the engine throttle type can be set, and a variety of oil pressure and temperature sensor types are built in for users to choose from. The controller adopts DIN72 standard housing, and all connections are connected through pin-type locking terminals, making the connection, movement, maintenance and replacement of the equipment simple and convenient.
5- Chassis structure: humanized design, compact structure, small size, novel and beautiful shape, stable performance, reliable operation, low emission, low fuel consumption rate; the silent cover is made of international cold plate, corrosion-resistant and well-sealed , rain-proof and moisture-proof; the noise reduction standard conforms to the regulations of ISO3744 and GB2820-90, and has a silent cover that meets the requirements of urban environmental protection. The noise is suppressed to the greatest extent; the perfect ventilation design and heat radiation prevention measures ensure that the unit always works at a suitable ambient temperature; the efficient shock absorption measures ensure the balanced operation of the unit; the scientific observation window and emergency stop button are convenient for observing the operating status of the unit and operate the unit.
6- Accessories: battery cable, muffler, filter, engine oil, battery, antifreeze, oil inlet and outlet pipes, random documents, special tools, etc.
Unit parameters | ||
Standby Power: | 200KW/250KVA | |
Voltage: | 400V/240V | |
Frequency: | 50HZ | |
Current: | 360A | |
Phase Line: | Three-phase four-wire (industrial three-phase 380V, civil single-phase 220V can be used at the same time) | |
Unit Size Length-Width-Height | 3700-1300-2050 | |
Net Mass Kg | 2600 | |
Engine Parameters | ||
Type | Four-Stroke, Water-Cooled, In-Line, Direct Injection, Dry Cylinder Liner | |
Standby Power/Speed Prime Power(Kw)/Speed(R/Min) | 238/1500 | |
Intake Method Intake Type | Turbocharged | |
No. Of Cylinder | 6 | |
Bore*Stroke Bore×Stroke(Mm) | 126×155 | |
Idle Speed (R/Min) | 600±50 | |
Fire Sequence | 1-5-3-6-2-4 | |
Exhaust Temperature(℃) | ≤550 | |
Fuel Consumption | ≤191G/Kw.H | |
Displacement(L) | 9.726 | |
Crankshaft Steering | Counterclockwise | |
Cooling Method | Closed Water Cooling | |
Lubrication Method | Combined Pressure And Splash | |
Starting Method | Electric Starter | |
Oil Pressurekpa | 580-648 | |
Idle Oil Pressure Kpa | ≥100 | |
Cold Valve Clearance | Intake 0.3 Exhaust 0.4 | |
Oil Supply Advance Angle °Ca | 18°±1 | |
Minimum Working Stable Speed (R/Min) | 945 | |
Allowable Inclination Angle Vertical/Horizontal (Long Term) | 10°/15° | |
Allowable Inclination Angle Vertical/Horizontal (Long Term) | Vertical And Horizontal 30° Horizontal And Horizontal 30° | |
