Фабричное высококачественное самоклеящееся битумное покрытие, стекловолоконная георешетка 15-200 кН для армирования асфальтовой дорожки
37,77 ₽ - 85,24 ₽
Высокопрочная Двухосная георешетка из стекловолокна
- Категория: >>>
- Поставщик: EXA International Trading (Tianjin) Co. Ltd.
Сохранить в закладки 1601241444000:
Описание и отзывы
Характеристики

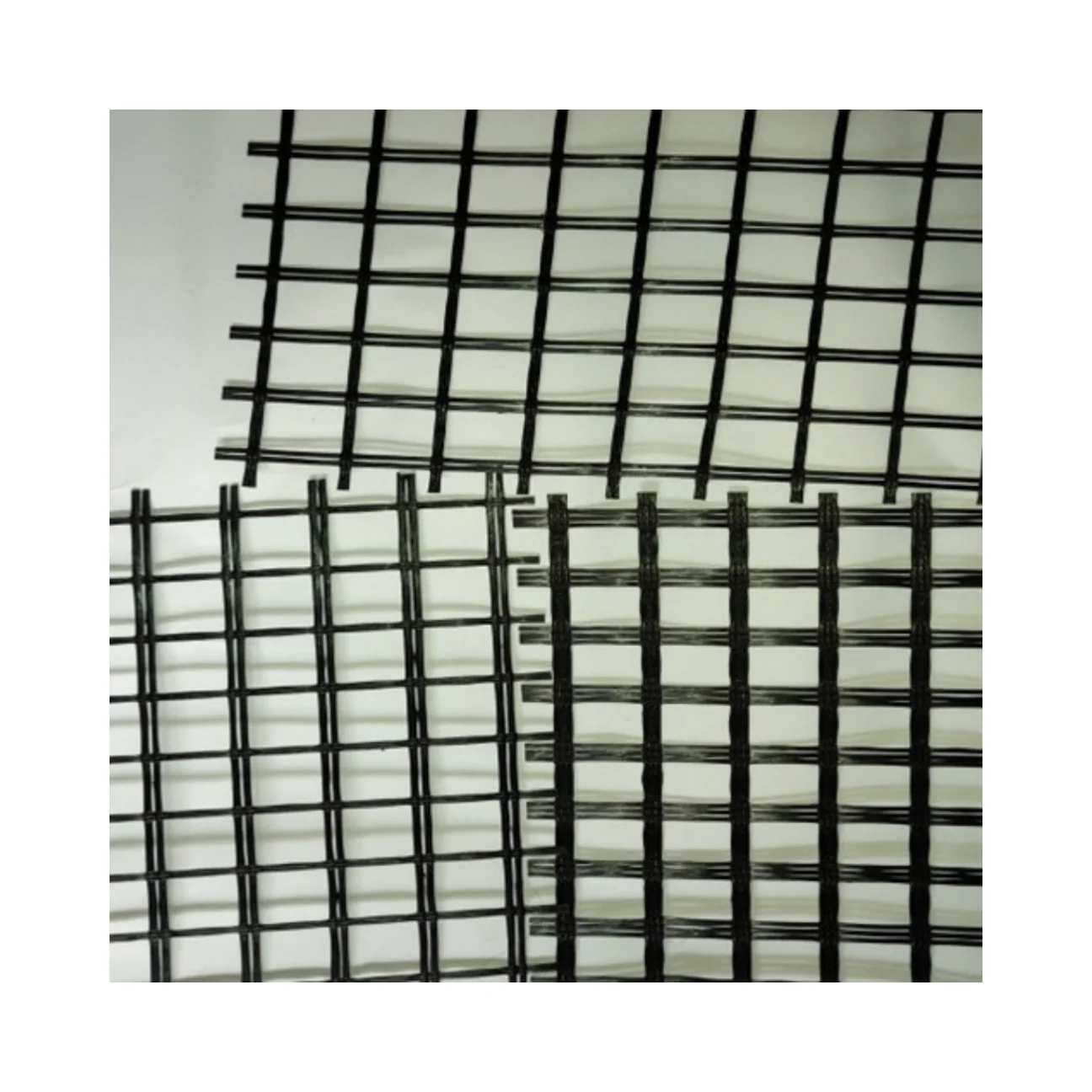

Fiberglass Geogrid
Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to providea good bond with the asphalt layers,can strengthen the asphalt layer,extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.◆Features
1.High tensile strength in warp and weft directions.
2.Low elongation.
3.High tensile modulus.
◆Application
Fiberglass geogrid is used to strengthen the soft land,such as airport,road,highway,and softland loading capacity.
3.High tensile modulus.
◆Application
Fiberglass geogrid is used to strengthen the soft land,such as airport,road,highway,and softland loading capacity.
PRODUCT SPECIFICATIONS AND PERFORMANCE PARAMETERS
Item/Spec | EGA 40-40 | EGA 50-50 | EGA 60-60 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | |||||||||

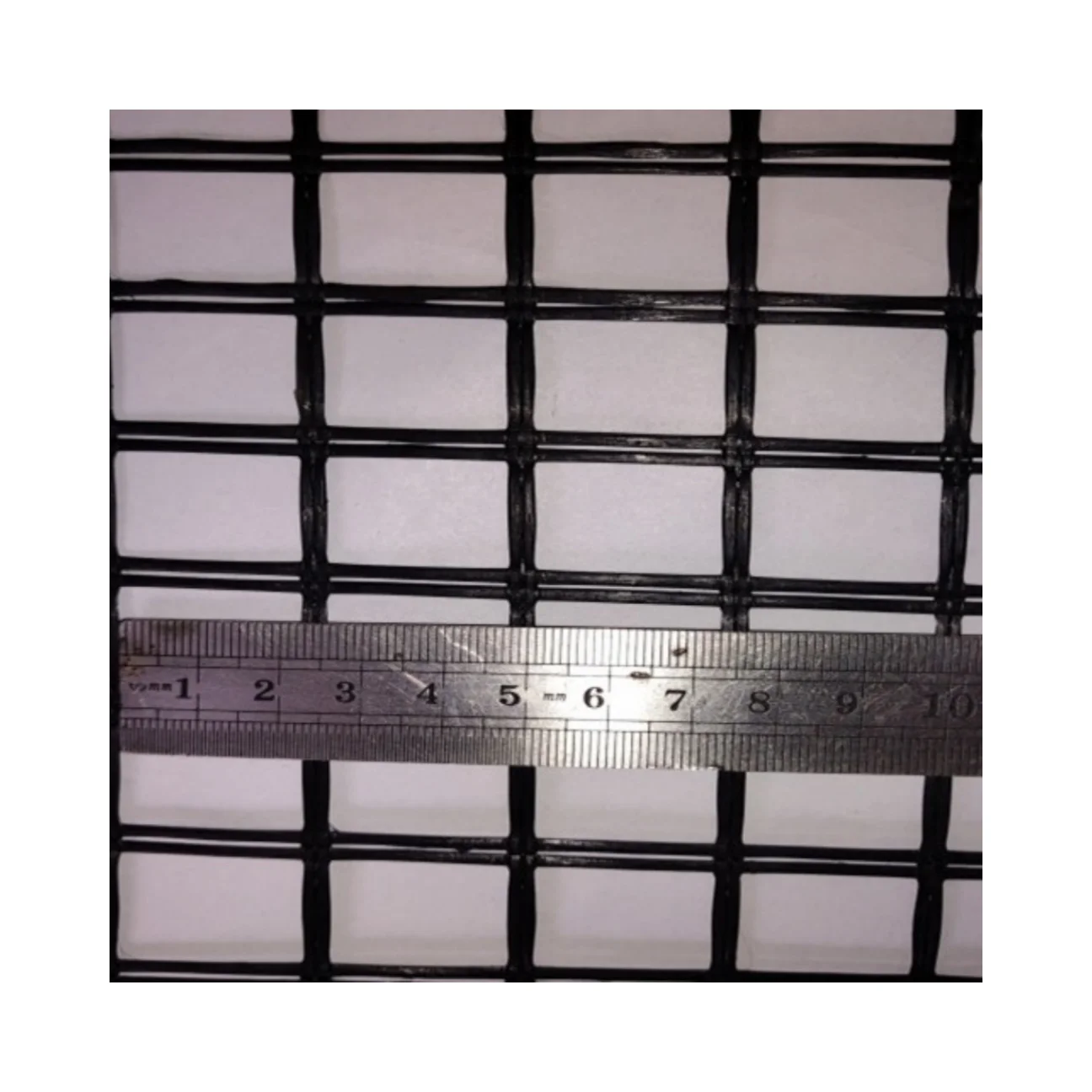

Mesh size(mm) | 25.4×25.4 12.5×12.5 40.0×40.0 50.8×50.8 | ||||||||||||||||
Breaking strength≥(kN/m) | Warp direction | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | ||||||||
Across Warp | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | |||||||||
Elongation at break≤(%) | Warp direction | 4 | |||||||||||||||
Across Warp | 4 | ||||||||||||||||
Thernal tolerance(℃) | -100~280 | ||||||||||||||||
Width(m) | 1-6 | ||||||||||||||||
Construction precautions

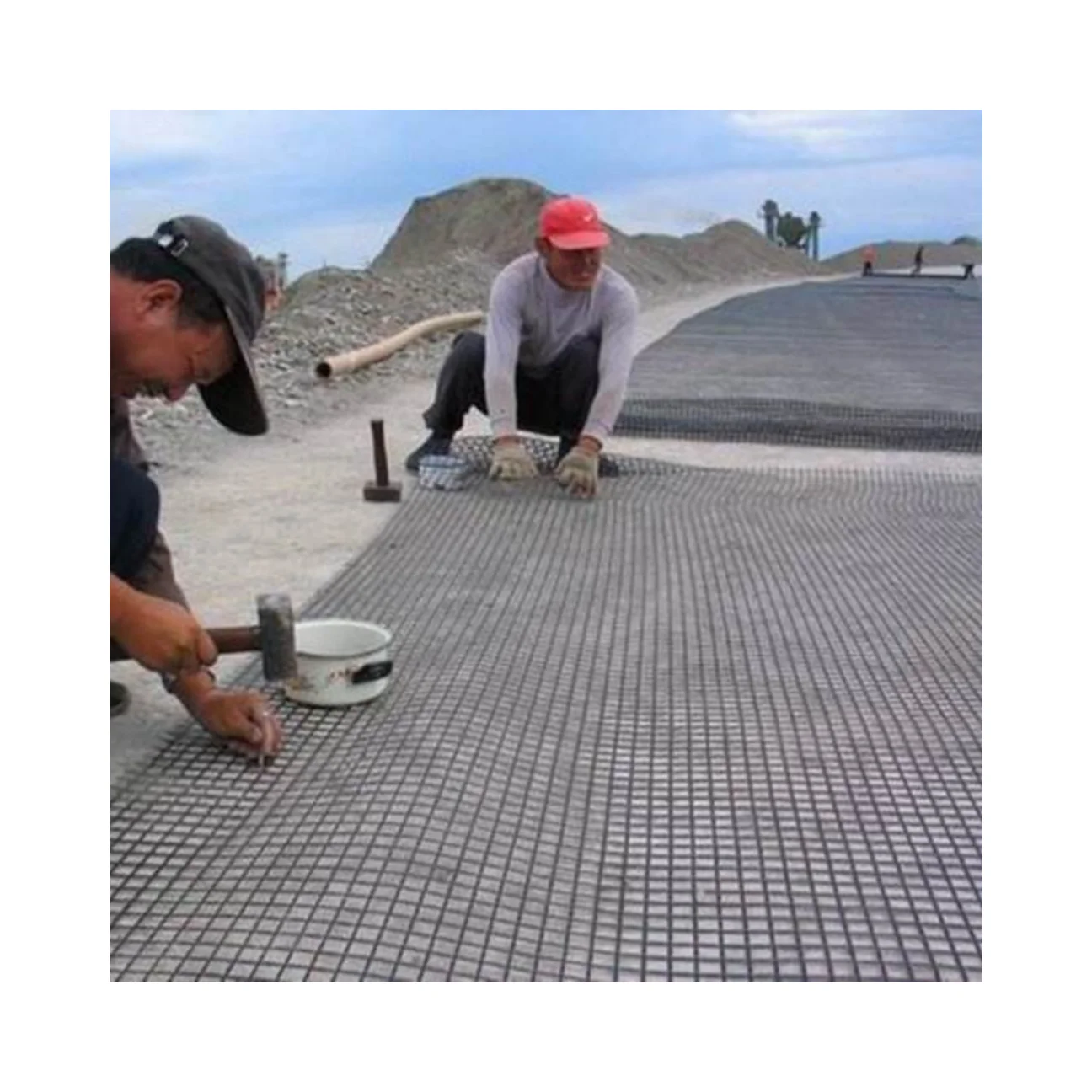

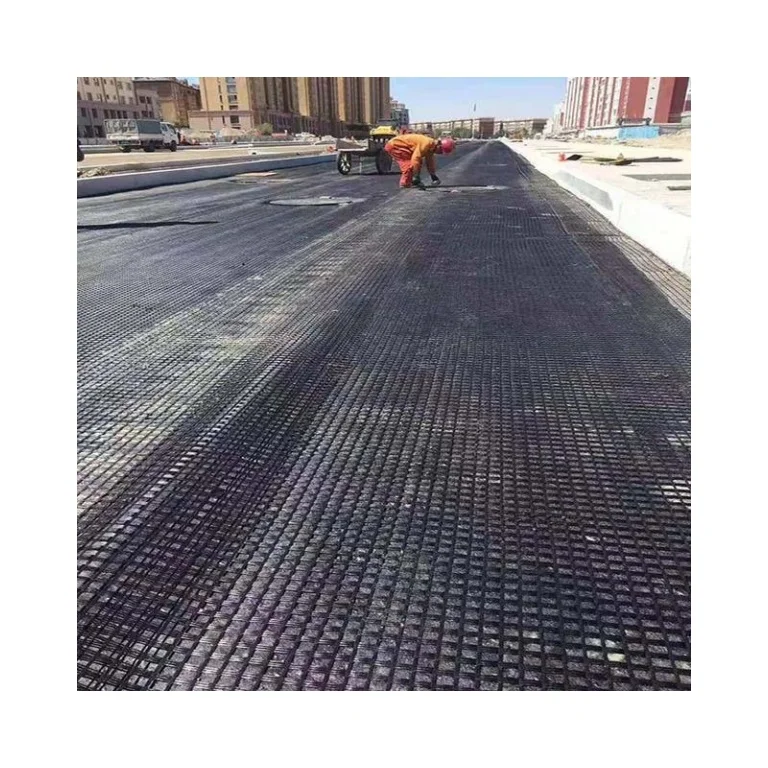

The paving surface of fiberglass geogrid should be relatively flat. After the paving layer is accepted as qualified, in order to prevent longitudinal deviation, white lines or hanging lines should be drawn on the paving layer according to the width before paving can begin.
Then fix the end of the grid with iron nails (8 nails per meter width, evenly spaced). After fixing the grid end, use a paving machine to slowly pull the grid forward and manually tighten and straighten it every 10 meters until one roll of grid is laid, and then lay the next roll. The operation is the same as before. After laying one roll, use a 6T-10T roller to roll it from the starting point in the forward direction.
The length of the laying section is measured by the length of the roll. After covering the section where the grating should be laid, the laying quality is checked and then the next section is laid. When laying the next section, the grating and grating can be overlapped with a length of 10-15CM and fixed with iron nails or wooden wedges before continuing to lay two sections in the forward direction, and so on. The operation requirements are the same as before.
Company Information
Q1: What is your payment terms?
A1: TT FOB: 30% deposite, balance before shipment.
A1: TT FOB: 30% deposite, balance before shipment.
TT CIF: 30% deposite, balance based on scanned BL.
LC 100% at sight
Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.
Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard cargo to us first. We can also send our engineer to your field to check it directly, if necessary.
Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
Q6:Do you have overseas warehouses?
A6:Yes, we have overseas warehouses in Australia, Myanmar, Cote d'Ivoire and other regions. We use our own freight forwarder, so the shipping cost will be cheaper than other companies.
LC 100% at sight
Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.
Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard cargo to us first. We can also send our engineer to your field to check it directly, if necessary.
Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
Q6:Do you have overseas warehouses?
A6:Yes, we have overseas warehouses in Australia, Myanmar, Cote d'Ivoire and other regions. We use our own freight forwarder, so the shipping cost will be cheaper than other companies.
