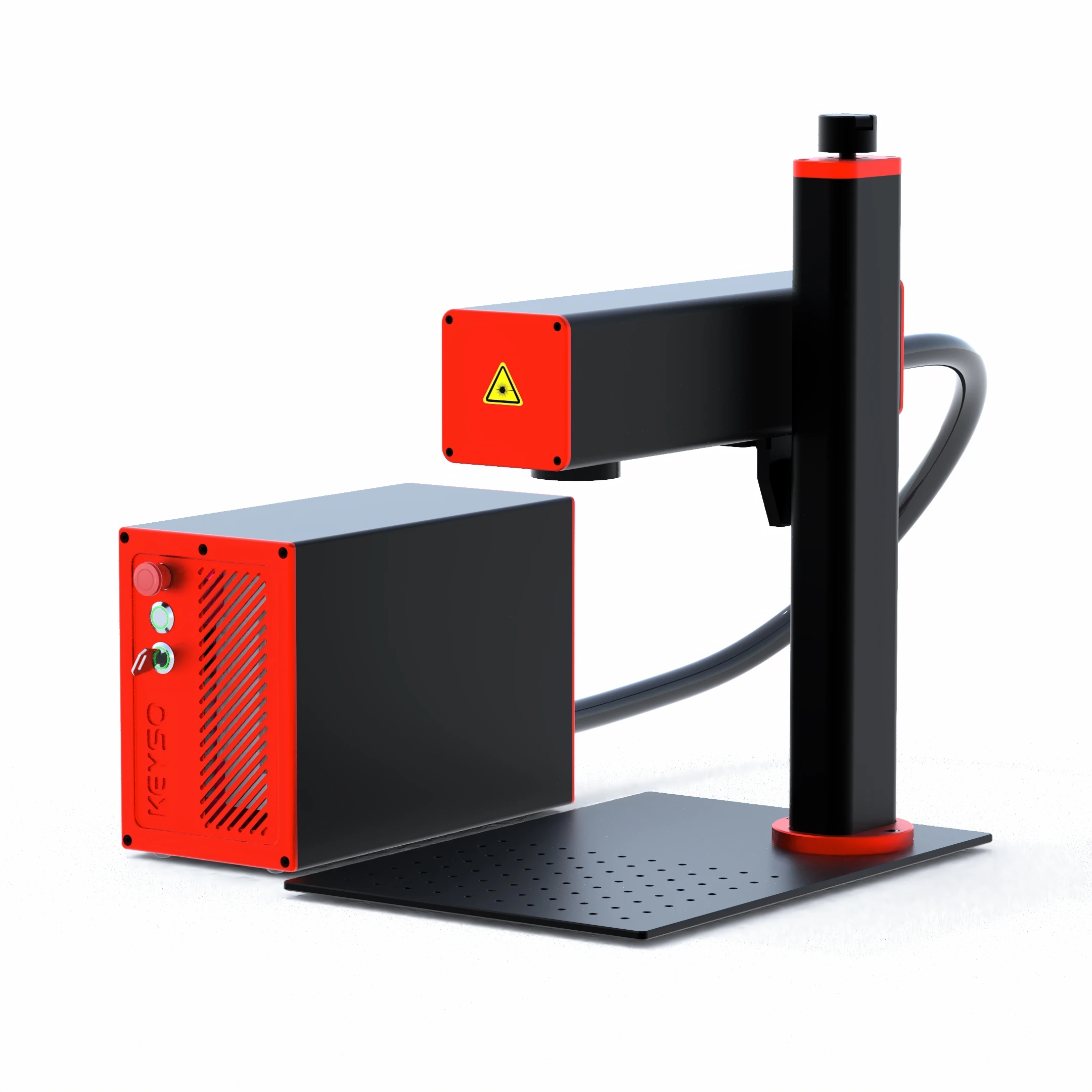

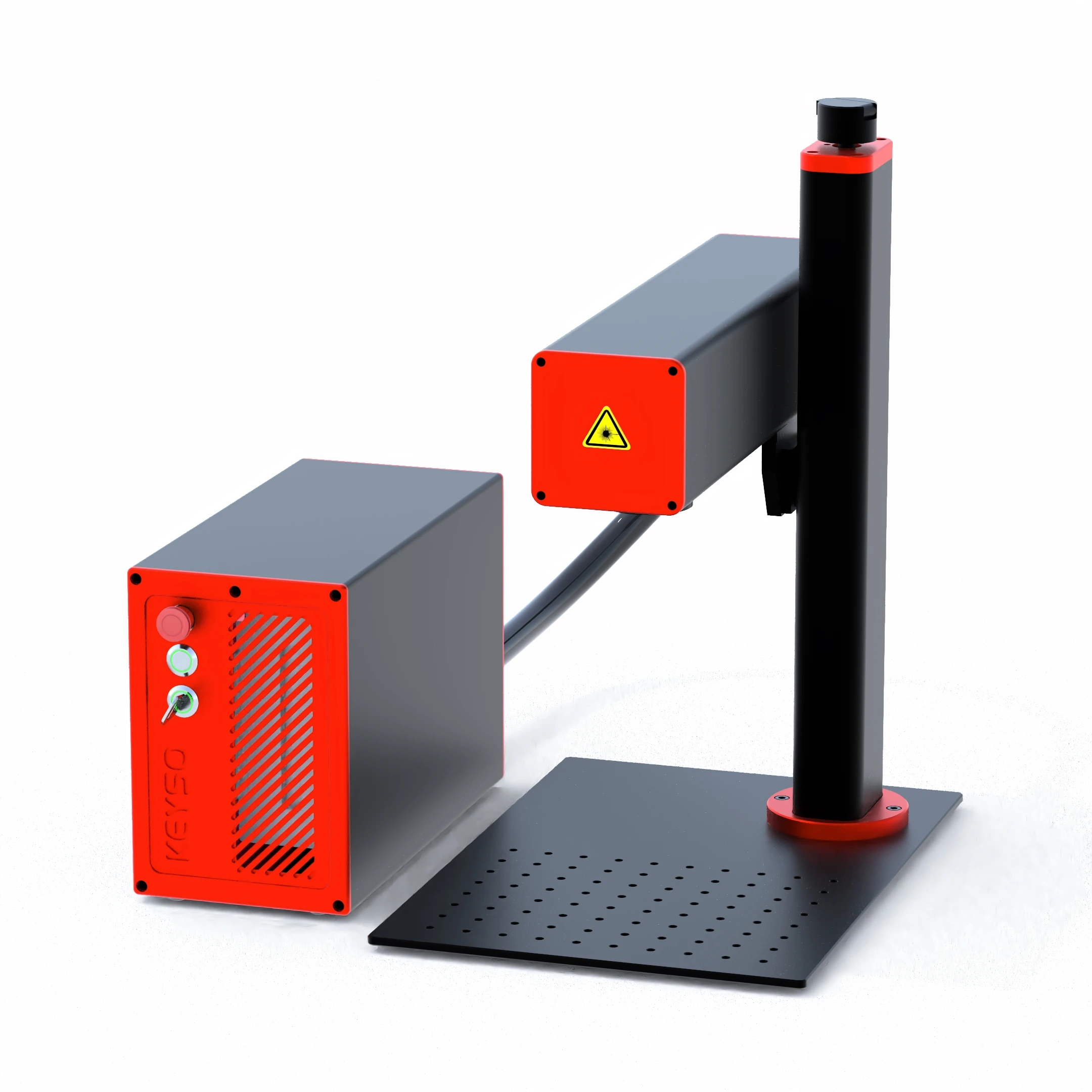

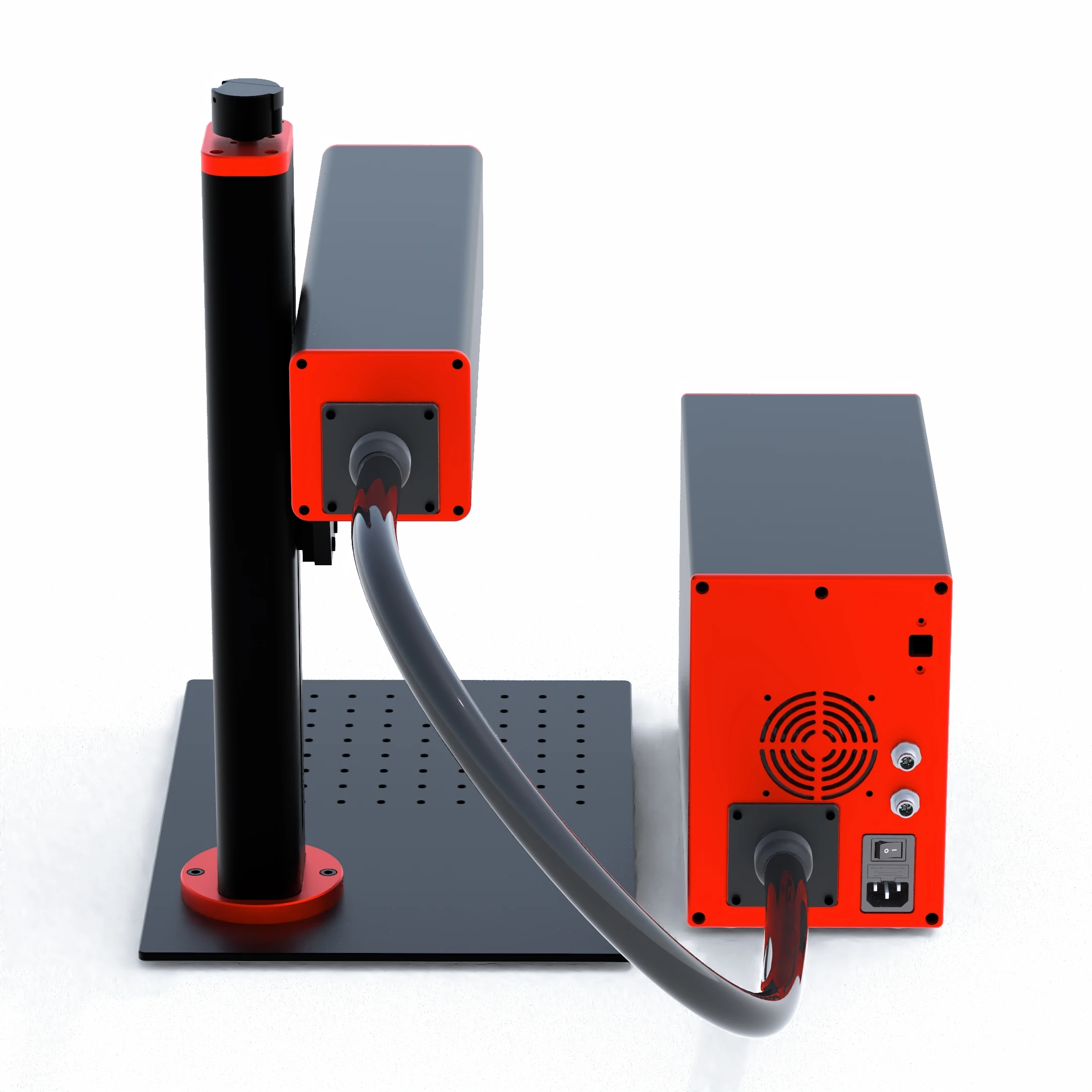

KS20 20 Вт волоконно лазерная маркировочная машина из нержавеющей стали лазерная гравировальная система с поддержкой Lightburn металлическая маркировка и гравировка
- Категория: >>>
- Поставщик: Keyso Co. Ltd.
Сохранить в закладки 1601241467388:
Описание и отзывы
Характеристики
Products Description
Powerful Industrial Fiber Laser Marker
Heavy-duty design, based on cast aluminum structure. High-quality optical components guarantee strength and low maintenance.
20W is adapted for most applications for surface marking;30W is the solution for fast and high-contrast marking;
50W is the most suitable solution for deep laser engraving.
Technical Specifications
Model | KS20 | KS30 | KS50 | ||
Laser technology | Fiber laser, wavelength 1064 nm | ||||
Laser power | 20 W | 30 W | 50 W | ||
Frequency | 30~60 kHz | 45~170 kHz | |||
Pulse width | 100 ns | ||||
Scanner speed | Up to 5 m/s (198 in/s) | ||||
Filed lens quantity | 1pcs | 2pcs | 2pcs | ||
Filed lens size (mm) | 110*110 mm | 110*110 mm 150*150 mm | 110*110 mm 175*175 mm | ||
Filed lens size (in) | 4.3*4.3 in | 4.3*4.3 in 5.9*5.9 in | 4.3*4.3 in 6.9*6.9 in | ||
Communication interfaces | USB, I/O (Ethernet TCP/IP optional) | ||||
Compatible software | KeysoCAD, LightBurn | ||||
Laser safety classification | Class 4 | ||||
Marking head cable length | 1 m (39 in) | ||||
Power consumption rate | 255 W | 305 W | 355 W | ||
Rated voltage | 110~250 VAC, 50~60 Hz | ||||
Operating temperature | 10 to 40°C (50 to 104 F) | ||||
Humidity level | 10-85% | ||||
Net weight | 25 kg | 26 kg | 27 kg | ||
Package size | L*W*H=65*60*40 cm | ||||
Package weight | 30 kg | 31 kg | 32 kg | ||

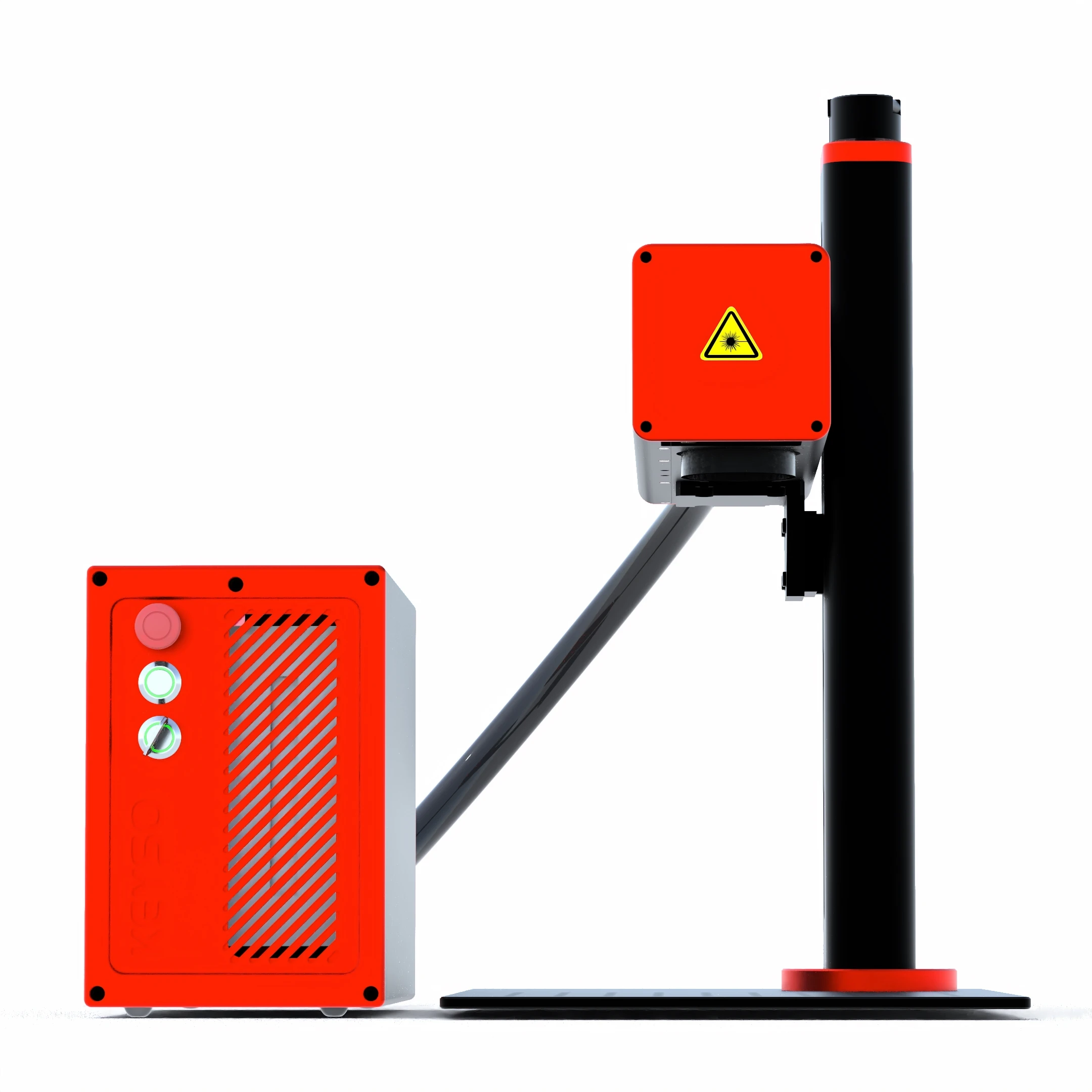

Overall Dimension
Compact design, small size, space saving
Features of KEYSO K fiber Series

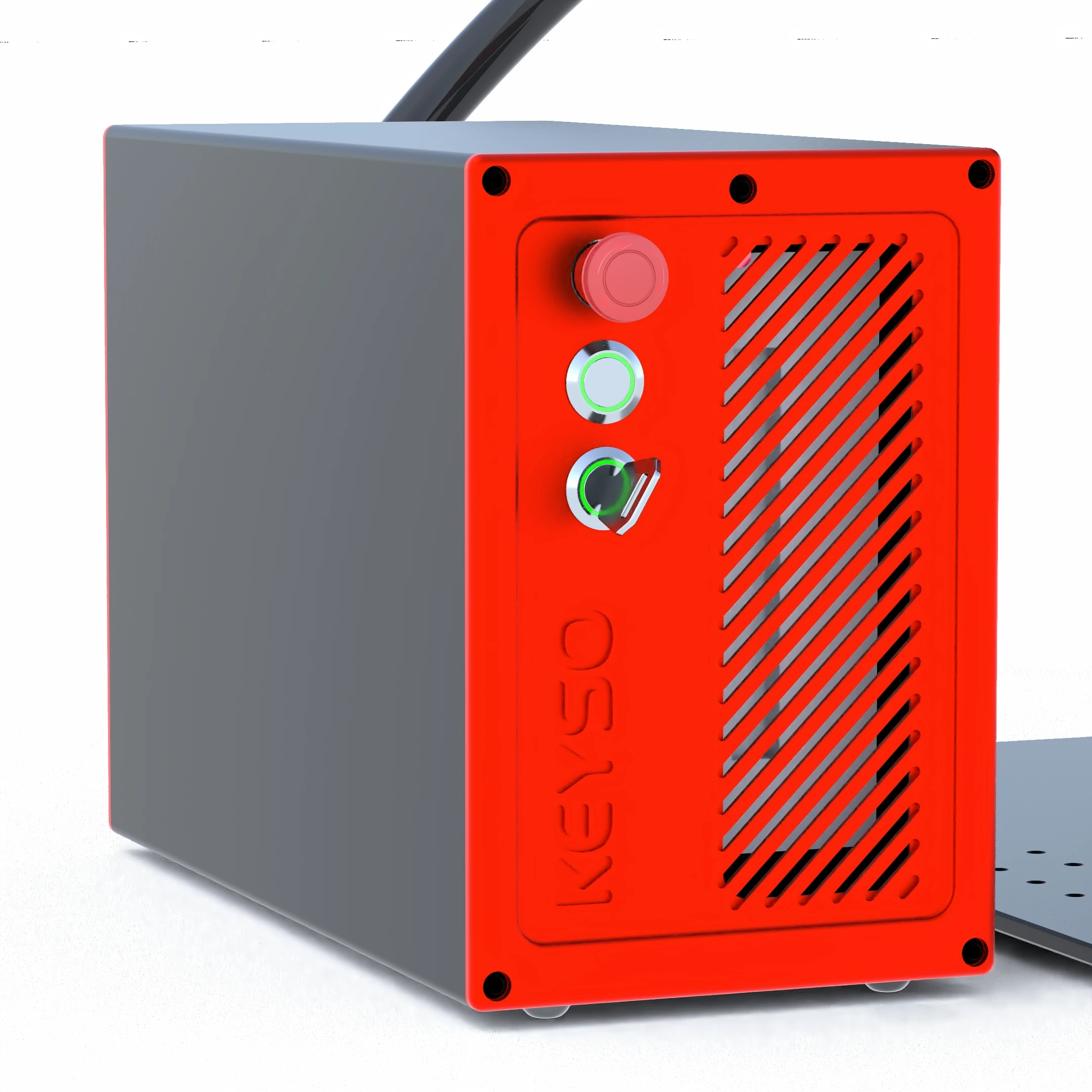

Extruded aluminum head and case
Integrated design, small size, cut by high accuracy CNC center
Anodized dyeing for durable color
Anodized dyeing for durable color
Industrial standard laser source
20W~50W high laser power
100000 hours designed laser life
A real high-speed scanner
Rated marking speed 5m/s
Rated positioning speed 10m/s
With 2 red light indicator
**Note:
5m/s tested in condition of 2mm front in 150*150mm lens.
Rated positioning speed 10m/s
With 2 red light indicator
**Note:
5m/s tested in condition of 2mm front in 150*150mm lens.

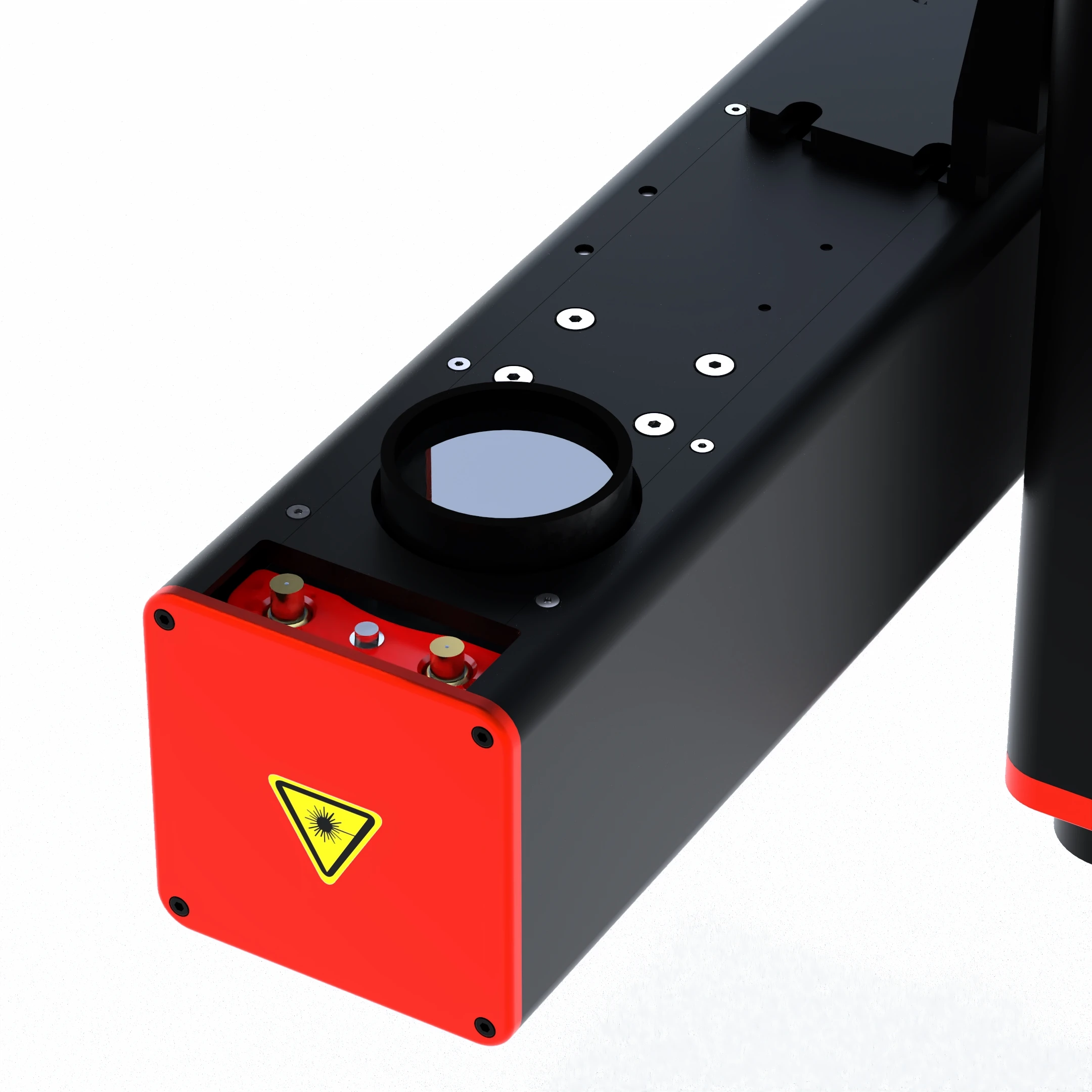

Integrated laser path
Small size, fully enclosed laser path
With 2 red light indicator
Double lens
30W and 50W equipped with 2 field lenses as standard, eliminating the anxiety of choice
Easy maintenance
Fully screw mounted, easy access to all parts, low maintenance cost
Software KeysoCAD
KeysoCAD (similar as EzCAD)
For customer who is familiar with EzCAD, we have KeysoCAD software as replacement (Free to use).
For customer who is familiar with EzCAD, we have KeysoCAD software as replacement (Free to use).
The good feature of KeysoCAD is: It supports Windows 7 to Windows 11. There is no need to keep a windows 7 computer anymore! Download KeysoCAD software user manual
here at: www.keyso.com.cn
here at: www.keyso.com.cn
Support LightBurn
LightBurn (Need to buy license) is a native application written for Windows, Mac OS, and Linux.
We officially opened our API to LightBurn for 100% stable and compatible. Learn for LightBurn here: www.lightburnsoftware.com
Exquisite accessory package
CE certified OD6+ grade protective goggles 1 pcs
*Optical density (OD) is used to express the percentage of laser light of a specific wavelength that can pass through laser protective glasses.
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
Multiple function clamp
Used for fixing cylindrical, flat and spherical materials
High quality tools
Short stroke foot switch
Branded allen wrench
Imperial + Metric folding ruler
Branded 64GB USB disk
Branded USB cable
Sample gift package
Package include: Portable 8 oz bottle, painted aluminun card, brass coin, blue stone slate, dog tag, key tag, stainless ring.
**Note: We may change gift package according to purchase availability
**Note: We may change gift package according to purchase availability
Power cable choice
USA plug, EU plug, UK plug, AU plug
Optional: External rotary drive box
With external rotary drive box, we can add rotary in future at anytime.
Don't need to do any wiring works, just plug and run!
Optional: Multiple type of rotary
**Note: Rotary need to work with Keyso external rotary drive box
Optional: Smoke and dust filter
200W power, 280m³/h
AC220V (AC110V available)
Software functions
The supported function and file types are listed as following
Logo/Graphic/Image |
Texts & Numbers (in any fonts) |
QR code/2D code/Barcode |
Deep Marking/Etching |
Batch Number/Serial Number/Vin Number |
Ring & Rotate Marking |
Cut Thin Materials |
Field lens choice reference
A+: Very good results, stronger with laser focus;
A: Moderately effective, less efficient than A+ field lenses.
B: Normal effective, suitable for materials that do not require high energy density.
C: Light is weak and not recommended.
A: Moderately effective, less efficient than A+ field lenses.
B: Normal effective, suitable for materials that do not require high energy density.
C: Light is weak and not recommended.
Scanning Area (mm)/(in) | Focal Length (mm)/(in) | KS20 (20 W) | KS30 (30 W) | KS50 (50 W) |
70x70 (2.8x2.8) | F=100 | A+ | A+ | A+ |
110x110 (4.3x4.3) | F=160 | A+ | A+ | A+ |
175x175 (6.9x6.9) | F=254 | A | A | A+ |
200x200 (7.9*7.9) | F=420 | C | C | A |
KEYSO Laser Marker Model Compare
Note: M=Marking; C=Cutting, E=Engraving/Deep marking;
KEYSO Laser Marker | K series fiber | Ki UV series | Ki CO2 series | |||
1065nm | 355nm | 10.3um | ||||
Organics | ||||||
Ceramic | M | M | M | |||
Electrical/medical ceramic | M | M | M | |||
Leather | M | M | ||||
Paper, cardboard, cork | M | M / C | ||||
Rubber | M | M | ||||
Silicon | M | |||||
Wood, varnished wood | M | M / E | ||||
Food | M | M | ||||
Glass, crystal | M | M | ||||
Stone, granite, marble | M | M | ||||
Textiles | M | M / C | ||||
Plastics | ||||||
ABS | M | M | E | |||
Laminates | M | M | E | |||
PA | M | M | E | |||
PE, BET | M | M | E | |||
PMMA, Acrylic | M | M | E | |||
POM - PBT | M | M | E | |||
PP | M | M | E | |||
PC | M | E | ||||
Foam | M | C / E | ||||
Metal | ||||||
Aluminum | M / C / E | M | ||||
Anodized Aluminum | M / C / E | M | M | |||
Brass | M / C / E | M | ||||
Carbide | M / E | M | ||||
Coated metal | M / E | M | M | |||
Copper | M / C / E | M | ||||
Gold, silver, nickel, platinum | M / C / E | M | ||||
Stainless steel | M / C / E | M | ||||
Steel | M / C / E | M | ||||
Titanium | M / E | M | ||||
Похожие товары
KS30 30 30 Вт MOPA волоконно-лазерная маркировочная машина для гравировки металла и нержавеющей стали Цветная маркировка мощная сплит-модель
216 442,99 ₽ - 291 863,55 ₽

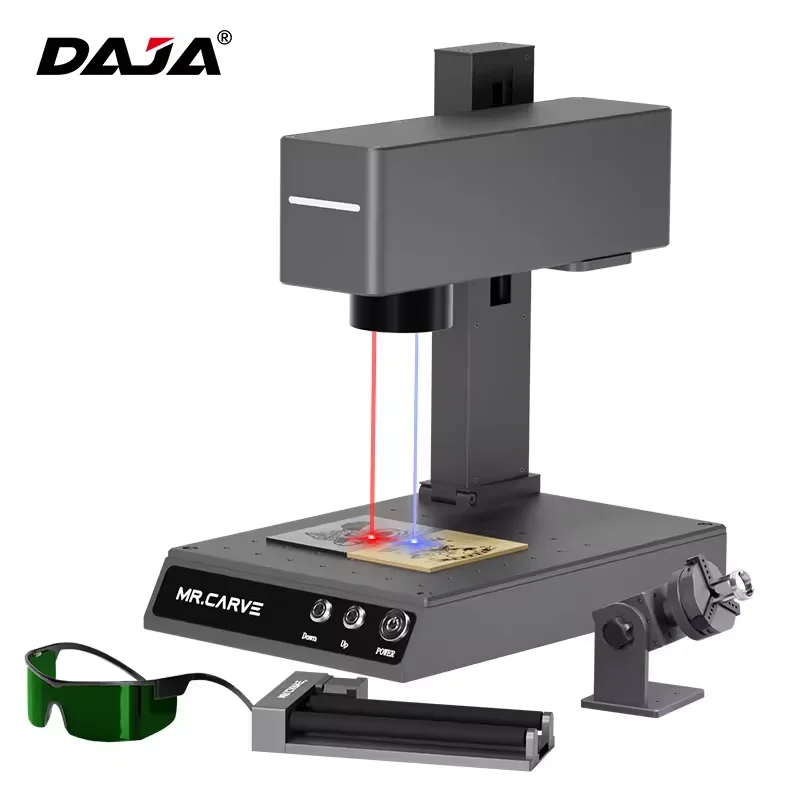

DAJA Mr Cave M4, маркировочные волоконные лазерные машины, золото, серебро, алюминий, медь, сталь, пластик для небольшого металлического лазерного гравера
KS30 30 30 Вт MOPA волоконно-лазерная маркировочная машина с цветным разделением из нержавеющей стали для рекламной индустрии
216 442,99 ₽ - 291 863,55 ₽
KS20 20 Вт волоконно-лазерная маркировочная машина новое состояние Нержавеющая Сталь Лазерный источник для глубокой гравировки и цветной маркировки по металлу
203 063,66 ₽ - 273 736,72 ₽

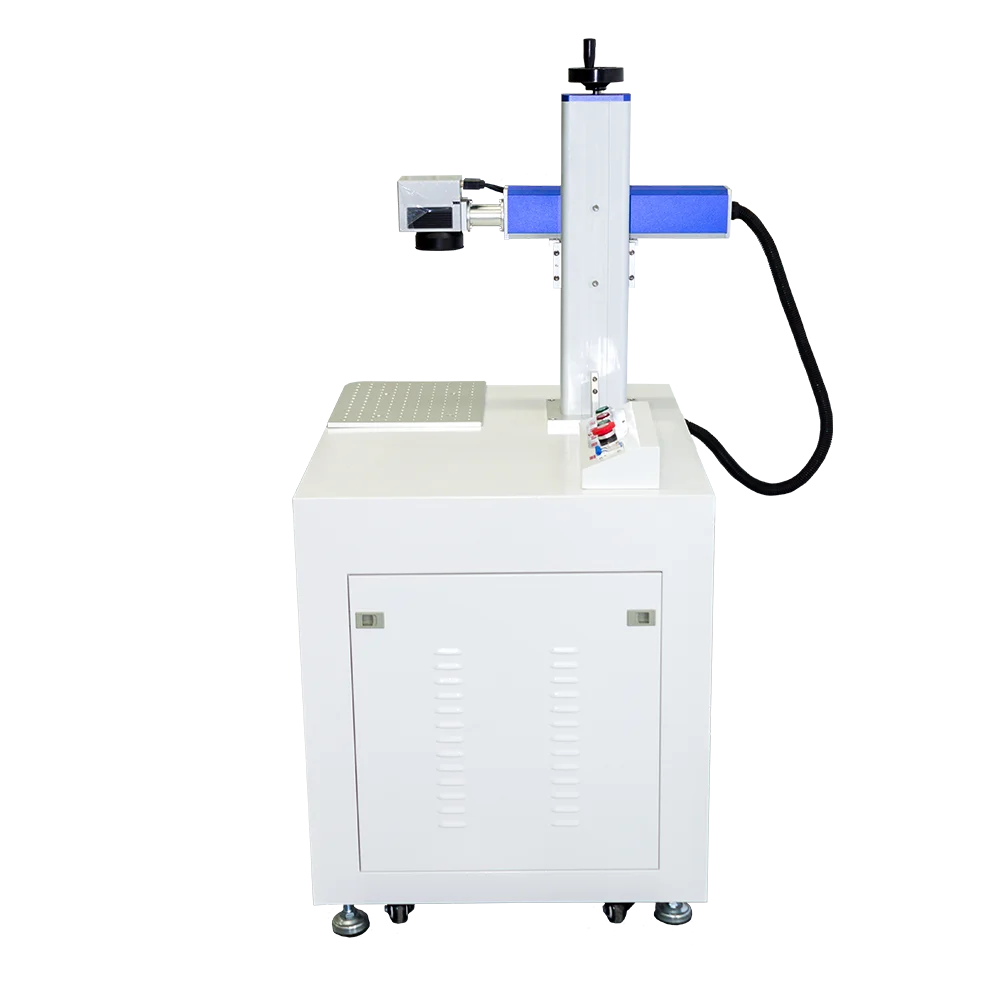

20 Вт 30 Вт 50 Вт Тип шкафа волоконно-лазерная маркировочная машина для металла
