Li SOCI2 батарея RUIZHI 3 6 V ER14250 1/2AA литиевая VDO

Li SOCI2 батарея RUIZHI 3 6 V ER14250 1/2AA литиевая VDO

Категория: >>>
Поставщик: Nanjing Ruizhi Industries Ltd

Цена:98,69 ₽ - 106,36 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

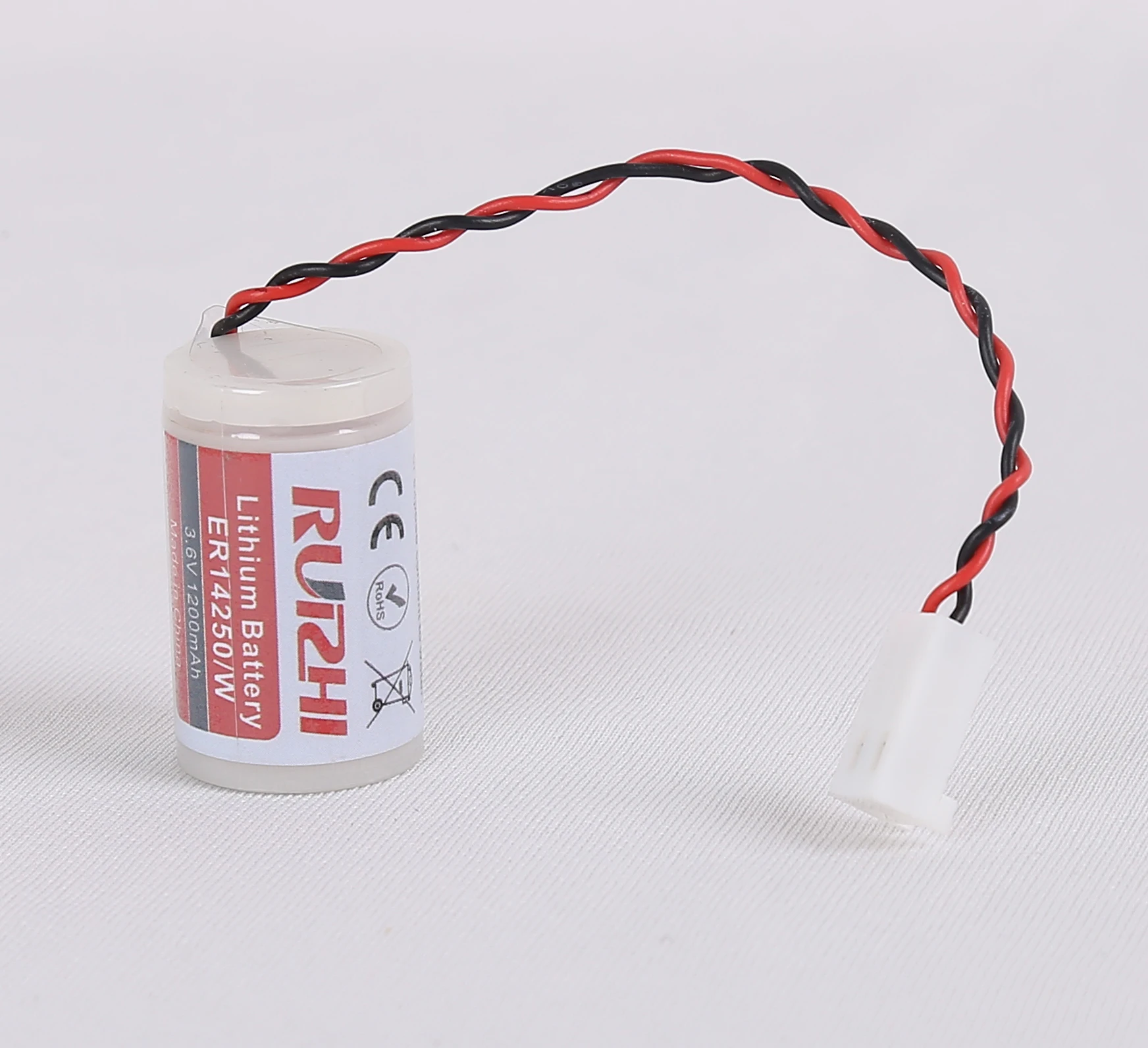

Product name:	Battery ER14250 in Plastic shell with 75mm cable & Molex 22013027 connector
Our Model:	ER14250
Order P/N:	ER14250-07522013027R-Case
Shape/Intl. Model:	1/2AA
Equivalent model:	TL-5276/W, XL-050F CASE
Nominal Voltage:	3.6V
Nominal Capacity:	1200mAh
Max.continuous current:	25mA
Max.pulse current:	50mA
Dimension:	16.828.6(DH)
Weight:	13.1g
Working Temperature:	-60℃ ~+85℃
Storage Temperature:	<30℃
Life	5~10 years

Key\u007FCharacteristics / Advantages:
* High and stable operating voltage
* Low self-discharge rate(less than 1% per year +25℃)
* Hermetic glass-to-metal sealing
* Non-flammable electrolyte
* Stainless steel shell(with low magnet)
* UL, CE, ATEX, SGS, UN38.3, FCC Approved
* ISO 9001& ISO14001 certified company
* Long working life and storage life
* Widely operating temperature range

Detailed Image

Ruizhi use global high-end automated production systems, sophisticated analytical instruments, imports of raw materials, develop and produce various high performance primary cylindrical lithium battery.

■ Ruizhi battery has long storage lifetime.
■ Wide range of operating temperature.
■ Offer stable operating voltage and loading voltage platform.
■ Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs.
■ Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique
performance in wet environment.
■ Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request).
■ High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery.
■ Ruizhi batteries are mostly UL, SGS, CE, RoHS, UN38.3, FCC, ISO approved.

Applications

Certificates

Technical Data

Applications

Battery Catalog

Our Company

Nanjing Ruizhi Industry & Technology Co., Ltd. specializes in R & D, production, sales and technical services of lithium thionyl chloride battery(Li-SOCl2) and lithium manganese dioxide battery(Li-MnO2).With a number of electromagnetic related national technical patents, super technological innovation ability and service consciousness, Ruizhi can provide customers with comprehensive product development and feasible & suitable power solution design. Ruizhi's products are widely used in utility metering, car electronics, security system, intelligent transportation, space remote sensing, cold chain monitoring, GPS positioning, military systems, marine safety, petroleum exploration, etc...

Ruizhi is certified by ISO9001:2008 International quality management system, and its products are manufactured under ISO quality system. Ruizhi's products are certified CE, UL, RoHS and UN38.3, and Ruizhi has made MSDS for all products to guide use and transport. The Products are sold to Europe, America, the Middle East, Southeast Asia and many other countries and regions, and product quality and service have been approved and praised by customers.
