Лидер продаж в Китае 2835 Светодиодный модуль с подсветкой объектива 12 В инжекторный светодиодный светильник для вывесок Рекламный Канал буквенные знаки

Лидер продаж в Китае 2835 Светодиодный модуль с подсветкой объектива 12 В инжекторный светодиодный светильник для вывесок Рекламный Канал буквенные знаки

Категория: >>>
Поставщик: Shenzhen Diming Optoelectronics Co. Ltd

Цена:6,57 ₽ - 8,76 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

FAQ

1.Will there be any discount on this price?

Our prices are adjustable according to your quantity. We serve a large number of wholesalers and advertising engineering customers. Please contact me with your detailed needs and I will give you the best price and plan.

2.How long is the warranty for this module?
The warranty of this 7015 2835 led injection module is 3 years, and it has very low light decay, and it still has bright light after 3 years of use.

3.What's the MOQ? Can I check a sample first?
Our MOQ is 200pcs per color, and we provide free samples for you to check,

4.How long does it take to ship after placing an order?
We always have white light in stock. If it is not in stock, the production time is usually 3-7 days, because we have multiple production lines to quickly produce and ship to customers

5.What services can you provide?

In terms of products, we support customization and design of molds. We can customize logos, packaging, line length, adhesive, power, PCB, etc. according to customer requirements. In terms of service, our sales staff are professionally trained and will answer your questions online at any time and provide you with efficient services.

6.What payment methods do you accept?

We can accept T/T, Western Union, Alipay, MoneyGram, etc., and other methods can be negotiated

7.How do you ship to me?

If it is a small quantity, we can send it to you by express, common ones are UPS, FEDEX, DHL, TNT, etc., the transportation time is about 7 days, if it is a large quantity, we can send it to you by sea or railway, the transportation time is 35-45 days, depending on the specific country,

8.How do you handle after-sales service?

If there is a problem with the product, please communicate with us in time and send us pictures and videos. If it is a problem with the product itself, we can compensate you the same quantity in the next shipment.

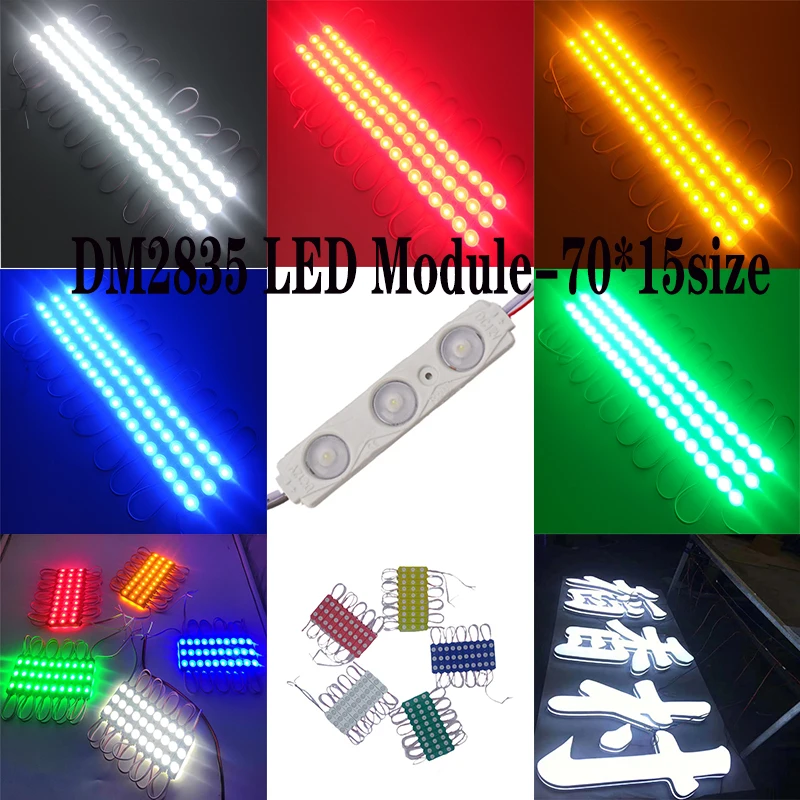

7015 2835 LED Module

1.The LED module uses 2835 large lamp beads, which have a good luminous surface. So it can provide excellent brightness

2. The light attenuation is very small, even if you use it for 3 years, you can still maintain a very bright light.

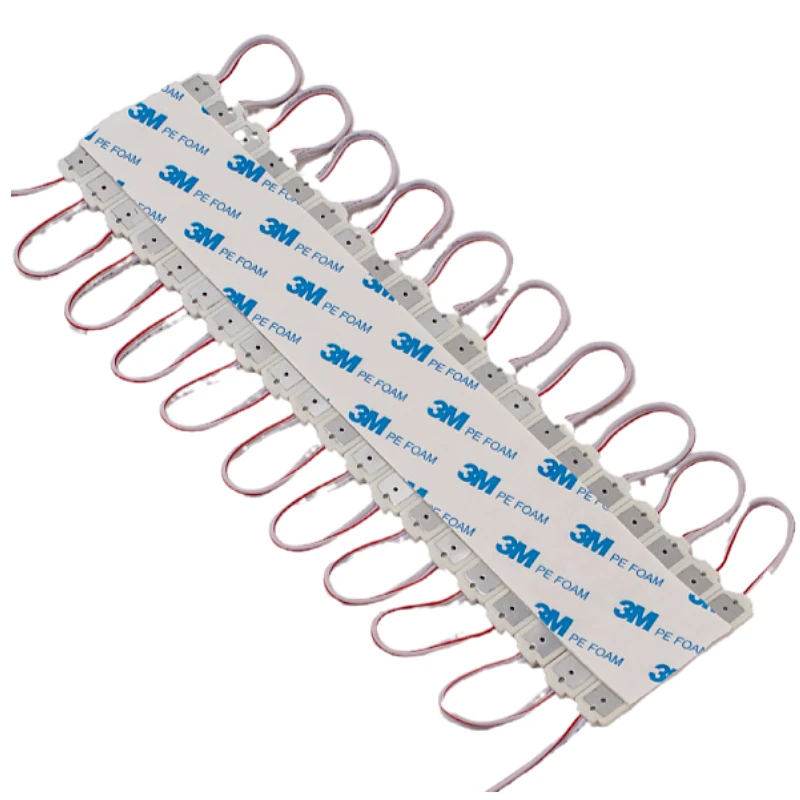

3.Its installation method is simple. This model has screw holes and adhesive backing, which can be used to further fix it in the
groove or on the acrylic board.

4.Customizable service, we support various customized services and the delivery time is within 7-10 days

Model:	7015 2835 LED Module
Chip:	SMD2835
Size:	701510mm
Colors:	Cool White ,White,Warm White.Red,Blue,Green,Yellow,Pink,Purple,
Power（W）:	1.5Watts
Voltage:	DC12V
Lumen/module:	150ML
Operation temperature:	-25°C~60°C
IP Rate:	IP65
Beam Angle:	170°degree
Life time:	50,000hrs
Warranty:	3 Years
Dimmable:	YES
Material:	Aluminum PCB + integrated PC material optical lens + Pure copper power cord
Certification:	CE and ROHS
Application scenarios:	Outdoor lighting products such as lightboxes, signs, and illuminated letters with logos

The bright light it actually lights up, cool white 10000-12000k

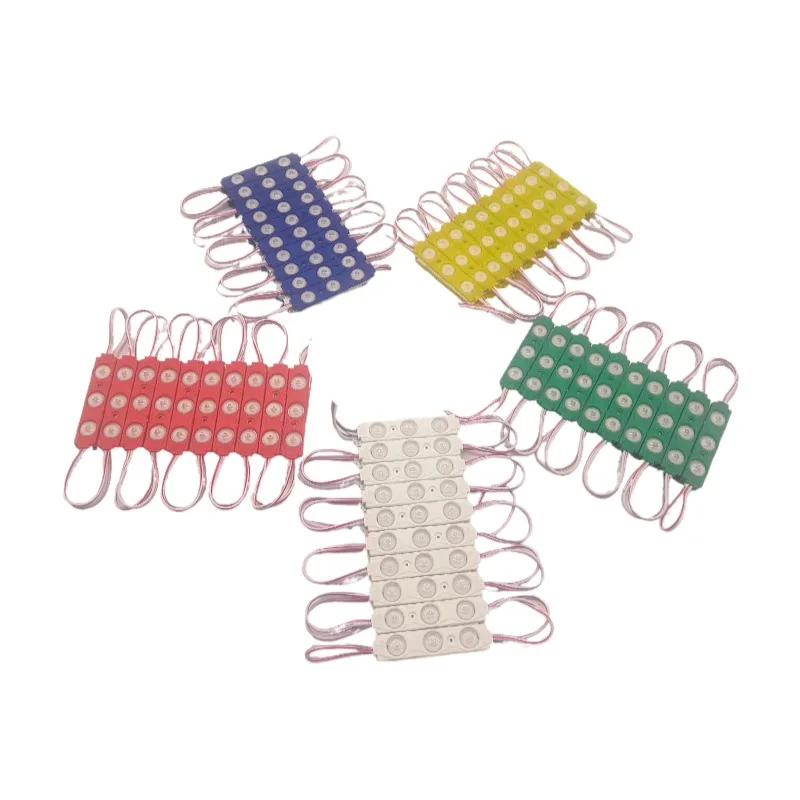

There are different colors to choose from, including red, blue, green, yellow, pink

Thickened aluminum substrate

Good heat dissipation

Excellent conductivity
Thickness: 1.0mm

pure copper power cables to connect modules

Pure copper power cord: 1.5m²
Good electrical conductivity

How to install LED modules?

1. Main power cable dimension: should exceed 2x1.5mm². To prevent damage from overheating caused by overload, the extended module
cable (if necessary) should adopt dimension above 0.75mm²/18#.,Cable length between power and module should not be exceed 2m, if
not it’ll suffer from power loss the total power consumption will also increased.
2. Adopt method 1, the maximum is 20 PCS. (Don’t over-connecting).
3. Adopt method 2, the maximum is 25 PCS. (Don’t over-connecting).
4. Take off the adhesive tape from the back of modules, stick them in the light box or advertisement board for initial settlement,
then fix the module by 2 piece of ST2.9x10 mm self tapping screws, or you can also fix the module by glass glue.

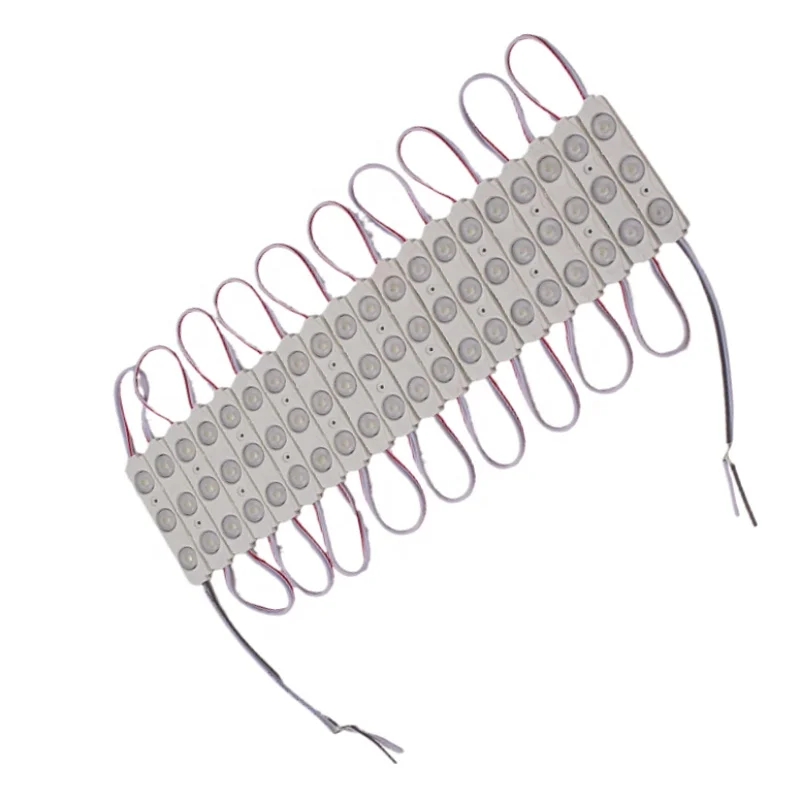

5. The standard number is 20 pcs for each string; they also can be cut off on customer’s requirement.
6. During the connection,using diagonal pliers to cut off power cable between modules, peel off the plastic around 10mm, wiring
the cables and then connect them to their respective isolation port(the white-red cable heads to positive,the white cable for
negtive).Do remember check the conductivity and reliablity of the cable after the connection, genernally, they can’t be pulled out
of the port by middling force.
7. If there are extra cable for the string-end module, peel off the cable coat by 10mm (around)then connect then into isolation
port.
8. To make sure that the waterproof and anti-corrosive reliability, grease some silicon glue (neutral glass glue or waterproof
glue.) into the connection port for further protection.
9. Don’t touch the product when they are electrified.
10. Use reliable power driver that with certifications. (With short circuit protection, overload protection and over-current
protection.)

Application for 2835 Injection LED Module

1. Idea for in cabaret, cabinet, furniture, landscape, and architectural lighting
2. Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
3. For cable and fixing hole

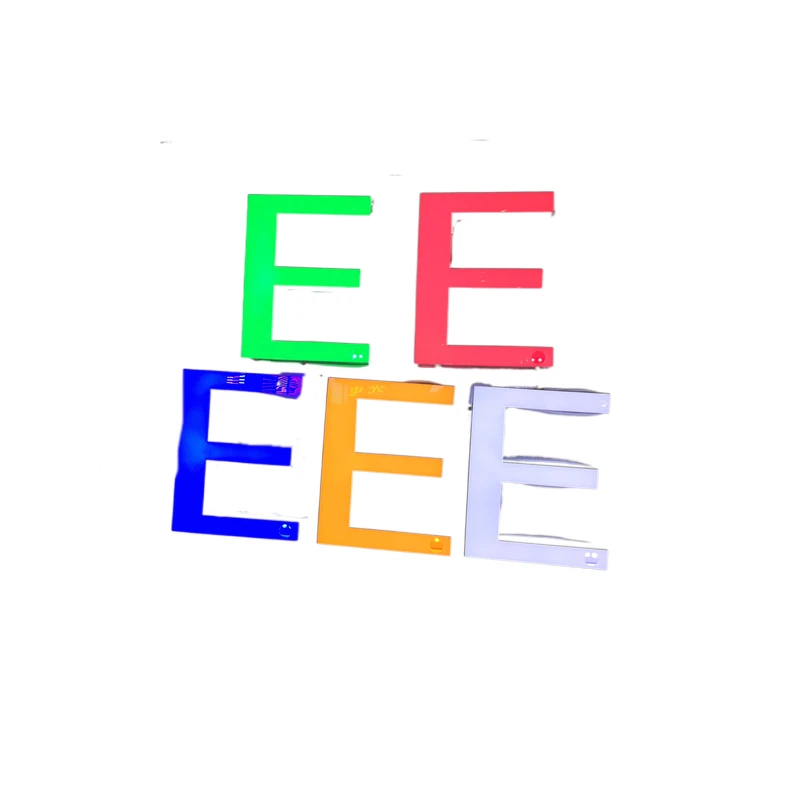

4. Channel letters backlighting
5. Advertisement signs acklighting
6. Advertisement light boxes backlightingApplication for 2835 Injection LED Module
