Оборудование для осмотра и очистки нефтегазопровода AVA P3
- Категория: >>>
- Поставщик: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.
Сохранить в закладки 1601242548158:
Описание и отзывы
Характеристики

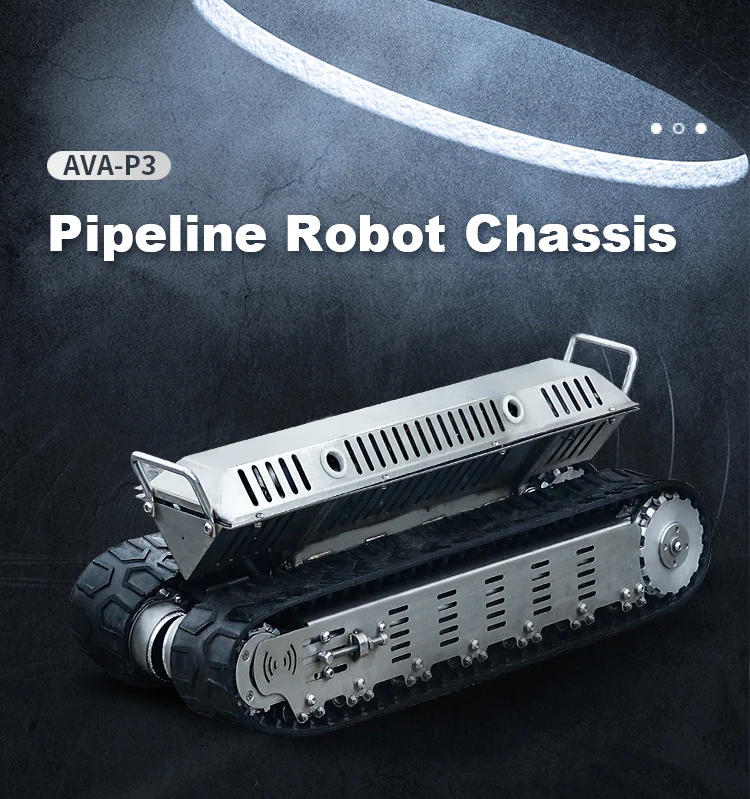

AVA-P3
The Pipeline Robot Chassis is mainly used for operations in small horizontal pipelines. It can be equipped with cameras, detection equipment, etc.
Parameters | ||||||
Robot dimension: | 630*225*210mm | Travel speed: | 4km/h | |||
Load weight: | 80kg | Cable length: | 50m (Can customize 600m) | |||
Machine operating voltage: | DC48V | Maximum climbing grade: | 30° | |||
Maximum operating power: | 400W*2 | Maximum track span: | 485mm | |||
Robot self-weight: | 30Kg | Cable winder self-weight: | 130 Kg | |||
Battery compartment dimension: | 741*427*148mm | Cable winder size: | 950*860*930mm | |||
Waterproof grade: | IP68 (50m， 150m, can be customized for 300m depth underwater) | |||||
Advantages:
1. With small size, it can be used for small pipelines with 300mm diameters, also it can enter urban tunnel pipelines through
manholes.
2. 800W drive motor power, very powerful.
3. The tracks can adjust the angle automatically to fit the round pipes, providing strong ground gripping ability and dragging
ability, suitable for both square and round pipes.
4. It uses high-pressure drive and provides ultra-long cable control (standard wire control distance 50 meters, maximum 600
meters). It can be equipped with an automatic cable winder to retract/release the cables automatically.
5. The chassis can be battery-driven, and the maximum battery capacity is 200AH.
6. With IP68 waterproof chassis body and oil-sealing motors, it’s suitable for 30m underwater operation.
7. Optional: one-channel or four-channel remote control box.
8. Optional: IP68 underwater camera, visual operation.
9. In front of the chassis, it can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to
crush and clean reed roots, grass roots, household garbage and other colloidal substances or cut the plant roots and other
sediments at the pipe junctions.
manholes.
2. 800W drive motor power, very powerful.
3. The tracks can adjust the angle automatically to fit the round pipes, providing strong ground gripping ability and dragging
ability, suitable for both square and round pipes.
4. It uses high-pressure drive and provides ultra-long cable control (standard wire control distance 50 meters, maximum 600
meters). It can be equipped with an automatic cable winder to retract/release the cables automatically.
5. The chassis can be battery-driven, and the maximum battery capacity is 200AH.
6. With IP68 waterproof chassis body and oil-sealing motors, it’s suitable for 30m underwater operation.
7. Optional: one-channel or four-channel remote control box.
8. Optional: IP68 underwater camera, visual operation.
9. In front of the chassis, it can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to
crush and clean reed roots, grass roots, household garbage and other colloidal substances or cut the plant roots and other
sediments at the pipe junctions.
Application:
It’s mainly used for underground pipeline operation.
Support secondary development and application customization.
1. Pipeline Plant roots cutting .
2. Sewer cleaning.
3. Sewer pipeline detection.
4. Urban pipe network laying.
5. Gas pipeline detection.
6. Pipe garbage collecting.
Support secondary development and application customization.
1. Pipeline Plant roots cutting .
2. Sewer cleaning.
3. Sewer pipeline detection.
4. Urban pipe network laying.
5. Gas pipeline detection.
6. Pipe garbage collecting.
Packing and Shipping
Within 3-5 working days
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
Похожие товары

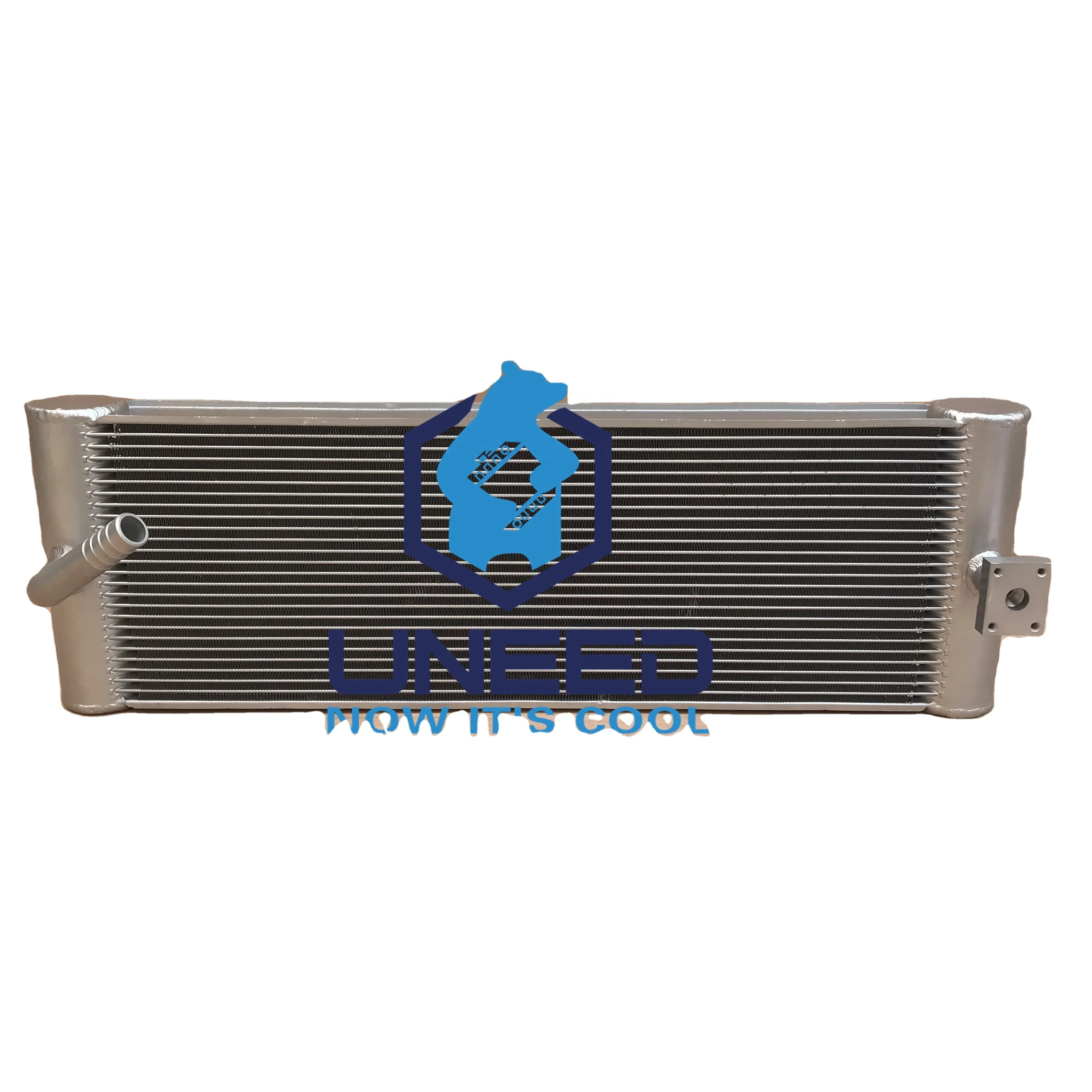

Гидравлический масляный радиатор для SH125X-3B Sumitomo SH145X-6 SH130-5 экскаватора SH135X3 с завода

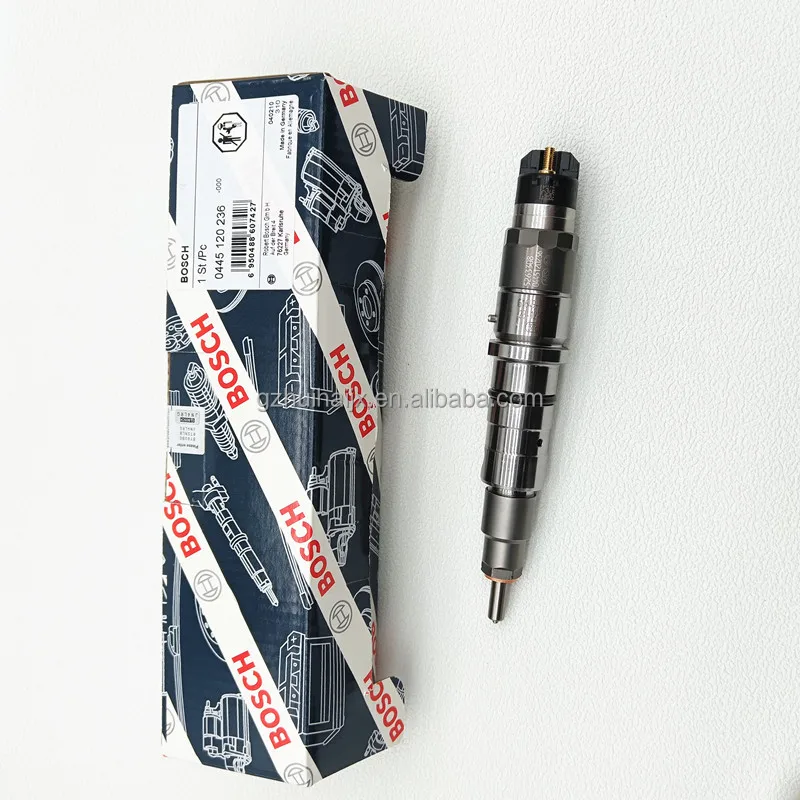

Высокое качество QSB6.7 6D107 PC200-8 QSB4.5 для инжекторов Cummins 3976372 4945969 5263262 0445120059 0445120231
5 546,38 ₽ - 11 092,75 ₽

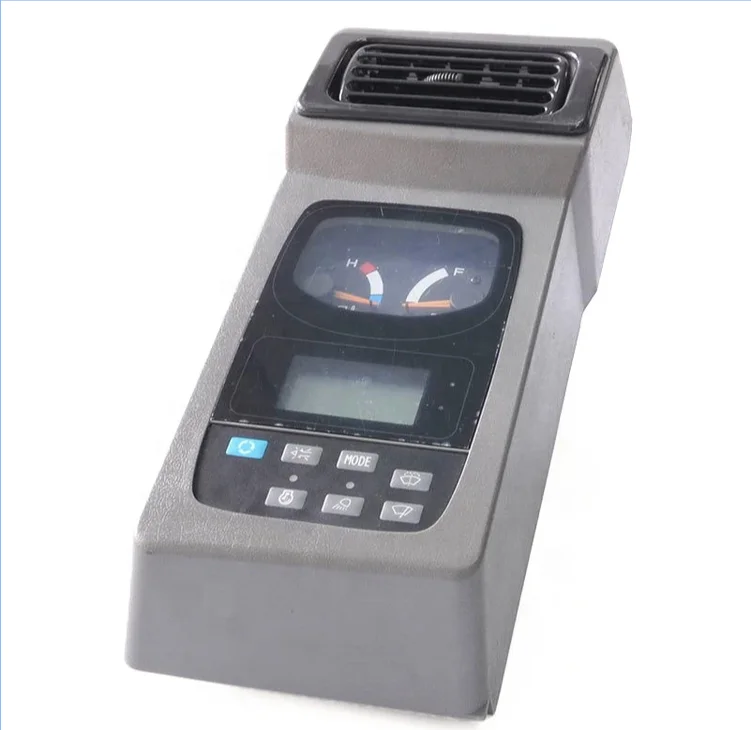

GTW бренд с гарантией YN59E00011F2 монитор ЖК-панель для SK200-6 SK200-6E SK250-6 SK320-6
26 622,60 ₽

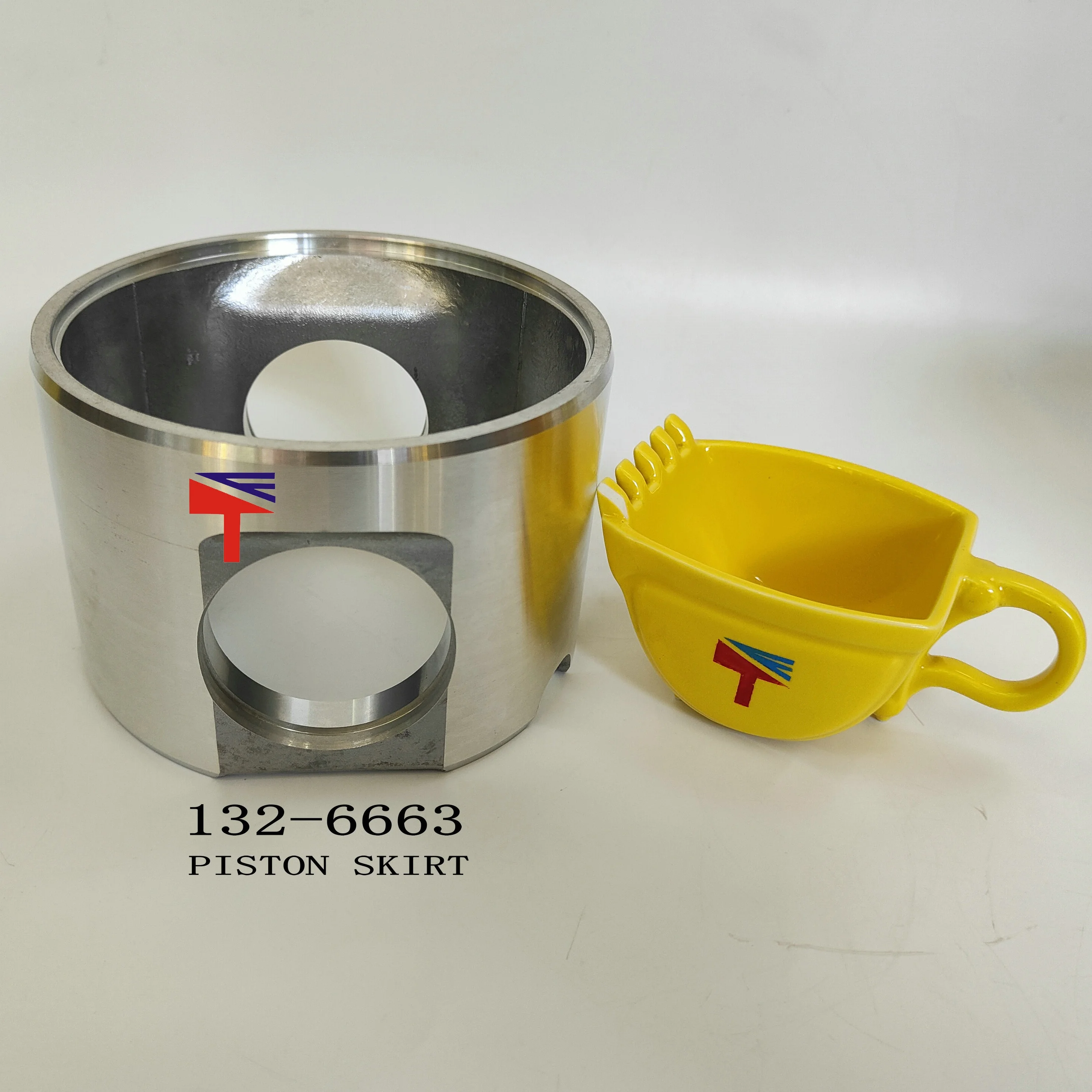

132-6663 для дизельного двигателя
110,93 ₽ - 2 617,89 ₽
Shantui SL50W-2 колесный погрузчик 93125012 кольцевая зубчатая опора в сборе 83640302
469 445,18 ₽ - 648 593,10 ₽

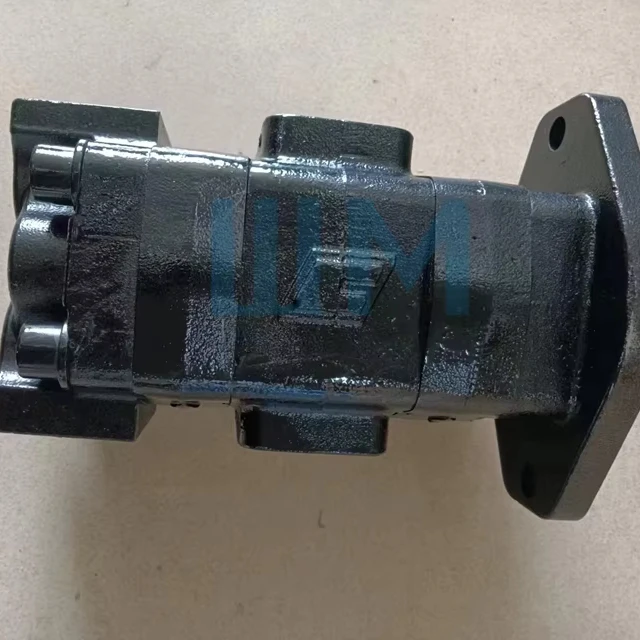

Запчасти для строительной техники wan ming зубчатый насос 14530502 гидравлический EC360B EC330B EC330C EC360C
