Опалубка H20 деревянная балка H Размер I

Опалубка H20 деревянная балка H Размер I

Категория: >>>
Поставщик: Lisen Wood Industrial Shouguang Co. Ltd.Lisen Ltd.

Цена:22,38-22,59 $*

Количество:

В избранное

Описание и отзывы

Характеристики

H20 timber beams SPECIFICATION:

1)Materail:New Zealand Radiate Pine

2)Flange: 80*40mm(LVL Structure)

3)Web: 27mm (Plywood or LVB Structure)

4)Weight/: 5.00kg-5.20kg/meter

5)Length avaible:Max 12meter

6)Quality: SGS test report according to EN13377:2002

7)Surface finishing: waterproof yellow painting or other color as the customers request

8)Package:Pallets on the bottom,and Steel band for strength

9)GLUE:WBP/MUF

10)Price advantage: 20-30% cheaper than Austria based on same quality

Height	200mm
Flange	Spruce, Pine, a mixture of wood species permitted
Web	Thickness:27-30mm
Surface Protection	The complete beam is waterproofed using a water-repellent color glaze
Standard Length	2.45m,2.65m,2.9m,3.3m,3.6m,3.9m,4.5m,4.9m,5.9m, (Max.length:6.00m)

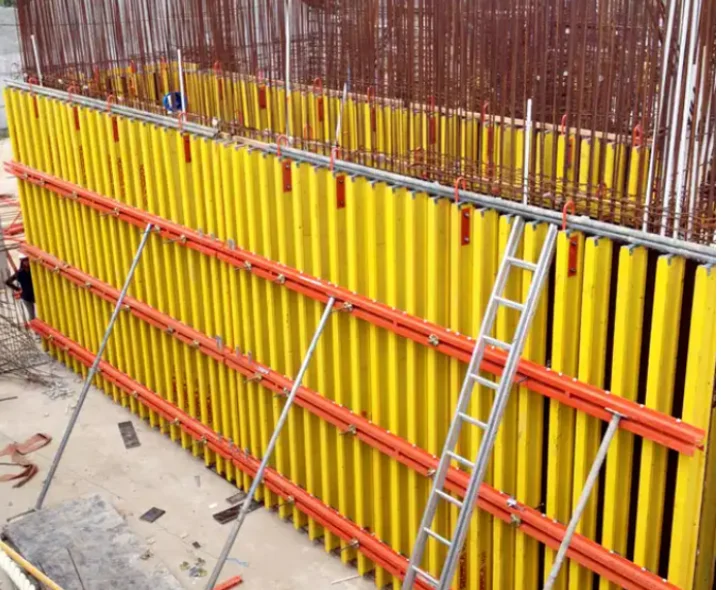

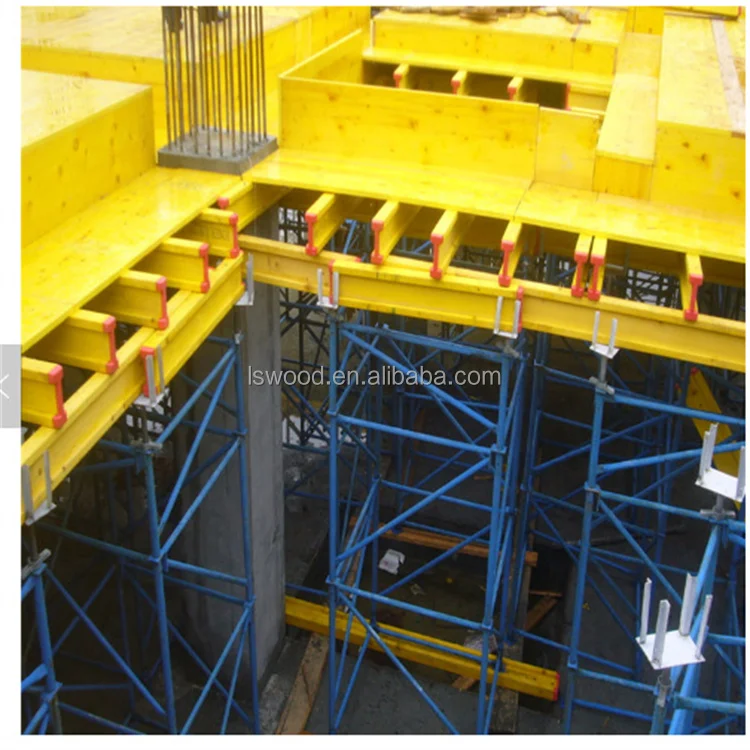

Used For	Slab Formwork System,Vertical Formwork(Wall,Column,Hydraulic Climbing etc.), Adjustable Arced Formwork etc

Loading capacity:

ITEM	Working capacity	EN request	SGS test
maximum bending resistance	5KN.M	10.9KN.M	16.2KN.M
maximum shearing resistance	11KN	23.9KN	30.8KN
maximum bearing resistance	22KN	47.8KN	53.2KN

photos

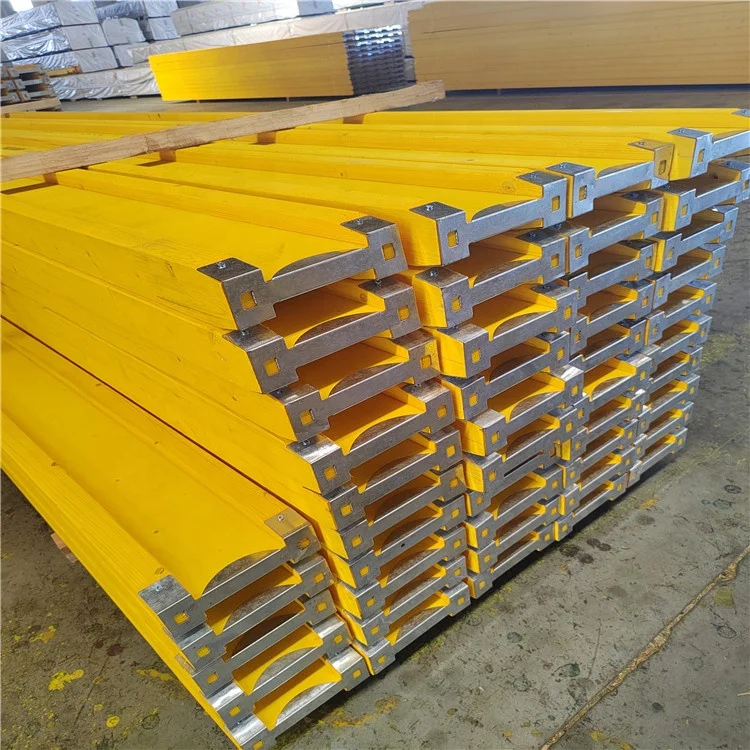

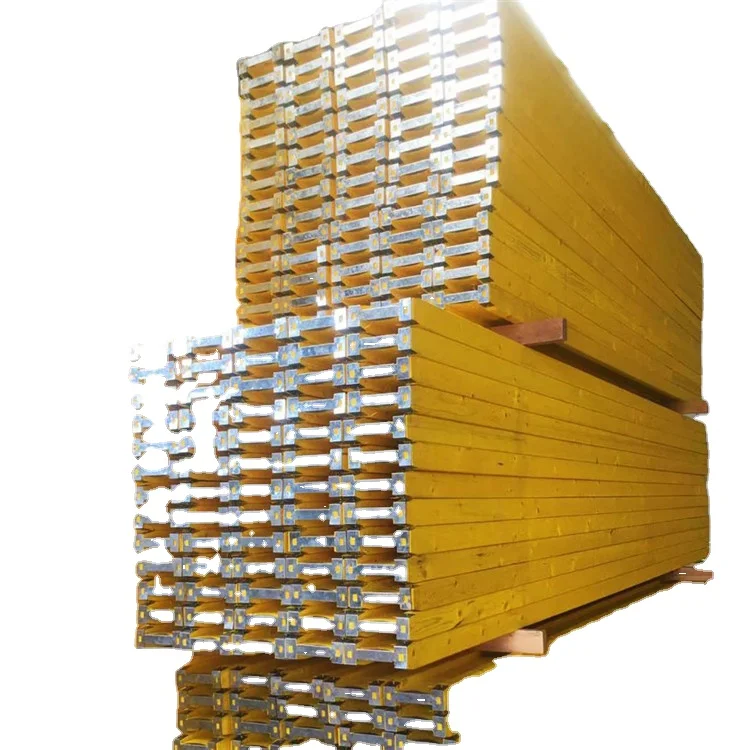

H20 AND H16 WOOD I BEAMS PHOTOS:

Trade Terms:

1.) MOQ: 1*20G

2) Payment terms: T/T with 30% deposit in advance or L/C at sight

3) Delivery time: 15~20 days after getting your deposit

4) Packing: seaworthy pallets packing

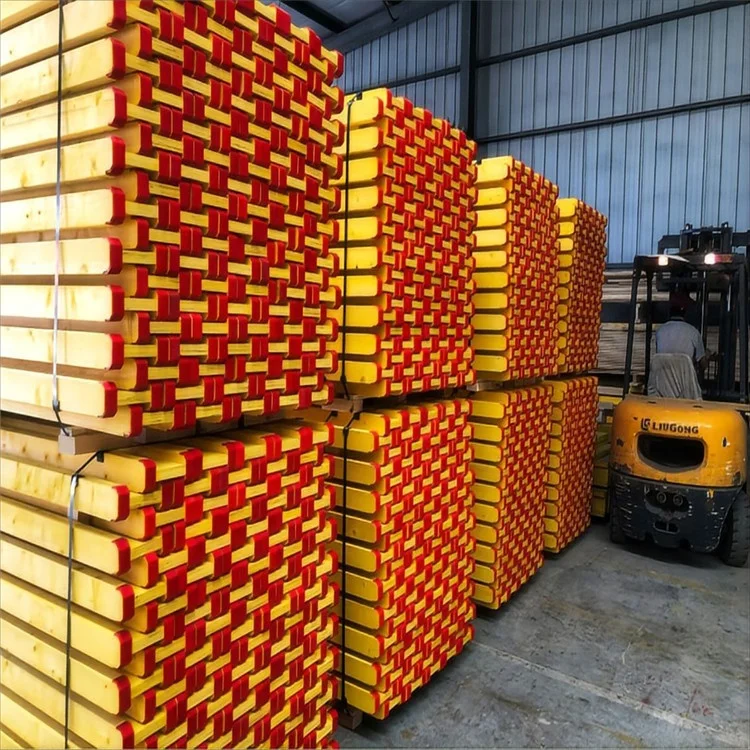

package &container load _20231016091110
