Product Description
Low Noise European Wind Turbine 5KW Vertical Wind Generator for Home and Commercial use
The H type vertical wind turbine adopts the horizontal plane rotation and the design of the blades using the principle of aircraft wings, which reduces the noise to a level that cannot be measured in the natural environment.
Due to eolic generator's different design structure and operating principle, vertical wind turbine has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.
Due to eolic generator's different design structure and operating principle, vertical wind turbine has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.
Technical Parameter
Model | ES-H530- 800 | ES-H530- 1000 | ES-H530- 2000 | ES-H530- 3000 | ES-H530-5000 | ||||
Rated Power | 800w | 1kw | 2kw | 3kw | 5kw | ||||
Rated Voltage | 24V/48V/96V | 24/48/96V | 48V/96V/120V/220V/380V | ||||||
Start Wind Speed | 2.5m/s | ||||||||
Rated Wind Speed | 11m/s | ||||||||
Safe Wind Speed | ≤45m/s | ≤50m/s | |||||||
Blade Diameter | 1.35m | 1.67m | 2.1m | 2.63m | 3.15m | ||||
Blade Height | 2m | 2.2m | 3.2m | 4.2m | 5m | ||||
Blade Number | 5 high-speed blades+Assist the wind wheel | ||||||||
Blade Material | Aluminum alloy | ||||||||
Fuselage Material | Aluminum alloy | Cast Iron | |||||||
Magnetic Steel Material | NdFeB | ||||||||
Generator Type | Three-phase AC external rotor generator | ||||||||
Control Mode | Electromagnetic brakes | ||||||||
Wind Direction Adjustment | 360° automatic windward wind | ||||||||
Service life | ≥ 20 years | ||||||||
Degree of protection | IP54 | ||||||||
Net/Gross weight(kg) | 120/175 | 160/220 | 600/765 | 850/1150 | |||||
Packing size(cm) | 160*50*65+205*30*32 | 160*70*80+225*30*32 | 2.9*1*1.1 +4.3*0.4*0.5 | 5.1*0.5*0.6 +3.3*0.4*0.85 | |||||
Low Noise European Wind Turbine 5KW Vertical Wind Generator for Home and Commercial use
The H type eolic generator adopts vertical blades, and the main stress points are concentrated on the hub, so the problems of blade falling off, breaking and blade flying out have been better solved. The principle of horizontal rotation and vertical flat blades makes it less affected by wind pressure and can resist super typhoons of 45 meters per second.
The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic brakes. In areas without typhoons and super gusts, only manual brakes need to be set.

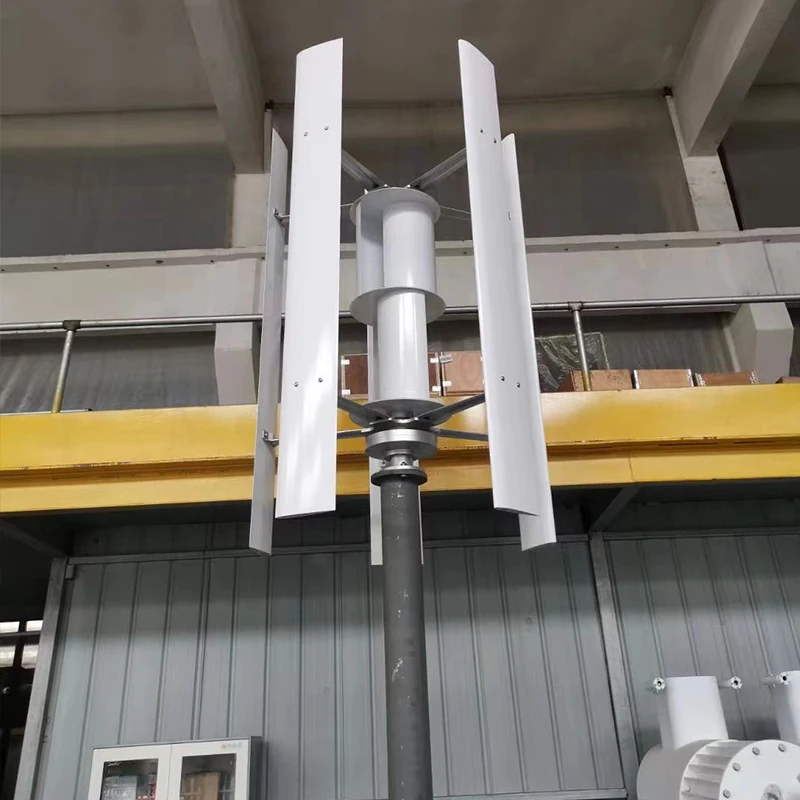

Details Images
Low Noise European Wind Turbine 5KW Vertical Wind Generator for Home and Commercial use
The start-up wind speed of H-type wind turbine generator is lower than that of other types of wind turbines, and the increase in power generation is relatively gentle. Therefore, within the wind speed range of 5-8 meters, its power generation is 10%-30% higher than other types of wind turbines.
The H-type wind turbine generator adopts a special control principle, which expands its suitable operating wind speed range to 2.5-25m/s. While maximizing the use of wind resources, a greater total power generation is obtained, which improves the economy of the use of wind power equipment.

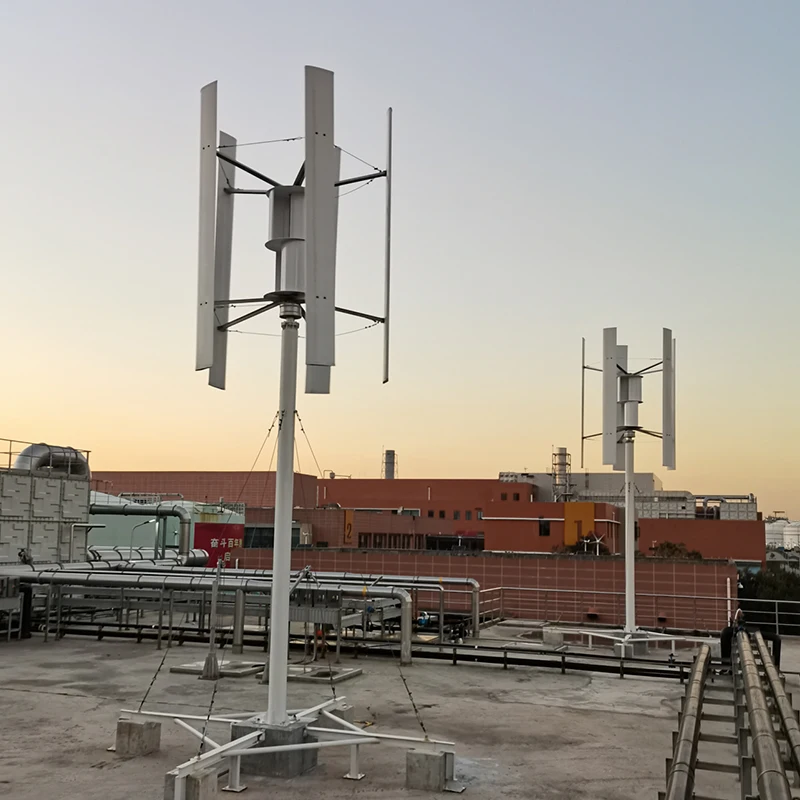

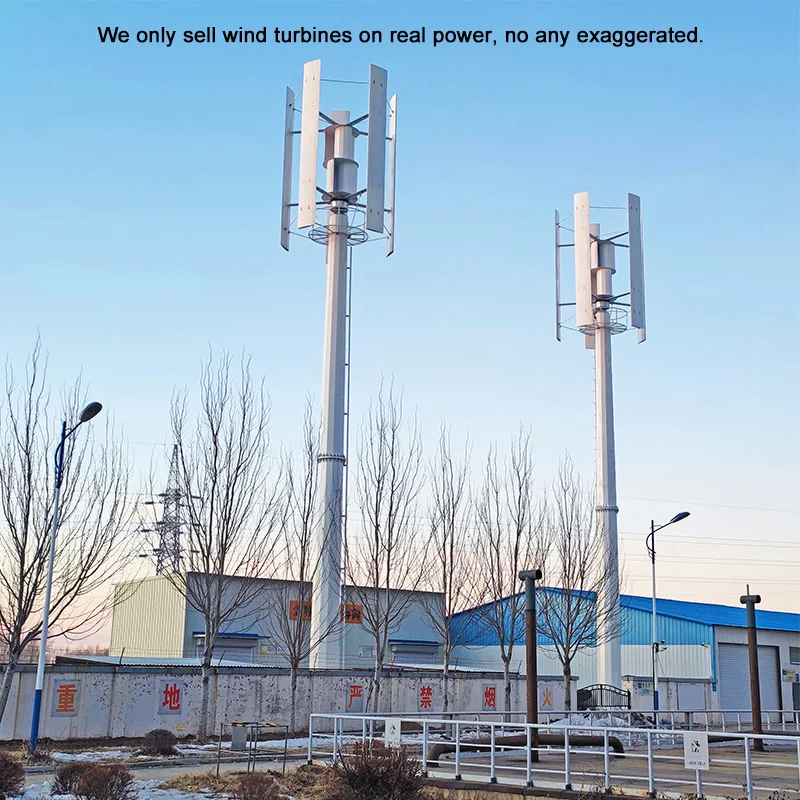

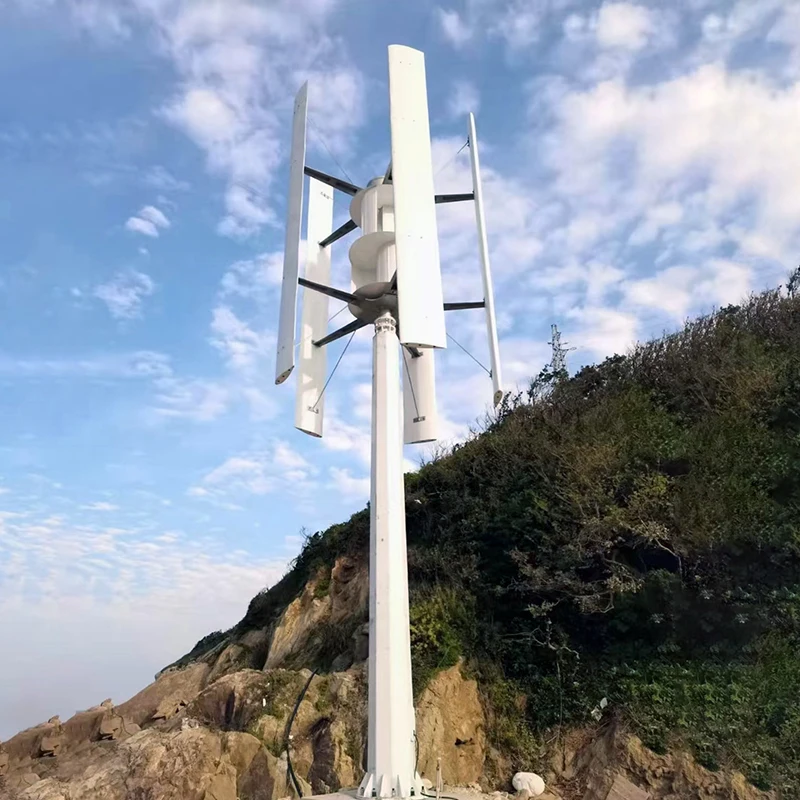

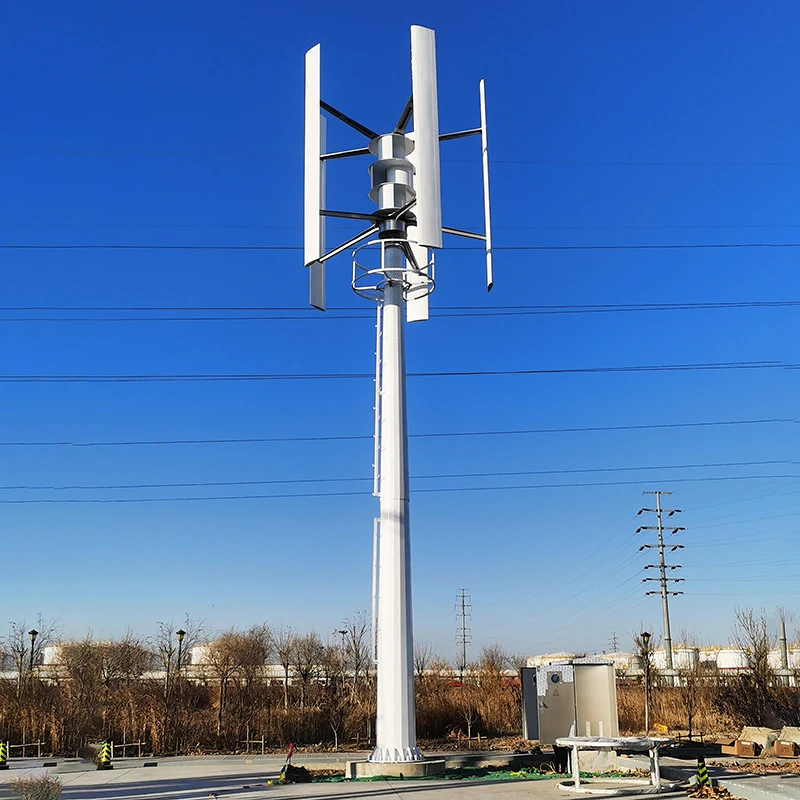

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc.
Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Recommend Products

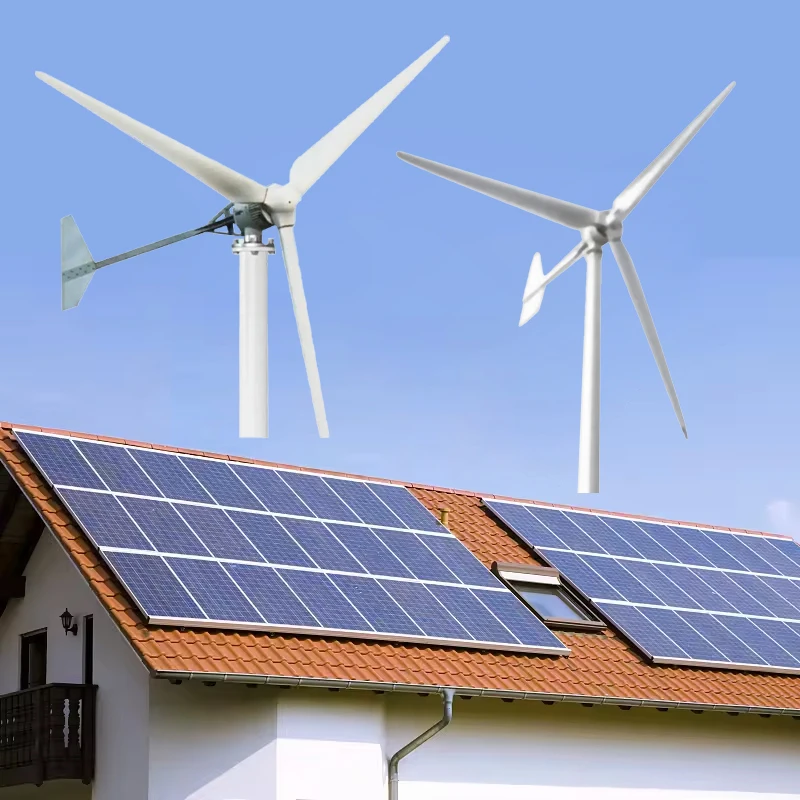

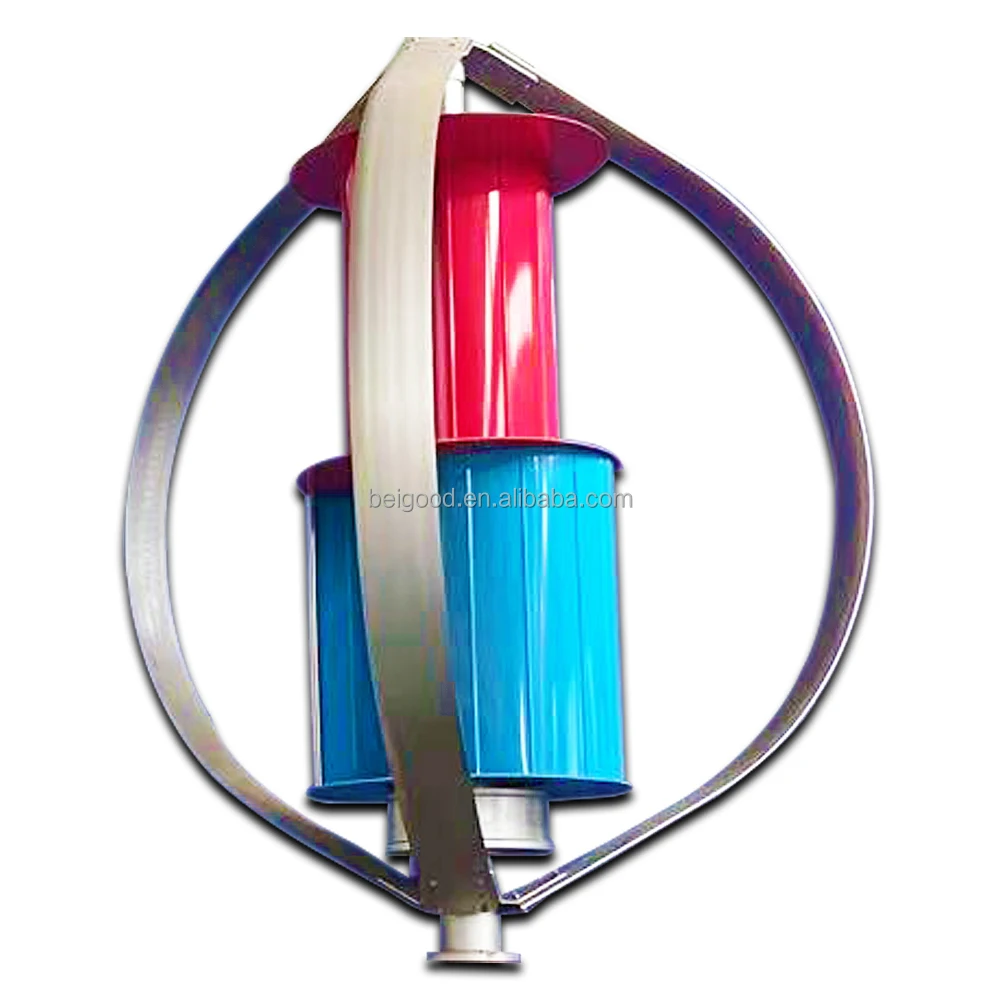

All types of our wind generator
We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
