Цена от производителя строительство дорог XLZ2303S XLZ2303K машина для холодной переработки асфальта продажи
11 040 360,00 ₽ - 14 904 486,00 ₽
Официальный XLZ2103 дорожный холодный рециркулятор почвы стабилизатор XLZ2103S асфальтовый рециркуляционный аппарат
- Категория: >>>
- Поставщик: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Сохранить в закладки 1601242713632:
Описание и отзывы
Характеристики
Please Contact
Phyllis
Senior Sales Manager Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Whatsapp/WeChat/Mobile: +86-15737137170
Email: phyllis@oriemac.com
Whatsapp/WeChat/Mobile: +86-15737137170
Email: phyllis@oriemac.com
Add: 21F Gubei International Fortune Center, No.1438 Hongqiao Road, 201103 Shanghai, China
FEATURES AT A GLANCE

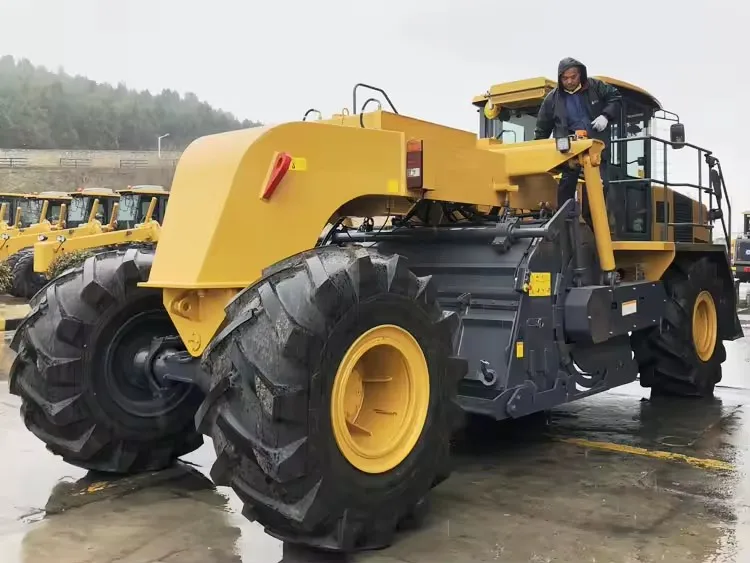

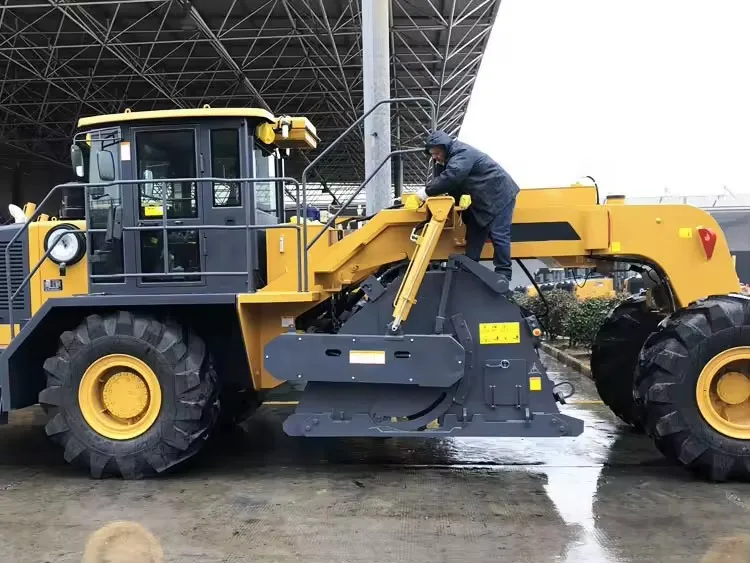

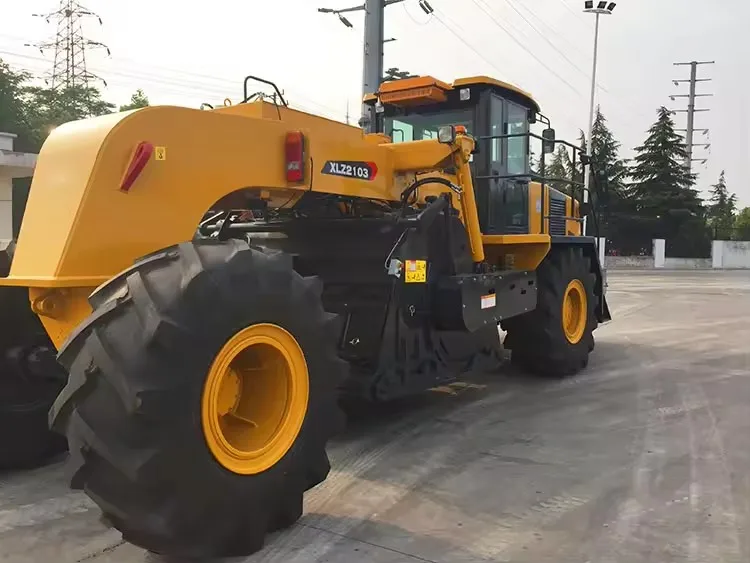

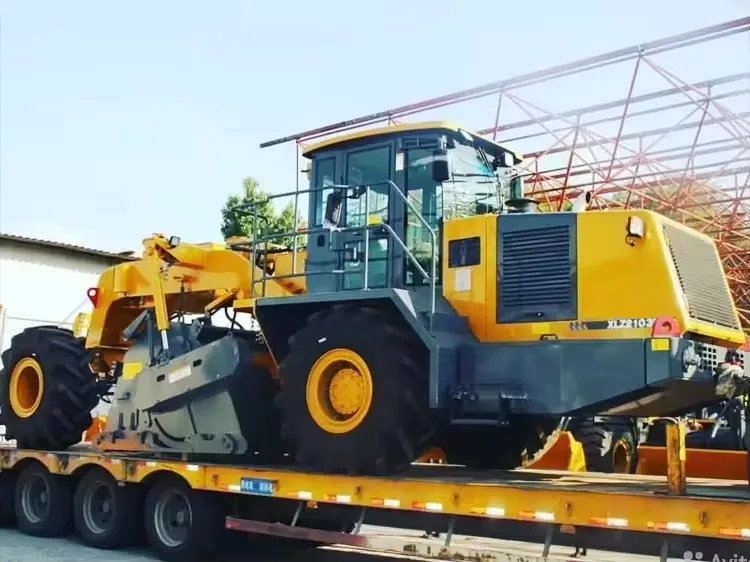

2.1m Road Cold Recycler Recycling Pavement Machine XLZ2103S With High Milling Accuracy
XLZ2103S Aslphat Cold Regeneration is a multifunctional road maintenance machine mainly used for the upgrade operations of the used asphalt county and township roads as well as the in-site stabilized soil mixing operations.
XLZ2103S road cold recycling machine is applicable for the mixing of natural soil with filler, cement, and lime to improve the mechanical and physical performances of the soil and for the milling operations of damaged asphalt or asphalt concrete roads in thickness of no higher than 150mm.
In addition, it’s also applicable for the in-situ stabilized soil mixing operations for the substrates and roadbeds of the highway, urban road, square, harbor, and parking lot projects.
Performance Characteristics:
* The milling width of this machine is 2,100mm. The maximum milling depth is 400mm and the cutter spacing is 18mm.
* With rotor technology, the milling cutters and cutter holders feature reasonable design and high milling accuracy.
* The milling rotor is driven by high-speed variable motor and reducer.
* The traveling system includes two speed modes, namely high speed mode and low speed mode. The front/rear axles are steering drive axles (Optional rear steering axle is available) to realize four-wheel steering and the installed low-pressure wide-base isolated-pattern tires feature stable operation and high adhesion.
* The sprinkler system includes the sprinkling function.
* The steering system incorporates the crab walk function.
* The engine includes advanced functions, including online display, malfunction diagnosis, and malfunction warning. In addition, the data can be more directly read by the installed display.
PRODUCT SPECIFICATIONS
Item | Unit | XLZ2103S |
Milling width | mm | 2100 |
Maximum milling depth | mm | 400 |
Cutter spacing | mm | 18 |
Diameter of milling wheel (with cutter) | mm | 1380 |
Cooling type | Weichai | |
Model | WP13G530E310 | |
The quantity of cylinder stator | 6 | |
Rated power | kW | 353 |
Engine speed | rpm | 2100 |
Oil consumption: Full load | kg/h | 69.86 |
Working speed | km/h | 0-3.2 |
Traveling speed | km/h | 0-23 |
Theoretical gradeability (working gear) | % | 20 |
Ground clearance | mm | 350 |
Front axle load | kg | 16000 |
Rear axle load | kg | 5500 |
Shipping weight | kg | 21000 |
Fuel tank | L | 650 |
Hydraulic oil tank | L | 380 |
Water tank | L | 1000 |
Voltage of electric system | V | 24 |
Machinery(length*width*height) | mm | 9232x3162x3450 |
Why Choose Us
Company Profile
Oriemac Machinery & Equipment (Shanghai) Co., Ltd. is a top package equipment solution provider in Shanghai, China, especially for construction machinery, heavy industrial equipment and vehicle. We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly and on schedule.
With over 8 years experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, Oriemac had established and have been consistently keeping good business relationship with many general
contractors, civil engineering companies and construction companies throughout the world. We participated as package equipment provider previousiv include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
contractors, civil engineering companies and construction companies throughout the world. We participated as package equipment provider previousiv include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
