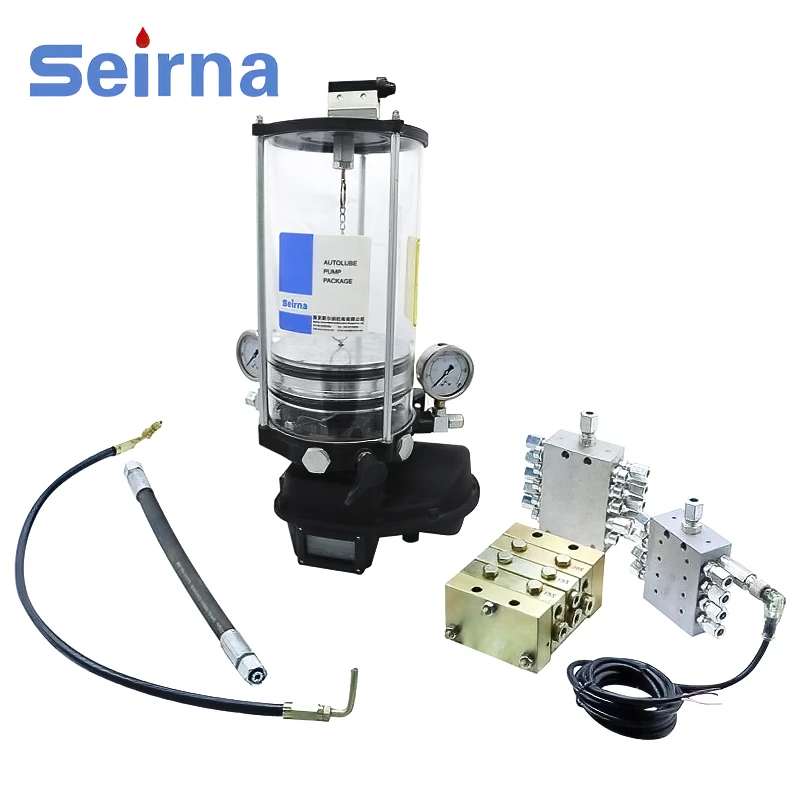

Seirna EMCB Type OEM Electric High Pressure Auto Lubrication System for Grease Transfer Pump Machine
140,00-150,00 $
CISO GT плюс Централизованная система смазки смазочный насос автоматический
- Категория: >>>
- Поставщик: Yantai Ciso Lubrication Technology Co. Ltd.Yantai Ltd.
Сохранить в закладки 1601242880376:
Описание и отзывы
Характеристики
Products Description
TECHNICAL CHARACTERISTICS | ||
Unit of pump outlets | Max 5 outlets | |
Outlet thread | G1/4 | |
Rated flow | 2ml、3ml、4ml/min | |
Operating preasure | 35MPa Max | |
Reservoir Capacity | 2、4、6、8、12L | |
Lubricants | OIL、000、00、0、1、2 | |
Operating temperatures | -50-90℃ | |
Automatic lubrication pump
●Five independent line lubrication at the same time.Output can be combined and increase displacement
●With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.
●With low liquid level alarm,flashing buzzer. Also can choose the type of output.
Standard：can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.
Automatic: With integrated control system, which can be set up local running time.Equipped with local operation and alarm light,alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distribution units into a perfect operating system.
●With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.
●With low liquid level alarm,flashing buzzer. Also can choose the type of output.
Standard：can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.
Automatic: With integrated control system, which can be set up local running time.Equipped with local operation and alarm light,alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distribution units into a perfect operating system.
Features and benefits
●-50°C Cold Resistance
●Corrosion-Resistant Pumps
●Corrosion-Resistant Pumps
●Plunger Lifespan > 5 Million Cycles
●Durable Controller Shield
●Max Pressure > 35MPA
●Advanced Integrated Control
●CE Certification
●Design patent - IP67
Applications
●Construction machinery
●Agricultural equipment
●Agricultural equipment
●Wind powerequipment
●Press machine
●Mining equipment
●Ship and Marine
engineering
engineering
●Food and drinking
Fill Grease Type
Ordering information
Lubrication system customization
Single Line Lubrication System
A single-line lubrication system is a type of lubrication system in machinery and equipment that is used to provide a continuous supply of lubricant to various components.
A metering valve is mounted on the main line connected to the pump. The metering valve has a certain resistance to pressure shocks, after which the pressure is built up and the pressure delivers the established lubricant to the lubrication point. When the system is depressurised, a certain dose of lubricant is replenished in the metering valve for the next lubrication.
A metering valve is mounted on the main line connected to the pump. The metering valve has a certain resistance to pressure shocks, after which the pressure is built up and the pressure delivers the established lubricant to the lubrication point. When the system is depressurised, a certain dose of lubricant is replenished in the metering valve for the next lubrication.
The Advantages :●Connecting numerous lubrication points ●Smallest dosing quantities ●Compact construction
●For oil or grease● Cost-effective●Easy assembly
●For oil or grease● Cost-effective●Easy assembly

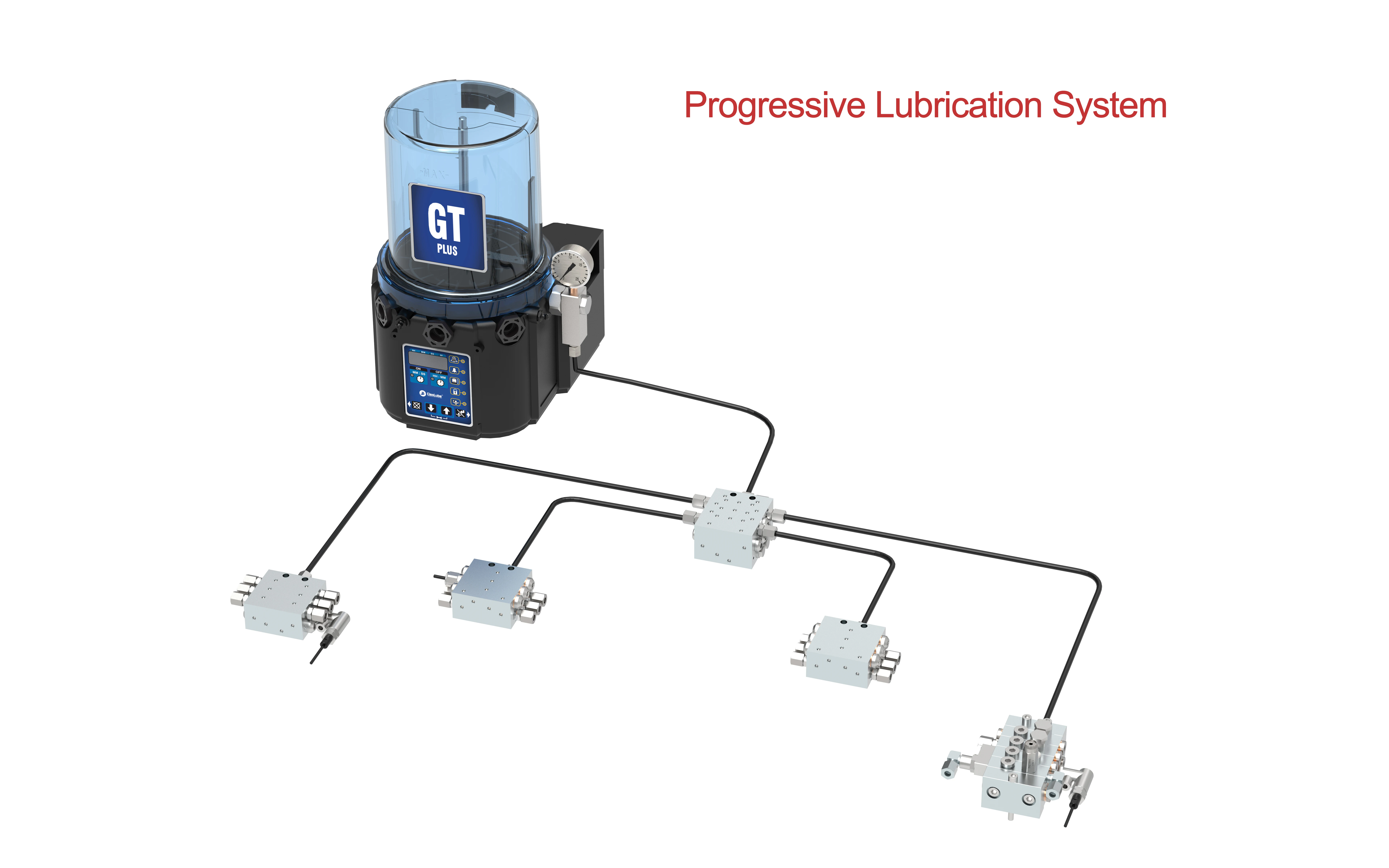

Progressive Lubrication System
The progressive lubrication system comprises a feed pump and progressive distributors.The lubricant is pumped through the main lines to the progressive distributor with the pump. The lubricant is delivered “progressively” to the friction point.The circulation of a progressive distributor is monitored optically or lectrically.
The Advantages :
●Compact lexible kit
●Monitored function
●Channels flow through completely
●Wide range of use
●Integrated return valve inside
●Compact lexible kit
●Monitored function
●Channels flow through completely
●Wide range of use
●Integrated return valve inside
Dual Line Lubrication System
Dual line lubrication systems can be used for large systems with dispersed lubrication points that require different amounts of lubrication. Using two main lines Alternating branch lines along the main line are connected to a two-line metering unit to supply large quantities of lubricant to the lubrication points.
In large two-line systems, pressure switches at the end of the line are used to control and In large two-line systems, end-of-line pressure switches are used to control and monitor the system. These flexible systems are simple in design and can be controlled.Dual line metering units can be combined with downstream progressive metering units to increase the total number of lubrication points receiving small quantities of lubricant. Two-line systems that can dispense accurate lubricant over distances of up to 100 metres or more, up to 2,000 lubrication points.
The Advantages :
●Reliability, up to 2,000 lubrication points can be supplied with precisely measured lubricant over a length of up to 100 m.
●Reliability, up to 2,000 lubrication points can be supplied with precisely measured lubricant over a length of up to 100 m.
●Simple and flexible, easy to expand or reduce
●Multiple applications
●Ultrasonic high and low level control
●Built-in lubricant filter
●Maintains high efficiency in harsh environmental conditions.
Product Uses
Customer Photos
Company Profile
FAQ
1 .Are you factory or only company?
A:We have factory to produce lubrication pump.
2.What's your delivery time?
A: Generally,we can delivery in 3-7 days after we get the deposit.
3.What is the payment terms?
A: We accept T/T , 30% as the deposit,the balance payment should be paid before delivery the goods.
4.What's your MOQ?
A:Our MOQ is 10 pcs.
5.Can I be your agent in my country ?
A: We looks forward to long-term cooperation,if you have an idea,we can communicate in detail.
6.Can i have my own customized product?
A:Of course.We accept OEM and ODM.
A:We have factory to produce lubrication pump.
2.What's your delivery time?
A: Generally,we can delivery in 3-7 days after we get the deposit.
3.What is the payment terms?
A: We accept T/T , 30% as the deposit,the balance payment should be paid before delivery the goods.
4.What's your MOQ?
A:Our MOQ is 10 pcs.
5.Can I be your agent in my country ?
A: We looks forward to long-term cooperation,if you have an idea,we can communicate in detail.
6.Can i have my own customized product?
A:Of course.We accept OEM and ODM.
Похожие товары
CISO GT PLUS 2L Electric Grease Pump Automatic With Liquid Level Controller for Central Lubricatio
199,08-213,08 $
Kamoer mini 12V 24v регулируемый поток перистальтического насоса для лабораторного оборудования

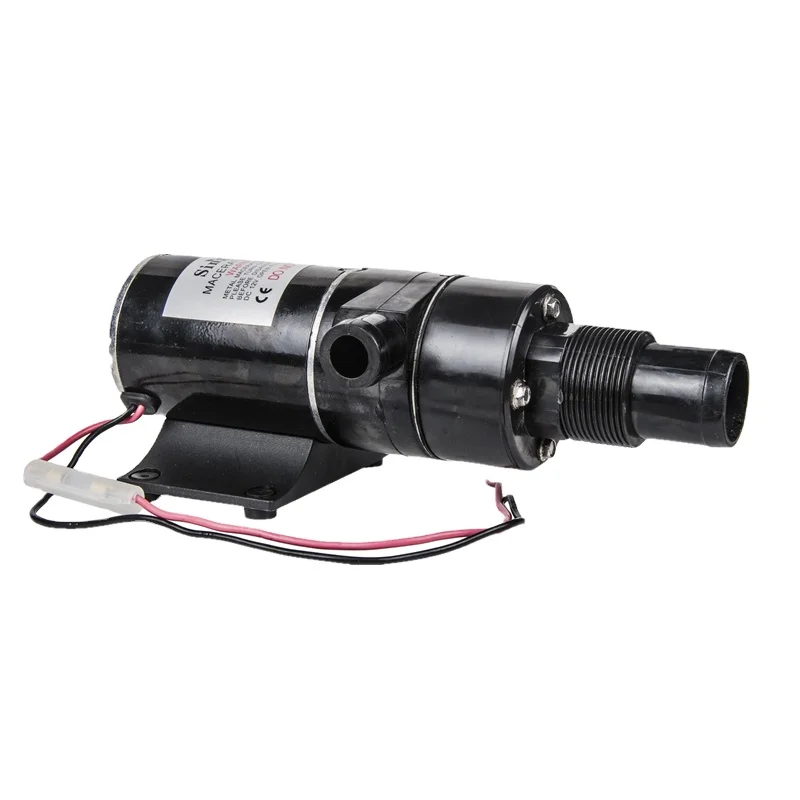

Аксессуары для автофургонов Singflo FL-65A высококачественный 49 2lpm DC Macerator Pump
29,00-36,00 $
High Viscosity Honey Transfer Rotary Lobe Pump Food Grade Small Twin Rotor Pumps for Chocolate Cream
300,00-1 500,00 $

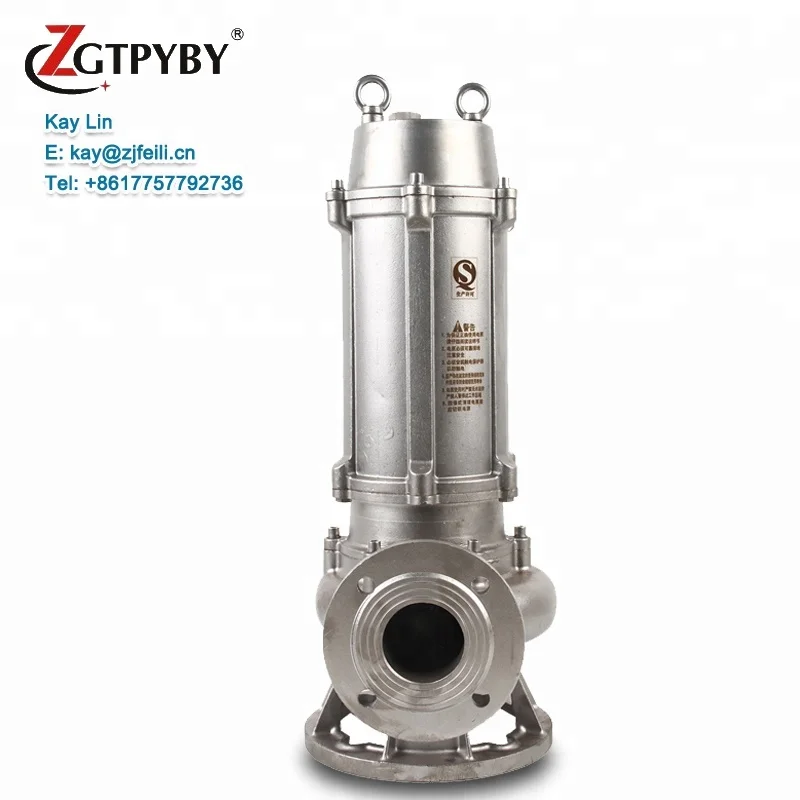

Погружной насос грязеотталкивающий водоотталкивающий
