Product Overview
Submersible Mud Pump Submersible Sand Pumps Submersible Hydraulic Sand Pump for Excavator
The DMH series Submersible Hydraulic Sand Pump is a heavy-duty submersible pump designed for the dredging process, transporting underwater sand, slurry, sludge, gravel, or other sediments to a specified location.
OCEAN Pump offers a variety of wear-resistant Submersible Hydraulic Sand Pumps with large spherical passages, capable of handling up to 60% solids. The DMH series pumps can be hydraulically or electrically driven, depending on the working conditions, and feature excellent suction properties, allowing them to be submerged in highly mixed densities.
One of the key advantages of the DMH series Submersible Hydraulic Sand Pump is its versatility. It is available with many optional suction heads and accessories, making it adaptable to various dredging applications. The pump's compact structure and portable installation further contribute to its flexibility.
Engineered for durability, the DMH series pump boasts high-chrome wearing components, a heavy-duty mechanical sealing system, and an overload thermal protection system. These features ensure the pump can withstand the harsh conditions encountered in dredging operations, providing reliable performance and a longer service life.
In summary, the DMH series Submersible Hydraulic Sand Pump from OCEAN Pump is a versatile and rugged solution for the efficient transportation of abrasive materials during dredging projects. Its combination of high solids handling capacity, adaptable design, and durable construction make it a valuable asset for industries such as mining, construction, and environmental remediation.
OCEAN Pump offers a variety of wear-resistant Submersible Hydraulic Sand Pumps with large spherical passages, capable of handling up to 60% solids. The DMH series pumps can be hydraulically or electrically driven, depending on the working conditions, and feature excellent suction properties, allowing them to be submerged in highly mixed densities.
One of the key advantages of the DMH series Submersible Hydraulic Sand Pump is its versatility. It is available with many optional suction heads and accessories, making it adaptable to various dredging applications. The pump's compact structure and portable installation further contribute to its flexibility.
Engineered for durability, the DMH series pump boasts high-chrome wearing components, a heavy-duty mechanical sealing system, and an overload thermal protection system. These features ensure the pump can withstand the harsh conditions encountered in dredging operations, providing reliable performance and a longer service life.
In summary, the DMH series Submersible Hydraulic Sand Pump from OCEAN Pump is a versatile and rugged solution for the efficient transportation of abrasive materials during dredging projects. Its combination of high solids handling capacity, adaptable design, and durable construction make it a valuable asset for industries such as mining, construction, and environmental remediation.
FEATURES AT A GLANCE
1.Compact structure for flexible operation
2.Hydraulically or electrically driven
3.Proven modular design and fabrication
4.High chrome wear-resistant components
5.Heavy-duty sand or slurry suction
6.Heavy-duty mechanical sealing system
7.Overload thermal protection system
8.Large sphere passage impeller
9.Versatile accessories such as agitator, cutter or jet-rings
10.Reliable and cost-effective
11.High efficiency and energy saving
12.Easy to operate and maintain
13.Longer service life
2.Hydraulically or electrically driven
3.Proven modular design and fabrication
4.High chrome wear-resistant components
5.Heavy-duty sand or slurry suction
6.Heavy-duty mechanical sealing system
7.Overload thermal protection system
8.Large sphere passage impeller
9.Versatile accessories such as agitator, cutter or jet-rings
10.Reliable and cost-effective
11.High efficiency and energy saving
12.Easy to operate and maintain
13.Longer service life

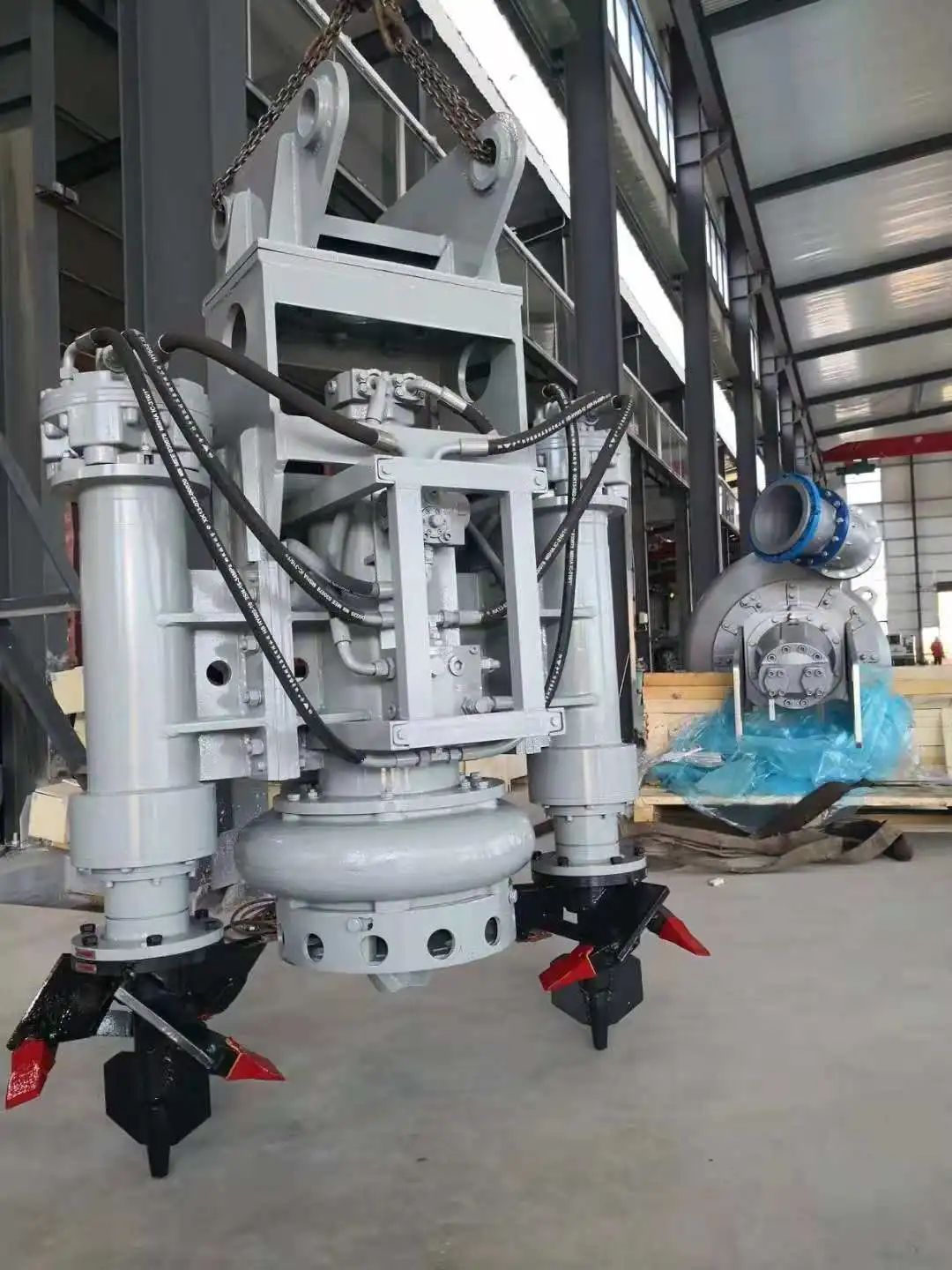

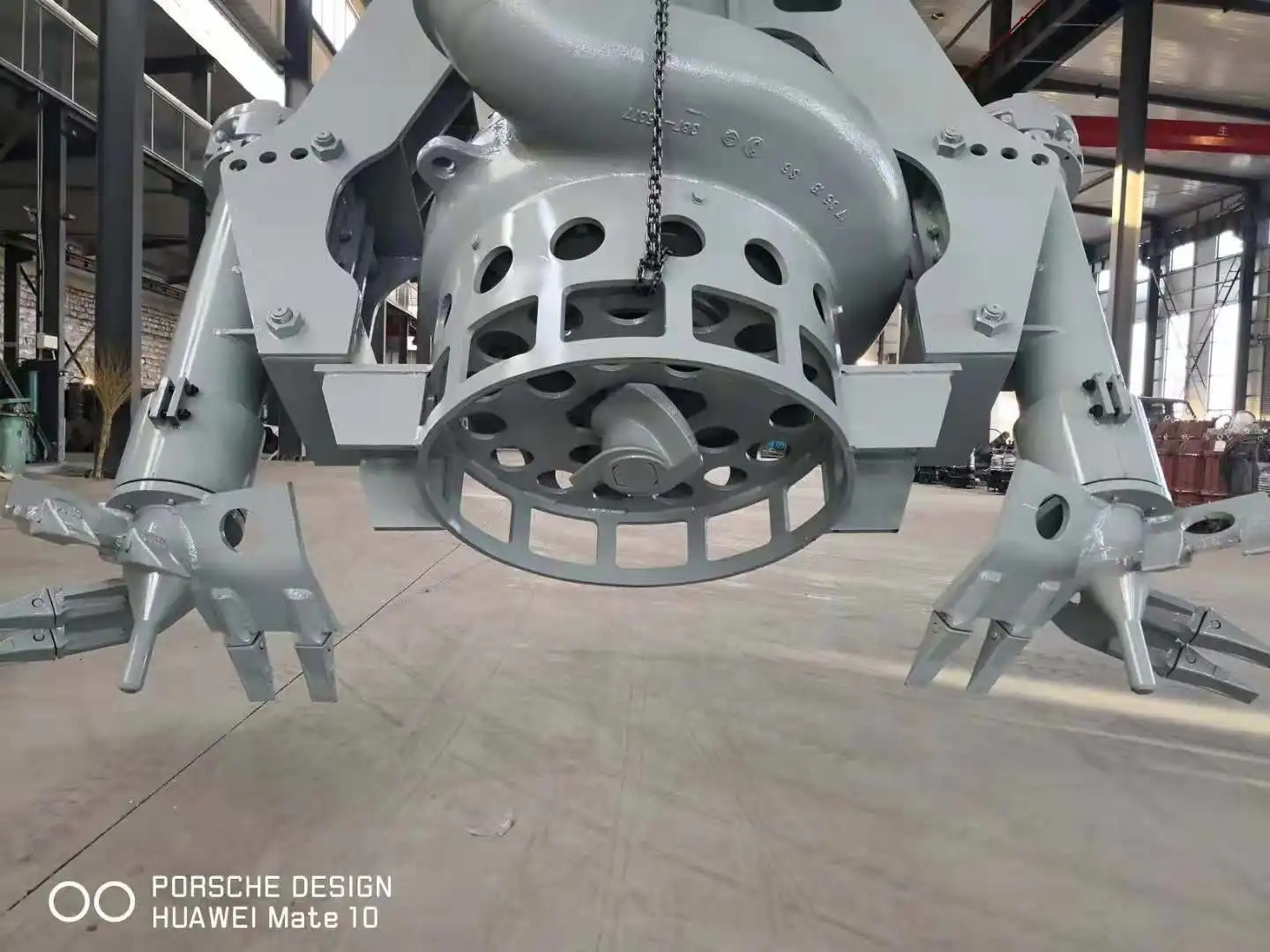

Front Picture
Side Picture
Side Picture
PRODUCT SPECIFICATIONS
NO. | Pump Type | DISCH. DIA | CAP | Head | Power | Rotation speed | Eff. | Biggest particles discontinuous pass through |
(mm) | (m³/h) | (m) | (kw) | (r/min) | (%) | (mm) | ||
1 | DMD 50-21-11 | 100 | 35 | 22 | 11 | 1460 | 48 | 21 |
50 | 21 | |||||||
60 | 20 | |||||||
2 | DMD 50-26-11 | 80 | 35 | 29 | 11 | 1460 | 48 | 13 |
50 | 26 | |||||||
60 | 24 | |||||||
3 | DMD 100-18-11 | 100 | 70 | 20 | 11 | 1460 | 55 | 21 |
100 | 18 | |||||||
120 | 15 | |||||||
4 | DMD 25-40-15 | 80 | 18 | 41 | 15 | 1460 | 35 | 13 |
25 | 40 | |||||||
30 | 39 | |||||||
5 | DMD 50-35-15 | 100 | 35 | 38 | 15 | 1460 | 47 | 13 |
50 | 35 | |||||||
60 | 32 | |||||||
6 | DMD 60-30-15 | 100 | 42 | 33 | 15 | 1460 | 50 | 13 |
60 | 30 | |||||||
72 | 27 | |||||||
7 | DMD 75-25-15 | 100 | 52 | 28 | 15 | 1460 | 51 | 13 |
75 | 25 | |||||||
90 | 22 | |||||||
8 | DMD 150-15-15 | 150 | 105 | 17 | 15 | 1460 | 56 | 21 |
150 | 15 | |||||||
180 | 13 | |||||||
9 | DMD 75-35-22 | 100 | 52 | 38 | 22 | 980 | 48 | 13 |
75 | 35 | |||||||
90 | 32 |

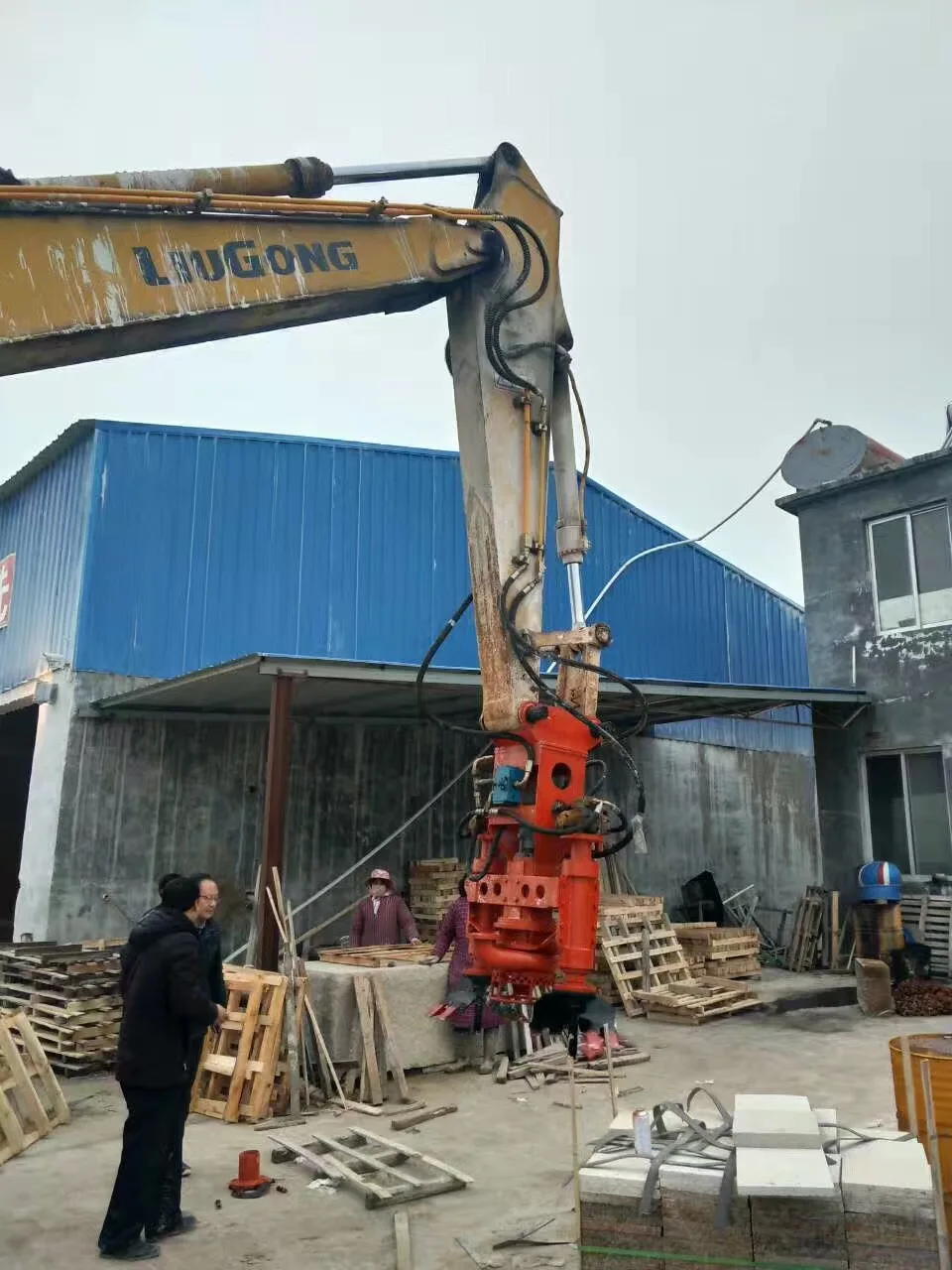

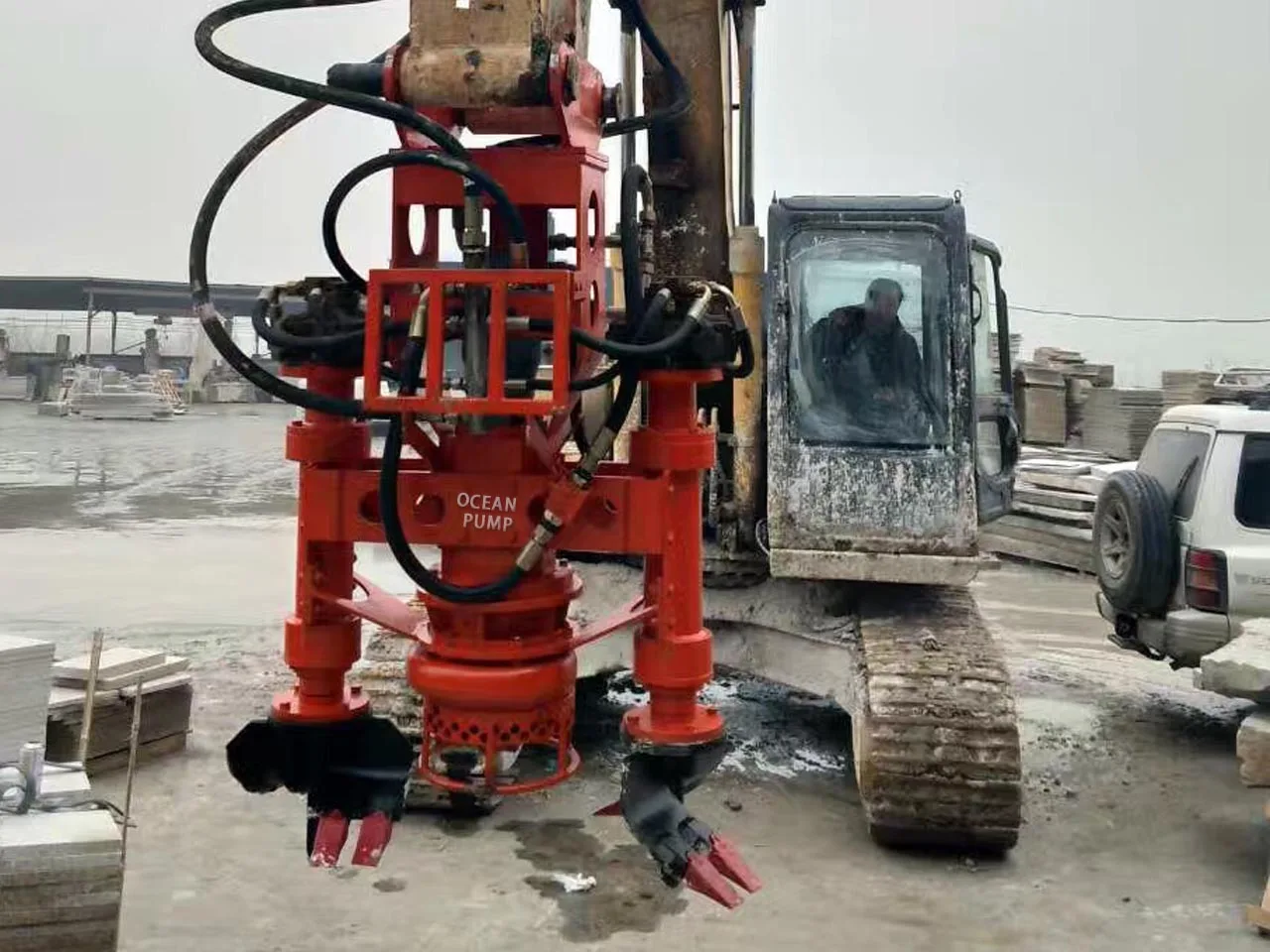

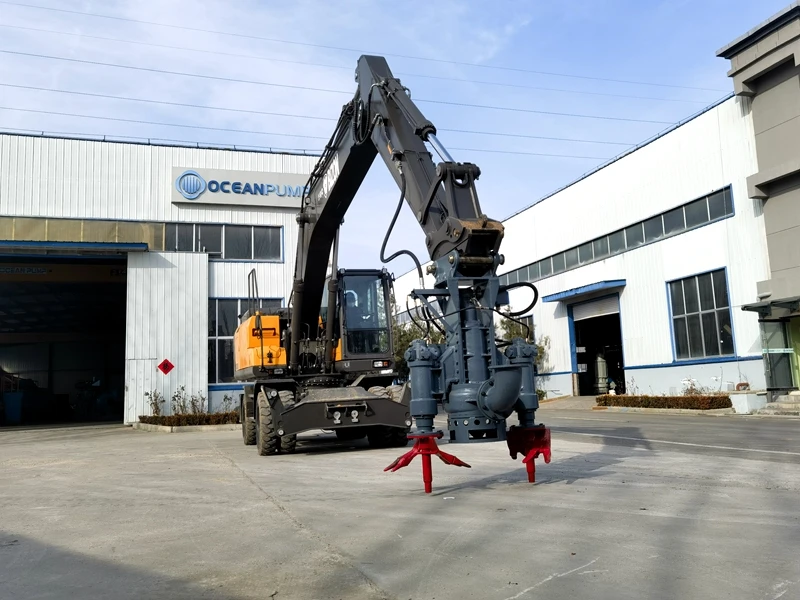

Successful case
Successful case
Consider the following specifications of the Komatsu PC1000 excavator:
Equipment: Komatsu PC1000 excavator
Hydraulic submersible slurry pump: double vane design
Diesel engine power: 405KW
Maximum torque speed: 1700RPM
Displacement: 23.15L
In addition, for the selection of hydraulic sediment pumps, you can choose the following configurations:
Outlet diameter: 300mm
Clean water flow: 800 cubic meters
Pumping distance: 25 meters
Power: 110kW
Plunger quantitative motor displacement: 250
Working pressure: 25-30MWPa
Fuel supply capacity: 250
Hydraulic mixer configuration: five-star motor, displacement 630
Power: 10kW
Oil Supply: 50
Total oil supply: 300
Suspension steel plate: welded customization
Oil valve oil circuit: included
High pressure oil pipe configuration: provided
Please note that these specifications are based on the information given and it is recommended to consult a Komatsu representative or an expert in the field to ensure the equipment is suitable for your specific requirements.
Equipment: Komatsu PC1000 excavator
Hydraulic submersible slurry pump: double vane design
Diesel engine power: 405KW
Maximum torque speed: 1700RPM
Displacement: 23.15L
In addition, for the selection of hydraulic sediment pumps, you can choose the following configurations:
Outlet diameter: 300mm
Clean water flow: 800 cubic meters
Pumping distance: 25 meters
Power: 110kW
Plunger quantitative motor displacement: 250
Working pressure: 25-30MWPa
Fuel supply capacity: 250
Hydraulic mixer configuration: five-star motor, displacement 630
Power: 10kW
Oil Supply: 50
Total oil supply: 300
Suspension steel plate: welded customization
Oil valve oil circuit: included
High pressure oil pipe configuration: provided
Please note that these specifications are based on the information given and it is recommended to consult a Komatsu representative or an expert in the field to ensure the equipment is suitable for your specific requirements.

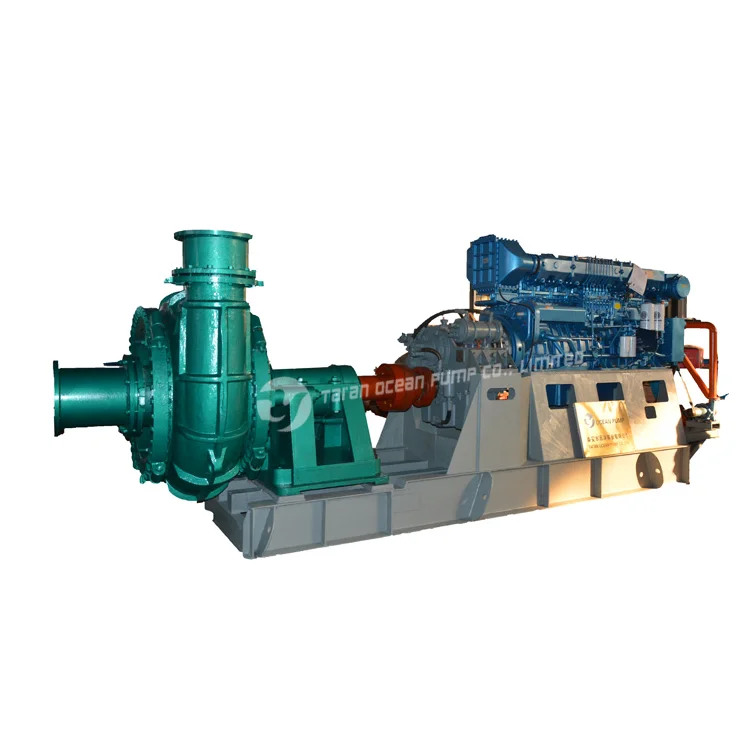

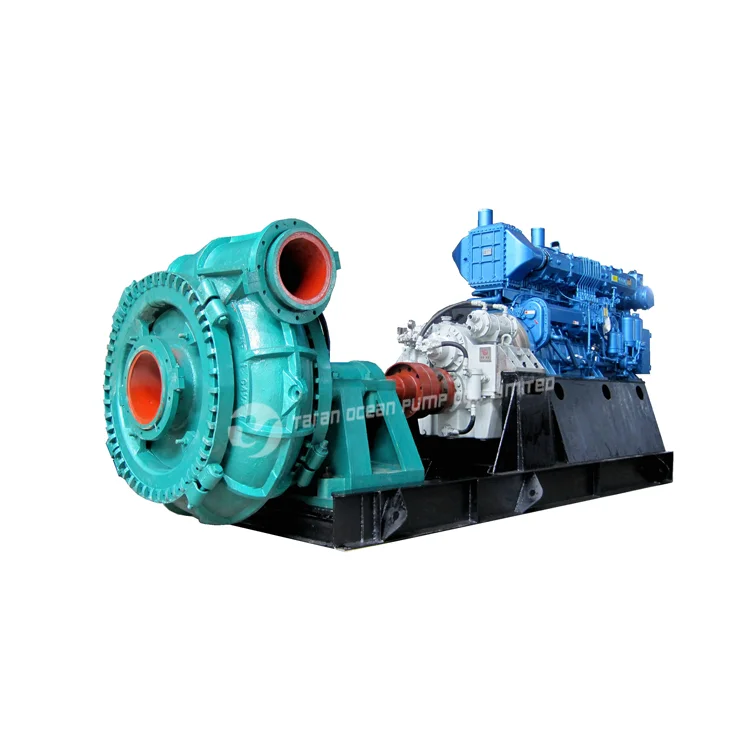

SIMILAR PRODUCTS
Packing & Delivery
Our Company
OCEAN Pump had been specialized in designing, manufacturing, and supplying sand pumps, slurry pumps, gravel pumps, and dredger equipment for more than 20 years. With an innovative hydraulic and structural design, our main sand pumping over-flow parts are made of the wear-resistant high chrome alloy, the sand pump will have a long working life, reliable operation, and small vibration, low noise, and easy maintenance.
We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
