Product Description

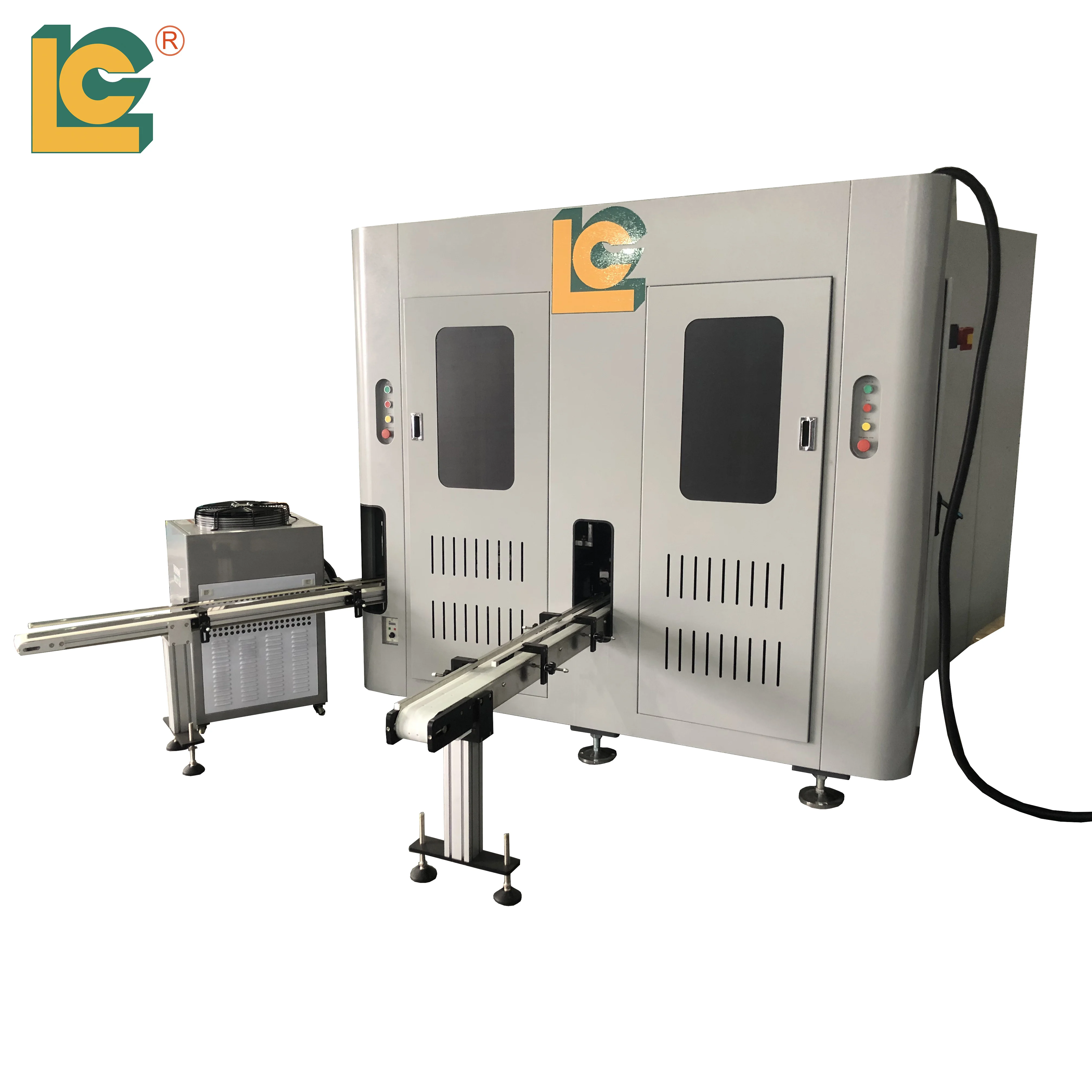

Fully CNC servo-controlled automatic screen printing machine with CCD for plastic or glass bottles jars cups tubes container
It can screen print from 1 to 17 colours.High printing precision could reach to 0.1mm
The machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high.
The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation.
It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.
Function
* Designed for the screen printing of the special circular substrates designed mainly applies to hoses, caps, cream bottles, test tubes and other round products.
* The integration of the whole synchronization on the material, the width of the feed device can be flexibly adjusted, easy to adjust depending on the size of the hose; speed stepless adjustment, so that the transport speed and printing speed like a match;
* Online flame treatment device, the surface tension of PE PE materials to increase the adhesion of the ink;
* Patented hose disc transmission system, run smooth, high accuracy;
* Automatic screen printing equipment, the fixture can dress according to the size of the hose; printing locale electronic sensors, and no pieces of printing function;
* England high-performance UV drying device, ink instantaneous drying; pull lamp replacement unit, the lamp is easy to replace;
* The whole machine of mechanical drive, touch screen operation, easily man-machine dialogue, make operation even easier;
* The eight main parts with CNC machining, high-quality machining accuracy to ensure the stability of high-speed operation, the printing speed of up to 4000pcs/hr.
* With the automatic monitoring of air pressure too low alarm function.
* Electrical components and control systems using components of Germany and Japan to ensure stable printing quality.
* Designed for the screen printing of the special circular substrates designed mainly applies to hoses, caps, cream bottles, test tubes and other round products.
* The integration of the whole synchronization on the material, the width of the feed device can be flexibly adjusted, easy to adjust depending on the size of the hose; speed stepless adjustment, so that the transport speed and printing speed like a match;
* Online flame treatment device, the surface tension of PE PE materials to increase the adhesion of the ink;
* Patented hose disc transmission system, run smooth, high accuracy;
* Automatic screen printing equipment, the fixture can dress according to the size of the hose; printing locale electronic sensors, and no pieces of printing function;
* England high-performance UV drying device, ink instantaneous drying; pull lamp replacement unit, the lamp is easy to replace;
* The whole machine of mechanical drive, touch screen operation, easily man-machine dialogue, make operation even easier;
* The eight main parts with CNC machining, high-quality machining accuracy to ensure the stability of high-speed operation, the printing speed of up to 4000pcs/hr.
* With the automatic monitoring of air pressure too low alarm function.
* Electrical components and control systems using components of Germany and Japan to ensure stable printing quality.
Specification
item | value |
Plate Type | Screen Printer |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other, Advertising Company |
Condition | New |
Place of Origin | GUA |
Usage | Tube Printer, bottle cup jar tube printer |
Automatic Grade | Automatic |
Color & Page | Multicolor |
Voltage | 380V 50HZ |
Dimensions(L*W*H) | 5400x2000x1700mm |
Weight | 2000KG |
Certification | CE |
Warranty | 1 Year |
Online support | |
Key Selling Points | Automatic |
Video outgoing-inspection | Provided |
Core Components | PLC, Pressure vessel, servo motor, CCD image positioning |
Printing Product Shape | Round/Flat/Oval/Other |
Max Product size | round diameter 100mm, length 310mm |

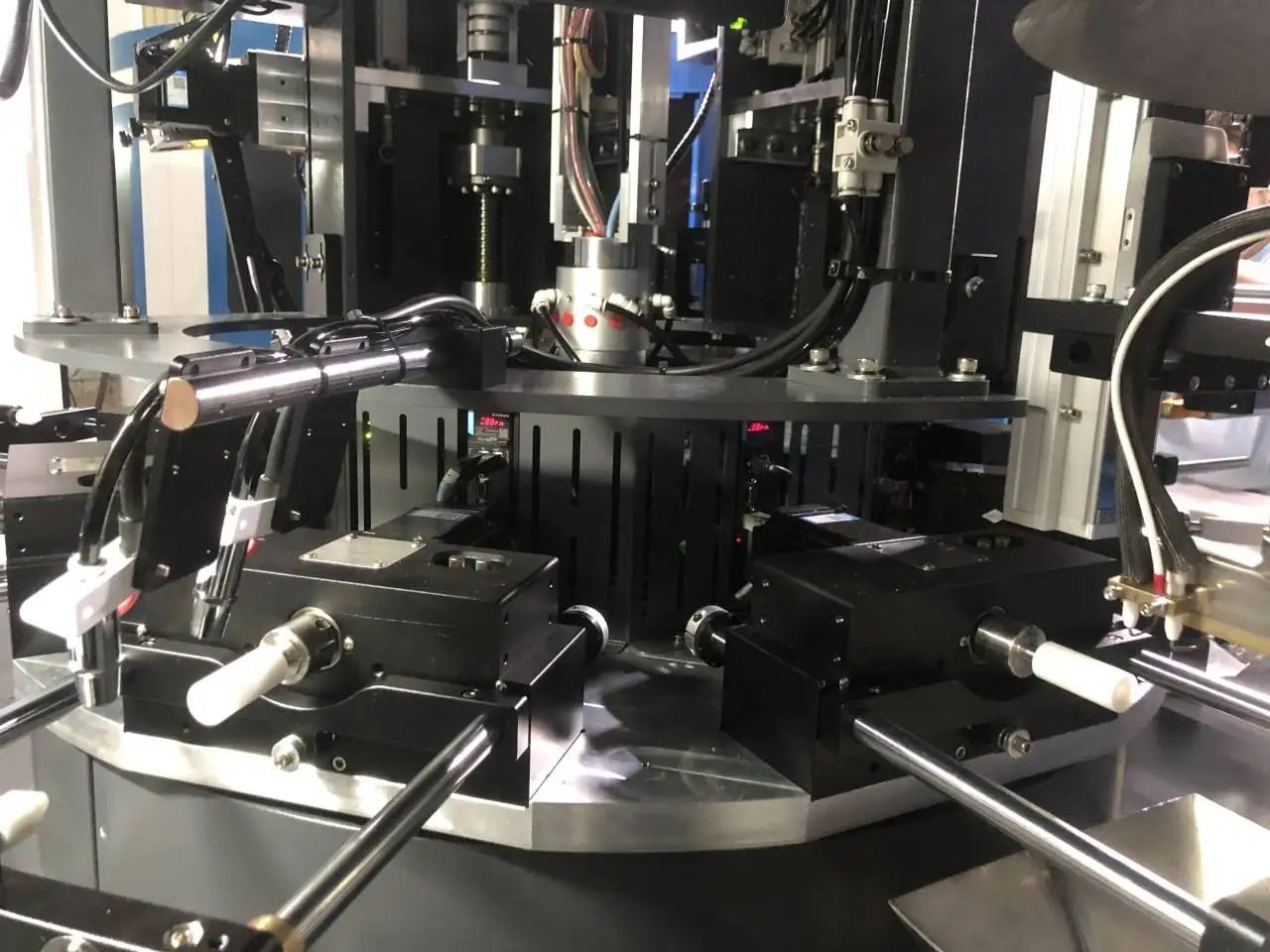

Product Details

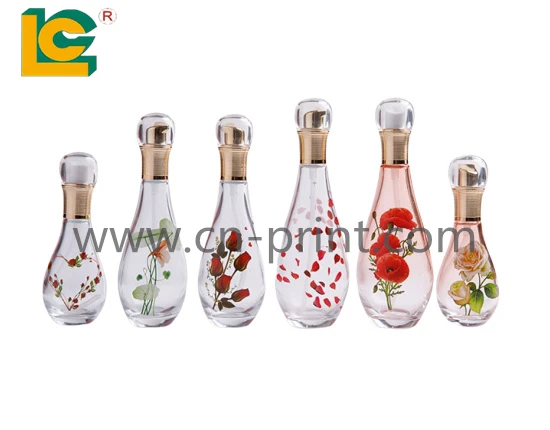

Printing samples

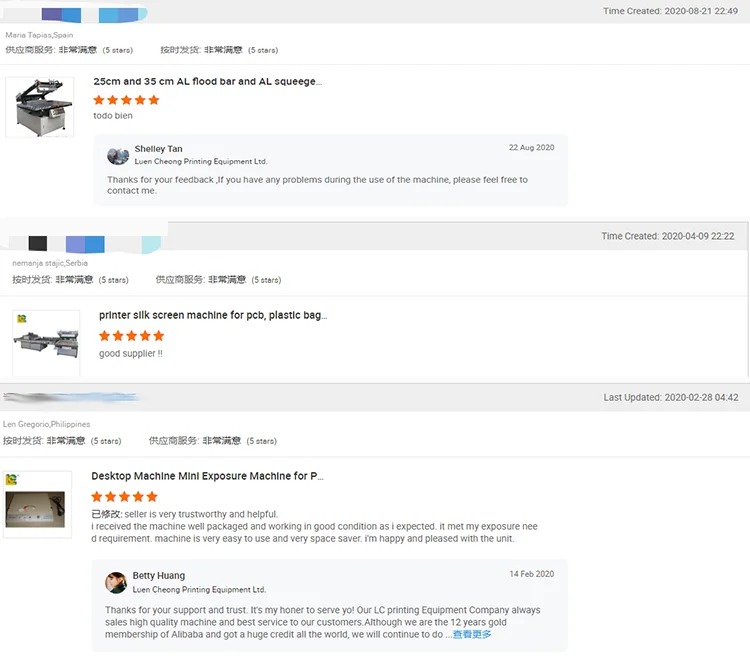

Feedback
